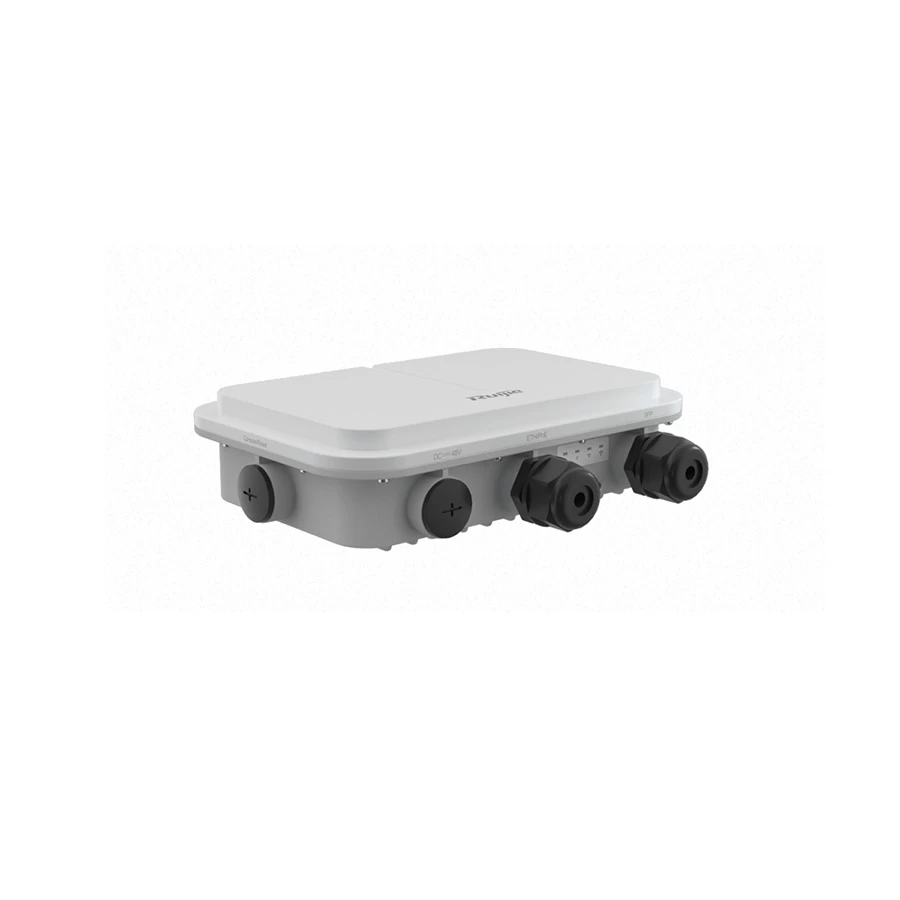

Ruijie RG-AP680-L (Wi-Fi 6) 2975 Mbps Wireless Dual Band Outdoor Access Point

Item: Ruijie RG-AP680-L (Wi-Fi 6) 2975 Mbps Wireless Dual Band Outdoor Access Point
Rating: 5
Author: Verified Buyer

8 reviews

Product Id: 29.02.925.44

Out Of Stock

See similar model

Quick Overview

Network Standards - IEEE 802.11a/b/g/n/ac and 802.11ax
Data Transfer Rates - 2975 Mbps
Band - Dual
Interface(s) - 1 x 10/100/1000Base-T Ethernet port with auto-negotiation, compliant-with IEEE 802.3af/802.3at standard, 1 x GE SFP port, 1 x RJ45 console port (serial console port).
Antenna (Type & Qty) - 4 x Internal
Color - White

Payment Method Shipping & Charge Order Procedure

Brand

Ruijie

Model

Ruijie RG-AP680-L

Network Standards

IEEE 802.11a/b/g/n/ac and 802.11ax

Data Transfer Rates

2975 Mbps

Band

Dual

Interface(s)

1 x 10/100/1000Base-T Ethernet port with auto-negotiation, compliant-with IEEE 802.3af/802.3at standard, 1 x GE SFP port, 1 x RJ45 console port (serial console port).

Number of WAN Port

Number of LAN Port

Bluetooth

Yes

Antenna (Type & Qty)

4 x Internal

Protection

IP68, 6 kV Lightning Protection

MU-MIMO Support

Yes

Multi-User MIMO

Yes

Power Method

48 V DC/0.35 A

Max. Power Consumption

12.95 W

Outdoor Use

Yes

Mounting

Yes

Color

White

Dimensions

251 x 168 x 64mm (Unit)

Weight (gm)

1.0 kg (Unit)

Warranty

3 Year (Without Adapter)

General

Brand

Ruijie

Model

Ruijie RG-AP680-L

Hardware

Network Standards

IEEE 802.11a/b/g/n/ac and 802.11ax

Data Transfer Rates

2975 Mbps

WAN Network Standard

Not Applicable

LAN Network Standard

10/100/1000

Interface

Interface(s)

1 x 10/100/1000Base-T Ethernet port with auto-negotiation, compliant-with IEEE 802.3af/802.3at standard, 1 x GE SFP port, 1 x RJ45 console port (serial console port).

Number of WAN Port

Number of LAN Port

Wireless

Security Protocols

WPA3

Band

Dual

Frequency

2.4 GHz, 5 GHz

Bluetooth

Yes

Antenna (Type & Qty)

4 x Internal

Antenna Gain

2.4 GHz radio: 4 dBi, 5 GHz radio: 6 dBi

Antenna Placement

Internal

MU-MIMO Support

Yes

Multi-User MIMO

Yes

Transmission Power

28 dBm

Management

SSID Numbers

Management

Fault inspection and alarm, Information statistics and logging, Web-based management (Eweb), User access management - Telnet, SSH, SNMP and TFTP-based management, Fat/Fit/Cloud mode switchover

Web-Based Management

Eweb

Performance

Protection

IP68, 6 kV Lightning Protection

Waterproof Level/Grade

IP68

IP Rating

IP68

Lightning Protection

6KV

OFDM/OFDMA

OFDM and OFDMA

Technical Info

VPN Pass-Through

PPPoE, IPsec

Outdoor Use

Yes

DHCP

Yes

MTBF

> 250000 Hours

Security

Wireless Security

WIDS, ACL, CPP, NFPP

Guest Network Support

Yes

Electrical

Power Method

48 V DC/0.35 A

AC Input Power

0.35 A

DC Input Power

48 V DC

Max. Power Consumption

12.95 W

Environmental

Operating Temperature

-40 to +65 Degree C

Operating Humidity

0% to 100% RH (non-condensing)

Storing/Storage Temperature

-40 to +85 Degree C

Storing/Storage Humidity

0% to 100% RH (non-condensing)

Physical Description

Button

1 x Reset button

LED Indicators

1 x multi-color system status LED, 3 x single-color RSSI LEDs

Mounting

Yes

Mount Options

Ceiling/Pole-mount

Dimensions

251 x 168 x 64mm (Unit)

Color

White

Weight (gm)

1.0 kg (Unit)

Packet Contents

Ruijie RG-AP680-L, 1 x Mounting plate assembly, 1 x Ceiling/Pole-mount bracket, 4 x M5 machine screw, 2 x M8 machine screw, 4 x M6 x 50 mm expansion anchor, 2 x Hose clamp, 2 x Watertight cable gland for the Ethernet cable power cord, 1 x Watertight cable gland for the optical cable, 3 x Dust cap, 1 x Grounding cable

Warranty

3 Year (Without Adapter)

Additional Info

Others

Packet aggregation - 802.11n/ac/ax : A-MPDU and A-MSDU, Built-in omnidirectional antenna , Power increment - Configurable in increments of 1 dBm, Bluetooth 5.0, iBeacon Bluetooth, applied to Bluetooth locating and Bluetooth applications, Antenna type - Integrated omnidirectional antenna, Max. antenna gain - 5 dBi, Max. transmit power - 10 dBm, Receive sensitivity - -88 dBm, Max. number of associated STAs - 1,024 (up to 512 STAs per radio), Max. number of BSSIDs - 32 (up to 16 BSSIDs per radio), STA management, STA limiting, Bandwidth limiting - STA/SSID/AP-based rate limiting, Wireless roaming - Layer 2 and Layer 3 roaming, IP service - Static IPv4 address and DHCP-assigned IPv4 address, NAT, FTP ALG, DNS ALG, Multicast - Multicast-to-unicast conversion, IPv6 basics - IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping , IPv6 DHCP Client, IP routing - IPv4/IPv6 static routing, User access management - Telnet, SSH, SNMP and TFTP-based management.

Specialty

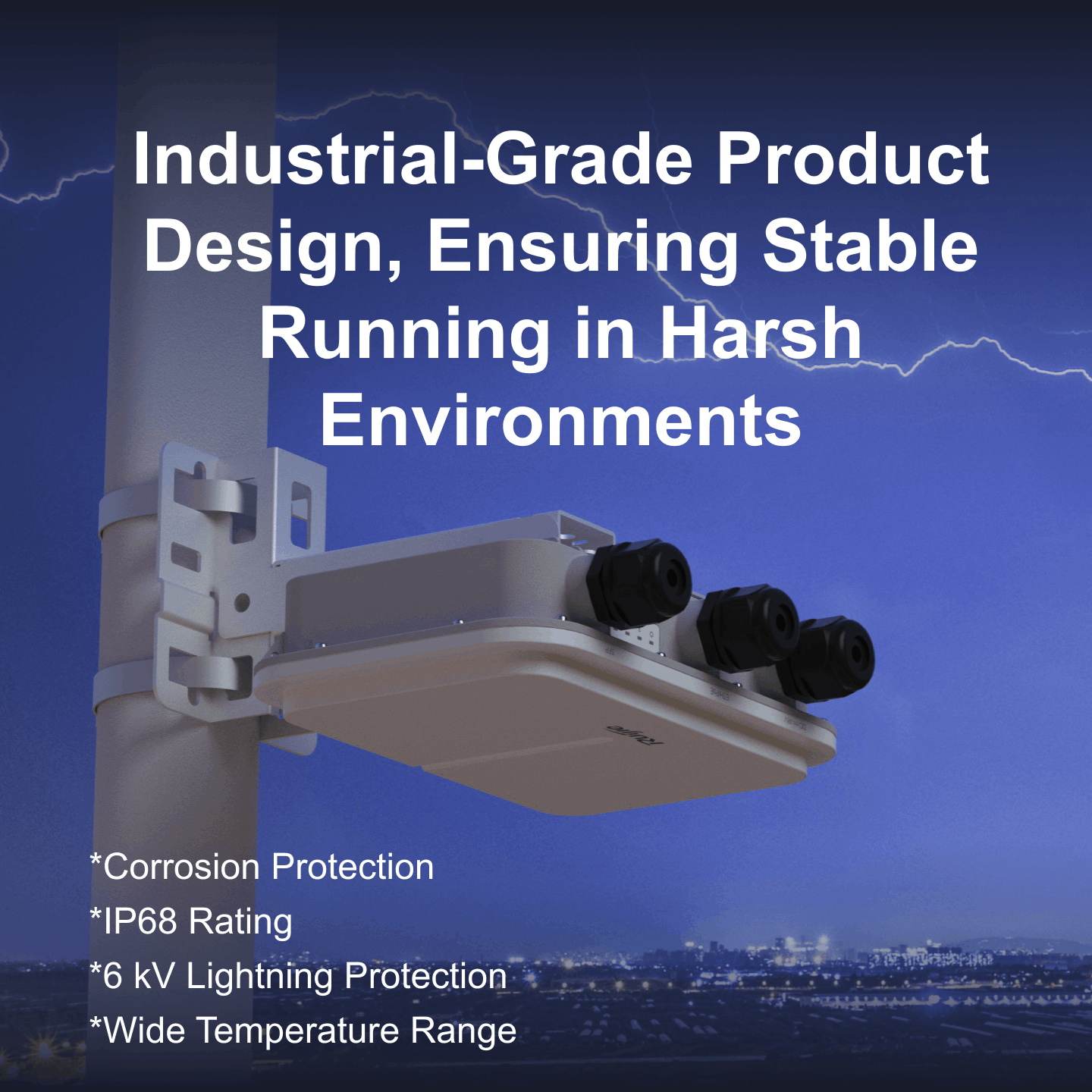

Wi-Fi 6 dual-radio wireless access point, Up to four spatial streams, Fat/Fit/Cloud mode switchover, Electrical and optical uplink ports, IEEE 802.3af/at-compliant (PoE/PoE+) power supply and DC power supply (48 V/0.35 A). Industrial-grade product design. High-power omnidirectional antennas with 360 Degree coverage to every corner, Ruijie cloud management, intelligent optimization. Installation Mount-Kit included.

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Ruijie RG-AP680-L Access Point In Bangladesh

What is the price of Ruijie RG-AP680-L Access Point In Bangladesh?

The price of Ruijie RG-AP680-L Access Point not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Ruijie RG-AP680-L Access Point from our website or visit our showrooms nearby.
