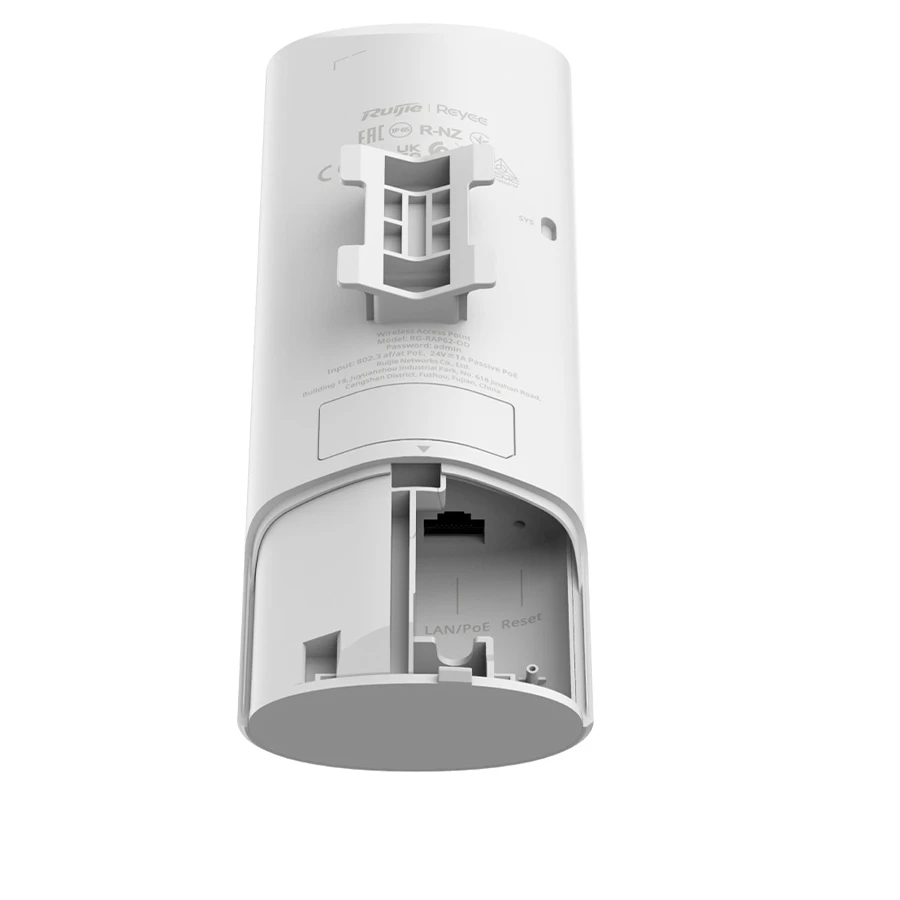

Ruijie RG-RAP62-OD (Wi-Fi 6) AX3000 Mbps Wireless Dual Band Indoor/Outdoor Versatile Access Point

Item: Ruijie RG-RAP62-OD (Wi-Fi 6) AX3000 Mbps Wireless Dual Band Indoor/Outdoor Versatile Access Point
Rating: 5
Author: Verified Buyer

Product Id: 29.02.925.85

Coming Soon

Quick Overview

Network Standards - IEEE 802.11b/g/n/ax, 2.400 GHz to 2.4835 GHzIEEE 802.11a/n/ac/ax, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz
Data Transfer Rates - 3000 Mbps
Band - Dual
Interface(s) - 1 x Number of 10/100/1000BASE-T
Antenna (Type & Qty) - 3 x Internal
Color - White

Payment Method Shipping & Charge Order Procedure

Brand

Ruijie

Model

Ruijie RG-RAP62-OD

Network Standards

IEEE 802.11b/g/n/ax, 2.400 GHz to 2.4835 GHzIEEE 802.11a/n/ac/ax, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz

Data Transfer Rates

3000 Mbps

Band

Dual

Interface(s)

1 x Number of 10/100/1000BASE-T

Number of LAN Port

Unmentioned

Bluetooth

Antenna (Type & Qty)

3 x Internal

Memory

512MB

Storage (MB/GB/TB)

128MB

Max. Concurrent Clients

300

Protection

Surge protection: Ethernet port: -/+ 4 kV for common mode

MU-MIMO Support

Yes

Max. Power Consumption

16W

Operating Mode

AP/ Router/ Wireless repeater mode

Mounting

Yes

Color

White

Dimensions

70 x 35 x 200mm

Weight (gm)

<=400 gm

Warranty

3 Year (Without Adapter)

General

Brand

Ruijie

Model

Ruijie RG-RAP62-OD

Hardware

Network Standards

IEEE 802.11b/g/n/ax, 2.400 GHz to 2.4835 GHzIEEE 802.11a/n/ac/ax, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz

Data Transfer Rates

3000 Mbps

Memory

512MB

Memory Type

DDR3

Storage (MB/GB/TB)

128MB

Interface

Interface(s)

1 x Number of 10/100/1000BASE-T

Number of LAN Port

Unmentioned

Wireless

Band

Dual

Frequency

2.4GHz - 5GHz

Bluetooth

Antenna (Type & Qty)

3 x Internal

Antenna Gain

6.50 dBi (5 GHz), 4.00 dBi (2.4 GHz)

MU-MIMO Support

Yes

Management

Max. Concurrent Clients

300

SSID Numbers

Operating Mode

AP/ Router/ Wireless repeater mode

Performance

Protection

Surge protection: Ethernet port: -/+ 4 kV for common mode

IP Rating

IP65

OFDM/OFDMA

Yes

Technical Info

DHCP

Yes

MTBF

400,000 hours

Electrical

Max. Power Consumption

16W

Passive PoE Power Supply

IEEE 802.3af (PoE), IEEE 802.3at (PoE+)

Environmental

Operating Temperature

-30 Degree C to +65 Degree C

Operating Humidity

-40 Degree C to +85 Degree C

Storing/Storage Temperature

0% RH to 100% RH (non-condensing)Storage

Storing/Storage Humidity

0% RH to 100% RH (non-condensing)

Physical Description

Button

1 x Reset button

Mounting

Yes

Mount Options

Wall/Pole

Dimensions

70 x 35 x 200mm

Color

White

Weight (gm)

<=400 gm

Warranty

3 Year (Without Adapter)

Additional Info

Others

5 GHz Wi-Fi Wi-Fi 4 (IEEE 802.11a/n)Wi-Fi 5 (IEEE 802.11ac)Wi-Fi 6 (IEEE 802.11ax), 2.4 GHz Wi-Fi Wi-Fi 4 (IEEE 802.11b/g/n)Wi-Fi 6 (IEEE 802.11ax), Radio design Dual-radio4 spatial streams 2.4 GHz: 2 x 2, MU-MIMO 5 GHz: 2 x 2, MU-MIMO, FEM 2.4 GHz: 2 x eFEM5 GHz: 3 x eFEM, 5 GHz channel width Auto/20/40/80/160 MHz, 2.4 GHz channel width, Auto/20/40 MHz, Maximum wireless data rate 2974 Mbps, 5 GHz wireless data rate 2401 Mbps 2.4 GHz wireless data rate, 573 Mbps, Maximum transmit power (5 GHz) Combined power: Combined power: 27.7 dBm (single-stream power: 23 dBm), Maximum transmit power (2.4 GHz) Combined power: 26 dBm (single-stream power: 23 dBm), Coverage range 5 GHz max: 300 m (984.25 ft.) 2.4 GHz max: 100 m (328.08 ft.), Modulation OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM OFDMA, 5 GHz: 1 built-in omnidirectional antenna, Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas, Certification: RoHS, Safety compliance EN 62368-1, EMC, RF, CE, FCC, CB, ISED, cTUVus, Internet access mode Static IP address Static IPv6 address Dynamic IP address Dynamic IPv6 address PPPoE, Number of blocklists and allowlists based on MAC addresses (single SSID) 256, Number of global blocklists/allowlists 256.

Specialty

PPPoE clients Yes, IEEE 802.1Q VLAN Yes, Radio-based client limiting, Layer 2 isolation, DFS, WMM, Different SSIDs for the same VLAN, AP load balancing, Beamforming, 802.11k/v roaming, Fast transition (802.11r), Layer 2 roaming, Layer 3 roaming, AI roaming, PSK authentication, Static allowlist, Adjusting the transmit power for beacon and probe frames, Encryption mode (WPA-PSK, WPA2- PSK, WPA/WPA2-PSK), OWE (Enhanced Open), WPA3-SAE, WPA2-PSK/WPA3-SAE, Mesh management, AP Mesh, AP portal authentication, One-Click Network Optimization, Static blocklist, ARP binding, IPv4 ping, IPv6 ping, Traceroute, Static/Dynamic NAT, IPv6, 802.1X authentication, Network-wide configuration and management, Ruijie Reyee App management, eWeb management, Ruijie Cloud management SNMP, Configuration synchronization among the app, eWeb, and Ruijie Cloud, Displaying device information on Ruijie Cloud.

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Ruijie RG-RAP62-OD Access Point In Bangladesh

What is the price of Ruijie RG-RAP62-OD Access Point In Bangladesh?

The price of Ruijie RG-RAP62-OD Access Point not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Ruijie RG-RAP62-OD Access Point from our website or visit our showrooms nearby.
