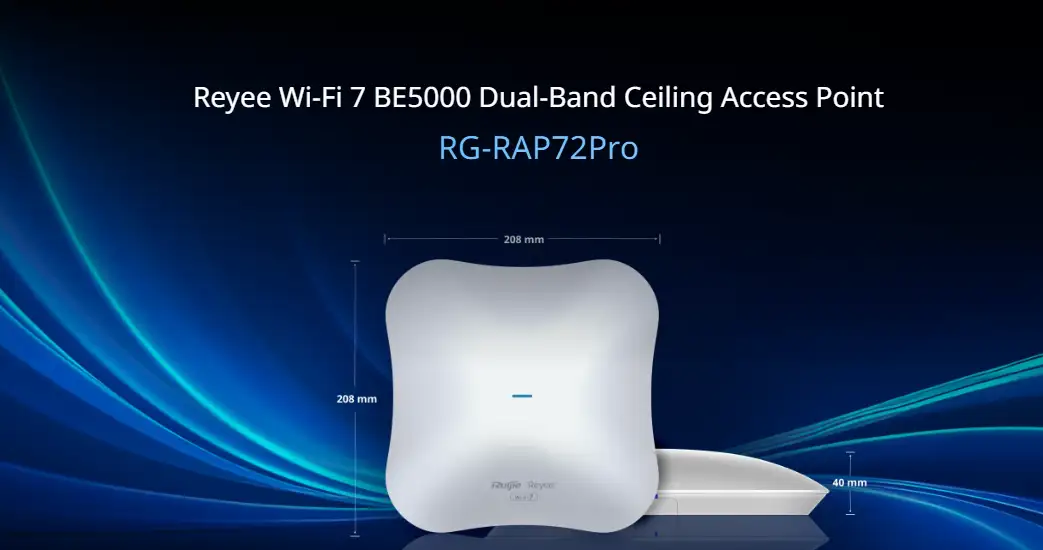

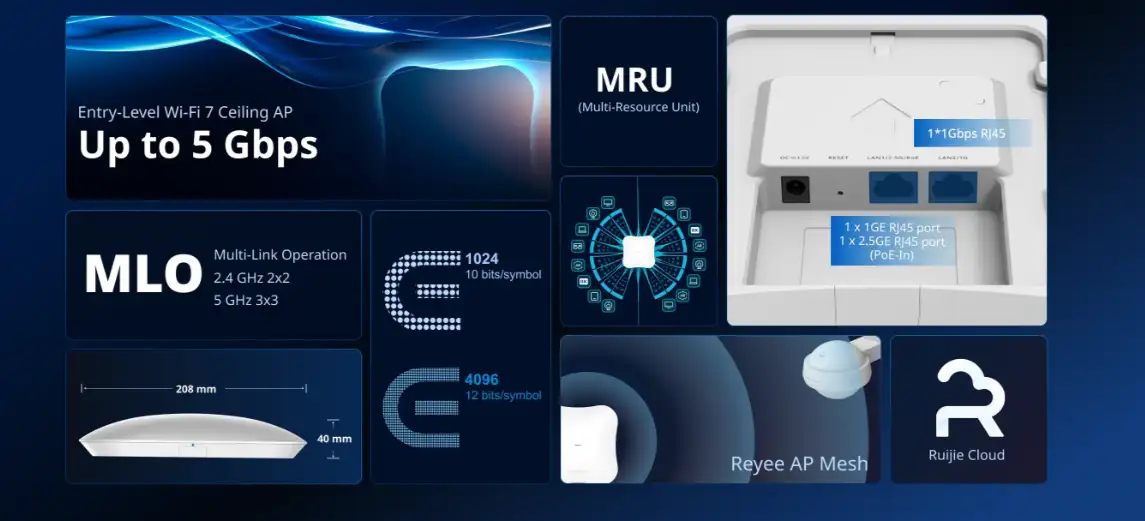

Ruijie RG-RAP72pro (Wi-Fi 7) BE5000 Mbps Wireless Dual Band Indoor Ceiling Mount Access Point

Item: Ruijie RG-RAP72pro (Wi-Fi 7) BE5000 Mbps Wireless Dual Band Indoor Ceiling Mount Access Point
Rating: 5
Author: Verified Buyer

Product Id: 29.02.925.93

Coming Soon

Quick Overview

Network Standards - IEEE 802.11b/g/n/ax/be, 2.400 GHz to 2.4835 GHz IEEE 802.11a/n/ac/ax/be, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz
Data Transfer Rates - 5011 Mbps
Band - Dual
Interface(s) - 1 x Number of 10/100/1000BASE-T, 1 x Number of 10/100/1000/2500BASE-T
Antenna (Type & Qty) - 5 x Internal
Color - White

Payment Method Shipping & Charge Order Procedure

Brand

Ruijie

Model

Ruijie RG-RAP72pro

Network Standards

IEEE 802.11b/g/n/ax/be, 2.400 GHz to 2.4835 GHz IEEE 802.11a/n/ac/ax/be, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz

Data Transfer Rates

5011 Mbps

Band

Dual

Interface(s)

1 x Number of 10/100/1000BASE-T, 1 x Number of 10/100/1000/2500BASE-T

Number of WAN Port

Unmentioned

Number of LAN Port

Unmentioned

Bluetooth

Antenna (Type & Qty)

5 x Internal

Memory

512MB

Storage (MB/GB/TB)

256MB

Max. Concurrent Clients

Unmentioned

Protection

Surge protection: Ethernet port: -/+2 kV for common mode

MU-MIMO Support

Yes

Max. Power Consumption

30W

Operating Mode

AP, Router, Wireless repeater mode

Mounting

Yes

Color

White

Dimensions

208 x 208 x 40mm

Weight (gm)

<= 750 gm

Warranty

3 Year (Without Adapter)

General

Brand

Ruijie

Model

Ruijie RG-RAP72pro

Hardware

Network Standards

IEEE 802.11b/g/n/ax/be, 2.400 GHz to 2.4835 GHz IEEE 802.11a/n/ac/ax/be, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz

Data Transfer Rates

5011 Mbps

Memory

512MB

Memory Type

DDR3

Storage (MB/GB/TB)

256MB

Interface

Interface(s)

1 x Number of 10/100/1000BASE-T, 1 x Number of 10/100/1000/2500BASE-T

Number of WAN Port

Unmentioned

Number of LAN Port

Unmentioned

Wireless

Band

Dual

Frequency

2.4 GHz, 5 GHz

Bluetooth

Antenna (Type & Qty)

5 x Internal

Antenna Gain

4.00 dBi (5 GHz), 3.00 dBi (2.4 GHz)

MU-MIMO Support

Yes

Management

Max. Concurrent Clients

Unmentioned

SSID Numbers

Operating Mode

AP, Router, Wireless repeater mode

Performance

Protection

Surge protection: Ethernet port: -/+2 kV for common mode

IP Rating

IP41

OFDM/OFDMA

Yes

Technical Info

DHCP

Yes

MTBF

MTBF 400,000 hours

Electrical

DC Input Power

12 V, 2.5 A

Max. Power Consumption

30W

Passive PoE Power Supply

IEEE 802.3af (PoE), IEEE 802.3at (PoE+)

Environmental

Operating Temperature

0 Degree C to 40 Degree C

Operating Humidity

5% RH to 95% RH (non-condensing)

Storing/Storage Temperature

-40 Degree C to +70 Degree C

Storing/Storage Humidity

5%RH to 95% RH (non-condensing)

Physical Description

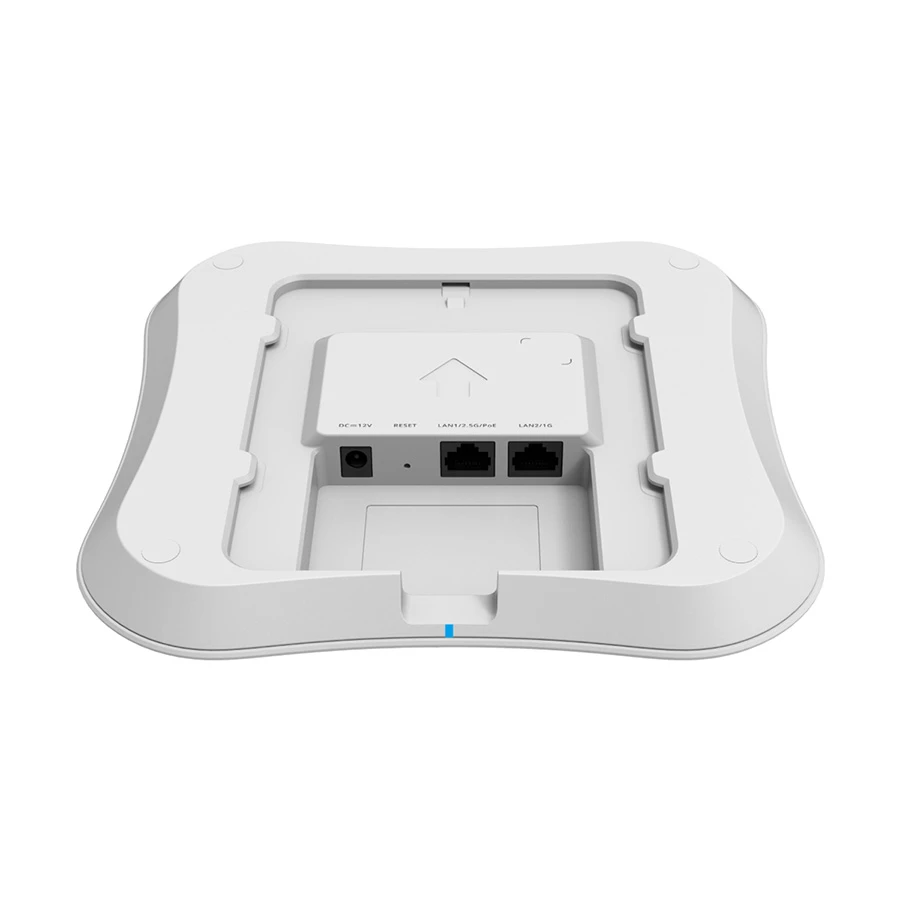

Button

1 x Reset button

Mounting

Yes

Dimensions

208 x 208 x 40mm

Color

White

Weight (gm)

<= 750 gm

Packet Contents

1 x AP, 1 x Mounting bracket, 4 x Cross pan head screws (ST4.2 x 20 mm), 4 x Plastic expansion anchors (φ9 x 25.4 mm), 1 x User Manual, 1 x Warranty Card, 1 x Key to security lock, 1 x Alignment sticker.

Warranty

3 Year (Without Adapter)

Additional Info

Others

5 GHz Wi-Fi Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac) Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 7 (IEEE 802.11be), 2.4 GHz Wi-Fi Wi-Fi 4 (IEEE 802.11b/g/n) Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 7 (IEEE 802.11be), Radio design Dual-radio 5 spatial streams 2.4 GHz: 2 x 2, MU-MIMO 5 GHz: 3 x 3, MU-MIMO, FEM 2.4 GHz: 2 x eFEM 5 GHz: 3 x eFEM, 5 GHz channel width Auto/20/40/80/160 MHz, 2.4 GHz channel width Auto/20/40 MHz, 5 GHz wireless data rate 4323 Mbps, 2.4 GHz wireless data rate 688 Mbps, Maximum transmit power (5 GHz) Combined power: 29.7 dBm (single-stream power: 25 dBm), Maximum transmit power (2.4 GHz) Combined power: 27 dBm (single-stream power: 24 dBm), Coverage range 145 m2 (1560.77 square ft.), Modulation OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024- QAM, and 4096-QAM OFDMA, 2.4 GHz: 2 built-in omnidirectional antennas, 5 GHz: 3 built-in omnidirectional antennas, LEDs 1 x system status LED, Certification RoHS, Safety compliance, EMC, RF, CE, FCC, CB, ISED, cTUVus, Internet access mode Static IP address Static IPv6 address Dynamic IP address Dynamic IPv6 address PPPoE, Maximum number of associated wireless clients 64 (2.4 GHz) 511 (5 GHz) 511 (2.4 GHz and 5 GHz enabled), Recommended number of associated wireless clients Support for IEEE 802.11ax and 160 MHz: 16 (2.4 GHz) 94 (5 GHz) 110 (2.4 GHz and 5 GHz enabled) Support for IEEE 802.11ax and 80 MHz: 16 (2.4 GHz) 84 (5 GHz) 100 (2.4 GHz and 5 GHz enabled) Support for IEEE 802.11ac: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled). Number of blocklists and allowlists based on MAC addresses (single SSID) 256, Number of global blocklists/allowlists 256.

Specialty

IPTV transparent transmission, PPPoE clients, IEEE 802.1Q VLAN, Radio-based client limiting, Layer 2 isolation, OFDMA, WMM, DFS, MLO, 4K-QAM, Different SSIDs for the same VLAN, Enabling/Disabling MLO, AP load balancing, Beamforming, 802.11k/v roaming, Fast transition (802.11r), Layer 2 roaming, Layer 3 roaming, AI roaming, PSK authentication, Static allowlist, Adjusting the transmit power for beacon and probe frames, Encryption mode (WPA-PSK, WPA2- PSK, WPA/WPA2-PSK), OWE (Enhanced Open) WPA3-SAE, WPA2-PSK/WPA3-SAE, Mesh management, AP Mesh, AP portal authentication, Maximum number of devices that can be managed 300, One-Click Network Optimization, Static blocklist, ARP binding, IPv4 ping, IPv6 ping, Traceroute, Static/Dynamic NAT, DHCP server, IPv6, 802.1X authentication Network-wide configuration and management, Ruijie Reyee App management, eWeb management, Ruijie Cloud management, SNMP, Configuration synchronization among the app, eWeb, and Ruijie Cloud, Displaying device information on Ruijie Cloud.

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Ruijie RG-RAP72pro Access Point In Bangladesh

What is the price of Ruijie RG-RAP72pro Access Point In Bangladesh?

The price of Ruijie RG-RAP72pro Access Point not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Ruijie RG-RAP72pro Access Point from our website or visit our showrooms nearby.
