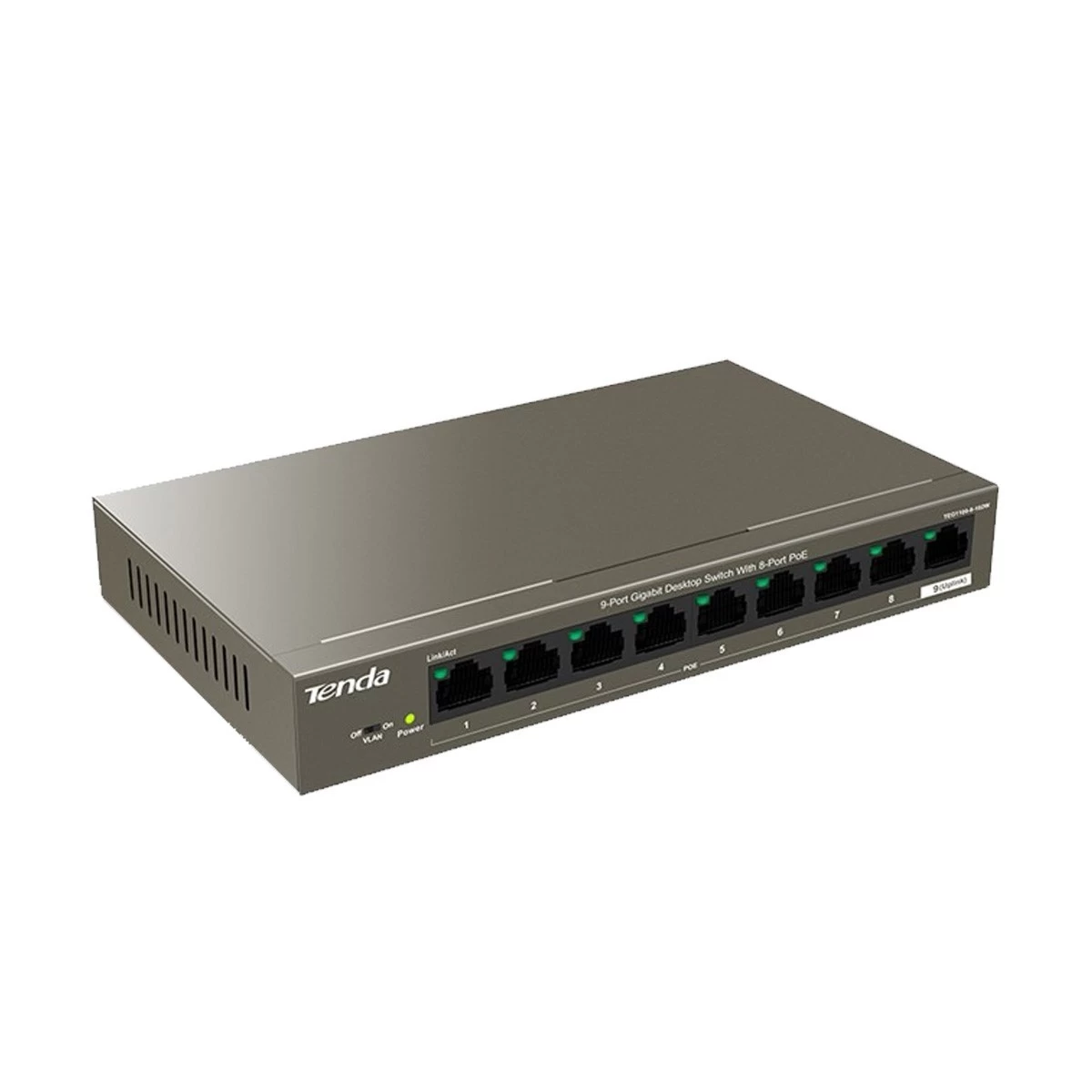

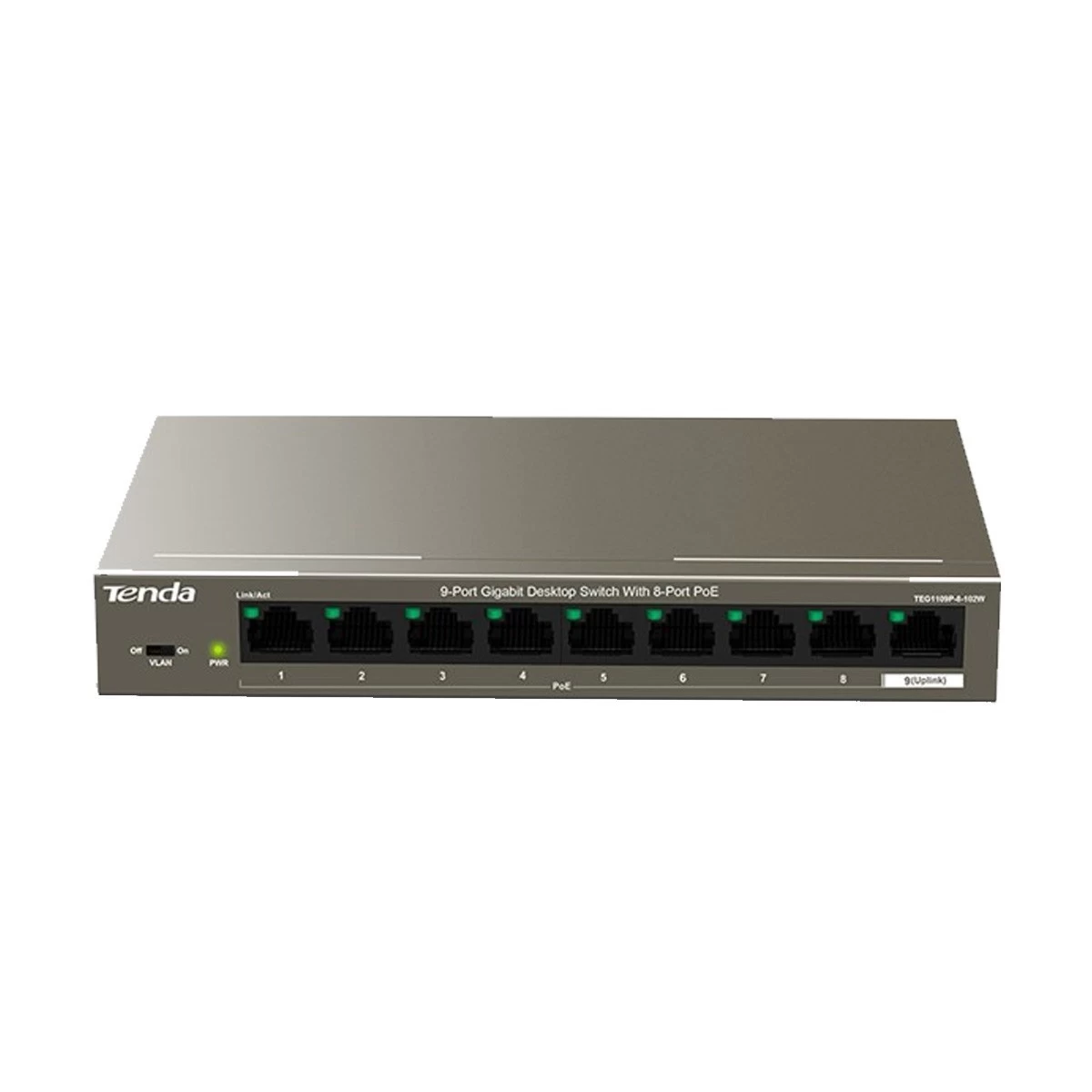

Tenda TEG1109P 9 Port (8-Port PoE) 10/100Mbps Gigabit Desktop Switch #TEG1109P-8-102W
Product Id: 29.05.744.16
Brand
Tenda
Quick Overview
- Type - Network Switch
- Number of Total Port - 9 Port
- PoE - Yes
- Manageability - Unmanaged
- Network Standards - IEEE 802.3, 3u, 3ab, 3x, 3af, 3at
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Desktop
General
Brand
Tenda
Model
Tenda TEG1109P
Type
Network Switch
Part No
TEG1109P-8-102W
Ports & Slots
Number of Total Port
9 Port
Gigabit Port
1
PoE Port
8
Technical Info
PoE
Yes
Manageability
Unmanaged
Interface(s)
8 x 10/100/1000Mbps RJ45 Ports(Data/PoE), 1 x 10/100/1000Mbps RJ45 Ports(Data)
Network Standards
IEEE 802.3, 3u, 3ab, 3x, 3af, 3at
Data Transfer Rate
10/100/1000 Mbps
Switching Capacity
18 Gbps
MTBF
50,000 hours
Physical Description
Indicators
Link/Act, Power
Form Factor
Desktop
Dimension
177.5 x 104 x 26mm
Packet Contents
1 x Tenda TEG1109P, 1 x User manual
Power
Power Supply
AC: 100-240V - 50/60Hz, DC: 51V /2.0A (Power Adapter Output)
Approx. Power Consumption
in full configuration: <107W, PoE Power Supply: <92Watt
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Throughput: 1.488Mpps, Capacity - Wire-speed forwarding: Support, Forwarding mode: Store-forward and cut-through, Mac Address Table: 16K. PoE Supply: Port 1 to Port 8 support standard IEEE802.3at/af, power( maximum power for each port is 30W), PoE power type is end-span(12+, 36- line pair).
Specialty
TEG1109P-8-102W is the gigabit unmanaged lightning protection switch which is Tenda specifically developed for requirement of building Gigabit WLAN and HD camera monitor network.With high-performance access, 9-10/100/1000M Base-T Ethernet RJ45 ports; 6KV lightning-proof for all port; every single port support MDI/MDIX and wired speed; PoE ports supports IEEE802.3at/af standard while detecting and recognizing the IEEE802.3at/af standard power device automatically. Through conventional Cat 5e twisted-pair cable, power can be transmitted along with data for AP, IP Camera and IP Phone. With PoE dynamic power, easierconfigure, flexible extend network without being limited by the power line layout, plug and play, helping SMB,hotel, shopping mall,school to build high-security and reliability network of wireless cover and HD monitor.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Tenda TEG1109P Network Switch In Bangladesh
Tenda TEG1109P
Switch/9-Port Gigabit Desktop Switch with 8-Port PoE
TEG1109P-8-102W is the gigabit unmanaged lightning protection switch which is Tenda specifically developed for requirement of building Gigabit WLAN and HD camera monitor network.With high-performance access, 9-10/100/1000M Base-T Ethernet RJ45 ports; 6KV lightning-proof for uplink port; every single port support MDI/MDIX and wired speed; PoE ports supports IEEE802.3at/af standard while detecting and recognizing the IEEE802.3at/af standard power device automatically. Through conventional Cat 5e twisted-pair cable, power can be transmitted along with data for AP, IP Camera and IP Phone. With PoE dynamic power, easierconfigure, flexible extend network without being limited by the power line layout, plug and play, helping SMB,hotel, shopping mall,school to build high-security and reliability network of wireless cover and HD monitor.
TEG1109P-8-102W 9-Port Gigabit Desktop Switch with 8-Port PoE
Born for Small and Medium-sized
HD IP Surveillance Projects
Excellent Lightning Protection
The switch supports 6 kV lightning protection for uplink port, protecting the switch from thunderstorms and making it more stable.
Outstanding PoE Power Supply
Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30Wmaximum PoE output a single port and 92W the whole device.
What's Special for TEG1109P-8-102W :
Enjoy Super HD Video Screen
2Mb built-in packet buffer outstand in comparison, ensuring smooth transmission of large files and HD videos even when HD IP cameras of 500W are working simultaneously.
What's Special for TEG1109P-8-102W :
Simple Port VLAN Setup
Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 92W the whole device.
Integrated with Smart Power Management
Chip Makes the Switch Get Rid of Overload
It includes chips with smart power management function and integrated professional chip control algorithm,which can accurately calculate the output power. When the power of the receiving equipment exceeds the rated power (92W) of the PoE switch, the low priority port will automatically power off to avoid the over-run of the equipment and prolong the service life of the equipment.
Brand - Tenda, Model - Tenda TEG1109P, Type - Network Switch, Number of Total Port - 9 Port, PoE - Yes, Manageability - Unmanaged, Gigabit Port - 1, PoE Port - 8, Interface - 8 x 10/100/1000Mbps RJ45 Ports(Data/PoE), 1 x 10/100/1000Mbps RJ45 Ports(Data), Network Standards - IEEE 802.3, 3u, 3ab, 3x, 3af, 3at, Data Transfer Rate (Mbps) - 10/100/1000Mbps, Switching Capacity - 18 Gbps, Indicator - Link/Act, Power, MTBF - 50,000 hours, Power Supply - AC: 100-240V - 50/60Hz, DC: 51V /2.0A (Power Adapter Output), Power Consumption - in full configuration: <107W, PoE Power Supply: <92Watt, Form Factor - Desktop, Dimension - 177.5 x 104 x 26mm, Others - Throughput: 1.488Mpps, Capacity - Wire-speed forwarding: Support, Forwarding mode: Store-forward and cut-through, Mac Address Table: 16K. PoE Supply: Port 1 to Port 8 support standard IEEE802.3at/af, power( maximum power for each port is 30W), PoE power type is end-span(12+, 36- line pair)., Specialty - TEG1109P-8-102W is the gigabit unmanaged lightning protection switch which is Tenda specifically developed for requirement of building Gigabit WLAN and HD camera monitor network.With high-performance access, 9-10/100/1000M Base-T Ethernet RJ45 ports; 6KV lightning-proof for all port; every single port support MDI/MDIX and wired speed; PoE ports supports IEEE802.3at/af standard while detecting and recognizing the IEEE802.3at/af standard power device automatically. Through conventional Cat 5e twisted-pair cable, power can be transmitted along with data for AP, IP Camera and IP Phone. With PoE dynamic power, easierconfigure, flexible extend network without being limited by the power line layout, plug and play, helping SMB,hotel, shopping mall,school to build high-security and reliability network of wireless cover and HD monitor., Part No - TEG1109P-8-102W, Warranty - 1 Year (Without Adapter), Country of Origin - China, Made in/ Assemble - China
