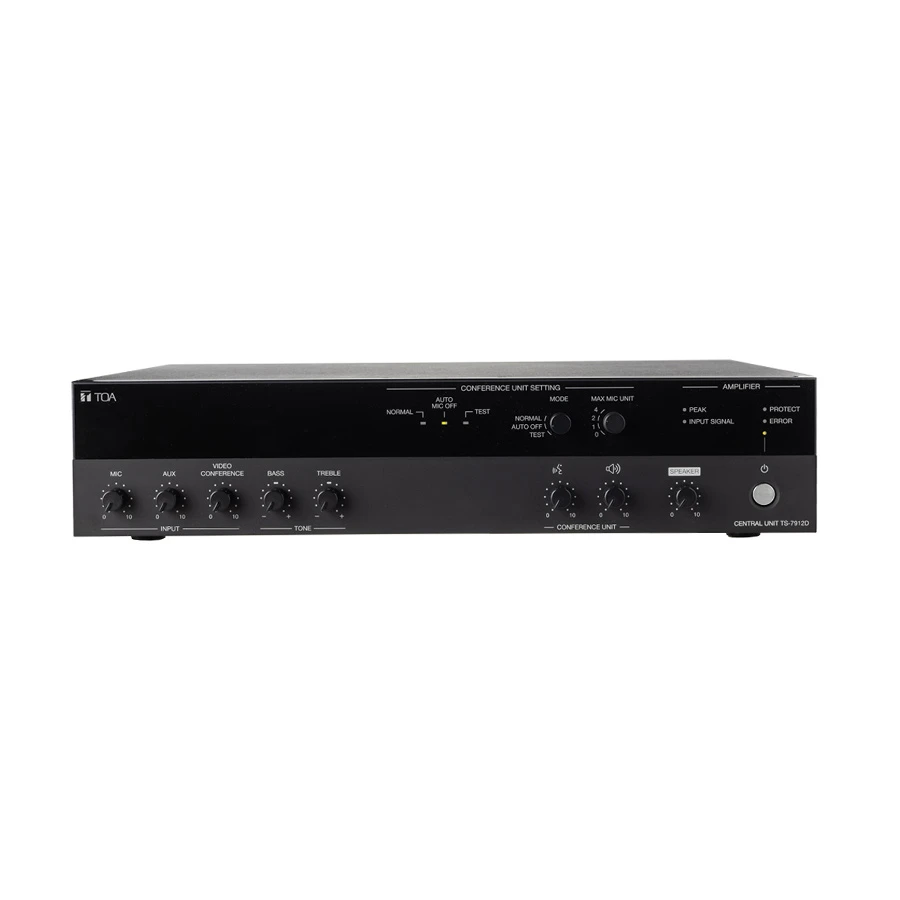

TOA TS-7912D Central Unit for TS-790 Series Conference

Item: TOA TS-7912D Central Unit for TS-790 Series Conference
Rating: 5
Author: Verified Buyer

Product Id: 10.05.846.90

Coming Soon

Quick Overview

Type - Central Unit
Connection Type - Wired
Plug Type - 6.3mm, RCA
Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

TOA

Model

TOA TS-7912D

Type

Central Unit

Connection Type

Wired

Lighting Effect

Waterproof

Dustproof

Plug Type

6.3mm, RCA

Dimensions

420 x 96.1 x 313.1mm

Weight (Kg)

4.9 kg

Color

Black

Warranty

No warranty

General

Brand

TOA

Model

TOA TS-7912D

Type

Central Unit

Connectivity

Connection Type

Wired

Audio Details

Signal to Noise Ratio (dB)

83 dB or more (Speaker volume: min.), 76 dB or more (Speaker volume: max, Input volume: min.), 55 dB or more (Speaker volume: max, Input volume: max.), (A-weighted)

Frequency Response (Hz - kHz)

20Hz - 20kHz -/+3 dB

Noise Cancellation

Noise Cancellation Type

Not Applicable

Distortion

1 % or less at 1 kHz (20 kHz LPF (AUX-0025))

Ports & Slots

Plug Type

6.3mm, RCA

Technical Info

Inputs Connection

Mic: -60dB (unbalanced) / -41 dB (balanced) selectable, 600 ohm, 6.3 mm phone jack Note: MIC input is equipped with phantom power (24 V DC, ON/OFF switchable) AUX IN: -20 dB, 10 kohm, unbalanced, RCA pin jack x 2.

Output Connection

SPEAKER OUT: High impedance (100 V line / total 83 ohm) / Low impedance (4 - 16 ohm), selectable, removable terminal block (3 pins), REC OUT: -10dB, 10 kohm, unbalanced, RCA pin jack x 2.

Performance

Lighting Effect

Waterproof

Dustproof

Power

Power Requirements

100 - 240 V AC, 50/60 Hz

Physical Description

Indicators

LED

Dimensions

420 x 96.1 x 313.1mm

Weight (Kg)

4.9 kg

Color

Black

Packet Contents

Power Cord (2 m) x 1 USB Cable (3 m) x 1 Speaker out removable terminal plug (5 mm, 3 pins) x 1

Warranty

No warranty

Additional Info

Others

Central Unit for TS-790 Series Conference. Power / Current Consumption: 230 W (rated output, 64 units), 81 W (1/8 of rated output, 64 units), 200 mA or less (when power switch is OFF), Rated Output: 120 W (Speaker Output), Tone Control Bass: -/+10 dB at 100 Hz, Treble: -/+10 dB at 10 kHz (Speaker Out), Equalizer RETURN/SEND Terminal -10dB, 10 kohm, unbalanced, RCA pin jack, ON/OFF switchable, Video Conference: IN/OUT Terminal -10dB, 10 kohm, unbalanced, RCA pin jack, USB Audio Type-B port (for PC), Audio streaming data-in: 11.025/16/22.05/32/44.1/48 kHz sampling frequency (selectable on PC), 16-bit PCM. Audio streaming data-out: 32/44.1/48 kHz sampling frequency (selectable on PC), 16-bit PCM. Chairman/Delegate Unit Terminal LINE 1, 2: 8 pin DIN Socket, Number of Connectable Units Max. 64 units, Conference Unit Setting MODE Switch: NORMAL / AUTO OFF / TEST, MAX MIC UNIT Switch: Number of Delegate Units can be turned on microphone set to 0, 1, 2 or 4. Priority Speech Chime Operation of Chairman Units priority button activates a single-tone chime (with volume control), Volume Control MIC volume, AUX volume, VIDEO CONFERENCE volume, SPEAKER volume, Microphone and Monitor speaker of Conference Unit volume, CHIME volume. LED Indicators: Power (Green) Amplifier: INPUT SIGNAL (Green), PEAK (Red), PROTECT (Red), ERROR (Red), Conference Unit Setting: NORMAL (Green), AUTO MIC OFF (Green), TEST (Red), Operating Temperature: 0 Degree to +40 Degree C, Operating Humidity: 90 %RH or less (no condensation), Finish Panel: ABS resin, Black, Case: Surface-treated Steel plate, Black, Paint.

Specialty

The TS-7912D is a Central unit for TOA Conference System. With the use of its line connection terminals permits connections to the Conference units of TS-791L and TS-792L, making up a conference system. It has built-in 120W power amplifier for external speaker. Each operation of Conference units and Power amplifier has its own power supply. The TS-7912D is equipped with Video conference connection terminals such as USB port or RCA jack. It is also equipped with Equalizer connection terminals to connect an equalizer or other signal processor. With the use of an optional rack mounting bracket, it can be mounted in an EIA standard equipment rack (2 unit size).

Country Of Origin

Japan

Made in/ Assemble

China

Details

Features of TOA TS-7912D Headphone & Microphone In Bangladesh

TOA TS-7912D Central Unit for Headphone & Microphone is designed to manage and control conference system operations. It works as the central component of the TOA TS-790 Series Conference System. The unit supports wired connectivity and provides stable audio performance for conference environments. It offers a frequency response range of 20Hz to 20kHz for clear audio transmission. The built-in 120W power amplifier allows connection to external speakers for wider sound coverage. Its black design and durable construction make it suitable for professional installations. This central unit is a practical solution for managing multiple conference units from a single system.

What Makes The TOA TS-7912D Central Unit for Headphone & Microphone Special?

The TOA TS-7912D Central Unit for Headphone & Microphone stands out with support for up to 64 connectable conference units. It features a built-in 120W power amplifier for external speaker connection and conference audio management. The unit includes USB Audio Type-B connectivity for PC integration and video conference support. It also provides RCA video conference input and output terminals for flexible setup options. Separate power supplies for the conference units and power amplifier help support stable operation. The system includes equalizer connection terminals for connecting external signal processors when needed. Multiple volume controls, conference modes, and microphone settings allow users to adjust the system according to different meeting requirements. LED indicators also provide quick status monitoring during operation.

Who Should Buy The TOA TS-7912D Central Unit for Headphone & Microphone?

This TOA TS-7912D Central Unit is suitable for organizations that use professional conference systems. It is a good choice for meeting rooms, conference halls, boardrooms, and training facilities. Users who need to manage multiple chairman and delegate units from a single control point may find it useful. It can also benefit institutions that require video conference integration through USB and RCA connections. Audio system installers looking for a conference control unit with speaker output support can consider this model. The unit is also suitable for setups that require microphone management, audio routing, and flexible volume control. Its support for up to 64 conference units makes it practical for larger conference environments.

Is The TOA TS-7912D Central Unit for Headphone & Microphone Worth Buying?

Yes, the TOA TS-7912D Central Unit is worth buying because it offers comprehensive conference control and audio management features. The ability to connect up to 64 conference units makes it suitable for professional meeting environments. Its built-in 120W amplifier adds support for external speaker systems without requiring additional amplification equipment. USB Audio Type-B and video conference terminals provide flexible connectivity for modern communication setups. The adjustable microphone settings, conference modes, and volume controls help users customize operation according to their needs. Its strong audio specifications and dedicated conference system design make it a reliable choice for structured conference applications. If you're looking to buy the TOA TS-7912D Central Unit for Headphone & Microphone in Bangladesh, Ryans Computers offers the best price in the market.

What is the price of TOA TS-7912D Headphone & Microphone In Bangladesh?

The price of TOA TS-7912D Headphone & Microphone not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy TOA TS-7912D Headphone & Microphone from our website or visit our showrooms nearby.
