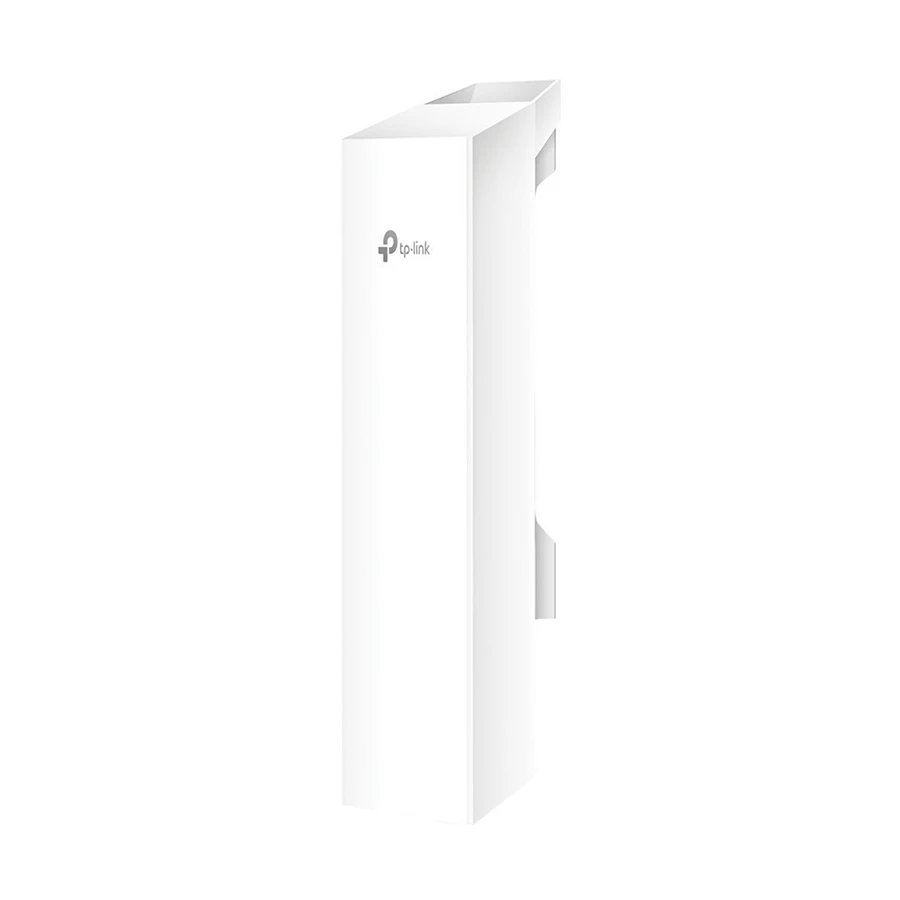

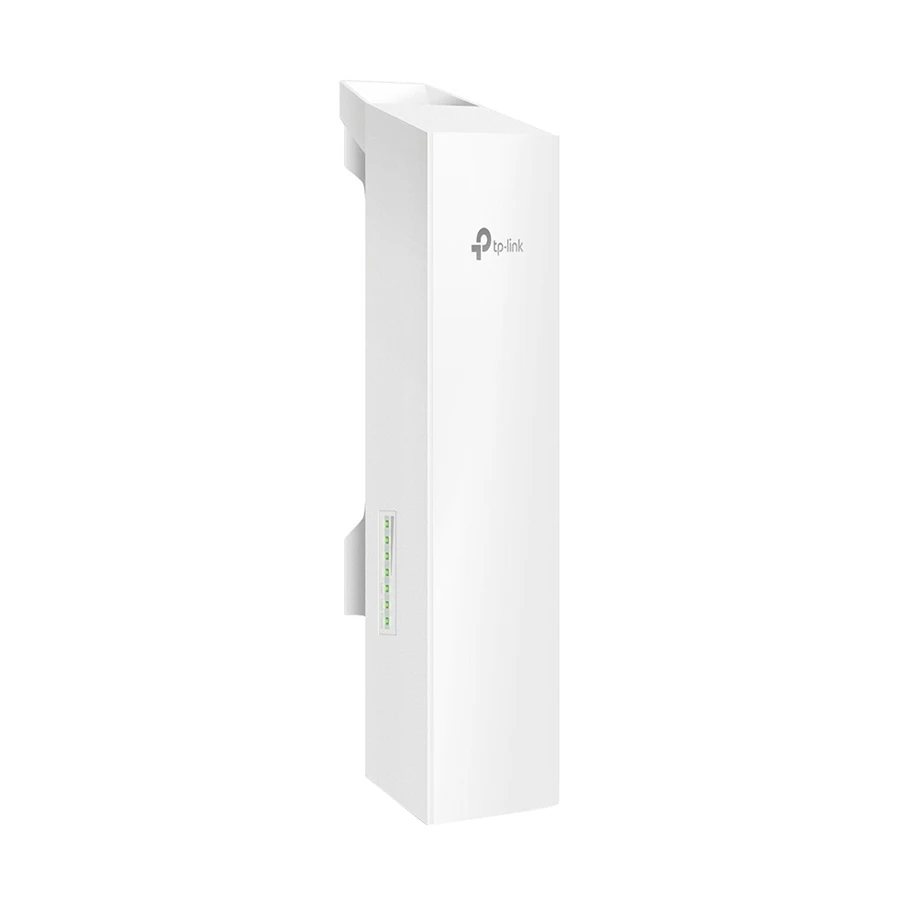

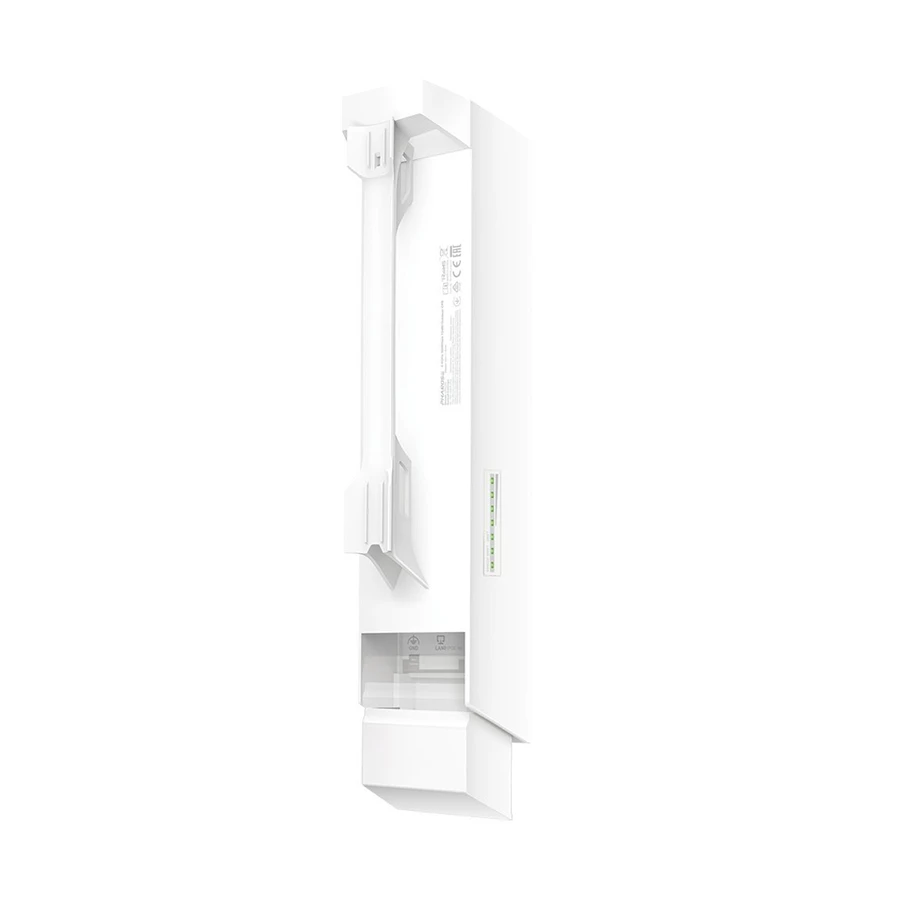

TP-Link CPE220 V3 2.4GHz 300Mbps 12dBi Long-Range Outdoor Wireless Networking CPE
Product Id: 29.02.091.152
Brand
Tp-link
Regular Price Tk 5,590
Monthly EMI Tk 466
Special Price Tk 5,200
Quick Overview
- Data Transfer Rates - 300 Mbps
- Network Standards - IEEE 802.11b/g/n
- Outdoor Range - Up to 3 KM
- Antenna (Type & Qty) - 2 x Internal

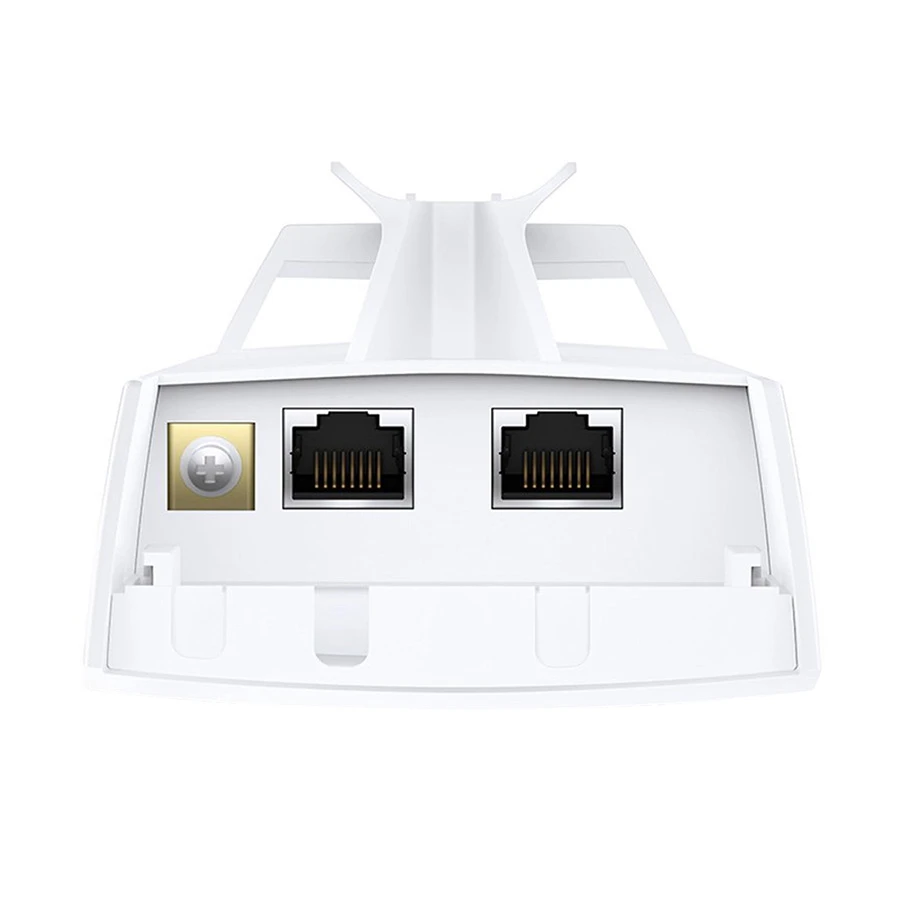

- Interface(s) - 2 x 10/100Mbps Shielded Ethernet Port
- Band - Single
General
Brand
Tp-link
Model
TP-Link CPE220 V3
Hardware
Network Standards
IEEE 802.11b/g/n
Data Transfer Rates
300 Mbps
Outdoor Range
Up to 3 KM
LAN Network Standard
10/100
Processor
Qualcomm Atheros 560MHz CPU, MIPS 24Kc
Memory
64MB
Memory Type
DDR2
Storage (MB/GB/TB)
8MB
Storage Type
Flash
Interface
Interface(s)
2 x 10/100Mbps Shielded Ethernet Port
Number of WAN Port
No
Number of LAN Port
2
USB Sharing Support
No
Wireless
Security Protocols
WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption
Band
Single
Frequency
2.4 - 2.483GHz
Bluetooth
No
Antenna (Type & Qty)
2 x Internal
Antenna Placement
Internal
MU-MIMO Support
Yes
Transmission Power
30dBm/1000mw
Management
Management
Discovery and Remote Management via Pharos Control application
Web-Based Management
HTTP/HTTPS
Remote Management
Yes
Performance
Protection
15KV ESD Protection
Waterproof Level/Grade
IPX5
IP Rating
IPX5
Lightning Protection
6KV Lightning Protection
Technical Info
Enclosure
Outdoor ASA stabilized plastic material
Ideal Use
Business and Home users.
Outdoor Use
Yes
DHCP
Yes
System Requierment
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7,MAC OS, NetWare, UNIX or Linux.
Security
Wireless Security
WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption
Electrical
Power Method
16-27VDC
AC Input Power
100-240VAC,50/60Hz
DC Input Power
16-27VDC
Max. Power Consumption
10.8 Watts
Passive PoE Power Supply
24V 0.5A
Environmental
Operating Temperature
-40 Degree C - 70 Degree C
Operating Humidity
10% - 90% non-condensing
Storage Temperature
-40 Degree C - 70 Degree C
Storage Humidity
5% - 95% non-condensing
Physical Description
Button
Remote Reset Button
LED Indicators
Green
Mounting
Yes
Mount Options
Pole Mounting
Dimensions
276 x 79 x 60mm
Warranty
Warranty Details
2 Year (Without Adapter)
Additional Info
Others
TP-LINKs 2.4GHz 300Mbps 12dBi Outdoor CPE, the CPE220 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users.
Specialty
Built-in 12dBi 2x2 dual-polarized directional MIMO antenna, Adjustable transmission power from 0 to 30dBm/1000mw, System-level optimizations for more than 13km long range wireless transmission, TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications, Centralized Management System Pharos Control, AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes, Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
