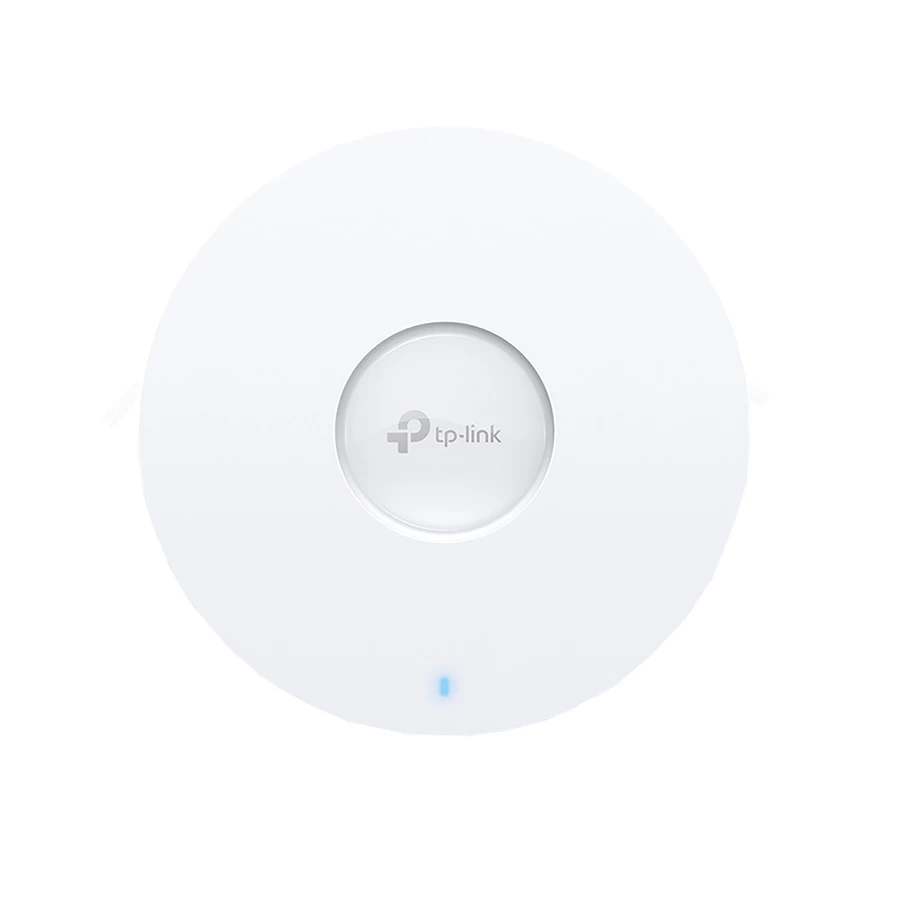

TP-Link EAP620 HD AX1800 Wireless Ceiling Mount Access Point
Product Id: 29.02.091.160
Brand
Tp-link
Quick Overview
- Data Transfer Rates - 1800 Mbps
- Network Standards - IEEE 802.11ax/ac/n/g/b/a
- Antenna (Type & Qty) - 4 x Internal
- Interface(s) - 1 x Gigabit Ethernet (RJ-45) Port
- Band - Dual
General
Brand
TP-Link
Model
TP-Link EAP620 HD
Hardware
Network Standards
IEEE 802.11ax/ac/n/g/b/a
Data Transfer Rates
1800 Mbps
WAN Network Standard
No
LAN Network Standard
10/100/1000
Interface
Interface(s)
1 x Gigabit Ethernet (RJ-45) Port
Number of WAN Port
No
Number of LAN Port
1
USB Sharing Support
No
Wireless
Band
Dual
Frequency
2.4GHz, 5GHz
Bluetooth
No
Antenna (Type & Qty)
4 x Internal
Antenna Gain
2.4 GHz: 2 x 4 dBi, 5 GHz: 2 x 5 dBi
Antenna Placement
Internal
MU-MIMO Support
Yes
Transmission Power
CE: <20 dBm(2.4 GHz, EIRP), <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3), FCC: <25 dBm (2.4 GHz), <25 dBm (5 GHz).
Management
SSID Numbers
16
Management
Omada App, Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller.
Web-Based Management
HTTP/HTTPS
Multi-Site Management
Yes
Management MAC Access Control
Yes
Remote Management
Yes
Performance
OFDM/OFDMA
Yes
Email Alerts
Yes
Technical Info
System Requierment
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Security
Wireless Security
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Electrical
Power Method
12 V / 1.5 A DC
Max. Power Consumption
EU: 14.4 W (For PoE); 13.1 W (for DC), US: 14.9 W (For PoE); 13.4 W (for DC)
Passive PoE Power Supply
48V Passive PoE
Environmental
Operating Temperature
0 - 40 Degree C
Operating Humidity
10 - 90% RH non-condensing
Storing/Storage Temperature
-40 - 70 Degree C
Storing/Storage Humidity
5 - 90% RH non-condensing
Physical Description
Button
Reset
Mounting
Yes
Mount Options
Ceiling /Wall Mounting
Dimensions
160 x 160 x 33.6mm
Warranty
Warranty Details
2 Year (Without Adapter)
Additional Info
Others
System Logging Local/Remote Syslog - Local/Remote Syslog, Certification - CE, FCC, RoHS. Ultra-Fast WiFi 6 Speeds.
Specialty
Cloud Access, SSH, L3 Management, Management VLAN, Zero-Touch Provisioning.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of TP-Link EAP620 HD Access Point In Bangladesh
AX1800 Ceiling Mount WiFi 6 Access Point
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
- High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP) Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Ultra-Slim Design: Φ6.3 in. × 1.3 in. elegant design brings more agility.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
- PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Brand - TP-Link, Model - TP-Link EAP620 HD, Network Standards - IEEE 802.11ax/ac/n/g/b/a, Data Transfer Rates (Mbps) - 1800 Mbps, Band - Dual, Frequency - 2.4GHz, 5GHz, Interface - 1 x Gigabit Ethernet (RJ-45) Port, Number of WAN Port - No, WAN Network Standard - No, Number of LAN Port - 1, Bluetooth - No, Wireless Security - WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Antenna Type & Qty - 4 x Internal, Antenna Gain - 2.4 GHz: 2 x 4 dBi, 5 GHz: 2 x 5 dBi, Antenna Placement - Internal, OFDM/OFDMA - Yes, MU-MIMO Support - Yes, Email Alerts - Yes, Button - Reset, Power Method - 12 V / 1.5 A DC, Operating Temperature - 0 - 40 Degree C, Operating Humidity - 10 - 90% RH non-condensing, Storage Temperature - -40 - 70 Degree C, Storage Humidity - 5 - 90% RH non-condensing, Passive PoE Power Supply - 48V Passive PoE, Transmission Power - CE: <20 dBm(2.4 GHz, EIRP), <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3), FCC: <25 dBm (2.4 GHz), <25 dBm (5 GHz)., SSID Numbers - 16, Management - Omada App, Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller., Web-Based Management - HTTP/HTTPS, Multi-Site Management - Yes, Management MAC Access Control - Yes, Remote Management - Yes, Mounting - Yes, Mount Options - Ceiling /Wall Mounting, System Requirements - Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux, Dimension - 160 x 160 x 33.6mm, Others - System Logging Local/Remote Syslog - Local/Remote Syslog, Certification - CE, FCC, RoHS. Ultra-Fast WiFi 6 Speeds., Specialty - Cloud Access, SSH, L3 Management, Management VLAN, Zero-Touch Provisioning., Warranty - 2 Year (Without Adapter), Country of Origin - China, Made in/ Assemble - China
