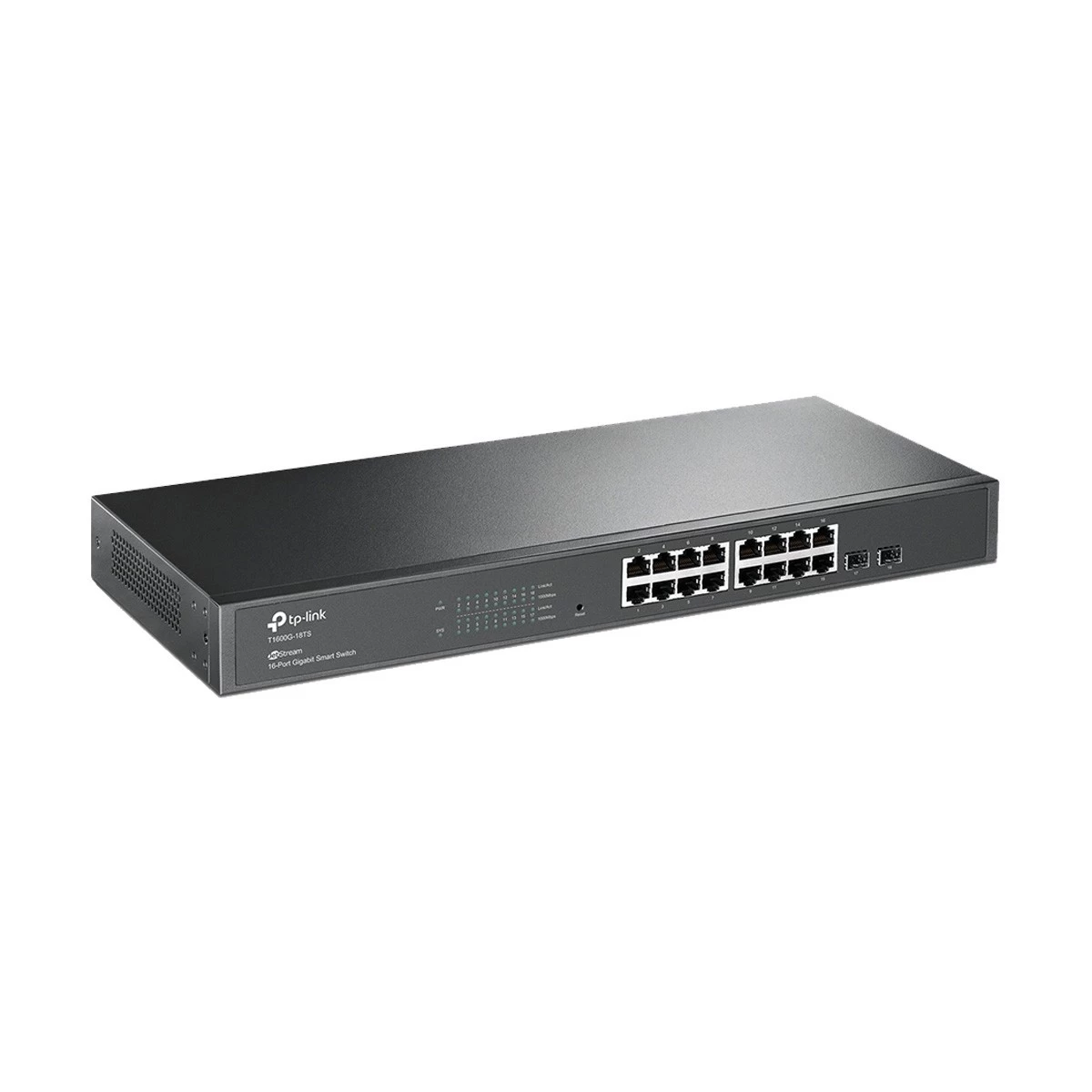

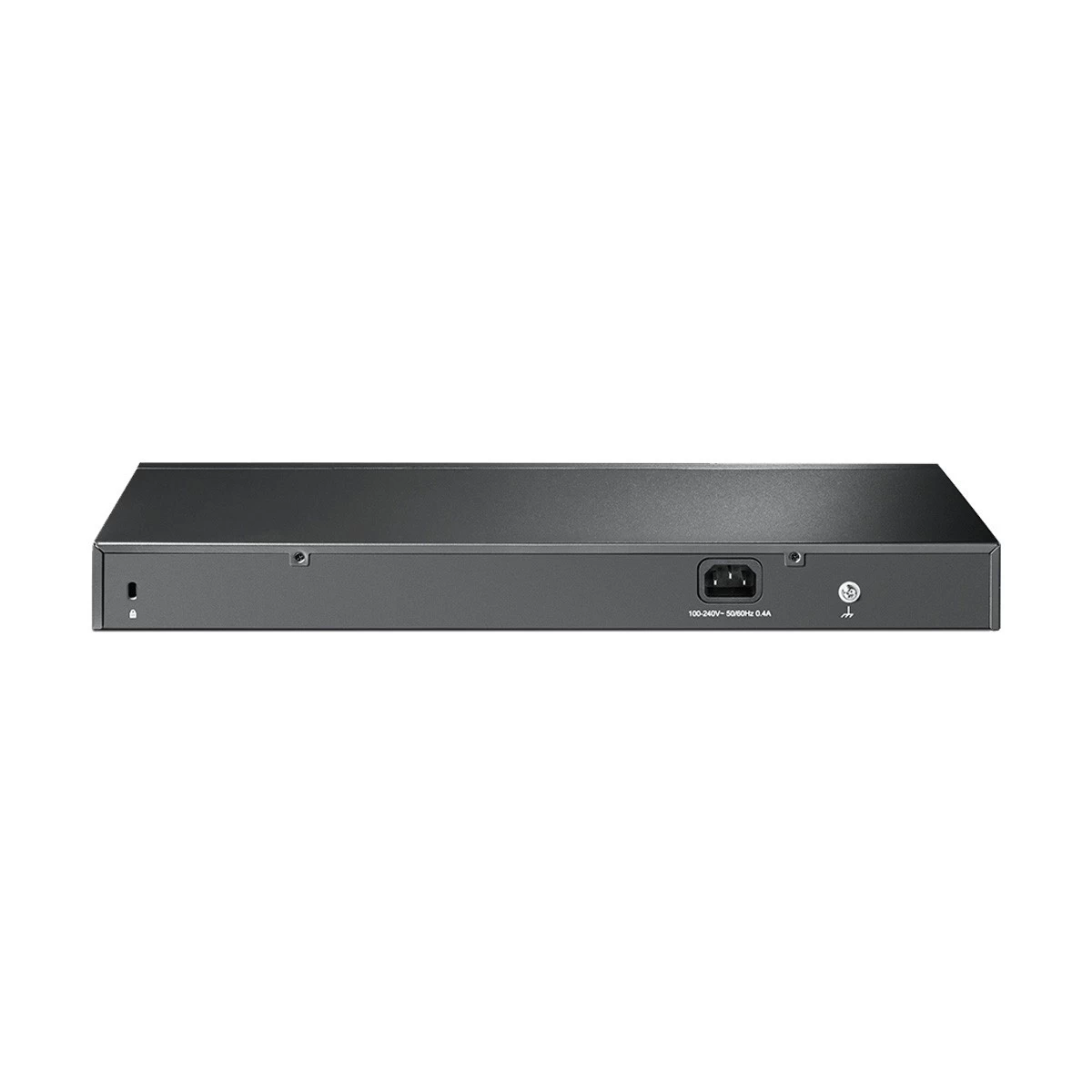

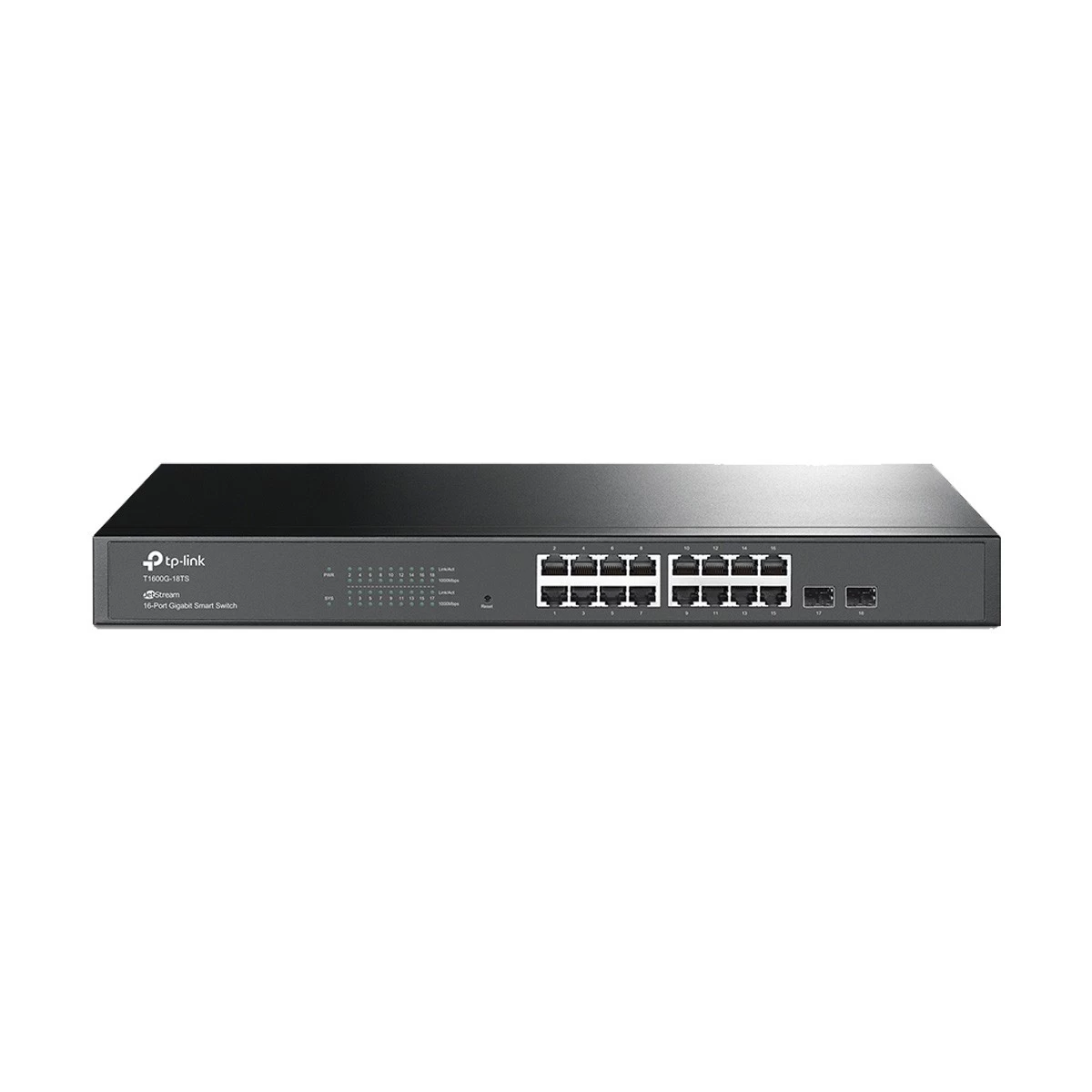

Tp-Link T1600G-18TS Jetstream 16-Port Gigabit Smart Switch with 2-SFP Slots
Product Id: 29.05.091.29
Brand
Tp-link
Quick Overview
- Type - Network Switch
- Number of Total Port - 18 Port
- PoE - No
- Manageability - Unmanaged
- Network Standards - IEEE 802.3i,u,ab,z,ad,x, IEEE 802.1d,s,w,q,p,x
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Rackmount
General
Brand
TP-Link
Model
Tp-Link T1600G-18TS
Type
Network Switch
Part No
T1600G-18TS
Ports & Slots
Number of Total Port
18 Port
Gigabit Port
16
SFP Port
2
SFP+ Port
No
PoE Port
No
PoE+ Port
No
Technical Info
PoE
No
Manageability
Unmanaged
Interface(s)
16 x 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), 2 x Gigabit SFP Slots
Network Standards
IEEE 802.3i,u,ab,z,ad,x, IEEE 802.1d,s,w,q,p,x
Data Transfer Rate
10/100/1000 Mbps
Switching Capacity
36 Gbps
OS Supported
Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux.
Physical Description
Fan/Fanless
Fanless
Form Factor
Rackmount
Dimension
440 x 180 x 44 mm
Packet Contents
T1600G-18TS, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet
Power
Power Supply
100-240VAC, 50/60Hz
Approx. Power Consumption
12.3W (220V/50Hz) Max.
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Max Heat Dissipation: 41.97 BTU/h, Jumbo Frame: 9KB, VLAN: Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) MAC/Protocol-based VLAN
Specialty
JetStream16-Port Gigabit Smart Switch with 2 SFP Slots, Gigabit Ethernet connections on all ports provide full speed of data transferring, L2+ Feature Static Routing, helps route internal traffic for more efficient use of network resources, Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment, L2/L3/L4 QoS and IGMP snooping optimize voice and video applications, IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery, WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Tp-Link T1600G-18TS Network Switch In Bangladesh
Tp-Link T1600G-18TS
JetStream16-Port Gigabit Smart Switch with 2 SFP Slots
T1600G-18TS (TL-SG2216)
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- L2+ Feature——Static Routing, helps route internal traffic for more efficient use of network resources
- Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
- WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features
What This Product Does
TP-Link JetStream Gigabit Smart Switch T1600G-18TS is a cost-effective product solution for small and medium-sized business which provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS and useful security strategies. Equipped with 24 gigabit RJ45 ports and 4 SFP slots, T1600G-18TS supports multiple useful features. Static Routing helps route internal traffic for more efficient use of network resources. The Storm Control feature protects against Broadcast, Multicast and Unknown Unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with SNMP, RMON and Dual Image, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive L2/L2+ switch and gigabit capability, TP-Link JetStream Gigabit Smart Switch T1600G-18TS provides you the ideal access-edge solution.
Advanced QoS Features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.
Abundant L2 and L2+ Features
For more application of L2 switches, T1600G-18TS supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Isolation, IP-MAC-Port Binding, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Besides, the switch provides advanced features for network maintenance such as Loopback Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T1600G-18TS supports L2+ feature—static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.
IPv6 Support
T1600G-18TS supports various IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discovery.
Enterprise Level Management Features
T1600G-18TS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI), SNMP (v1/2/3), and RMON, enables the switch to be polled for valuable status information and send traps on abnormal events. And it also supports Dual Image，which provides reduced down-time for the switches, when the image is being upgraded/downgraded.
Brand - Tp-Link, Model - Tp-Link T1600G-18TS, Type - Network Switch, Number of Total Port - 18 Port, PoE - No, Manageability - Unmanaged, Gigabit Port - 16, SFP Port - 2, SFP+ Port - No, PoE Port - No, PoE+ Port - No, Interface - 16 x 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), 2 x Gigabit SFP Slots, Network Standards - IEEE 802.3i, u, ab, z, ad, x, IEEE 802.1d, s, w, q, p, x, Data Transfer Rate (Mbps) - 10/100/1000 Mbps, Switching Capacity - 36 Gbps, Fan/Fanless - Fanless, Power Supply - 100-240VAC, 50/60Hz, Power Consumption - 12.3W (220V/50Hz) Max., OS Supported - Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux., Form Factor - Rackmount, Dimension - 440 x 180 x 44 mm, Others - Max Heat Dissipation: 41.97 BTU/h, Jumbo Frame: 9KB, VLAN: Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) MAC/Protocol-based VLAN, OS Supported: Windows 7, 8, Vista, XP, 2000, NT, 98SE, MAC OS, NetWare, UNIX or Linux, Specialty - JetStream16-Port Gigabit Smart Switch with 2 SFP Slots, Gigabit Ethernet connections on all ports provide full speed of data transferring, L2+ Feature Static Routing, helps route internal traffic for more efficient use of network resources, Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment, L2/L3/L4 QoS and IGMP snooping optimize voice and video applications, IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery, WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features, Part No - T1600G-18TS, Warranty - 1 Year (Without Adapter), Country of Origin - China, Made in/ Assemble - China
What is the price of Tp-Link T1600G-18TS Network Switch In Bangladesh?
The price of Tp-Link T1600G-18TS Network Switch not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Tp-Link T1600G-18TS Network Switch from our website or visit our showrooms nearby.
