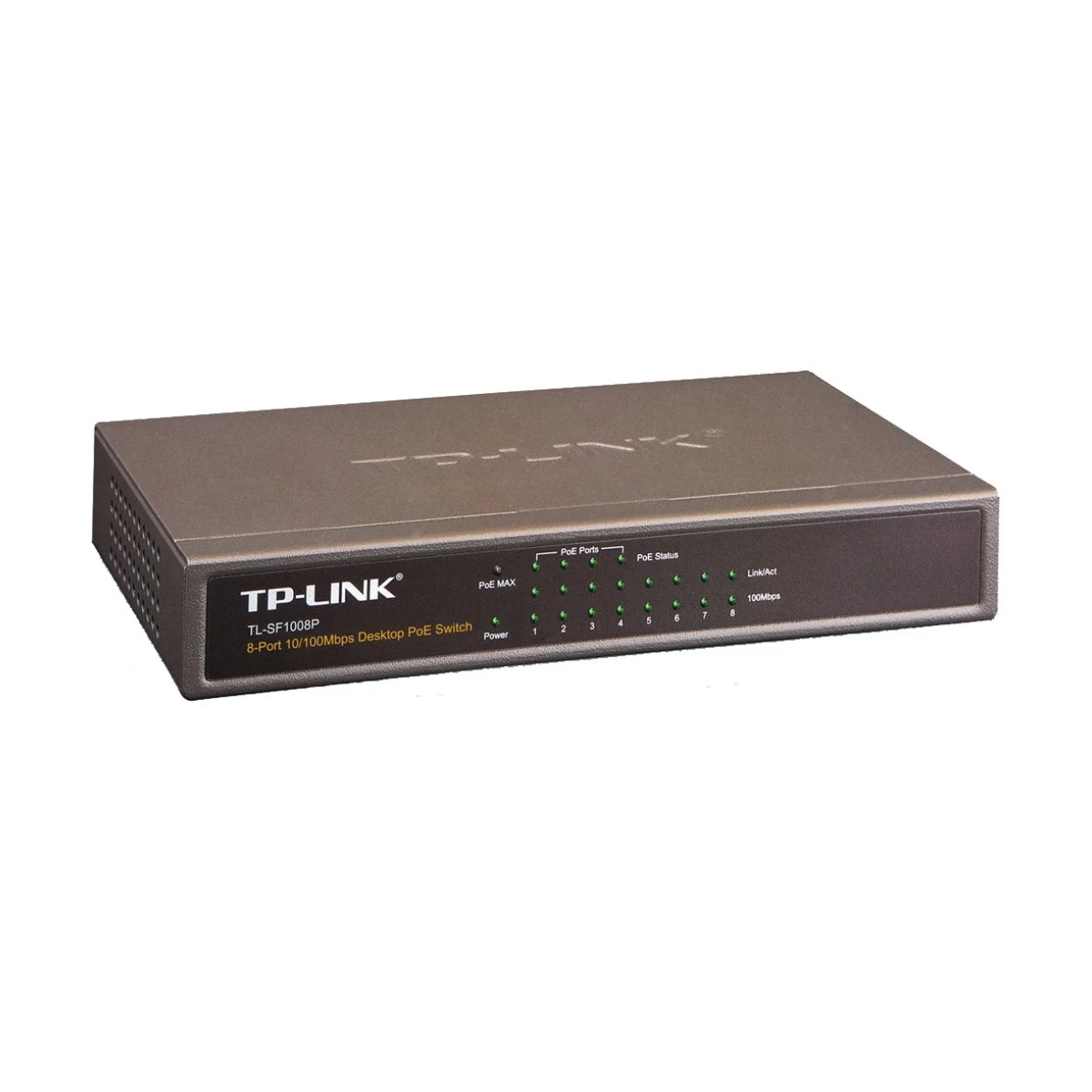

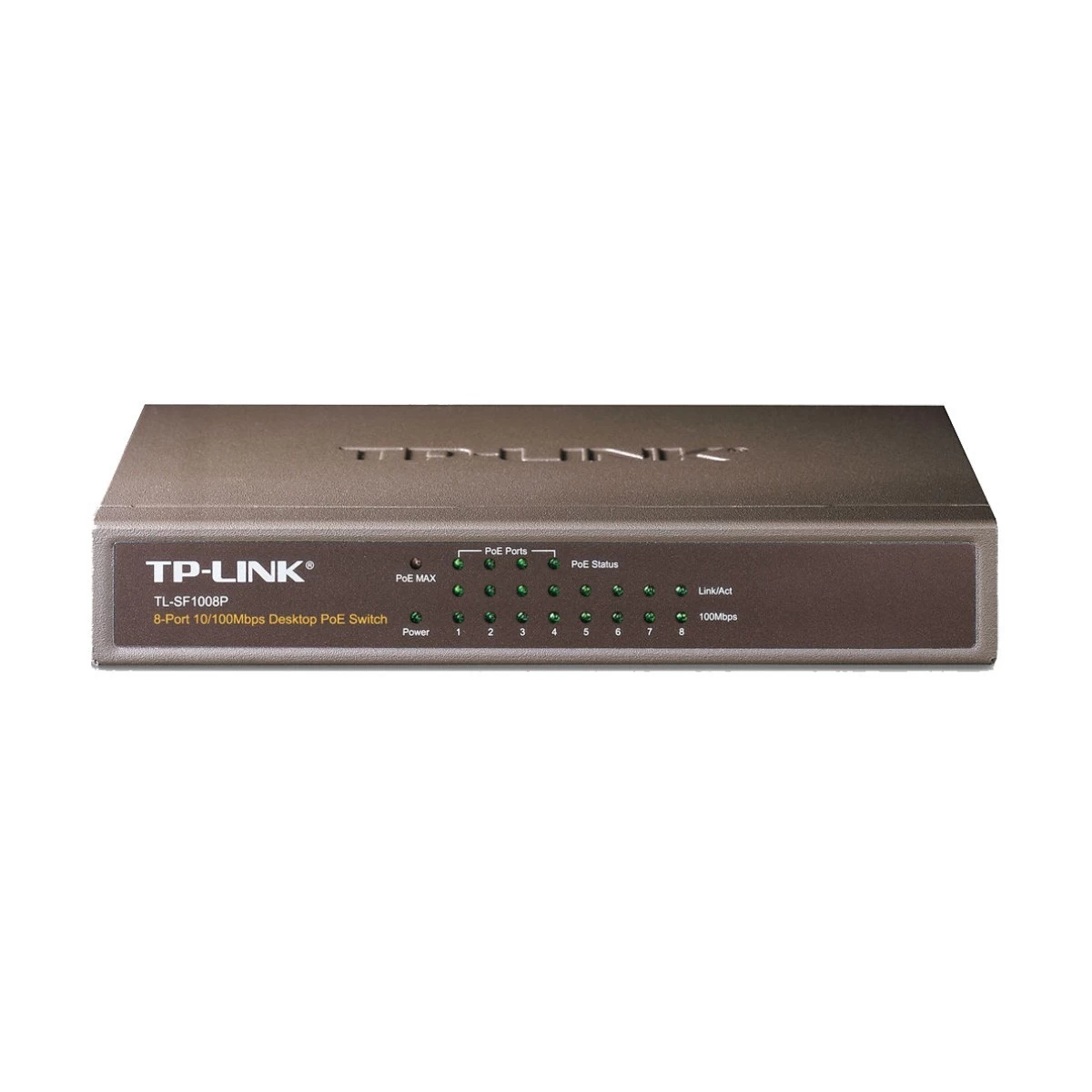

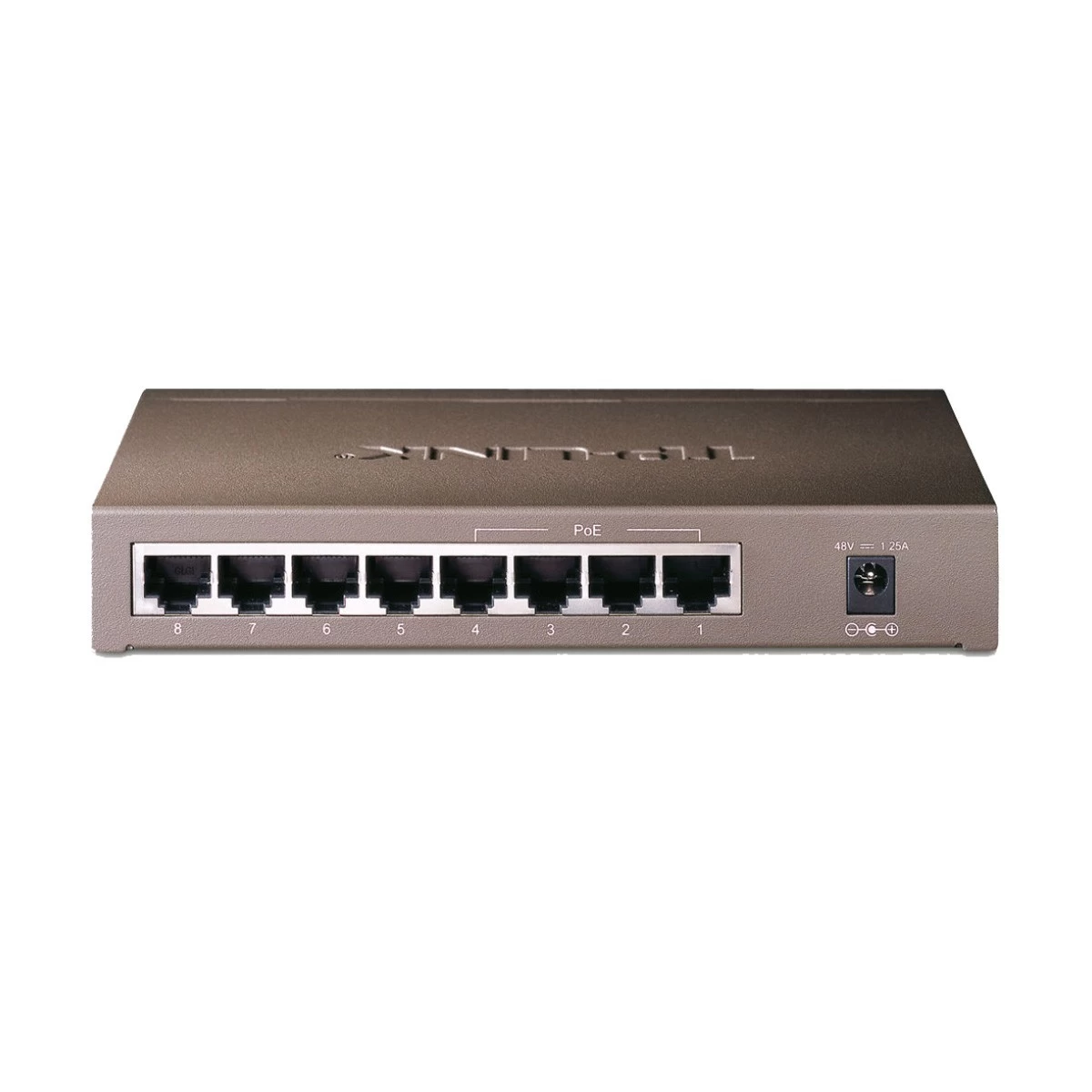

TP-Link TL-SF1008P 8 Port (4 POE) Switch
Product Id: 29.05.091.16
Brand
Tp-link
Quick Overview
- Type - Network Switch
- Number of Total Port - 8 Port
- PoE - Yes
- Manageability - Unmanaged
- Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af
- Data Transfer Rate - 10/100 Mbps
- Form Factor - Desktop
General
Brand
TP-Link
Model
TL-SF1008P
Type
Network Switch
Part No
TL-SF1008P
Ports & Slots
Number of Total Port
8 Port
Gigabit Port
8
PoE Port
4
Technical Info
PoE
Yes
Manageability
Unmanaged
Interface(s)
8 x 10/100 Mbps RJ45 Ports (4 x 10/100 Mbps 802.3af/at PoE+ ports) AUTO Negotiation/AUTO MDI/MDIX
Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af
Data Transfer Rate
10/100 Mbps
Transmission Method
Store-And-Forward
Switching Capacity
1.6 Gbps
OS Supported
Windows 2000/ XP/ Vista/ 7 Linux/ MAC OS
Physical Description
Fan/Fanless
Fanless
Indicators
Power, 100Mbps, Link/Act, PoE Status, PoE MAX
Form Factor
Desktop
Dimension
171 x 98 x 27 mm
Packet Contents
Standard: 802.3 af/at compliant, PoE Ports: Ports 1–4, Power Supply: 66 W
Power
Power Supply
External Power Adapter (Output: 53.5 V DC / 1.31 A)
Approx. Power Consumption
5.8 watts. (max. no PD connected), 58.8 watts (max. with 53w PD connected)
Warranty
Warranty Details
2 Year (Without Adapter)
Additional Info
Others
AUTO Negotiation/AUTO MDI/MDIX, External Power Adapter (Output: 53.5 V DC / 1.31 A), PoE Ports (RJ45): Standard: 802.3 af/at compliant, PoE Ports: Ports 1-4, Power Supply: 66 W, Flow Conrol: Yes, Backpressure: Yes, Certification: FCC, CE, RoHS. MAC Address Table: 1k, Auto-learning, Auto-aging. PoE Power on RJ45: Power+: pin 3 & pin 6, Power -: pin 1 & pin 2. Network Media(Cable): 10Base-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100 STP (maximum 100m), 100Base-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100 STP (maximum 100m)
Specialty
8-Port 10/100Mbps Desktop Switch with 4-Port PoE+ transfer data and power on individual cables, Works with IEEE 802.3af/at compliant PDs, Supports PoE Power up to 30 W for each PoE port, Supports PoE Power up to 66 W for all PoE ports, Up to 250m data and power transmitting range under Extend Mode, Plug and play with no configuration required
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of TL-SF1008P Network Switch In Bangladesh
TP-Link TL-SF1008P 8 Port (4 POE) Switch
8-Port 10/100Mbps Desktop Switch with 4-Port PoE
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 57W for all PoE ports
- Requires no configuration and installation
PoE Switches for Your Ultra Convenience
8-Port 10/100Mbps Desktop Switch with 4-Port PoE
TL-SF1008P
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 57W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Brand - TP-Link, Model - TP-Link TL-SF1008P, Type - Network Switch, Number of Total Port - 8 Port, PoE - Yes, Manageability - Unmanaged, PoE Port - Yes, PoE+ Port - 4, Interface - 8 x 10/100 Mbps RJ45 Ports (4 x 10/100 Mbps 802.3af/at PoE+ ports) AUTO Negotiation/AUTO MDI/MDIX, Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, Data Transfer Rate (Mbps) - 10/100 Mbps, Transmission Method - Store-And-Forward, Switching Capacity - 1.6 Gbps, Fan/Fanless - Fanless, Indicator - Power, 100Mbps, Link/Act, PoE Status, PoE MAX, Power Supply - External Power Adapter (Output: 53.5 V DC / 1.31 A), Power Consumption - 5.8 watts. (max. no PD connected), 58.8 watts (max. with 53w PD connected), OS Supported - Windows 2000/ XP/ Vista/ 7 Linux/ MAC OS, Form Factor - Desktop, Dimension - 171 x 98 x 27 mm, Others - AUTO Negotiation/AUTO MDI/MDIX, External Power Adapter (Output: 53.5 V DC / 1.31 A), PoE Ports (RJ45): Standard: 802.3 af/at compliant, PoE Ports: Ports 1-4, Power Supply: 66 W, Flow Conrol: Yes, Backpressure: Yes, Certification: FCC, CE, RoHS. MAC Address Table: 1k, Auto-learning, Auto-aging. PoE Power on RJ45: Power+: pin 3 & pin 6, Power -: pin 1 & pin 2. Network Media(Cable): 10Base-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100 STP (maximum 100m), 100Base-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100 STP (maximum 100m), Specialty - 8-Port 10/100Mbps Desktop Switch with 4-Port PoE+ transfer data and power on individual cables, Works with IEEE 802.3af/at compliant PDs, Supports PoE Power up to 30 W for each PoE port, Supports PoE Power up to 66 W for all PoE ports, Up to 250m data and power transmitting range under Extend Mode, Plug and play with no configuration required, Part No - TL-SF1008P, Warranty - 2 Year (Without Adapter), Country of Origin - China, Made in/ Assemble - China
What is the price of TL-SF1008P Network Switch In Bangladesh?
The price of TL-SF1008P Network Switch not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy TL-SF1008P Network Switch from our website or visit our showrooms nearby.
