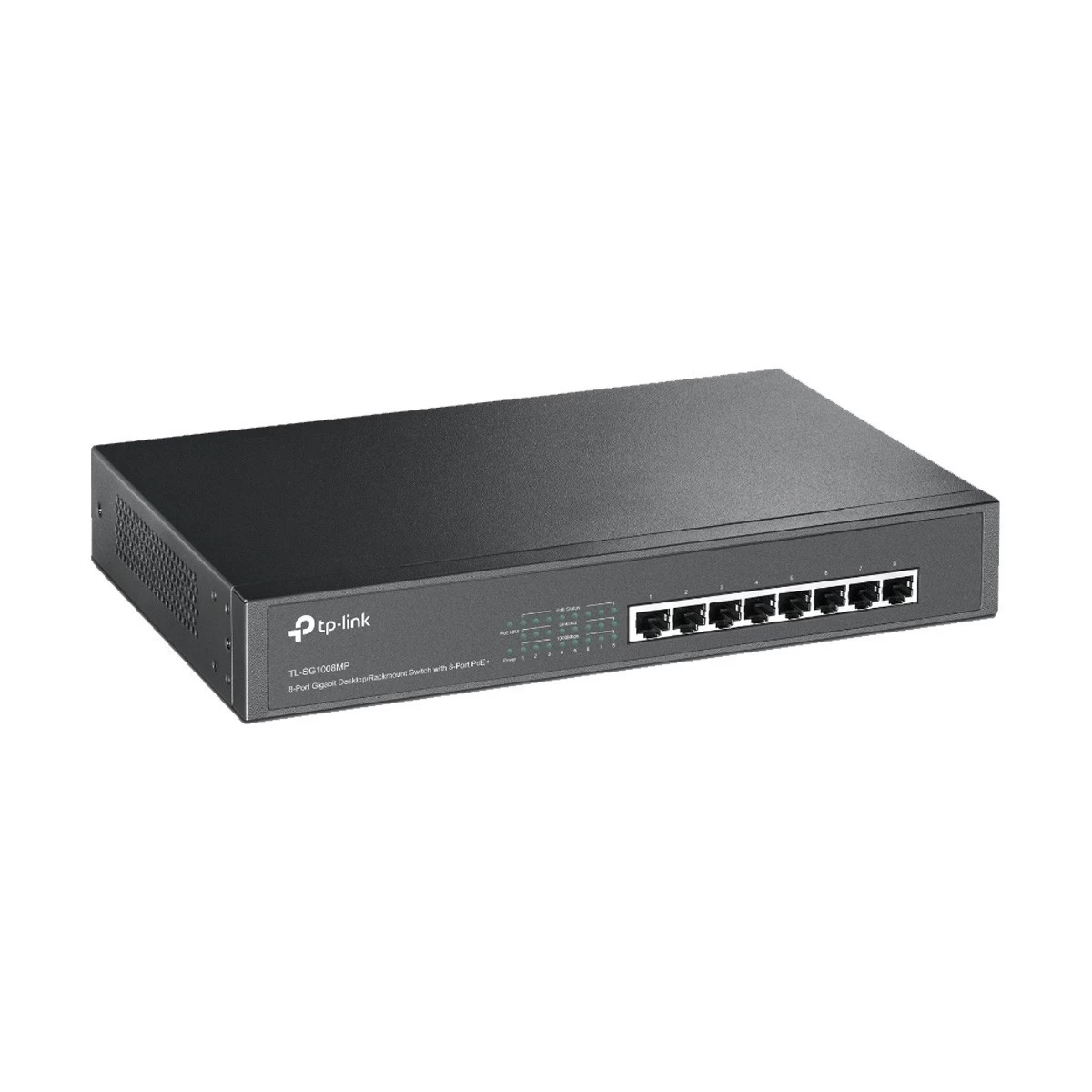

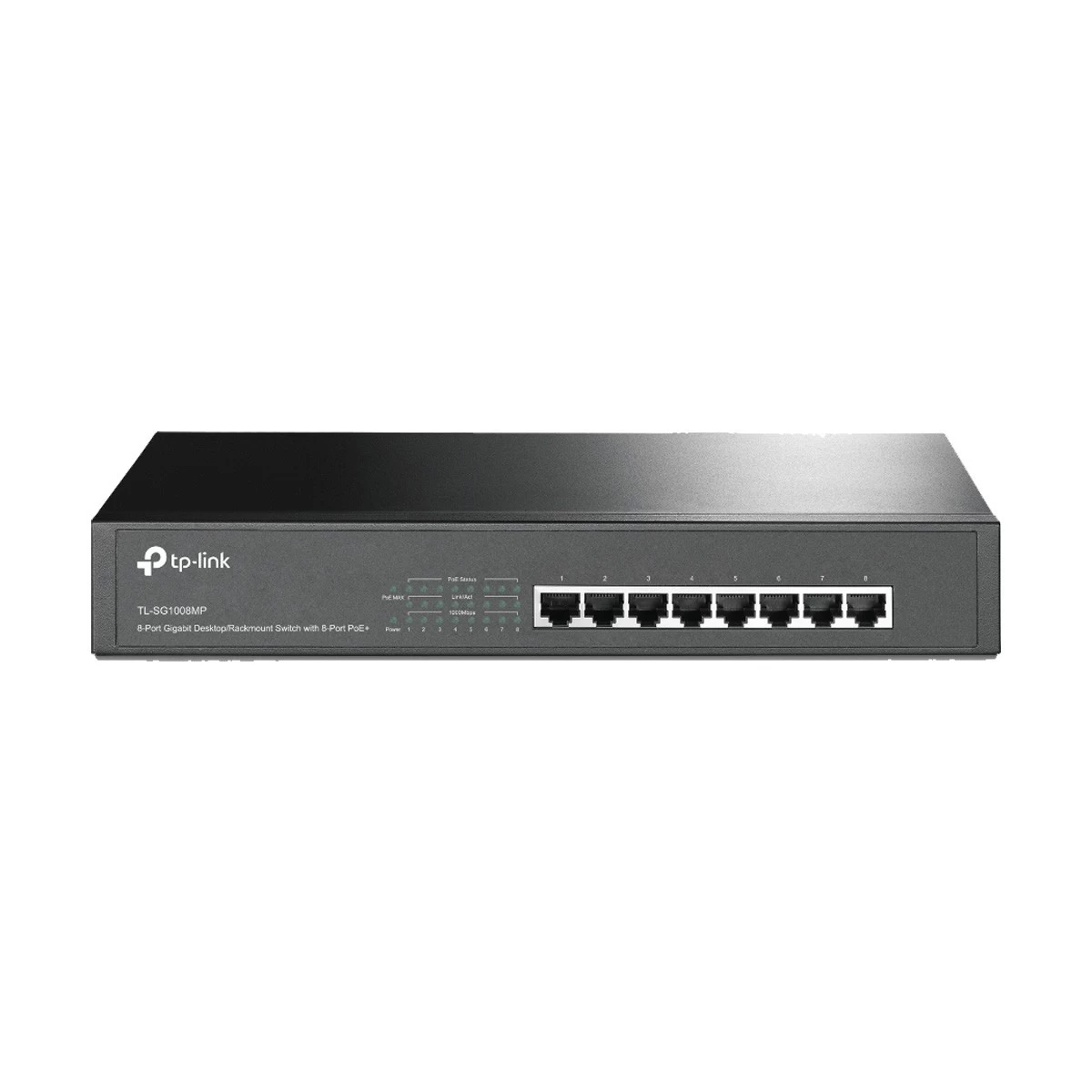

TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
Product Id: 29.05.091.30
Brand
Tp-link
Regular Price
Tk 0
Quick Overview
- Type - Network Switch
- Number of Total Port - 8 Port
- PoE - Yes
- Manageability - Unmanaged
- Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Rackmount
General
Brand
TP-Link
Model
TP-Link TL-SG1008MP
Type
Network Switch
Part No
TL-SG1008MP
Ports & Slots
Number of Total Port
8 Port
PoE+ Port
8
Technical Info
PoE
Yes
Manageability
Unmanaged
Interface(s)
8 x 10/100/1000 Mbps RJ45 ports with 8 PoE ports
Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p
Data Transfer Rate
10/100/1000 Mbps
Transmission Method
Store-And-Forward
Switching Capacity
16Gbps
Physical Description
Fan/Fanless
1
Indicators
Power, 1000 Mbps, Link/Act, PoE Status, PoE MAX
Body Material
Metal
Body Color
Black
Form Factor
Rackmount
Dimension
294 x 180 x 44 mm
Packet Contents
TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
Power
Power Supply
100-240VAC, 50/60Hz
Approx. Power Consumption
9.89 W (220 V/50 Hz. no PD connected), 144.36 W (110 V/60 Hz. with 126 W PD connected)
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Auto Negotiation: Yes, Auto MDI/MDIX: Yes, MAC Address Table: 4K, Auto-learning, Auto-aging, Flow Control: Yes, Backpressure: Yes. Max Heat Dissipation: 33.74 BTU/h (no PD connected), 492.56 BTU/h (with 126 W PD connected). Jumbo Frame: 16KB
Specialty
8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+, Equipped with 8 PoE+ ports to power 8 PoE devices at the same time, Works with IEEE 802.3af or 802.3at compliant up to 30W per port device, Innovative energy-efficient technology reduces power consumption, Rack mountable with included rack mount bracket, Total PoE power budget up to 126W, Plug and play design, no configuration required
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of TP-Link TL-SG1008MP Network Switch In Bangladesh
TP-Link TL-SG1008MP
8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
- 8 10/100/1000Mbps RJ45 ports
- Equipped with 8 PoE+ ports to power 8 PoE devices at the same time
- Works with IEEE 802.3af or 802.3at compliant up to 30W per port device
- Innovative energy-efficient technology reduces power consumption
- Rack mountable with included rack mount bracket
- Total PoE power budget up to 126W
- Plug and play design, no configuration required
What This Product Does
The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP reduces power consumption, making it an eco-friendly solution for your business network.
How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.
Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2, and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.
Brand - TP-Link, Model - TP-Link TL-SG1008MP, Type - Network Switch, Number of Total Port - 8 Port, PoE - Yes, Manageability - Unmanaged, PoE+ Port - 8, Interface - 8 x 10/100/1000 Mbps RJ45 ports with 8 PoE ports, Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, Data Transfer Rate (Mbps) - 10/100/1000Mbps, Transmission Method - Store-And-Forward, Switching Capacity - 16 Gbps, Fan/Fanless - 1, Indicator - Power, 1000 Mbps, Link/Act, PoE Status, PoE MAX, Body Material - Metal, Body Color - Black, Power Supply - 100-240VAC, 50/60Hz, Power Consumption - 9.89 W (220 V/50 Hz. no PD connected), 144.36 W (110 V/60 Hz. with 126 W PD connected), Form Factor - Rackmount, Dimension - 294 x 180 x 44 mm, Others - Auto Negotiation: Yes, Auto MDI/MDIX: Yes, MAC Address Table: 4K, Auto-learning, Auto-aging, Flow Control: Yes, Backpressure: Yes. Max Heat Dissipation: 33.74 BTU/h (no PD connected), 492.56 BTU/h (with 126 W PD connected). Jumbo Frame: 16KB, Specialty - 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+, Equipped with 8 PoE+ ports to power 8 PoE devices at the same time, Works with IEEE 802.3af or 802.3at compliant up to 30W per port device, Innovative energy-efficient technology reduces power consumption, Rack mountable with included rack mount bracket, Total PoE power budget up to 126W, Plug and play design, no configuration required, Part No - TL-SG1008MP, Warranty - 1 Year (Without Adapter), Country of Origin - China, Made in/ Assemble - China
What is the price of TP-Link TL-SG1008MP Network Switch In Bangladesh?
The price of TP-Link TL-SG1008MP Network Switch not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy TP-Link TL-SG1008MP Network Switch from our website or visit our showrooms nearby.
