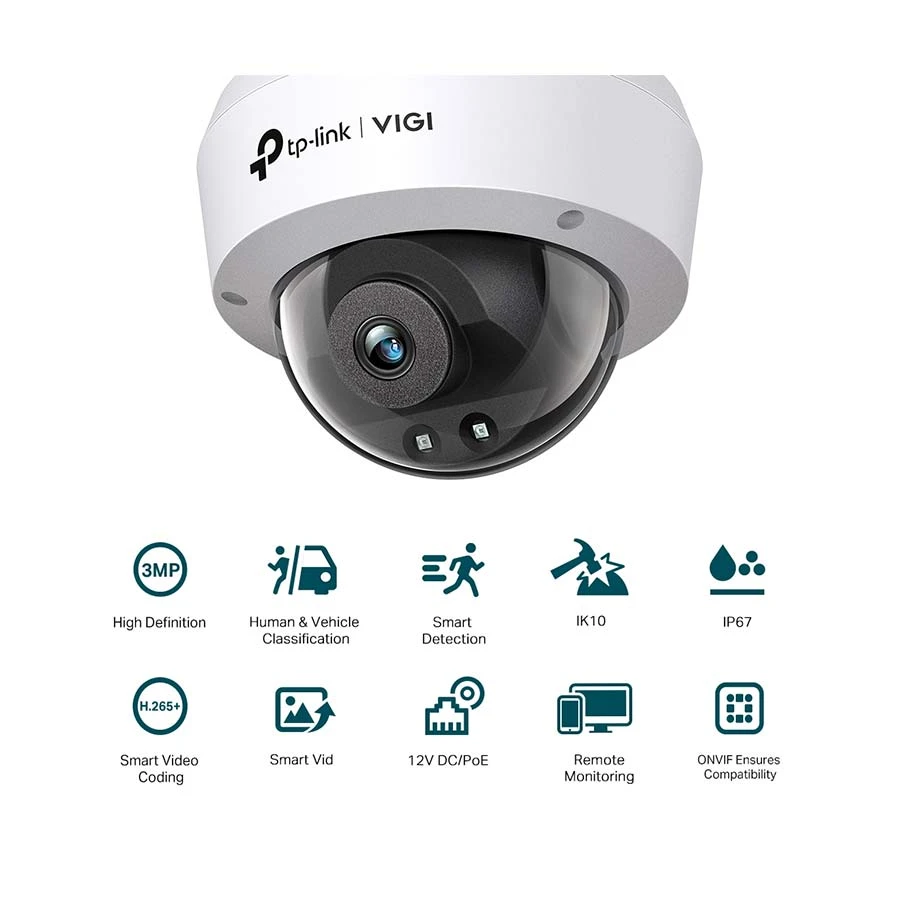

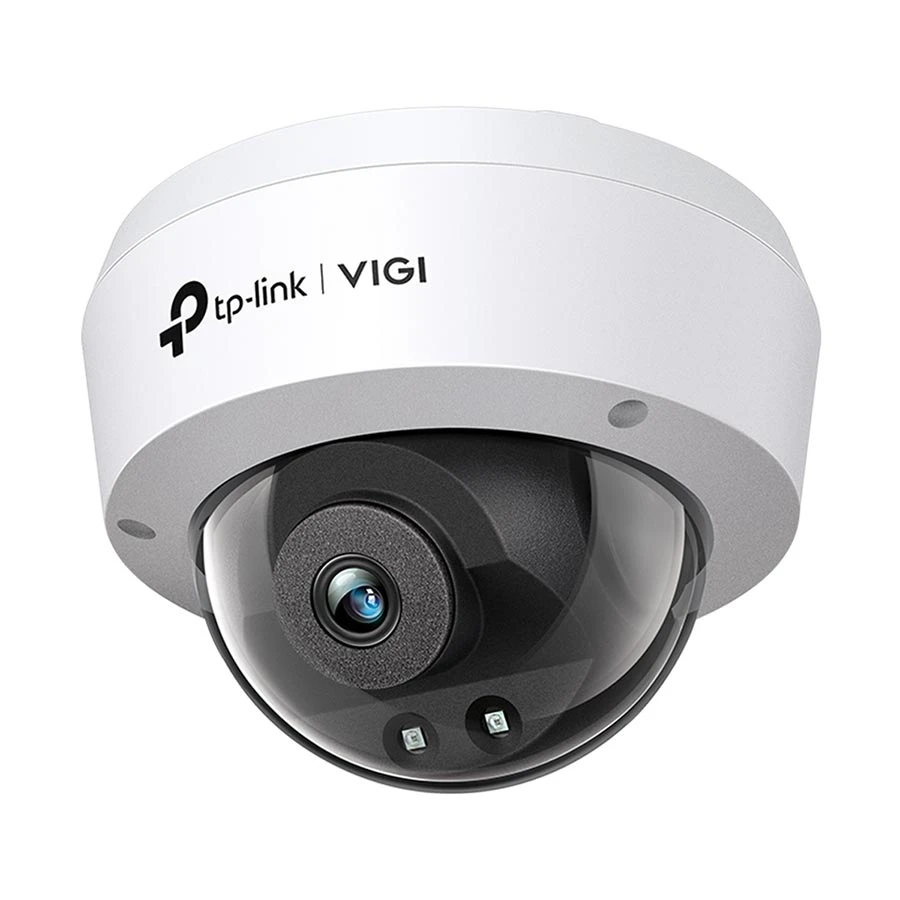

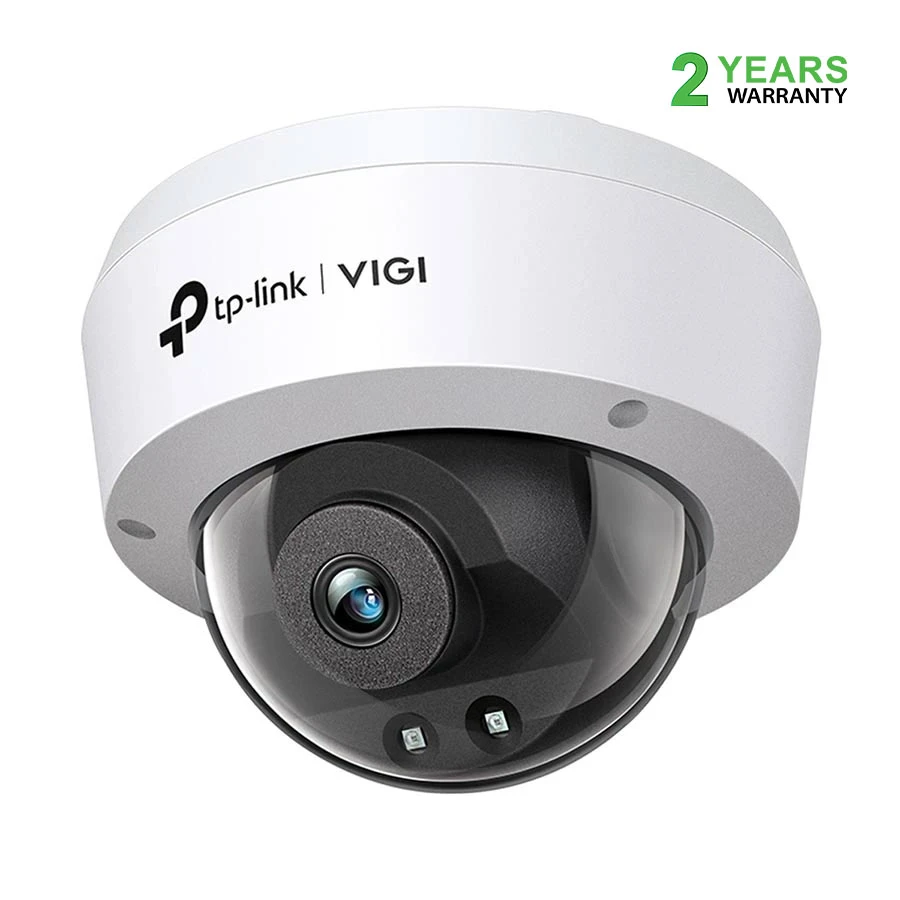

TP-Link VIGI C230I (4mm) (3.0MP) IR Dome IP Camera

Product Id: 127.03.091.50

Brand Tp-link

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Usage - Indoor & Outdoor
  • Form-Factor - Dome
  • Mega Pixels - 3.0MP
  • Night Vision Mode - Black and White
  • Working Distance - 65 Meter
General
Brand
Tp-Link

Model
TP-Link VIGI C230I

Usage
Indoor & Outdoor

Type
IP Camera


Camera
Camera Type
Fixed

Mega Pixels
3.0MP

Max. Camera Resolution
2304 x 1296

Image Sensor
1/2.8 Inch CMOS

Resolution
2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240

Shutter Speed
1/3 to 1/10000 s

Slow Shutter
Yes

Day & Night
IR Cut Filter

Night Vision
Yes

S/N Ratio
>= 52 dB


Lens
Lens
4mm

Lens Mount
M12

Focal Length
4mm

Viewing Angle.
99.3 Degree (Diagonal)


General Function
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Frame Rate
1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Digital Noise Reduction (DNR)
3D DNR

Wide Dynamic Range (WDR)
DWDR


Network & Connectivity
Interface(s)
1 x RJ45 10/100M Self-Adaptive Ethernet

Wi-Fi
No


Security
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Password Protection
Yes

Motion Detection
Yes

Human Detection
Yes

Dust Protection
Yes

Water Protection
IP67

Weather Proof
Yes

Simultaneous Live View
3 Main Streams & 3 Sub-Streams


Technical Info
Scanning System
Progressive

Video Type
H.265+ / H.265 / H.264+ / H.264

Wavelength
850nm

Mic & Speaker
No

Output Notification
Message Push

Working Distance
65 Meter

Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS


Physical Description
Form-Factor
Dome

Card Slot
No

Indicator LED
IR LED, White LED.

Body Material
Plastic

Color
Black & White

Dimensions
115 x 86 x 115mm

Weight (gm)
270 gm (Net)


Power
Power Supply
12V DC

Approx. Power Consumption
5W

Operating Temperature
-30 to 60 Degree C

Storage Temperature
-40 to 60 Degree C

Operating Humidity
95% or Less (Non-Condensing)

Storage Humidity
95% or Less (Non-Condensing)


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Night Vision Mode
Black and White

Others

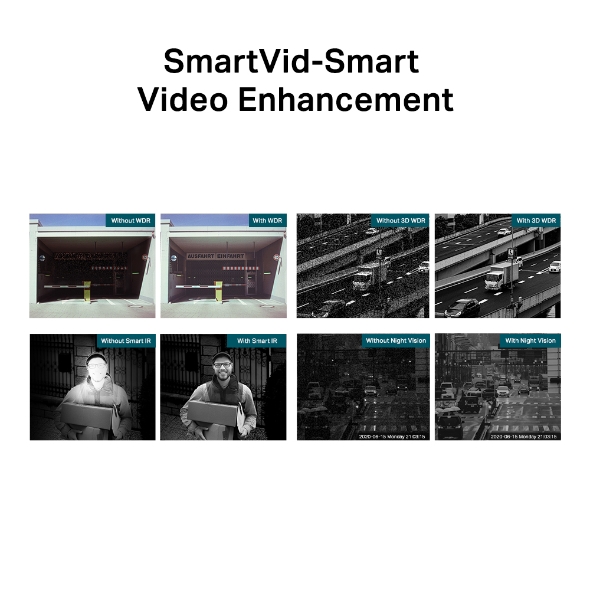

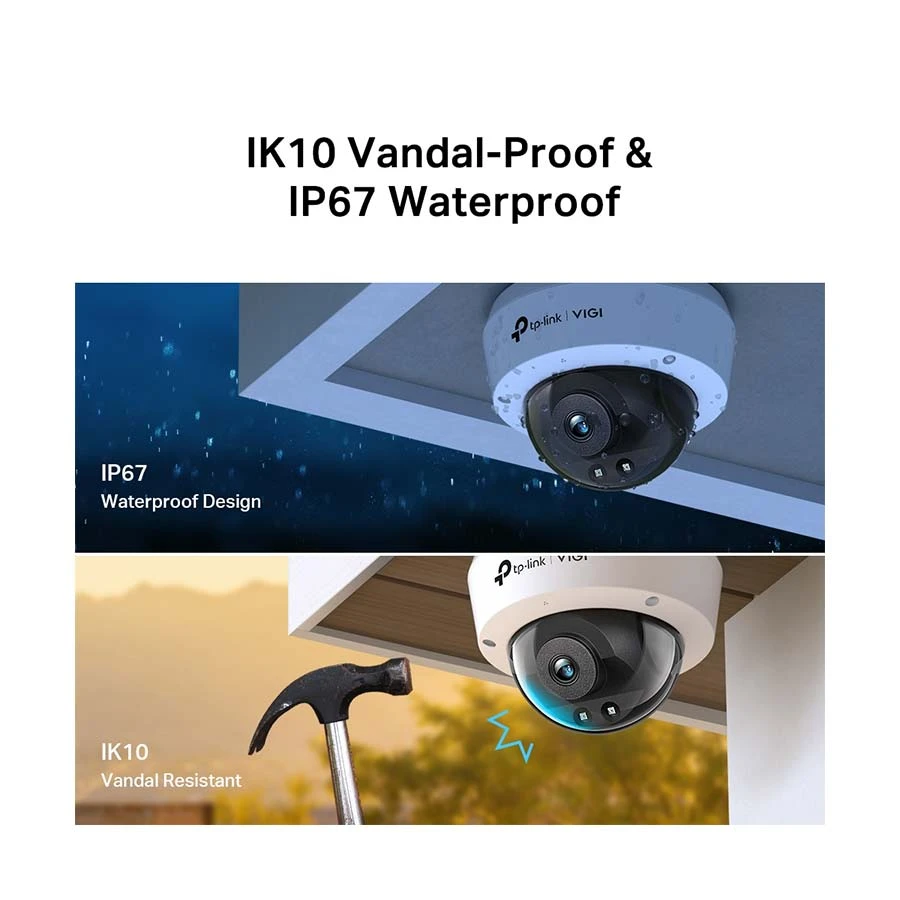

Day/Night Switch: Unified/ Scheduled/ Auto, IR Working Distance: 30m, Aperture: F2.0, Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR. ONVIF: Yes, API: ONVIF. Client: VIGI App, VIGI Security Manager, VIGI NVR, Web, Vandal Resistant: IK10, Protection: IP67, IK10. Certifications: CE/BSMI/VCCI/ONVIF, Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login). Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90/270 Degree). Image Enhancement: BLC/3D DNR/HLC/SmartIR, Video Bit Rate: 64 Kbps to 4 Mbps, Day/Night Switch: Day/Night/Auto/Schedule. Privacy Mask: Up to 4 Masks. DORI Distance: Detect: 65 m, Observe: 27 m, Recognize: 13 m, Identify: 7 m.

Specialty
3MP Super-High Definition: The VIGI C230I camera comes with 3MP more than enough pixels to pick up some of the more discrete details. Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you`ve set, obstructs the camera, or removes/abandons objects.

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
