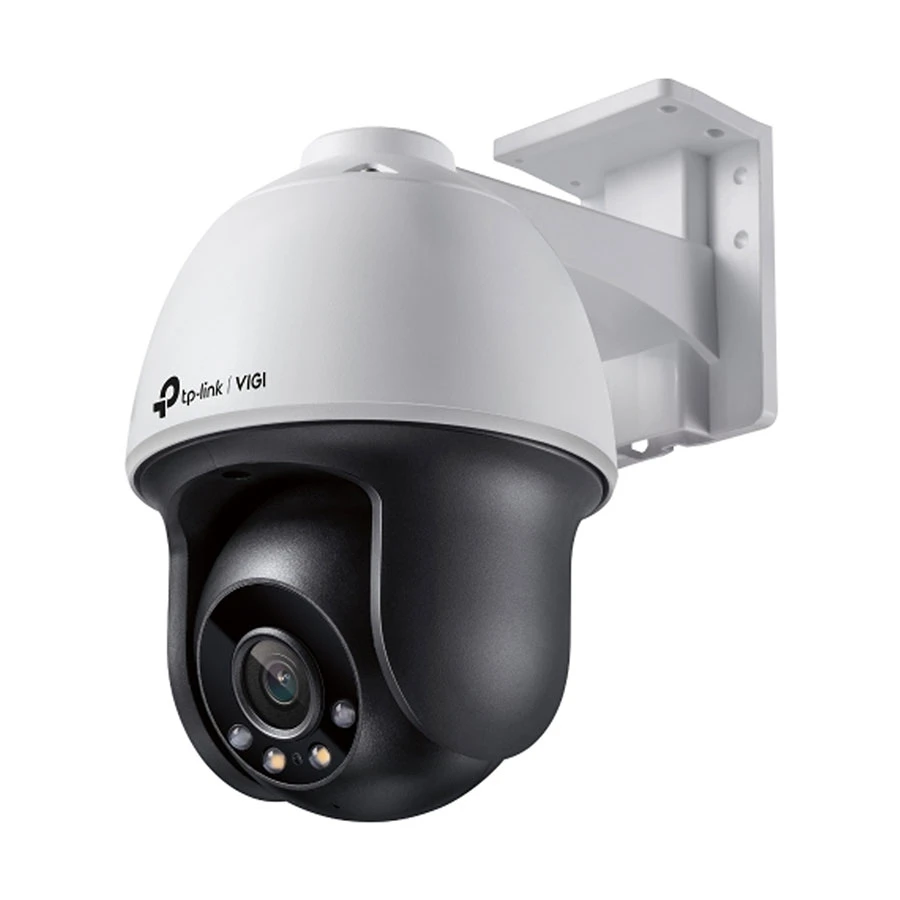

TP-Link VIGI C540 (4mm) (4.0MP) Full-Color Pan/Tilt Outdoor Wi-Fi Dome IP Camera
Product Id: 127.15.091.16
Brand
Tp-link
Quick Overview
- Usage - Outdoor
- Form-Factor - Dome
- Mega Pixels - 4.0MP
- Night Vision Mode - Color
- Working Distance - 30 Meter
General
Brand
Tp-link
Model
TP-Link VIGI C540 V1
Usage
Outdoor
Type
Dome IP Camera
Camera
Camera Type
Pan & Tilt
Mega Pixels
4.0MP
Max. Camera Resolution
2560 x 1440
Image Sensor
1/3 Inch Progresive Scan CMOS
Resolution
2560x1440, 2304x1296, 2048x1280, 1920x1080, 640x480, 352x288, 320x240
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Day & Night
IR Cut Filter
Night Vision
Yes
S/N Ratio
52dB
Lens
Lens
4mm
Lens Mount
M12
Lens Adjustment Range
Pan: 0 to 348 degree, Tilt: 0 to 120 degree
Focal Length
4mm
Zoom
Digital
Viewing Angle.
93 degree (D), 79 degree (H), 43 degree (V)
General Function
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Dual-Stream
Yes
Frame Rate
Main Stream: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Sub-Stream: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Digital Noise Reduction (DNR)
3D DNR
Wide Dynamic Range (WDR)
DWDR
Network & Connectivity
Interface(s)
RJ-45 (10/100 Base-T)
Wi-Fi
No
Security
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Password Protection
Yes
Watermark
No
Motion Detection
Yes
Human Detection
Yes
Water Protection
IP66
Weather Proof
IP66
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Technical Info
Scanning System
Progressive
Video Type
H.265+/ H.265/ H.264+/ H.264/ H.265/ H.264
Wavelength
850nm
Mic & Speaker
Both Mic and Speaker
Audio Communication
Two-way audio
Working Distance
30 Meter
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Physical Description
Form-Factor
Dome
Smart Alarm
Area Intrusion Detection, Line-Crossing Detection, Human Detection, Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Card Slot
Yes
Storage Type
MicroSD
Storage Supported
Up to 256GB
Button
Reset Button
Body Material
Plastic
Color
White
Dimensions
120 x 172 x 198mm
Weight (gm)
0.62 Kg
Power
Power
12V
Power Supply
12V DC +/- 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 4)
Approx. Power Consumption
14W, Class 4 (PoE)
Operating Temperature
-30 to 60 degree C
Storage Temperature
-40 to 60 degree C
Operating Humidity
95% or Less (Non-Condensing)
Storage Humidity
95% or Less (Non-Condensing)
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Night Vision Mode
Color
Others
Day/Night Switch: Unified/ Scheduled/ Auto, Aperture: 4mm: F1.6, Minimum Illumination: 0 lux with IR/white Light, ONVIF, API: ONVIF, Web Browser: (Google Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and above), Cloud: Yes, Package Contents : (VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories (Screws, Drywall Anchors, Hex Key)), Certifications: CE, RCM, BSMI, VCCI, RoHS, NTRA, KC, Power: DC Power Port, Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing, Video Streaming: Main Stream Sub-Stream, Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Image Enhancement: BLC/3D DNR/Prevent Overexposure to Infrared Light, Video Bit Rate: Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps, Audio Sampling Rate: 8KHz, Audio Bit Rate: 64 Kbps(G.711 alaw).
Specialty
The camera comes with 4MP more than enough pixels to pick up some of the more discrete details, Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs, Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property, Reliable IP66 for stable outdoor performance, Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you`ve set, or obstructs the camera, Manage your security from the palm of your hand with the VIGI app.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of TP-Link VIGI C540 V1 IP Camera In Bangladesh

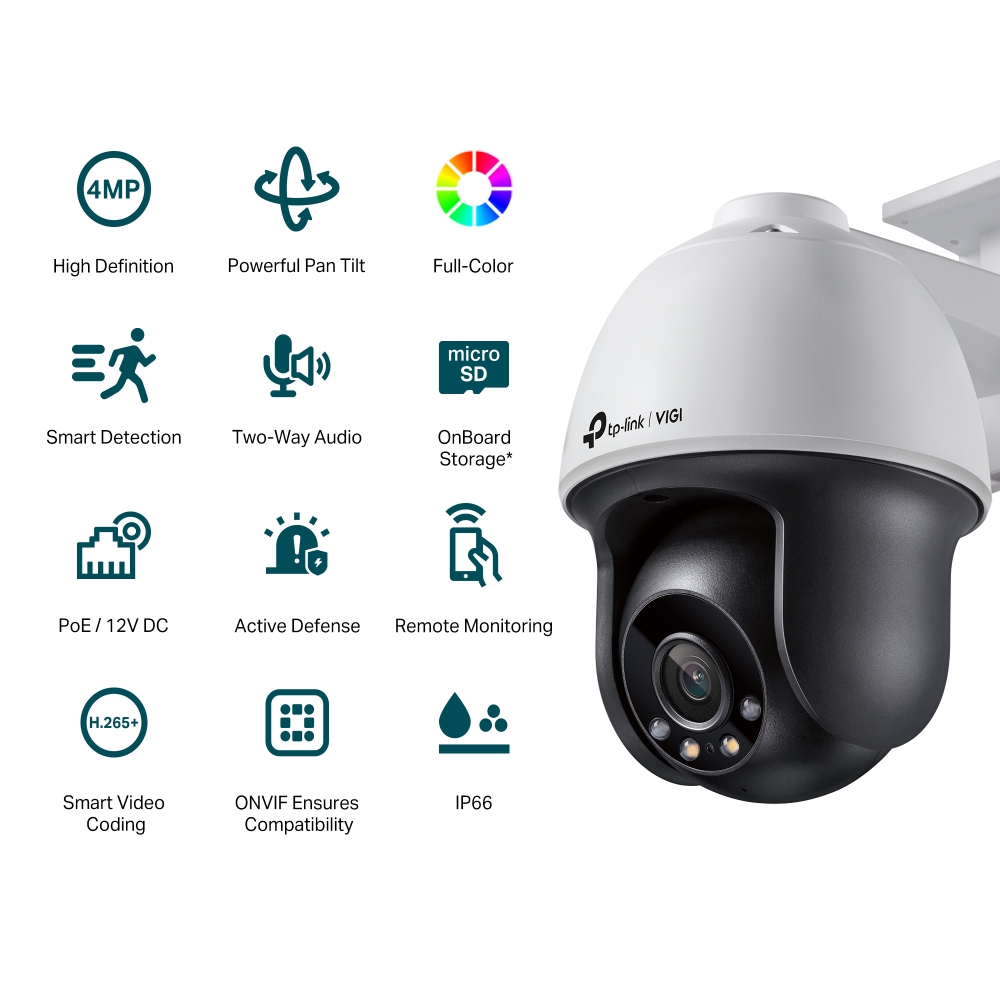

VIGI 4MP Outdoor Full-Color Pan Tilt Network Camera
- 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.
- Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
- Waterproof: Reliable IP66 for stable outdoor performance.
- Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

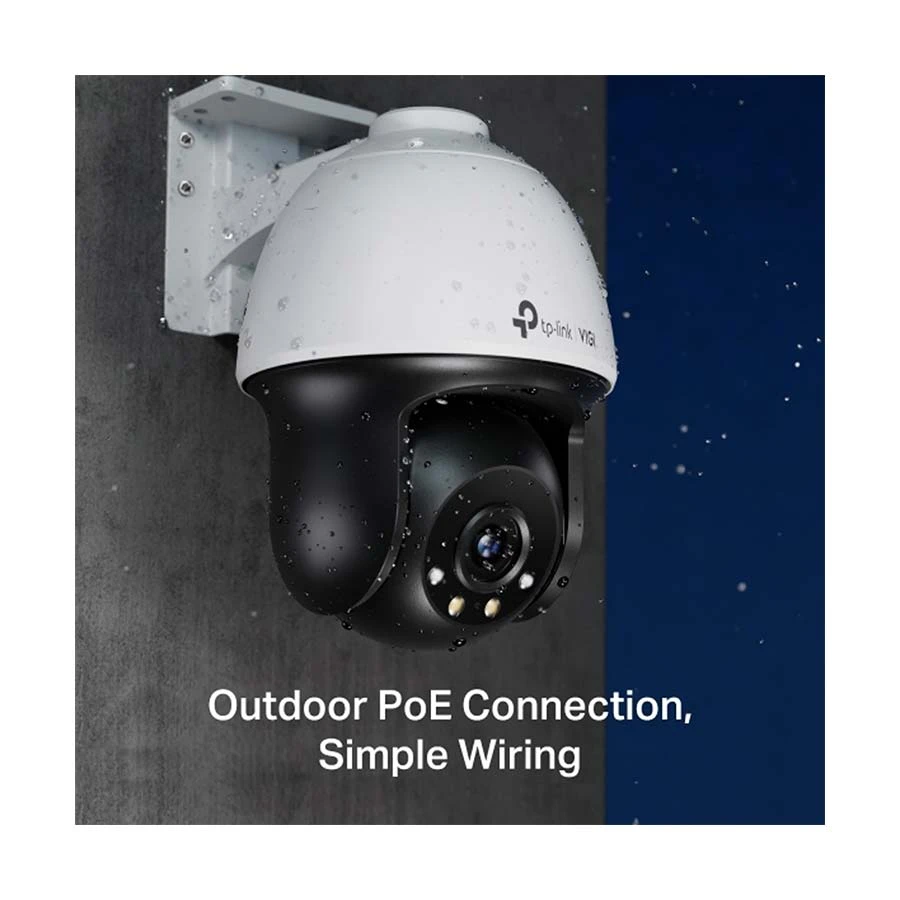

- PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

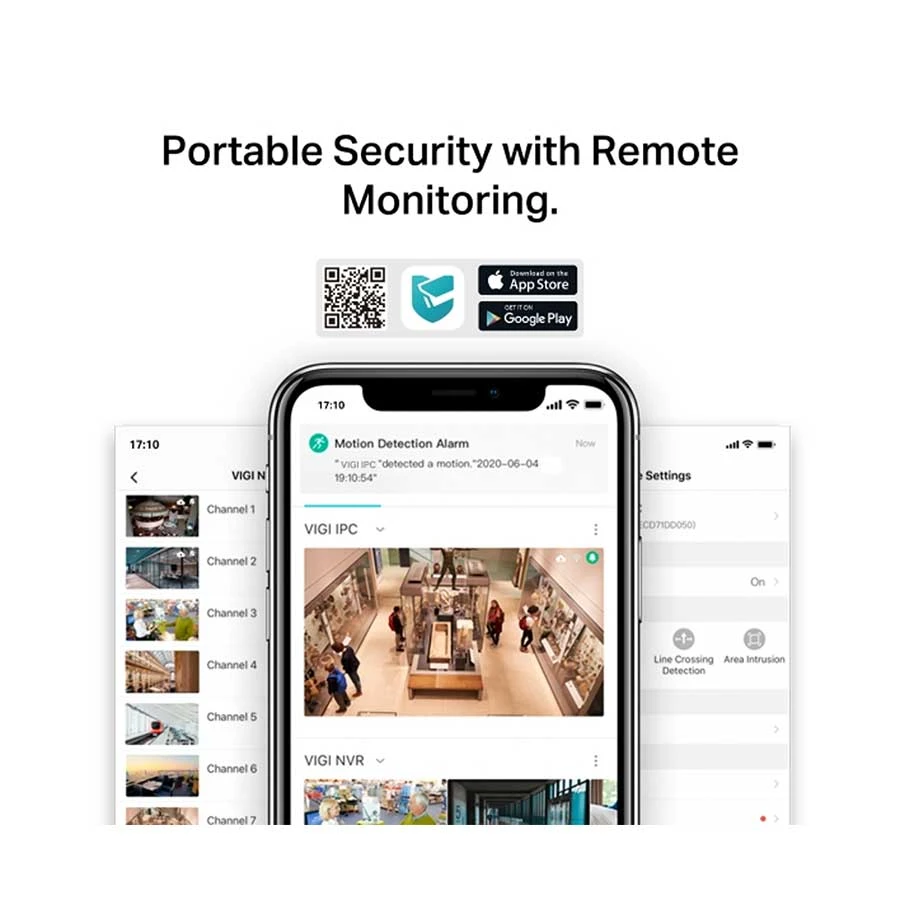

- VIGI App: Manage your security from the palm of your hand with the VIGI app.
What is the price of TP-Link VIGI C540 V1 IP Camera In Bangladesh?
The price of TP-Link VIGI C540 V1 IP Camera not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy TP-Link VIGI C540 V1 IP Camera from our website or visit our showrooms nearby.
