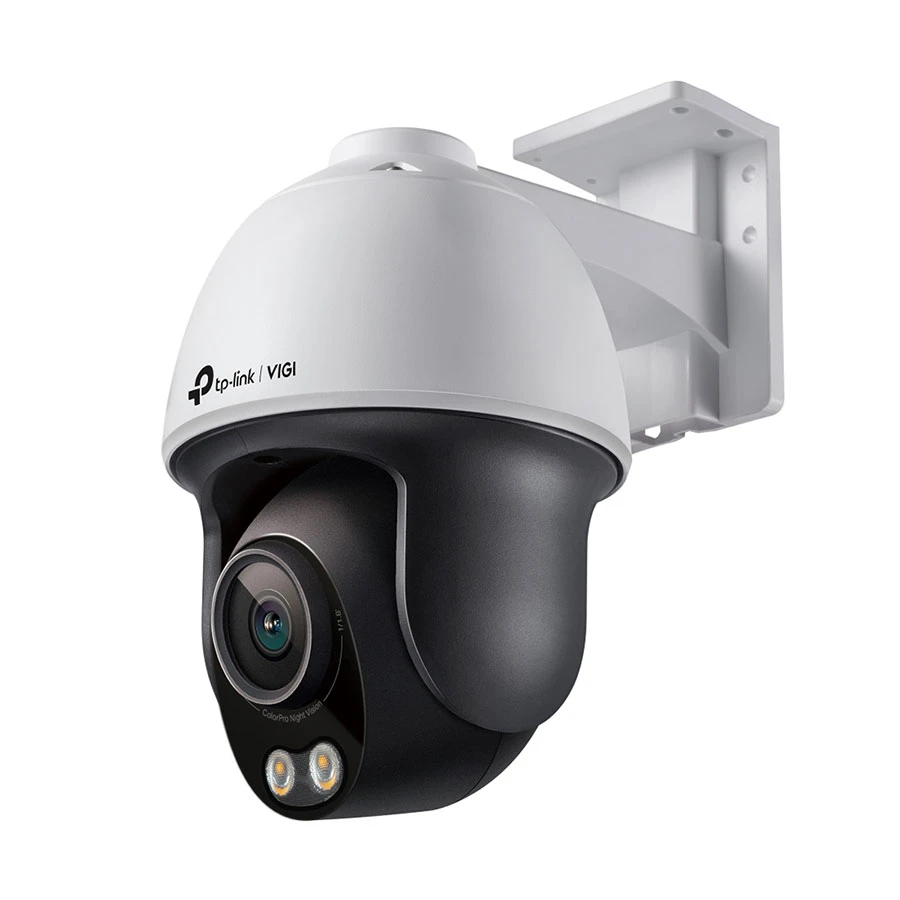

TP-Link VIGI C540S (4mm) (4.0MP) Outdoor ColorPro Pan/Tilt Dome IP Camera

Item: TP-Link VIGI C540S (4mm) (4.0MP) Outdoor ColorPro Pan/Tilt Dome IP Camera
Rating: 5
Author: Verified Buyer

9 reviews

Product Id: 127.03.091.72

Out Of Stock

See similar model

Quick Overview

Usage - Outdoor
Form-Factor - Dome
Mega Pixels (MP) - 4.0
Night Vision Mode - Color
Working Distance - 63 Meter
Color - White

Payment Method Shipping & Charge Order Procedure

Brand

TP-Link

Model

TP-Link VIGI C540S

Usage

Outdoor

Type

Pan/Tilt Dome IP Camera

Number of Camera

Mega Pixels (MP)

4.0

Max. Camera Resolution

2688 x 1520

Secondary Camera Mega Pixel (MP)

Not Applicable

Secondary Camera Max Resolution

Not Applicable

Number of Lens

Single Lens (Primary)

Lens

4mm

Night Vision

Yes

Night Vision Mode

Color

Mic & Speaker

Both Mic and Speaker

Defense System

Active Defense: Warn potential intruders instantly with sound and light when abnormal events.

Sim Supported

Wi-Fi

Card Slot

Human Detection

Yes

Viewing Angle.

104 Degree (H), 55 Degree (V), 127 Degree (D)

Working Distance

63 Meter

Power

DC / PoE

Approx. Power Consumption

13.13W

Body Material

Plastic

Color

White

Dimensions

120 x 172 x 203mm

Warranty

2 Year (Without Adapter)

General

Brand

TP-Link

Model

TP-Link VIGI C540S

Usage

Outdoor

Type

Pan/Tilt Dome IP Camera

Camera

Number of Camera

Camera Type

Pan & Tilt

Mega Pixels (MP)

4.0

Max. Camera Resolution

2688 x 1520

Secondary Camera Type

Not Applicable

Secondary Camera Mega Pixel (MP)

Not Applicable

Secondary Camera Max Resolution

Not Applicable

Sensor Type.

1/1.79 Inch Progressive Scan CMOS

Resolution

Main Stream: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720, Sub-Stream: 704x576, 640x480, 352x288, 320x240

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Night Vision

Yes

Night Vision Mode

Color

S/N Ratio

>=52 dB

Lens

Number of Lens

Single Lens (Primary)

Lens

4mm

Lens Mount

M16 x P 0.5

Lens Adjustment Range

Pan: 0 Degree to 348 Degree, Tilt: 0 Degree to 105 Degree

Focal Length

4mm

PTZ

Yes

Viewing Angle.

104 Degree (H), 55 Degree (V), 127 Degree (D)


Dual-Stream

Yes

Frame Rate

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Noise Reduction

Yes

Digital Noise Reduction (DNR)

3D DNR

Wide Dynamic Range (WDR)

120dB

Network & Connectivity

Sim Supported

Sim Network Type

Not Applicable

Interface(s)

1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Wi-Fi

Security

Defense System

Active Defense: Warn potential intruders instantly with sound and light when abnormal events.

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Password Protection

Yes

Motion Detection

Yes

Human Detection

Yes

Water Protection

Yes

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Technical Info

Scanning System

Progressive

Video Type

Main Stream: H.265+/ H.265/ H.264+/ H.264, Sub-Stream: H.265/ H.264

Mic & Speaker

Both Mic and Speaker

Audio Communication

Two-Way Audio

Ingress Protection Grade

IP66

Working Distance

63 Meter

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Physical Description

Form-Factor

Dome

Card Slot

Storage Type

MicroSD

Storage Supported

Up to 256GB

Button

Reset Button

Body Material

Plastic

Color

White

Dimensions

120 x 172 x 203mm

Power

DC / PoE

Battery Capacity

Not Applicable

Battery Backup

Battery Backup Time

Not Applicable

Power Supply

12V DC +- 5% , 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16.47 W

Approx. Power Consumption

13.13W

Operating Temperature

-30 Degree C to 60 Degree C

Storing/Storage Temperature

-40 Degree C to 60 Degree C

Operating Humidity

95% or Less (Non-Condensing)

Storing/Storage Humidity

95% or Less (Non-Condensing)

Warranty

2 Year (Without Adapter)

Additional Info

Others

Minimum Illumination: 0.0005 Lux; 0 Lux with White Light, Day/Night Switch: Unified/Scheduled/Auto, Aperture: F1.0 +-5%, DORI Distance: Detect: 63 m (207 ft), Observe: 26 m (86 ft), Recognize: 13m (41 ft), Identify: 6 m (21 ft), Pan/tilt Speed: Pan Speed: Configurable from 8 Degree to 44 Degree/s; Preset Speed: 44 Degree/s, Tilt Speed: Configurable from 8 Degree to 44 Degree/s, Preset Speed: 44 Degree/s, Manual Control Speed: Configurable from 8 Degree to 35 Degree/s, Presets: 300, Patrol Scan: 8 patrols, up to 8 presets for each patrol, Power-off Memory: Yes, Auto restore to previous PTZ and lens status after power failure, Park Action: Preset; Patrol Scan, White LED: Quantity: 2, Range: 30m, Illuminator On/Off Control: Auto/Scheduled/Always on/Always off, Bit Rate Control: CBR, VBR, Main Profile/High Profile H.264 Type, Main Stream Supported H.264+, Video Bit Rate: Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps, Image Enhancement: BLC/3D DNR/HLC, 1 Region, Audio Sampling Rate: 8KHz, Audio Bit Rate: 64 Kbps(G.711 alaw), Client: VIGI App, VIGI Security Manager, Web UI, Web Browser: Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above, Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC.

Specialty

3D Positioning, Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Image Parameters Switch, Up to 4 Privacy Mask Masks, OSD Setting, ONVIF API, Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Abandoned Object Detection, Object Removal Detection, Loitering Detection, Scene Change Detection, Smart Frame, Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Country Of Origin

China

Made in/ Assemble

China

Details

Features of TP-Link VIGI C540S IP Camera In Bangladesh

The TP-Link VIGI C540S Outdoor ColorPro Pan/Tilt Dome IP Camera is perfect for reliable home and business security. Its sharp 4MP resolution ensures that every detail is clear even in low light. You can monitor your surroundings with its wide field of view and smooth pan and tilt functions making it a powerful tool for both day and night.

Benefits & Features

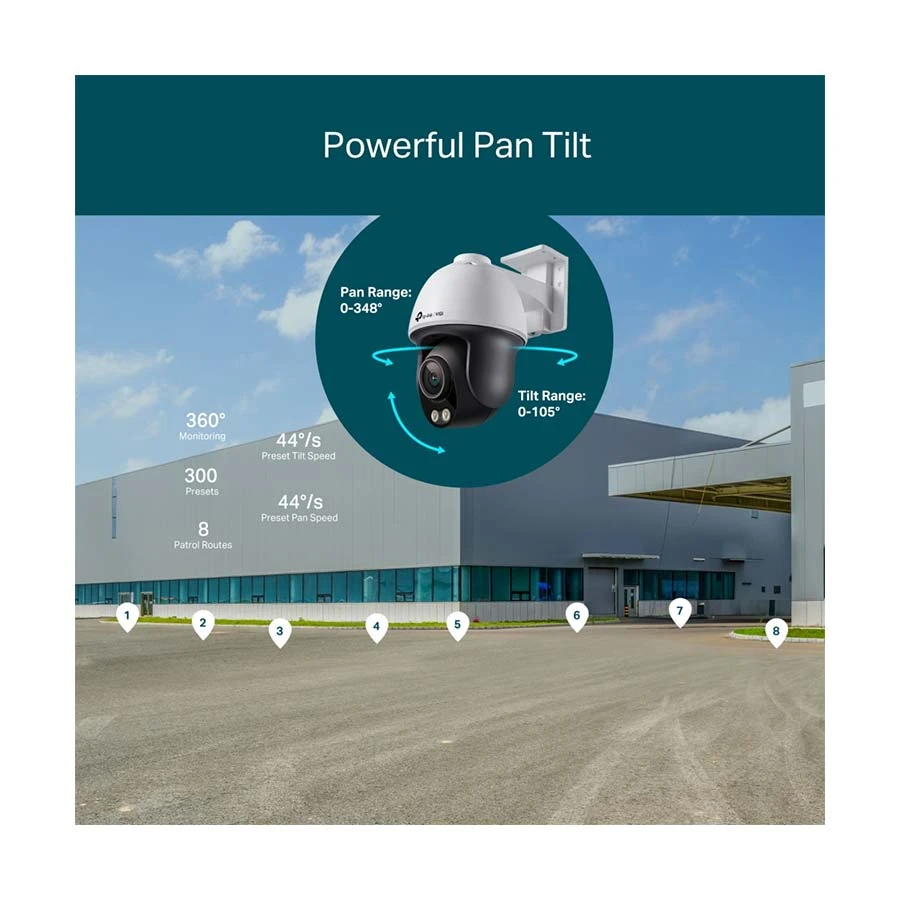

Pan/Tilt Dome IP Camera: Easily adjust the camera's angle to cover blind spots.
ColorPro Technology: This feature provides bright and clear images even in near-total darkness.
4.0 MP Resolution: Capture more details with the high-resolution image quality of this IP Camera.
Outdoor Durability: Built to withstand harsh weather making it ideal for outdoor use.
Human & Vehicle Classification: The camera’s advanced detection system helps distinguish between people and vehicles for smarter alerts.
Remote Monitoring: Access live video feeds from anywhere using the app on your phone or computer.
Enhanced Security: Safeguard your home or business with top-tier video surveillance technology.

What You Need to Know Before Hitting 'Add to Cart'

Make sure your internet connection supports remote viewing on the TP-Link Pan/Tilt Dome IP Camera.
The camera is designed for outdoor use, but it's also great indoors.
The CCTV Camera has night vision that works in complete darkness.
You can easily buy this product from Ryans Computer for the best price.

The TP-Link VIGI C540S Outdoor ColorPro Pan/Tilt Dome IP Camera offers clear security footage and advanced detection features. Perfect for any outdoor space. Stay safe with better video quality. This product is available in various shops across Bangladesh. However, for the best price, click "Add to Cart" on this page of our online shop Ryans Computer Ltd.

What is the price of TP-Link VIGI C540S IP Camera In Bangladesh?

The price of TP-Link VIGI C540S IP Camera not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy TP-Link VIGI C540S IP Camera from our website or visit our showrooms nearby.
