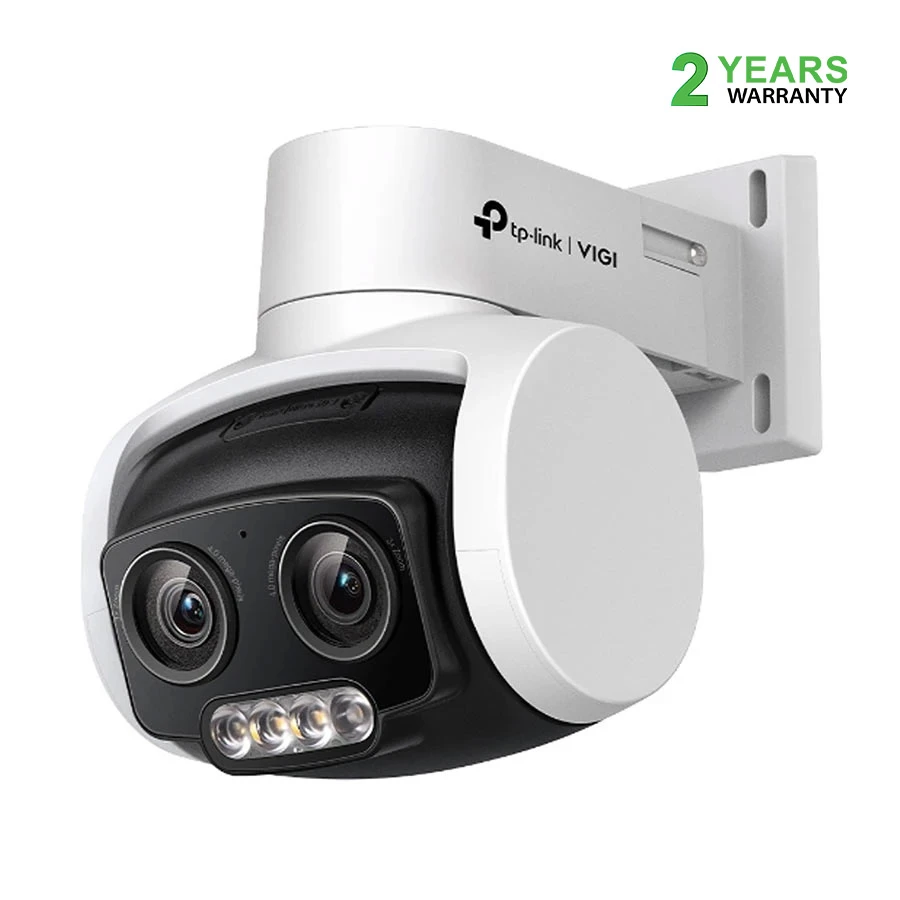

TP-Link VIGI C540V (4.0MP) Dual Lens Varifocal Pan/Tilt Outdoor Bullet IP Camera (Without Adapter & Wall Mount)

Product Id: 127.03.091.14

Brand Tp-link

Regular Price
Tk 0
Out Of Stock

See similar model

Quick Overview

  • Usage - Outdoor
  • Form-Factor - Bullet
  • Mega Pixels (MP) - 4.0
  • Night Vision Mode - Color
  • Working Distance - 30 Meter
General
Brand
Tp-link

Model
TP-Link VIGI C540V

Usage
Outdoor

Type
Bullet IP Camera


Camera
Camera Type
Pan & Tilt

Mega Pixels (MP)
4.0

Max. Camera Resolution
2560 x 1440

Image Sensor
1/3 Inch Progresive Scan CMOS

Resolution
2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720

Shutter Speed
1/3 to 1/10000 s

Slow Shutter
Yes

Day & Night
IR Cut Filter

Night Vision
Yes

Night Vision Mode
Color

S/N Ratio
52dB


Lens
Lens
4-12mm

Lens Mount
M12

Lens Adjustment Range
Pan: 0 to 332 degree, Tilt: 0 to 120 degree

Focal Length
4-12mm (Mixed Zoom)

PTZ
Yes

Zoom
3x (Mixed)

Viewing Angle.
100 degree (D), 84 degree (H), 46 degree (V)


General Function
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Motion Detection, Video Tampering Detection, Exception ( Illegal Login).

Dual-Stream
Yes

Frame Rate
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Digital Noise Reduction (DNR)
3D DNR

Wide Dynamic Range (WDR)
DWDR


Network & Connectivity
Interface(s)
RJ-45 (10/100 Base-T), PoE

Wi-Fi
No


Security
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Password Protection
Yes

Motion Detection
Yes

Human Detection
Yes

Face Detection
No

Water Protection
IP66

Weather Proof
Yes

Simultaneous Live View
3 Main Streams & 3 Sub-Streams


Technical Info
Scanning System
Progressive

Video Type
H.265+/ H.265/ H.264+/ H.264/ H.265/ H.264

Wavelength
850nm

Mic & Speaker
Both Mic and Speaker

Audio Communication
Two-way audio

Output Notification
Message Push

Working Distance
30 Meter

Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS


Physical Description
Form-Factor
Bullet

Smart Alarm
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection

Card Slot
Yes

Storage Type
FTP, MicroSD, NAS

Storage Supported
Up to 256GB

Button
Yes

Body Material
Plastic

Color
White

Dimensions
107 x 136 x 139mm

Weight (gm)
0.43 Kg

Relevant Accessories (Not Included)
Without Adapter & Wall Mount


Power
Power
12V

Power Supply
12V DC +/- 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)

Approx. Power Consumption
14W

Operating Temperature
-30 to 60 degree C

Storing/Storage Temperature
-40 to 60 degree C

Operating Humidity
95% or Less (Non-Condensing)

Storing/Storage Humidity
95% or Less (Non-Condensing)


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others
Package Contents: (VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories), Image Enhancement: BLC/3D DNR/HLC/SmartIR, Illuminator On/Off Control: Auto/Scheduled/Always on/Always off, 3D Positioning: Yes, Park Action: Yes Preset Patrol Scan, Power-off Memory: Yes; Auto restore to previous PTZ and lens status after power failure, Patrol Scan: 8 patrols, up to 8 presets for each patrol, Presets: 300, Pan/tilt Speed: Pan Speed: Configurable from 1 degree to 55 degree/s; Preset Speed: 55 degree/s Tilt Speed: Configurable from 1 degree to 40 degree/s, Preset Speed 40 degree/s, Min. Illumination: 0.005 Lux, 0 Lux with IR/white light.

Specialty
Human & Vehicle Classification, Smart Detection, Instant Zoom, Sharp & Stable Image Definition, Customized Patrol, Power-Off Memory Function, Auto Tracking, Remote Monitoring & Configuration, VIGI Surveillance Solution, Flexible Installation.

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
