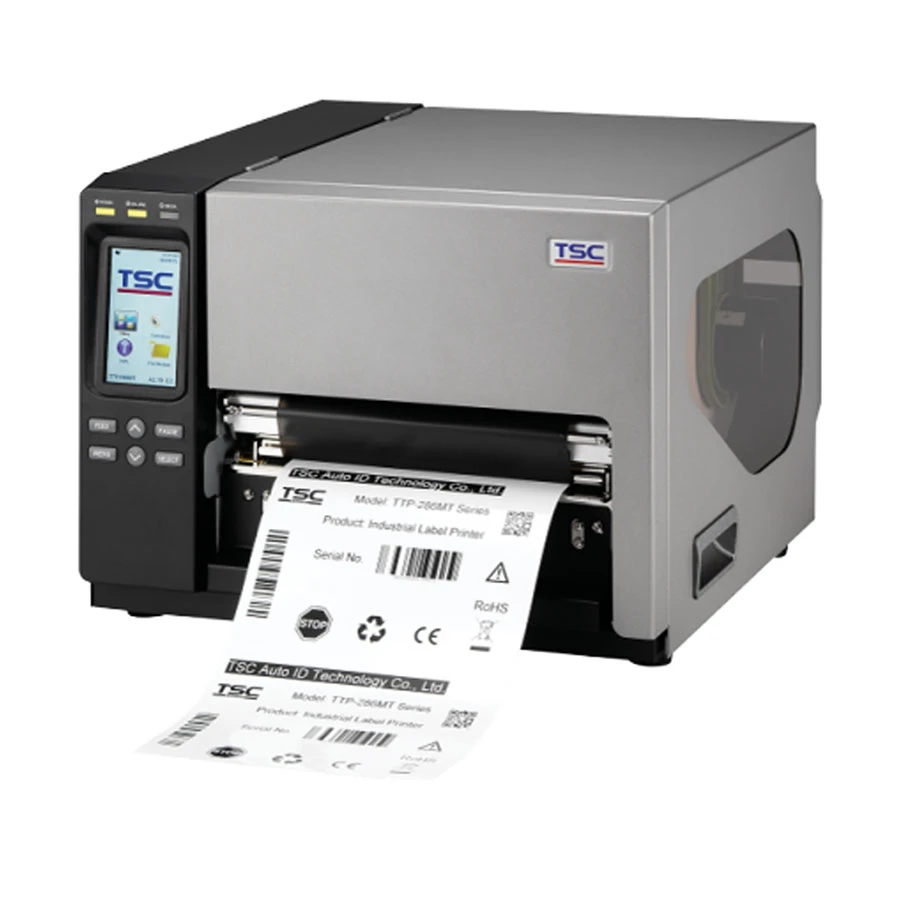

TSC TTP-286MT (203 DPI) Industrial Label Barcode Printer

Item: TSC TTP-286MT (203 DPI) Industrial Label Barcode Printer
Rating: 5
Author: Verified Buyer

7 reviews

Product Id: 153.03.560.09

Out Of Stock

See similar model

Quick Overview

Type - Barcode Label Printer
Cutter - Manual
Max. Print Speed - 152 mm/sec
Print Length - 25.4 - 11430 mm
Paper/Media Types - Continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound)
Tape Size - 101 mm
Maximum Tape Width - 241 mm
Interface (Built-in) - USB, LAN, Serial
Housing color - Black & Gray

Payment Method Shipping & Charge Order Procedure

Brand

TSC

Model

TSC TTP-286MT

Type

Barcode Label Printer

Housing color

Black & Gray

Printing Method

Thermal Transfer & Direct Thermal

Cutter

Manual

Max. Print Speed

152 mm/sec

Paper/Media Types

Continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound)

Tape Size

101 mm

Maximum Tape Width

241 mm

Memory

256MB

Storage

512MB

Interface (Built-in)

USB, LAN, Serial

Housing Dimensions

440 x 336 x 514mm

Weight (Kg)

23.7 kg

Consumable

Ribbon: 600 m long, Max. 90 mm OD, 1 Inch core (ink coated outside), Ribbon width: 110 mm - 254 mm (4.3 Inch - 10 Inch)

Color Ribbon Supported

Warranty

1 Year Service (No Warranty for Print Head)

General

Brand

TSC

Model

TSC TTP-286MT

Type

Barcode Label Printer

Technical Info

Cutter

Manual

Resolution

203 dpi

Print Performance

Printing Method

Thermal Transfer & Direct Thermal

Max. Print Speed

152 mm/sec

Print Length

25.4 - 11430 mm

Max. Print Width

11430 mm (450 Inch)

Direct Printing

Yes

Paper Information

Paper/Media Types

Continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound)

Paper Thickness

0.06 - 0.254 mm

Tape Size

101 mm

Maximum Tape Width

241 mm

Storage & Interface

Memory

256MB

Memory Type

SDRAM

Storage

512MB

Storage Type

Flash

Interface (Built-in)

USB, LAN, Serial

Main Features

Font Styles

8 alpha-numeric bitmap fonts

Software

Printer Language

TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)

Power

Power Source/ Power Consumption

AC 100~240V, 3.0A, 50~60Hz

Operating Temperature

5 Degree C to 40 Degree C

Operating Humidity

20 ~ 85% non-condensing

Storing/Storage Temperature

-40 Degree C to 60 Degree C

Storing/Storage Humidity

10 - 90% non-condensing

Physical Description

Housing color

Black & Gray

Housing Dimensions

440 x 336 x 514mm

Weight (Kg)

23.7 kg

Consumable

Ribbon: 600 m long, Max. 90 mm OD, 1 Inch core (ink coated outside), Ribbon width: 110 mm - 254 mm (4.3 Inch - 10 Inch)

Color Ribbon Supported

Carton Contents

Windows labeling software CD disk, Quick start guide, USB cable, Power cord, Ribbon paper core

Warranty

1 Year Service (No Warranty for Print Head)

Additional Info

Specialty

4.3 Inch touch LCD display with 6-button menus, Die-cast chassis, sheet metal structure, with clear media view window Powerful basic programming tools

Others

Output: DC 24V, 8.33A, 200W, LCD 16 bits Color, 480 x 272 pixels, with back lights, Resistive Touch Screen, Operation switch: button 1 power switch, 6 operation buttons (Menu, Pause, Feed, Up, Down, Select), Sensors: Gap transmissive sensor (position adjustable), Black mark reflective sensor (position adjustable), Ribbon end sensor, Ribbon Encoder sensor, Head open sensor, Internal fonts: 8 alpha-numeric bitmap fonts, Monotype Imaging true type font engine with one CG Triumvirate Bold Condensed scalable font Bar code, 1D bar code, Code 39, Code 93, Code 128UCC, Code 128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, 2D bar code, PDF-417, Maxicode, DataMatrix, QR code, Aztec, Font and barcode, rotation 0, 90, 180, 270 degree, Environmental concern Comply with RoHS, WEEE

Details

Features of TSC TTP-286MT Label Printer In Bangladesh

Brand - TSC, Model - TSC TTP-286MT, Type - Barcode Label Printer, Printing Method - Thermal Transfer & Direct Thermal, Cutter - Manual, Maximum Print Speed - 152 mm/sec, Print Length - 25.4 - 11430 mm, Maximum Print Width - 11430 mm (450 Inch), Paper/Media Type - Continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound), Paper Thickness - 0.06 - 0.254 mm, Direct Printing - Yes, Tape Size - 101 mm, Maximum Tape Width - 241 mm, Maximum Resolution - 203 dpi, Memory - 256MB, Memory Type - SDRAM, Storage - 512MB, Storage Type - Flash, Interface (Built-in) - USB, LAN, Serial, Font Styles - 8 alpha-numeric bitmap fonts, Power Source/ Power Consumption - AC 100~240V, 3.0A, 50~60Hz, Operating Temperature - 5 Degree C to 40 Degree C, Operating Humidity - 20 ~ 85% non-condensing, Storage Temperature - -40 Degree C to 60 Degree C, Storage Humidity - 10 - 90% non-condensing, Housing Dimensions - 440 x 336 x 514mm, Weight (Kg) - 23.7 kg, Printer Language - TSPL-EZTM (Compatible to EPL, ZPL, ZPL II), Consumable - Ribbon: 600 m long, Max. 90 mm OD, 1 Inch core (ink coated outside), Ribbon width: 110 mm - 254 mm (4.3 Inch - 10 Inch), Color Ribbon Supported - No, Carton Contents - Windows labeling software CD disk, Quick start guide, USB cable, Power cord, Ribbon paper core, Specialty - 4.3 Inch touch LCD display with 6-button menus, Die-cast chassis, sheet metal structure, with clear media view window Powerful basic programming tools, Others - Output: DC 24V, 8.33A, 200W, LCD 16 bits Color, 480 x 272 pixels, with back lights, Resistive Touch Screen, Operation switch: button 1 power switch, 6 operation buttons (Menu, Pause, Feed, Up, Down, Select), Sensors: Gap transmissive sensor (position adjustable), Black mark reflective sensor (position adjustable), Ribbon end sensor, Ribbon Encoder sensor, Head open sensor, Internal fonts: 8 alpha-numeric bitmap fonts, Monotype Imaging true type font engine with one CG Triumvirate Bold Condensed scalable font Bar code, 1D bar code, Code 39, Code 93, Code 128UCC, Code 128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, 2D bar code, PDF-417, Maxicode, DataMatrix, QR code, Aztec, Font and barcode, rotation 0, 90, 180, 270 degree, Environmental concern Comply with RoHS, WEEE, Warranty - 1 Year Service (No Warranty For Print Head)

What is the price of TSC TTP-286MT Label Printer In Bangladesh?

The price of TSC TTP-286MT Label Printer not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy TSC TTP-286MT Label Printer from our website or visit our showrooms nearby.
