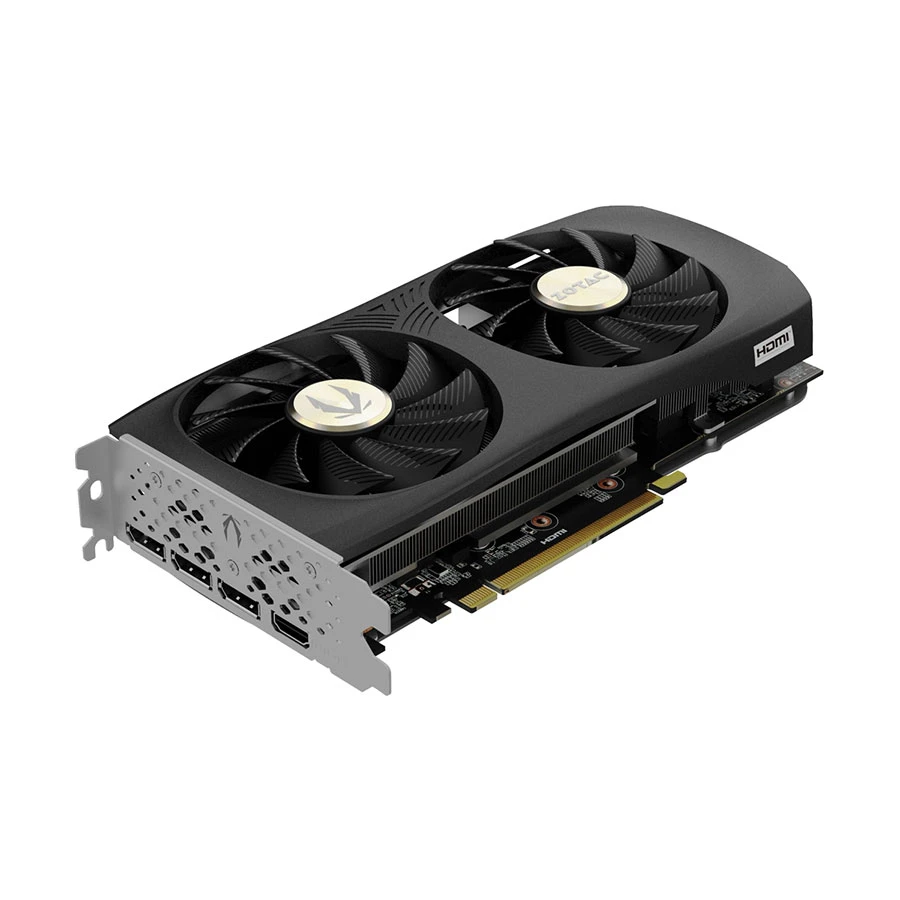

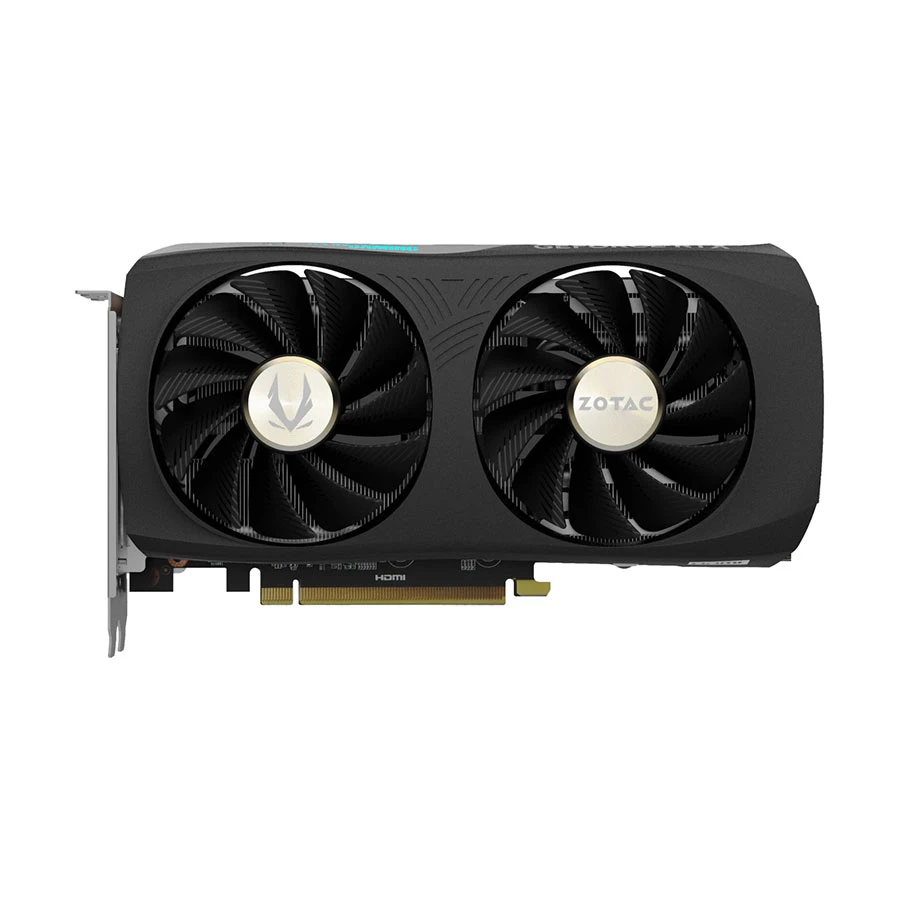

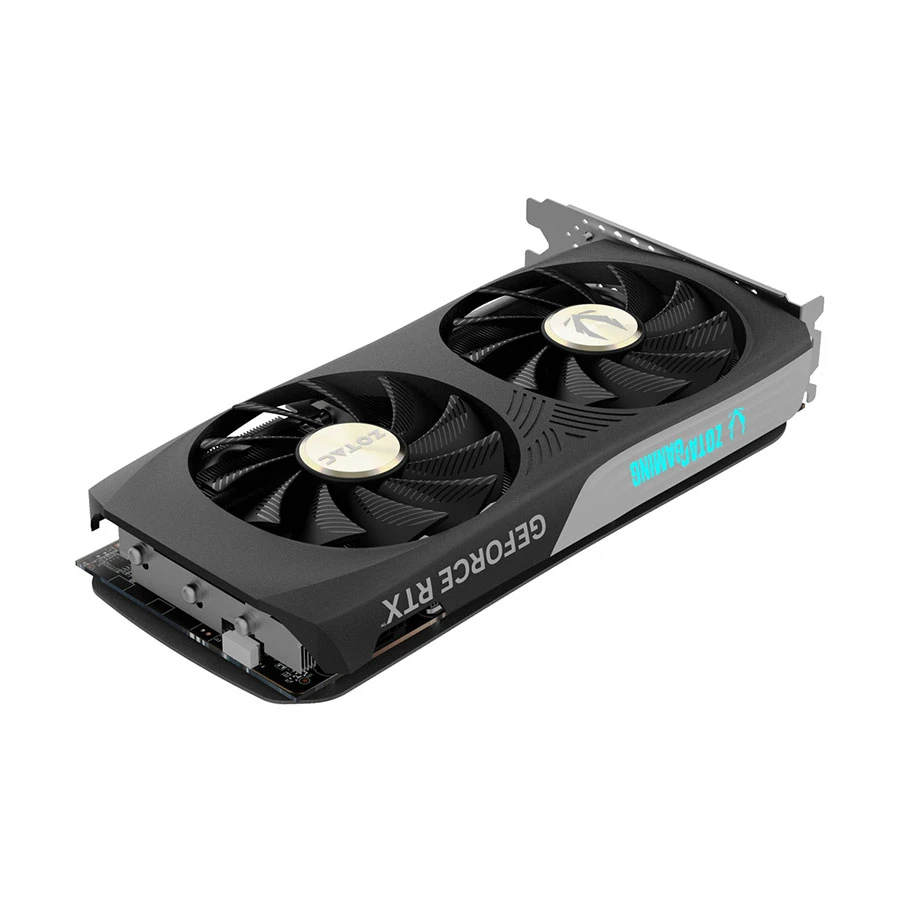

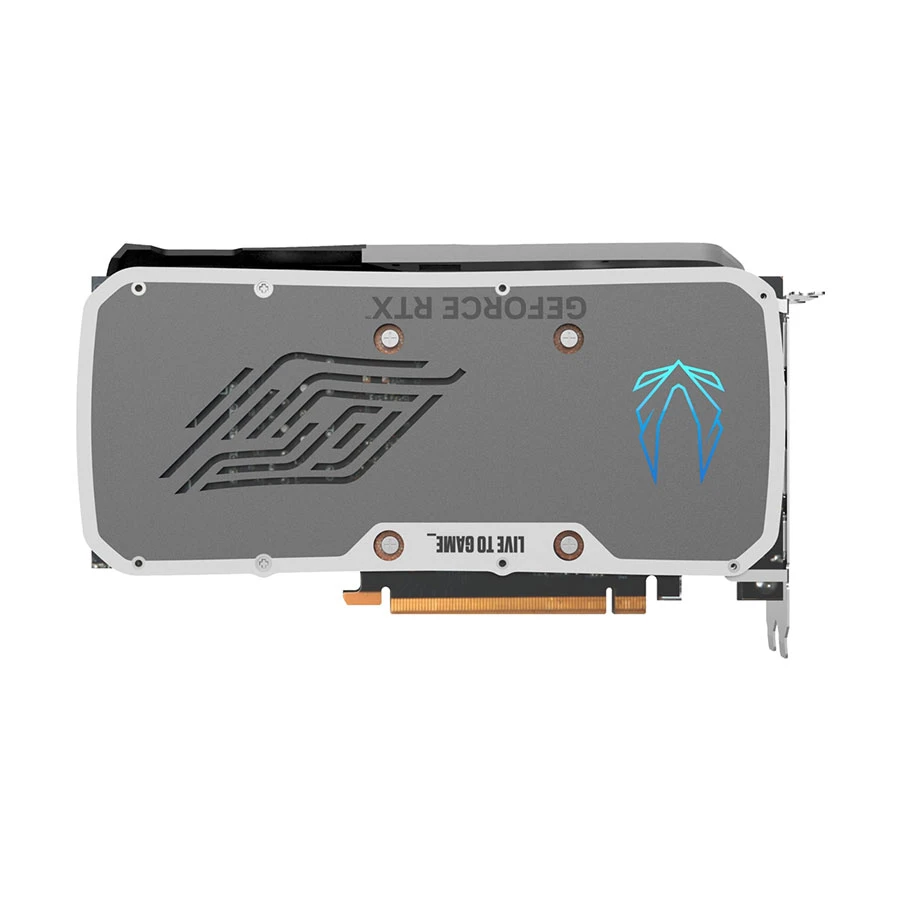

Zotac Gaming GeForce RTX 4070 SUPER Twin Edge OC 12GB
Base Engine Clock Speed
Unmentioned
Boost Engine Clock Speed
2490MHz
Memory Clock
21 Gbps
Capacity (GB/TB)
12GB
Memory Type
GDDR6X
Interface(s)
PCI Express 4.0 16x
Graphics Resolution Max.
7680 x 4320
DirectX Support
12 Ultimate
OpenGL Support
4.6
Approx. Power Consumption
220W
Recommended PSU
650W
Power Connectors
1 x 12VHPWR
Multi Display Capability
Quad Display
Cooler Type
Fan
Lighting
RGB
Body Color
Black & Grey
Warranty Details
3 Year (No Warranty for Mining)
General
Brand
Zotac
Chipset
NVIDIA GeForce
Series
RTX 4000
Chipset Model
GeForce RTX 4070
Model
Zotac Gaming GeForce RTX 4070 SUPER Twin Edge OC 12GB
Part No
ZT-D40720H-10M
Technical Info
CUDA Core / Stream Processors
7168 (CUDA)
Engine Clock
2490MHz (Boost)
Base Engine Clock Speed
Unmentioned
Boost Engine Clock Speed
2490MHz
Memory Clock
21 Gbps
Capacity (GB/TB)
12GB
Memory Bus
192-bit
Memory Type
GDDR6X
Interface(s)
PCI Express 4.0 16x
DirectX Support
12 Ultimate
OpenGL Support
4.6
HDCP Support
Yes, 2.3
Supported Operating System
Windows 11 / 10 (64-bit, v1809 November 2018 or later)
Display & Resolution
Graphics Resolution Max.
7680 x 4320
Multi Display Capability
Quad Display

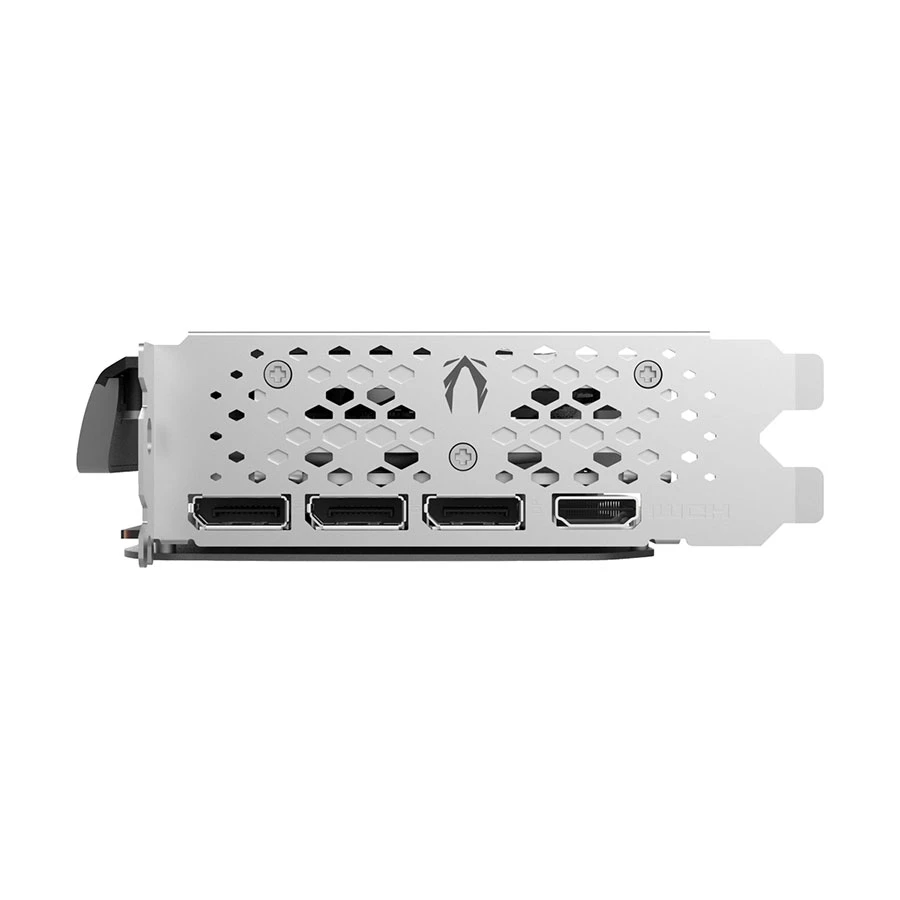

Ports
VGA Port
No
DVI Port
No
HDMI Port
1
Display Port
3
Power
Approx. Power Consumption
220W
Recommended PSU
650W
Power Connectors
1 x 12VHPWR
Physical Description
Card Dimension
234.1 x 123.5 x 40.2mm
Cooler Type
Fan
Cooling Fan
Dual
Lighting
RGB
RGB Effects
SPECTRA RGB
Body Color
Black & Grey
Warranty
Warranty Details
3 Year (No Warranty for Mining)
Additional Info
Others
2-Year extended warranty may avail upon proper registration with zotac. Display Outputs: DisplayPort 1.4a (up to 7680x4320 60Hz), HDMI Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1a Specification. Cooling: IceStorm 2.0. Slot Size: 2 slot. Accessories: 2 x 8-pin-to-12VHPWR cable, Manual.
Specialty

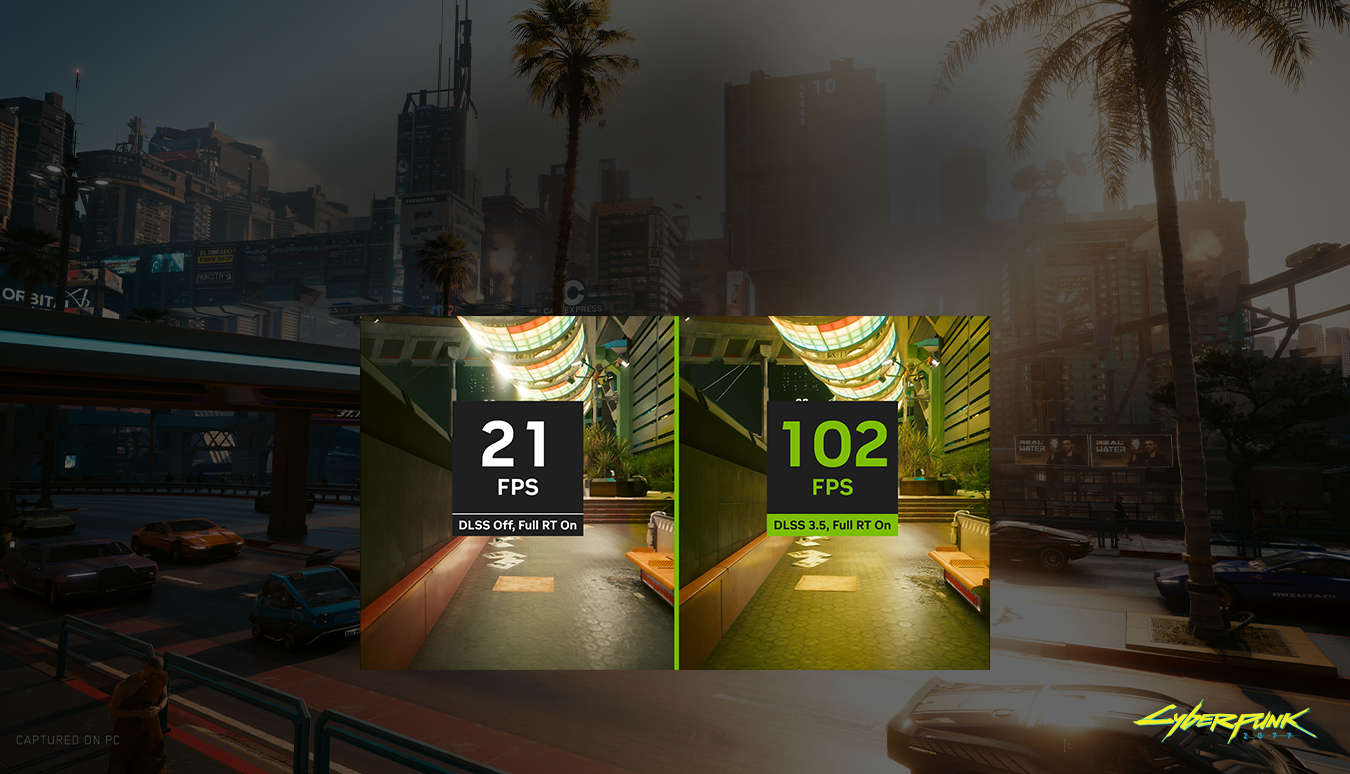

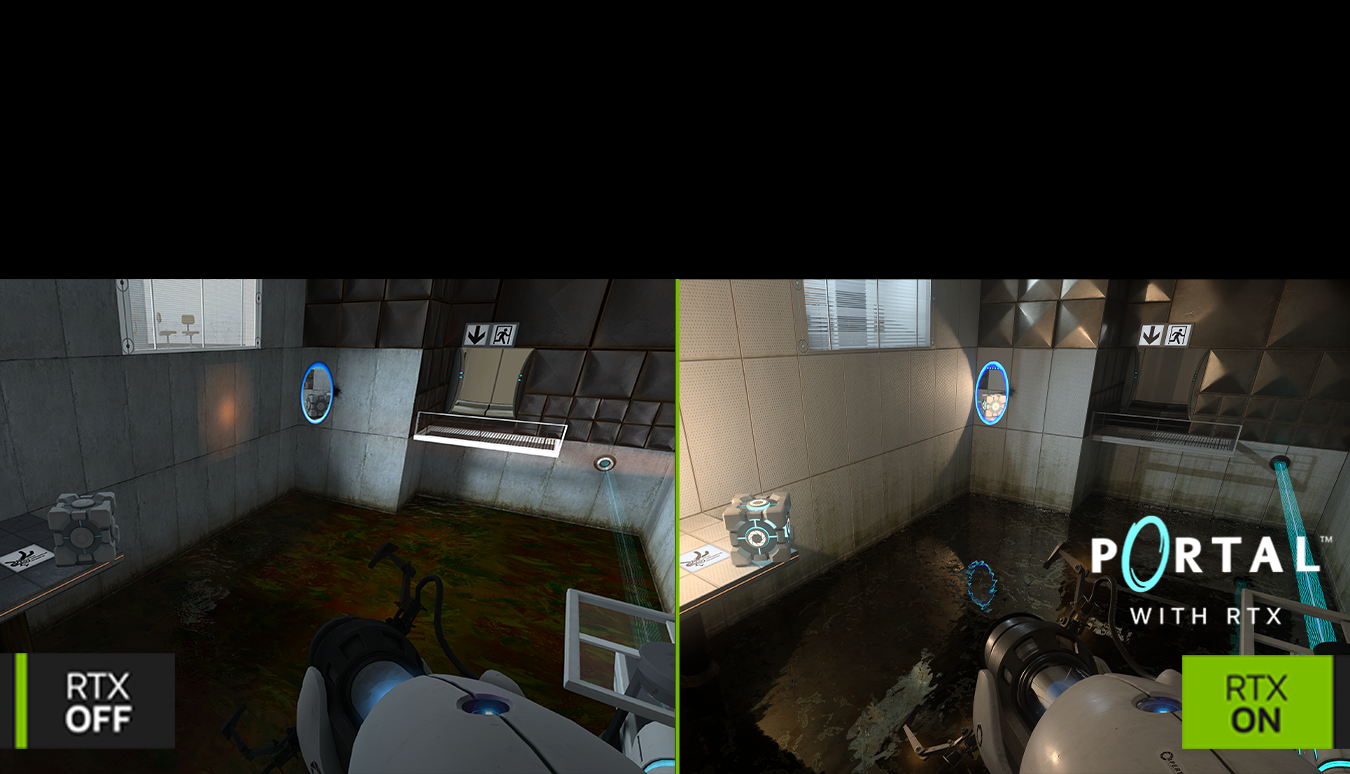

The ZOTAC GAMING GeForce RTX 4070 SUPER Twin Edge OC 12GB GDDR6X is a compact and powerful graphics card, featuring the NVIDIA Ada Lovelace architecture and an aerodynamic-inspired design. With a reduced dual slot size, it`s an excellent choice for those who want to build a SFF gaming PC capable of impressive framerate and performance in the latest title releases. Powered by NVIDIA DLSS 3.5, ultra-efficient Ada Lovelace arch, and full ray tracing. IceStorm 2.0 Advanced Cooling. FREEZE Fan Stop, Active Fan Control. SPECTRA RGB Lighting. Metal Backplate. Compact Size.
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
