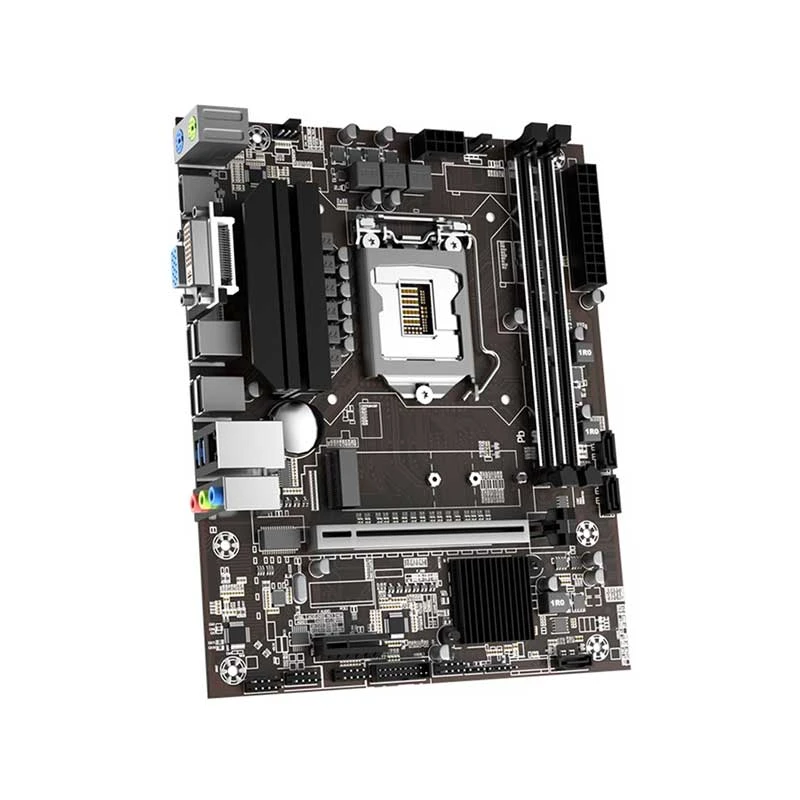

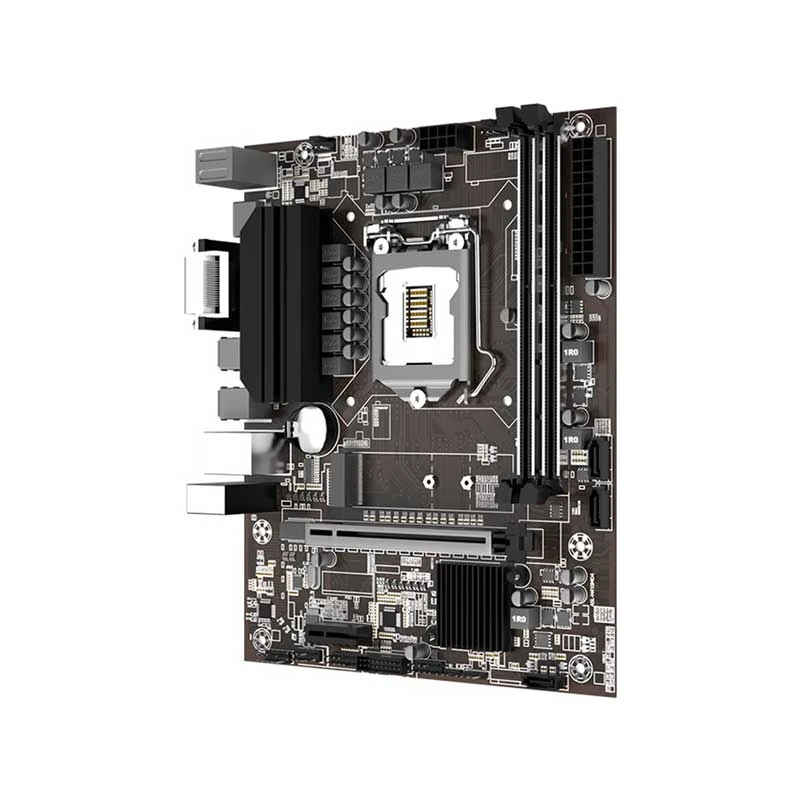

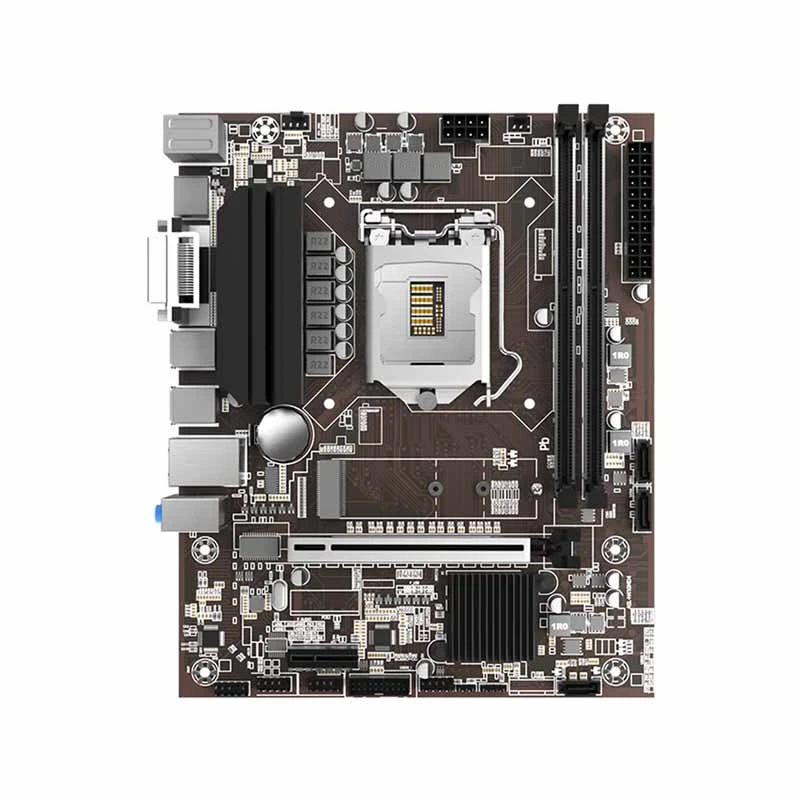

ARKTEK AK-H410M EG Intel Motherboard

Item: ARKTEK AK-H410M EG Intel Motherboard
Rating: 5
Author: Verified Buyer

12 reviews

Product Id: 02.01.815.05

Out Of Stock

See similar model

Quick Overview

Form Factor - Micro-ATX
Chipset - Intel H410
Sockets Supported - LGA1200
Supported CPU - 10th Generation Intel Core i3 / Core i5 / Core i7 / Core i9 /Pentium/Celeron series processors Processors
Generation - 10th
Memory Slot - 2
Memory Max. - 64GB
Back-Connect Design - No
Body Color - Gray

Payment Method Shipping & Charge Order Procedure

Brand

Arktek

Model

Arktek AK-H410M EG

Chipset

Intel H410

Sockets Supported

LGA1200

Built-in Processor

Generation

10th

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

64GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Intel HD Graphics support

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 7 / 8 / 8.1 / 10

Body Color

Gray

Warranty

2 year

General

Brand

Arktek

Model

Arktek AK-H410M EG

Body Color

Gray

CPU

Chipset Brand

Intel

Chipset

Intel H410

Sockets Supported

LGA1200

Built-in Processor

Supported CPU

10th Generation Intel Core i3 / Core i5 / Core i7 / Core i9 /Pentium/Celeron series processors Processors

Generation

10th

Memory Support

Memory Type

DDR4

Memory MHz

2400/2666/2933MHz Memory

Memory Channel

Dual

Memory Slot

Memory Max.

64GB

Optane Memory Support

Storage

M.2/SSD Expansion Slot

M.2/SSD Slot Gen

Unmentioned

Graphics

Integrated

Graphics Chipset

Intel HD Graphics support

Multi-GPU Support

PCI Express Slot

1 x PCI Express x16 slot 1 *PCI Express x1 slot

Audio & Video

Audio Channel

5.1

Network & Connectivity

LAN Chipset

Realtek RTL8111e

LAN Speed (Mbps)

10/100/1000Mbps

WiFi

Bluetooth

Ports

USB Port

2 x USB2.0, 1 x USB 3.0

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

4 x SATA

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

FireWire

CrossFire Support

Sli Support

Raid Support

RGB Support

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Compatibility

Supported Operating System

Windows 7 / 8 / 8.1 / 10

Compatible Products

Sockets Supported: LGA1200 Intel Core i3 / Core i5 / Core i7 / Core i9 /Pentium/Celeron series processors Processors

Warranty

2 year

Additional Info

Others

Audio: 3.5mm Port, 5.1 Channel, LED Audio Support, 1 x RJ45 3 x Audio jack On-Board Graphics: Integrated Graphics Processor-Intel HD Graphics support

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Arktek AK-H410M EG Motherboard In Bangladesh

The Arktek AK-H410M EG is a Micro-ATX motherboard designed for Intel 10th Generation processors. It features the Intel H410 chipset, integrated Intel HD Graphics, and support for dual-channel DDR4 memory up to 64GB. The motherboard offers a single PCIe x16 slot, four SATA 3.0 ports, and an M.2 slot. It also includes a Realtek 1000Mbps LAN port and a 3.5mm audio jack with 5.1 channel support.

What Makes Arktek AK-H410M EG Intel Motherboard Stand Out?

This Arktek Motherboard offers a solid foundation for a budget-friendly gaming or productivity build. Here are some of its standout technical features:

Intel H410 Chipset:

Stability and Efficiency: The H410 chipset is known for its reliability and energy efficiency, making it a great choice for everyday computing tasks.
Intel HD Graphics: Integrated graphics offer basic visual capabilities for casual gaming or media consumption.

LGA 1200 Socket:

10th Gen Intel Compatibility: Supports a wide range of 10th Generation Intel processors, providing flexibility for different performance needs.

DDR4 Memory Support:

Dual-Channel Configuration: Enables faster data transfer speeds and improved performance.
Up to 64GB: Supports a generous amount of RAM for demanding applications.

PCIe x16 Slot:

Dedicated Graphics Card Support: Allows for the installation of a discrete graphics card for more demanding tasks like gaming or video editing.

M.2 Slot:

High-Speed Storage: Provides support for M.2 SSDs, offering significantly faster boot times and data transfer speeds compared to traditional HDDs.

Multiple SATA Ports:

Storage Flexibility: Allows for the connection of multiple storage devices like HDDs and SSDs.

Realtek 1000Mbps LAN:

Fast Network Connectivity: Ensures reliable and high-speed internet access.

5.1 Channel Audio:

Immersive Sound: Delivers a decent audio experience for multimedia content and casual gaming.

Who Should Buy a Arktek AK-H410M EG Intel Motherboard?

This Motherboard is a good option for individuals who:

Are on a budget: This motherboard offers a cost-effective solution for building a PC without sacrificing essential features.
Need a reliable platform for everyday tasks: The H410 chipset and integrated graphics are suitable for general computing, web browsing, and light productivity.
Plan to upgrade their graphics card later: The PCIe x16 slot allows for the installation of a discrete graphics card for improved gaming performance.
Prioritize value over extreme performance: While it may not be the fastest motherboard available, it provides a solid foundation for a functional and affordable build.

What is the price of Arktek AK-H410M EG Motherboard In Bangladesh?

The price of Arktek AK-H410M EG Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Arktek AK-H410M EG Motherboard from our website or visit our showrooms nearby.
Looking to purchase office, corporate, or institutional equipment? Ryans Computers is here to help. We provide customized solutions tailored to your needs, backed by fast delivery and dependable after-sales service. Our expert Ryans Care team is always ready to support you with troubleshooting, technical assistance, and configuration services—so you can focus on what matters most.

QUESTION & ANSWER

Customer Questions

Does this supports nvme ssd

Asked By Riyad

প্রিয় গ্রাহক জি সাপোর্ট করবে তারপরও প্রডাক্টি ফিজিক্যালি চেক করার প্রয়োজন রয়েছে আপনি আমাদের সার্ভিসে চলে আসলে ইঞ্জিনিয়ার আপনাকে এ বিষয়ে বিস্তারিত হবে সহযোগিতা করবেন বিস্তারিত তথ্যের জন্য হেল্প লাইন নাম্বারে যোগাযোগ করতে পারেন ধন্যবাদ 16810

Answered By Ryans Computers Ltd. , 15 Jan 2025
