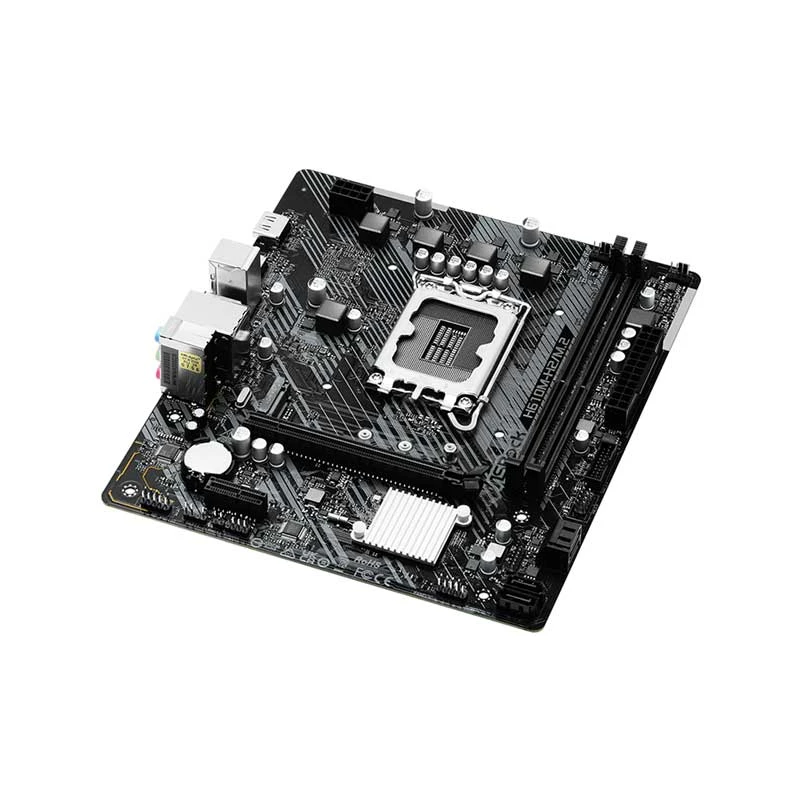

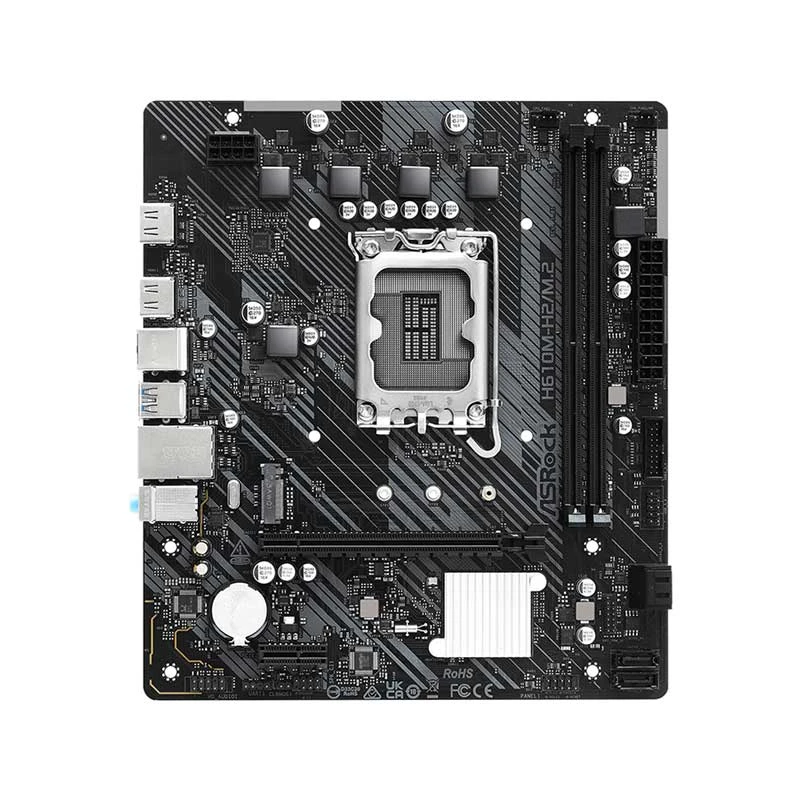

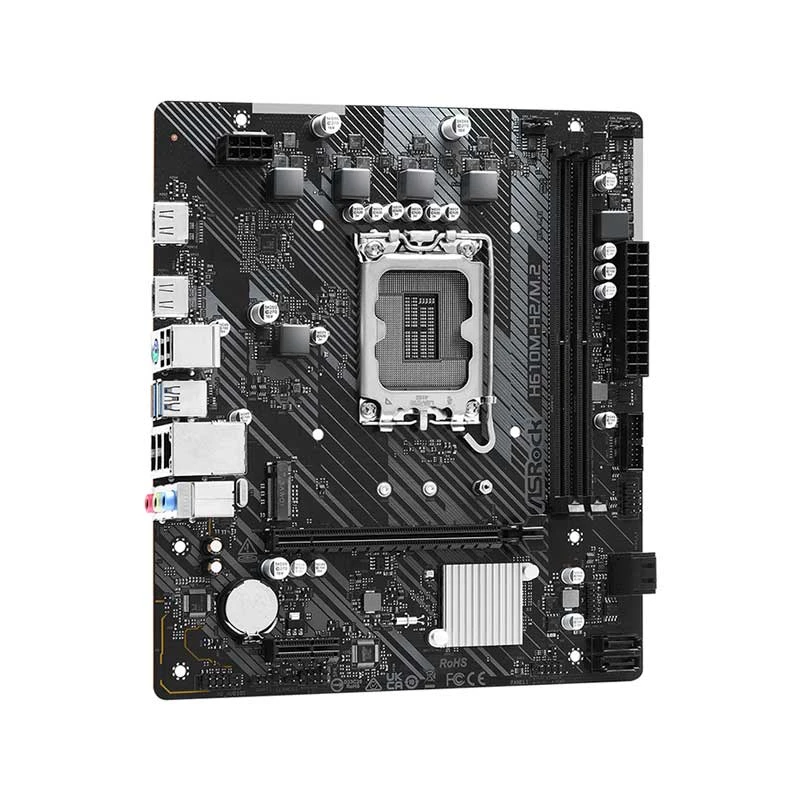

Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
Generation
12th/13th/14th
Memory Support
Memory Type
DDR4
Memory MHz
up to 3200MHz
Memory Channel
Dual
Memory Slot
2
Memory Slot (Additional Info)
Supports DDR4 non-ECC, un-buffered memory up to 3200MHz
Memory Max.
64GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
1
M.2/SSD Expansion Slot Details

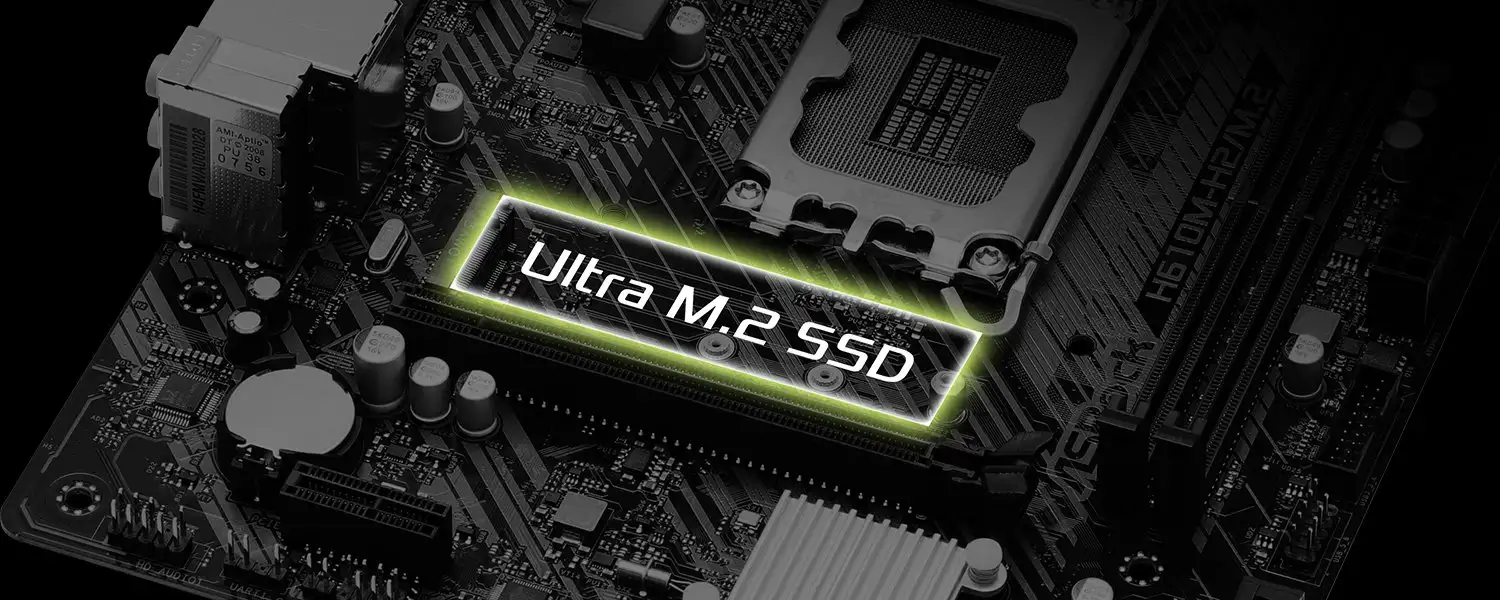

1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode
Graphics
Graphics
Integrated
Graphics Chipset
Intel Xe Graphics Architecture (Gen 12) Support
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode, 1 x PCIe 3.0 x1 Slot (PCIE2)
Audio & Video
Audio Chipset
Realtek ALC897 Audio Codec
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek 8111H
LAN Speed (Mbps)
10/100/1000 Mb/s
WiFi
No
Bluetooth
No
Ports
USB Port
2 x USB 3.2 Gen1 Type-A Ports, 4 x USB 2.0 Ports
VGA Port
No
DVI Port
No
HDMI Port
2
DisplayPort (DP)
No
IDE Port
No
SATA Port
4
Thunderbolt
No
TPM Port
1
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
DirectX Support
No
Heatsink
No
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
No
RGB Support
No
RGB Connector
No
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 128Mb
BIOS Model
AMI UEFI Legal BIOS
Compatibility
Supported Operating System
Windows 10 64-bit / 11 64-bit
Compatible Products
Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
Warranty
Warranty Details
3 year
Additional Info
Feature
3+1+1 Phase Power Design, 2 x DDR4 DIMMs Supports Dual Channel, up to 3200 MHz, Supports ASRock Auto Driver Installer, Digi Power, Ultra M.2 32Gb/s (PCIe Gen3 x4), Dual HDMI Outputs.
Others

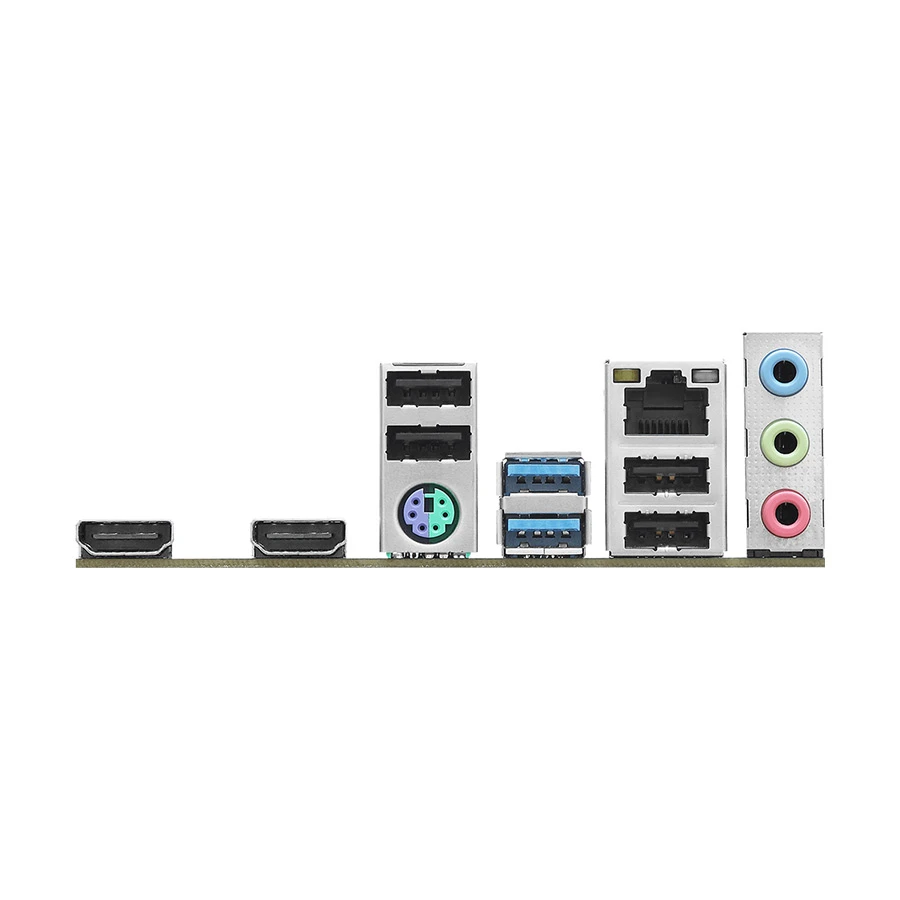

Accessories: 1 x I/O Shield, 2 x SATA Data Cables, 1 x Screw for M.2 Socket, Certifications: FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required), Rear Panel I/O: 1 x PS/2 Mouse/Keyboard Port, HD Audio Jacks: Line in / Front Speaker / Microphone.
Country Of Origin
Taiwan
Made in/ Assemble
China
