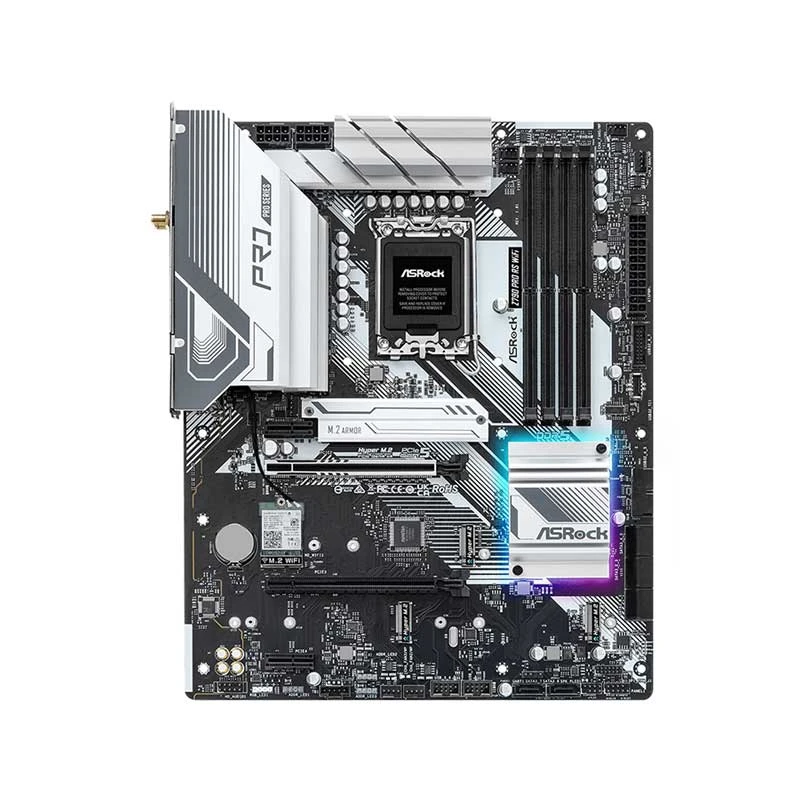

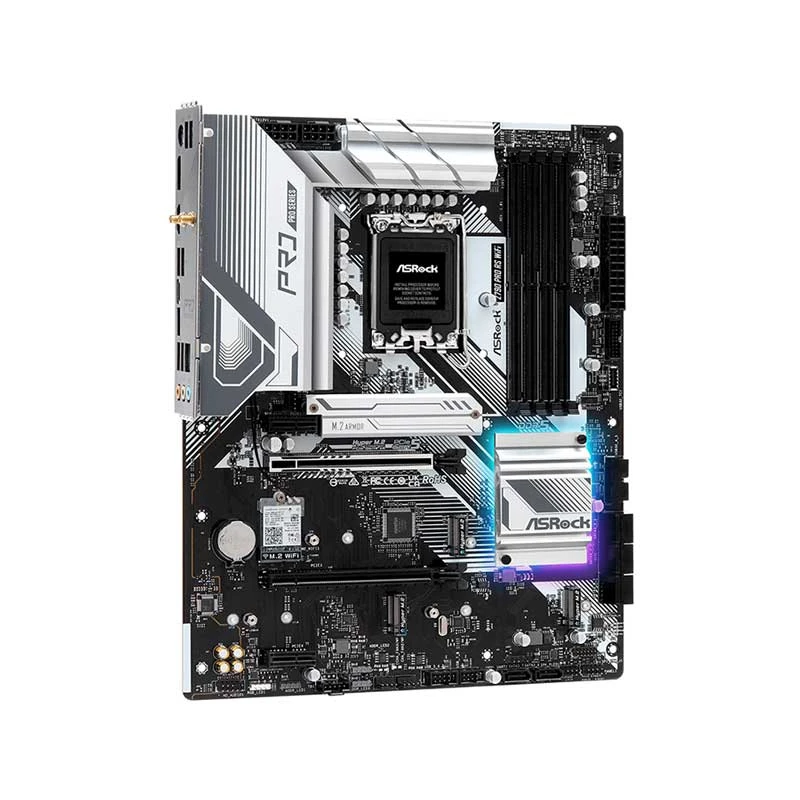

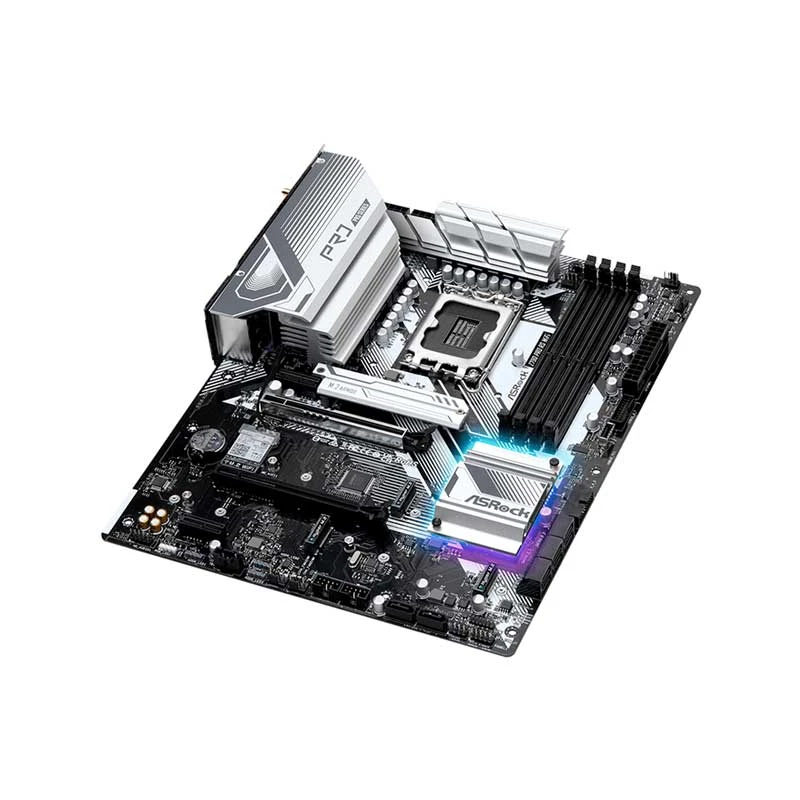

ASRock Z790 Pro RS D5 (Wi-Fi 6E) DDR5 Intel Motherboard #Z790 PRO RS WIFI D5

Item: ASRock Z790 Pro RS D5 (Wi-Fi 6E) DDR5 Intel Motherboard #Z790 PRO RS WIFI D5
Rating: 5
Author: Verified Buyer

Product Id: 02.01.504.141

Out Of Stock

See similar model

Quick Overview

Form Factor - ATX
Chipset - Intel Z790
Sockets Supported - LGA1700
Supported CPU - 14th, 13th & 12th Gen Intel Core Processors
Generation - 12th/13th/14th
Memory Slot - 4
Memory Max. - 256GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

ASRock

Model

ASRock Z790 Pro RS D5 (Wi-Fi 6E)

Chipset

Intel Z790

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th/14th

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

256GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Intel Xe Graphics Architecture (Gen 12) Support

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Yes

Form Factor

ATX

Supported Operating System

Windows 10/ 11

Body Color

Black

Warranty

3 year

General

Brand

ASRock

Model

ASRock Z790 Pro RS D5 (Wi-Fi 6E)

Body Color

Black

Part No

Z790 PRO RS WIFI D5

CPU

Chipset Brand

Intel

Chipset

Intel Z790

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

14th, 13th & 12th Gen Intel Core Processors

Generation

12th/13th/14th

Memory Support

Memory Type

DDR5

Memory MHz

Up to 7200+(OC)

Memory Channel

Dual

Memory Slot

Memory Max.

256GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

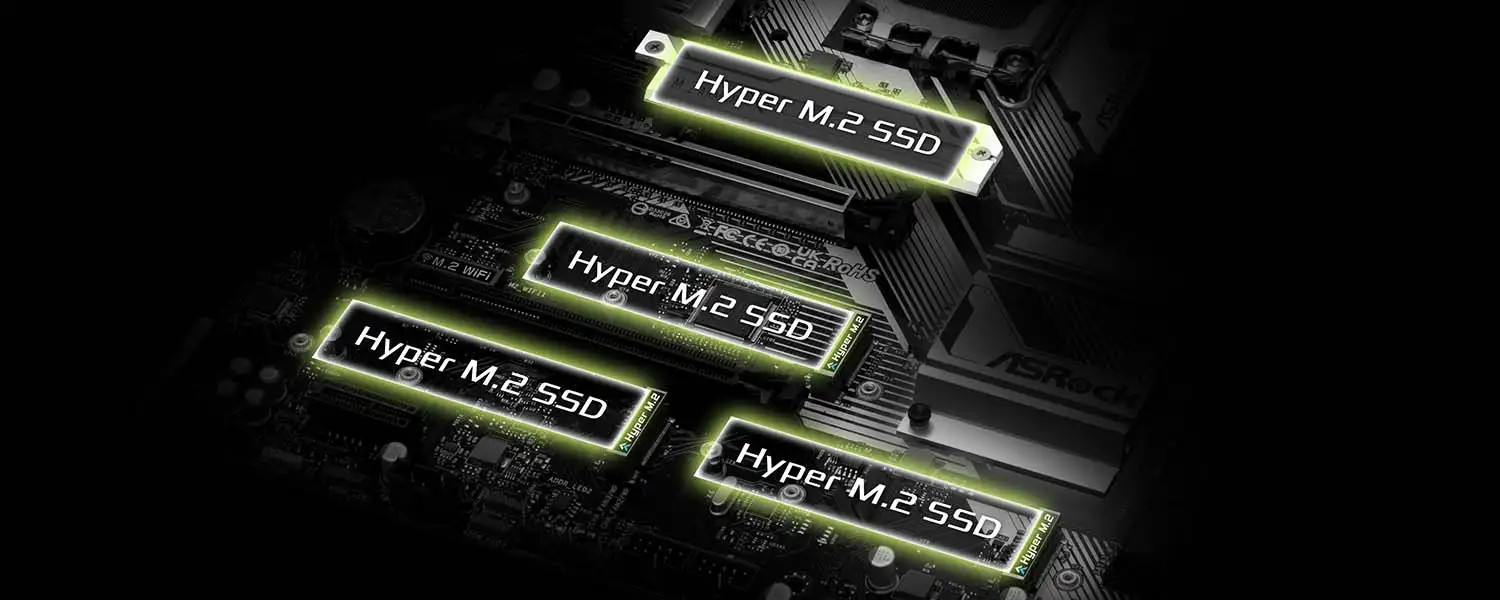

4 x M.2 (1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Intel Xe Graphics Architecture (Gen 12) Support

Multi-GPU Support

AMD CrossFire

PCI Express Slot

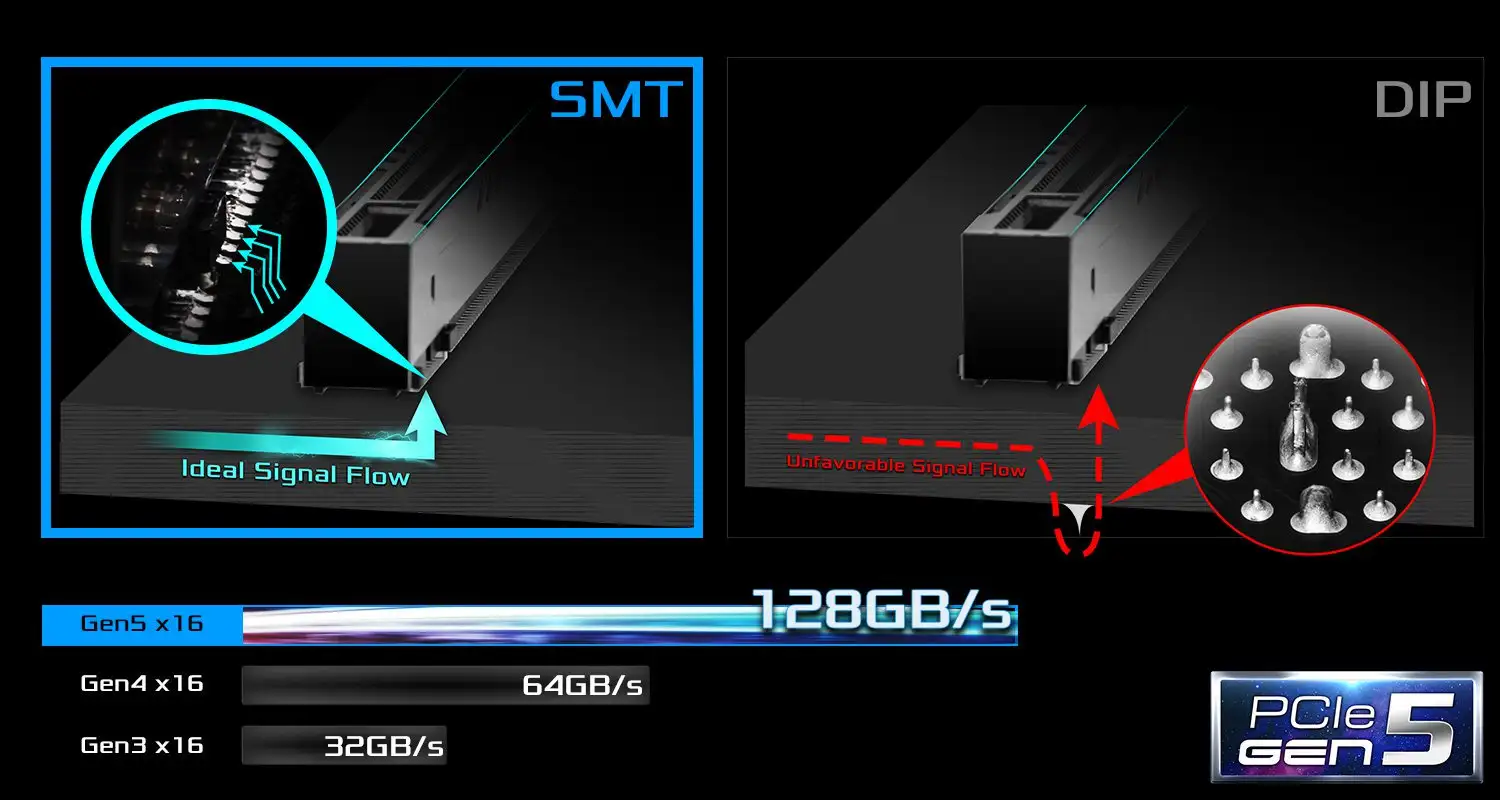

1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode, 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode, 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)

Audio & Video

Audio Chipset

Realtek ALC897 Audio Codec

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Dragon RTL8125BG 2.5 Gigabit LAN

LAN Speed (Mbps)

10/ 100/ 1000/ 2500Mbps

WiFi

Yes

WiFi Technology

802.11ax Wi-Fi 6E

Bluetooth

Yes

Ports

USB Port

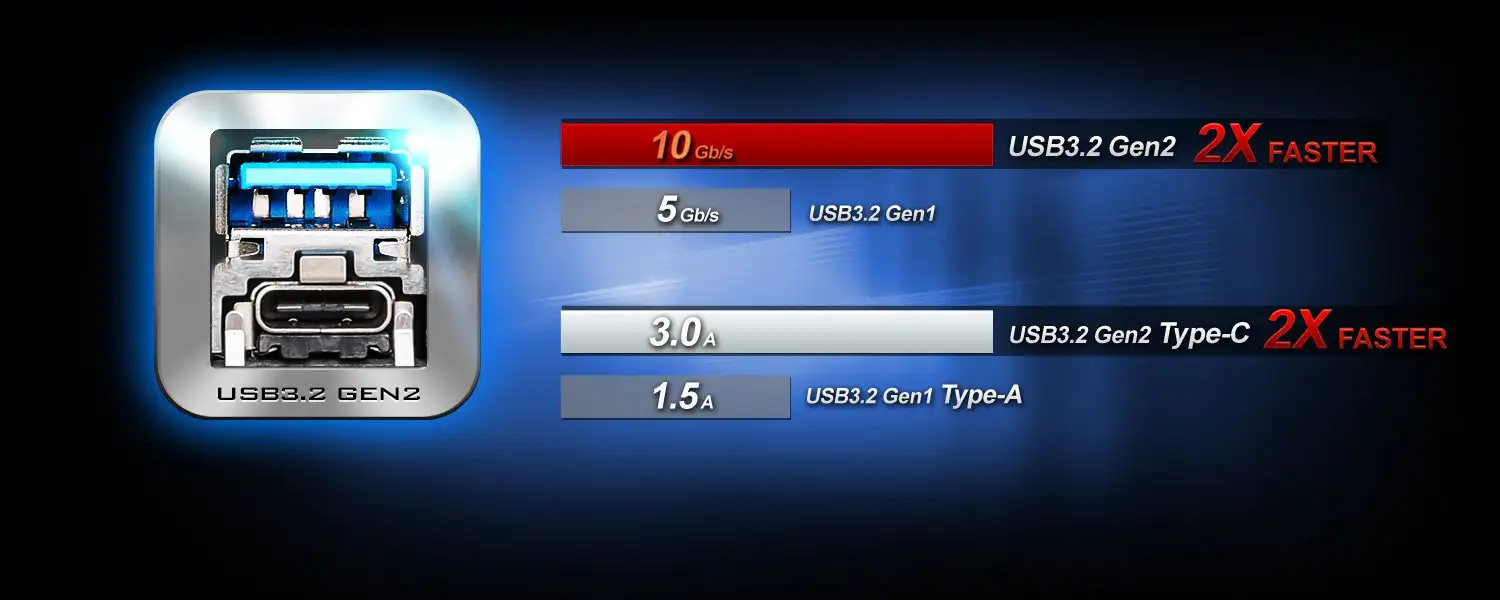

4 x USB 2.0, 2 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

8 x SATA3

Thunderbolt

TPM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Yes

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

ARGB

RGB Connector

1 x RGB LED Header, 3 x Addressable LED Headers

Approx. Power Consumption

70W

Form Factor

ATX

Bios Information

BIOS Type

128Mb

BIOS Model

UEFI AMI BIOS

Compatibility

Supported Operating System

Windows 10/ 11

Compatible Products

12th/ 13th/ 14th Gen Intel Core Processors in the LGA1700

Warranty

3 year

Additional Info

Feature

PCIe Gen5 (Graphics), Dual Channel DDR5, 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor, Flexible Integrated I/O Shield, ASRock Auto Driver Installer, EZ Troubleshooter, Supports Intel Hybrid Technology, Supports Intel Turbo Boost Max 3.0 Technology, Supports Intel Thermal Velocity Boost (TVB), Supports Intel Adaptive Boost Technology (ABT), Supports DDR5 non-ECC, un-buffered memory, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI, Visual Network Usage Statistics, Optimized Default Setting for Game, Browser, and Streaming Modes, User Customized Priority Control, Supports IEEE 802.11a/b/g/n/ac/ax, Supports Dual-Band 2x2 with extended 6GHz band support, 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth + High speed class II, Supports MU-MIMO, Software: ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC, UEFI: ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, ASRock Easy RAID Installer.

Others

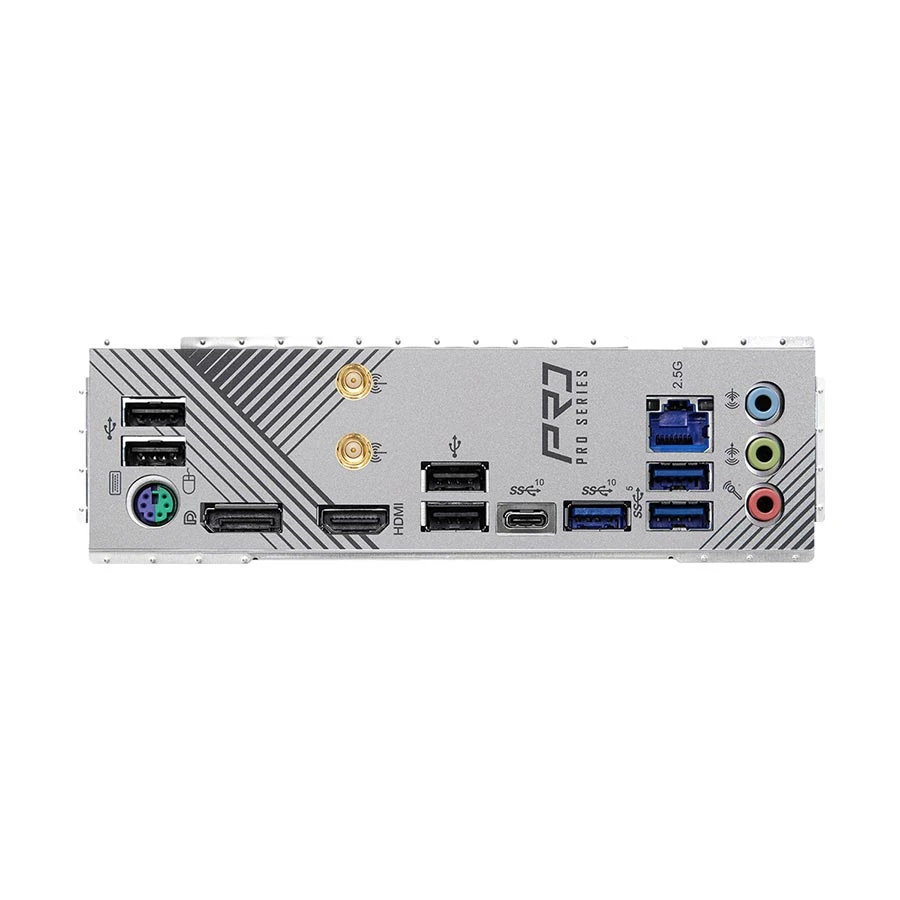

Rear Panel I/O: 2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone, Connector: 1 x eDP Signal Connector, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector), 1 x Front Panel Audio Connector, 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card), 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s), Certifications: FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required).

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of ASRock Z790 Pro RS D5 (Wi-Fi 6E) Motherboard In Bangladesh

The ASRock Z790 Pro RS D5 (Wi-Fi 6E) DDR5 Intel Motherboard is built for high-performance computing. It supports Intel 12th, 13th and 14th Gen processors, offering the latest memory and connectivity technologies. With DDR5 RAM support and Wi-Fi 6E, this motherboard delivers fast speeds. It also provides future-proof features. Perfect for gamers, creators, and power users, the ASRock Z790 Pro RS D5 is available now at Ryans Computers. It offers top-tier value and performance for your next PC build.

Cutting-Edge Performance for All Your Tasks

The ASRock Z790 Pro RS D5 supports DDR5 RAM, ensuring rapid data transfer speeds and smooth multitasking. Whether you’re gaming, content creation, or running heavy applications, this motherboard keeps your system responsive and efficient. With PCIe 5.0 support, it’s ready for next-generation graphics cards and storage devices, offering faster load times and high frame rates. The Intel LGA 1700 socket allows you to install 12th, 13th and 14 Gen Intel processors, ensuring your system has the processing power needed for demanding tasks. Gamers will enjoy reduced latency and faster speeds for online gaming. Streamers and creators benefit from the stable, high-speed internet connection. This makes it ideal for video uploads and cloud-based collaboration. The Wi-Fi 6E capability ensures your PC is ready for the latest wireless advancements. It provides optimal performance in today’s connected world.

Get the ASRock Z790 Pro RS D5 at Ryans Computers

The ASRock Z790 Pro RS D5 (Wi-Fi 6E) DDR5 Intel Motherboard is available now at Ryans Computers. Whether you’re building a gaming rig, a content creation workstation, or a high-performance PC for everyday use, this motherboard offers the perfect balance of speed, connectivity, and reliability. Shop now for excellent pricing and fast delivery!

What is the price of ASRock Z790 Pro RS D5 (Wi-Fi 6E) Motherboard In Bangladesh?

The price of ASRock Z790 Pro RS D5 (Wi-Fi 6E) Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy ASRock Z790 Pro RS D5 (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
