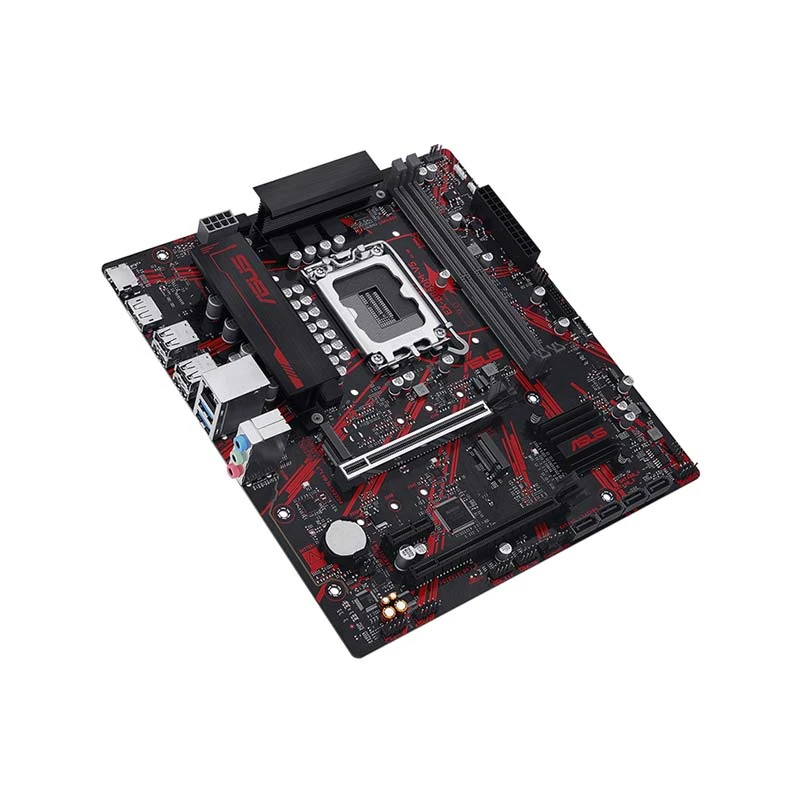

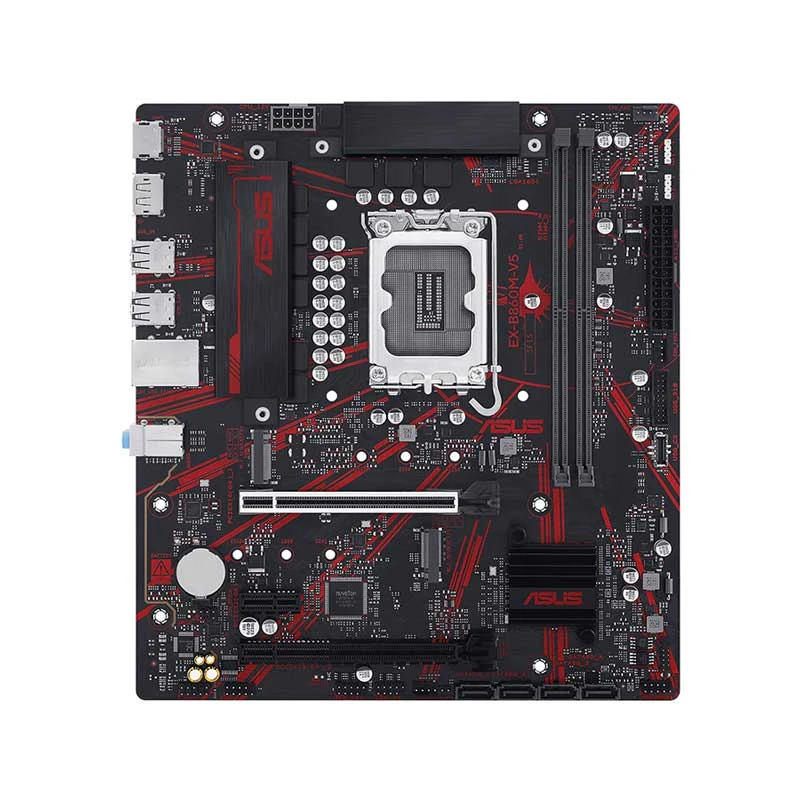

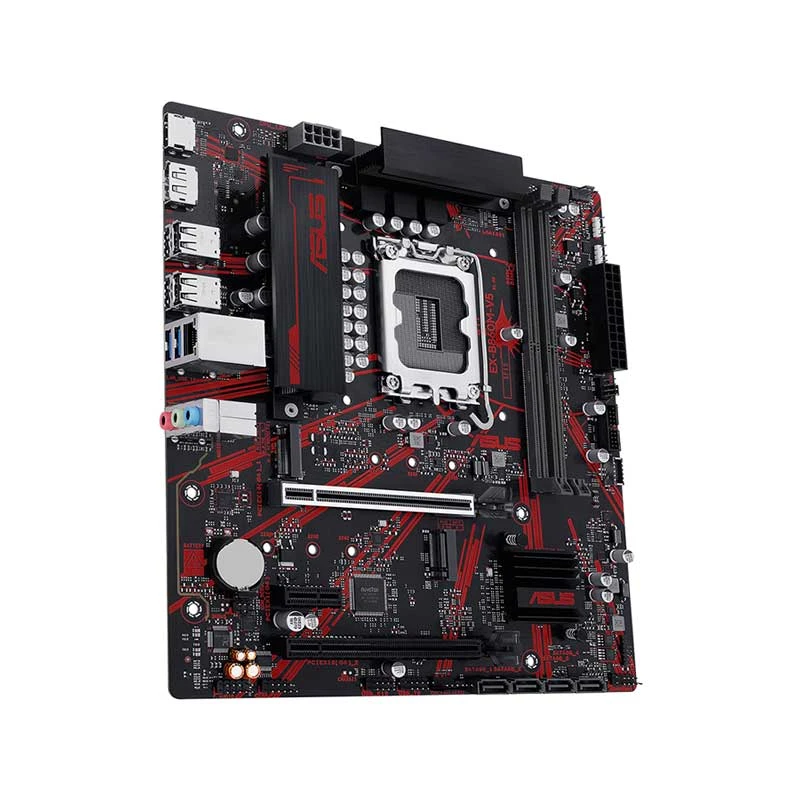

ASUS EX-B860M-V5 DDR5 (Intel Core Ultra LGA1851 Socket) Motherboard
2 x M.2 (M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode))
M.2/SSD Slot Gen
Up to Gen 5
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot
Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Audio Channel
7.1
Network & Connectivity
LAN Chipset
1 x Realtek 2.5Gb Ethernet ASUS LANGuard
LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps
WiFi
No
Ports
USB Port
4 x USB 2.0 Type-A, 2 x USB 5Gbps Type-A
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4 x SATA
Thunderbolt
No
COM Port
1
Technical Info
Back-Connect Design
No
Cable Management
Front
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
No
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
256 (128+128) Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11, 10
Compatible Products
Compatible with LGA1851 Core Ultra Processors (Series 2)
Warranty
Warranty
3 Year Replacement
Additional Info
Feature

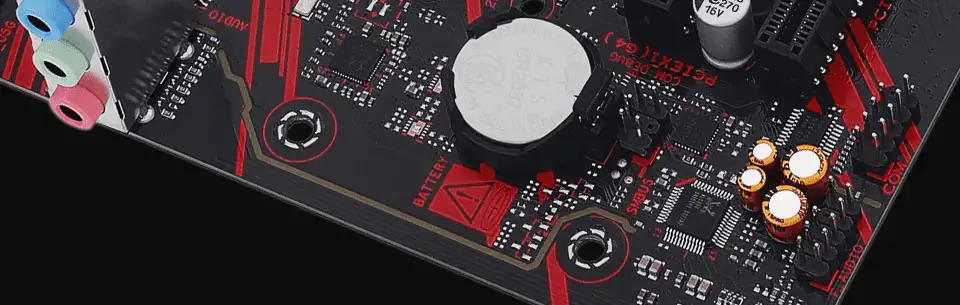

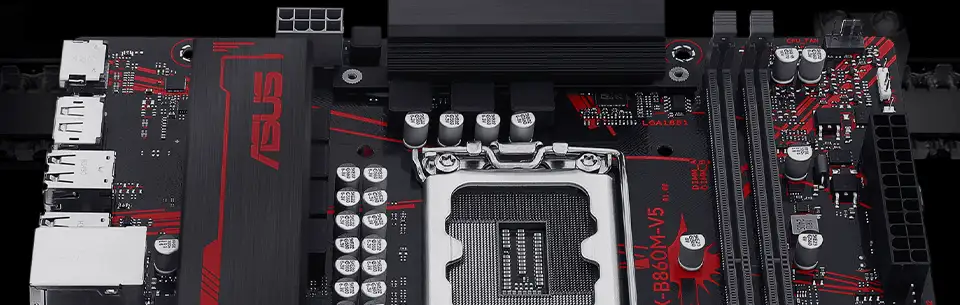

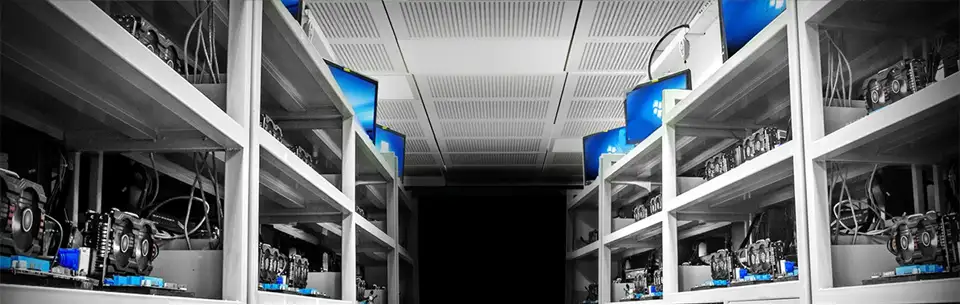

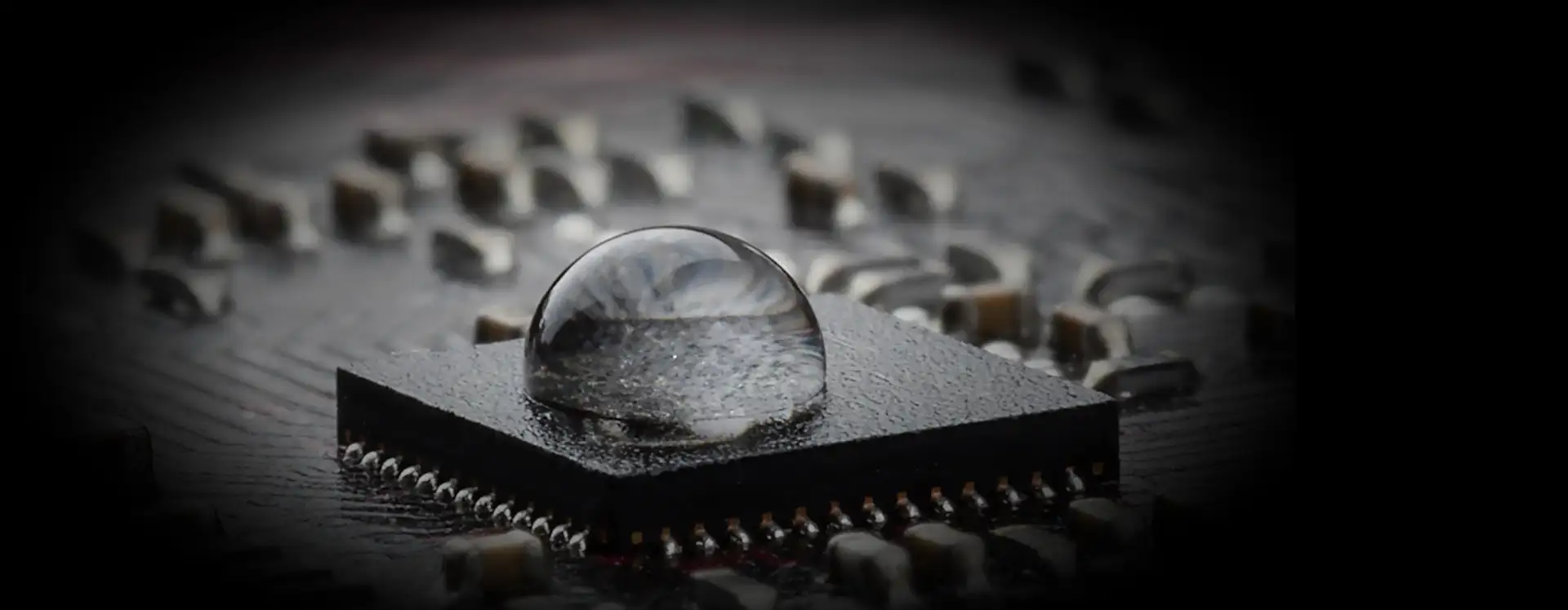

Audio: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot Core+, Stainless-steel back I/O, ASUS Q-Design: Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot, ASUS Thermal Solution: VRM heatsink design, ASUS EZ DIY, Non-stop Action, ASUS iCafe labs certified, Luminous anti-moisture coating, USBGuard.
Others

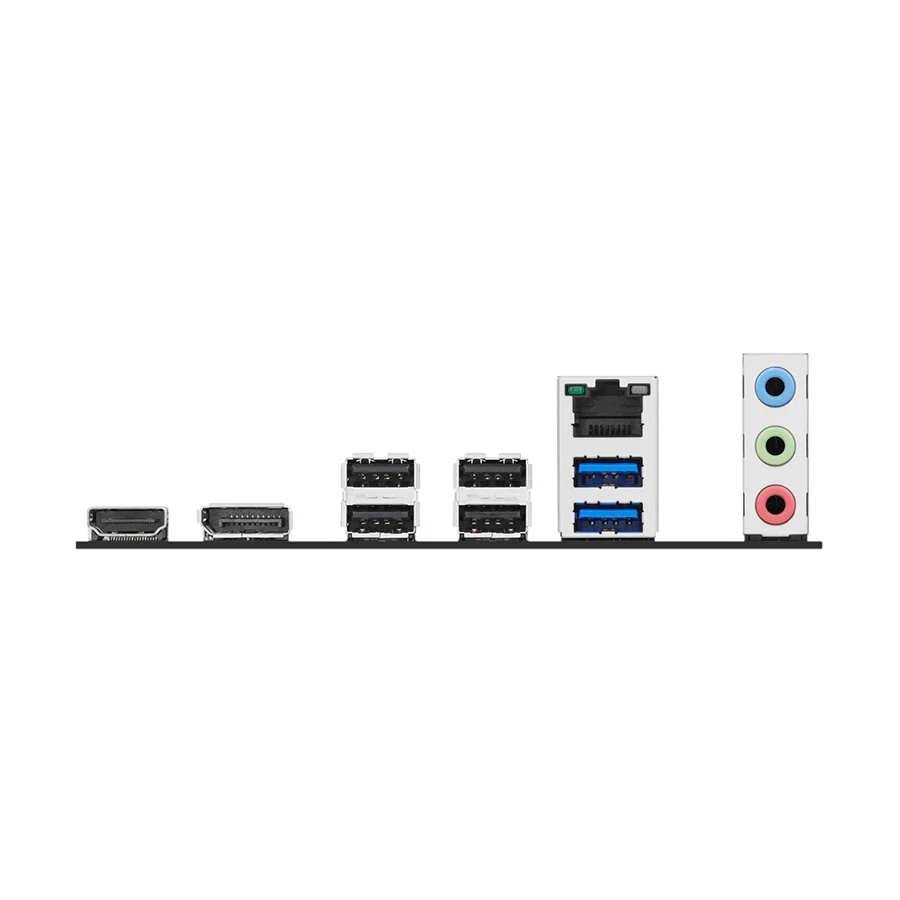

Back Panel I/O Ports: 1 x Realtek 2.5Gb Ethernet, 3 x Audio jacks, Internal I/O Connectors: Fan and Cooling Related: 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, Power Related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connector, Miscellaneous: 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x 10-1 pin Front Panel System header, Manageability: WOL by PME, PXE.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
