2 x M.2 (1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB))
Graphics
Graphics
Integrated
Graphics Chipset
Intel HD Graphics Support
Multi-GPU Support
No
PCI Express Slot
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16, 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Audio & Video
Audio Chipset
Realtek Audio CODEC
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek GbE LAN chip
LAN Speed (Mbps)
10/ 100/ 1000Mbps
WiFi
No
Ports
USB Port
3 x USB 2.0/1.1 Type-A, 3 x USB 3.2 Gen 1 Type-A
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
1
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Connector
2 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 256 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 10, 11
Compatible Products
Compatible with LGA1851 Core Ultra Processors
Warranty
Warranty Details
3 year
Additional Info
Feature
H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control.
Others

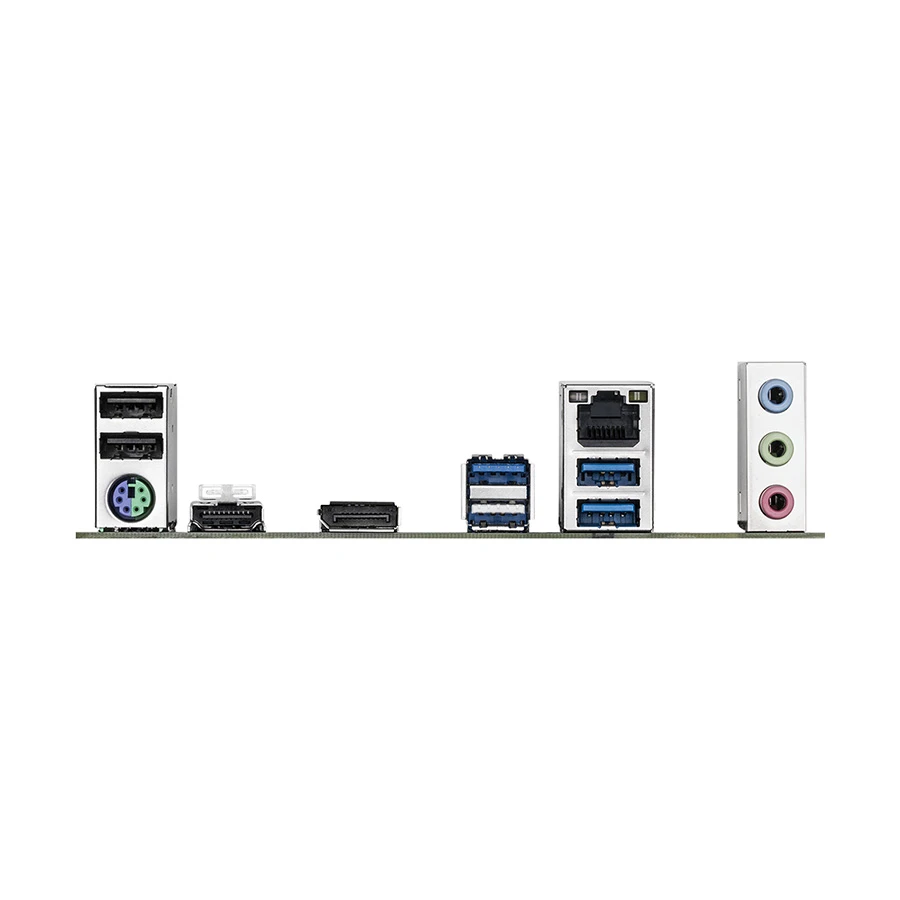

Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 1 x system fan header, 1 x system fan/water cooling pump header, 2 x M.2 Socket 3 connectors, 1 x front panel header, 1 x front panel audio header, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only), 1 x serial port header, 1 x Clear CMOS jumper, Back Panel Connectors: 1 x RJ-45 port, 3 x audio jacks, High Definition Audio.
Country Of Origin
Taiwan
Made in/ Assemble
China
