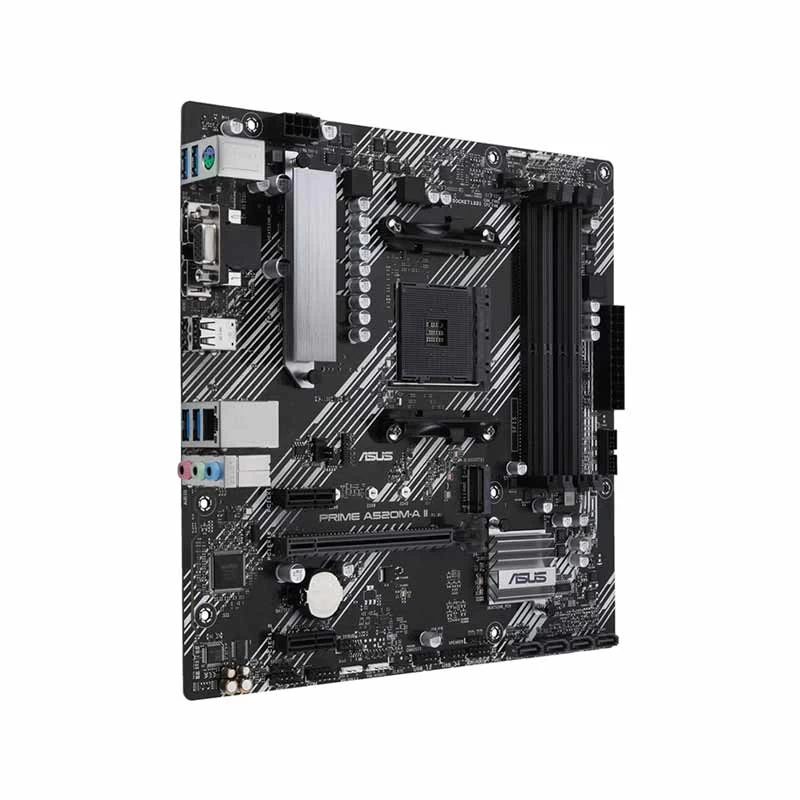

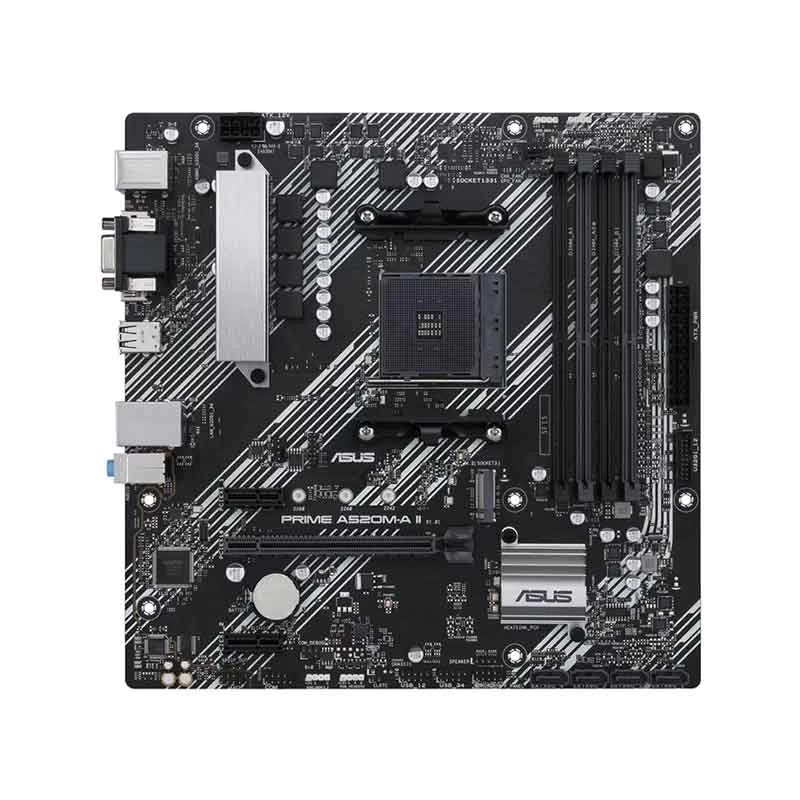

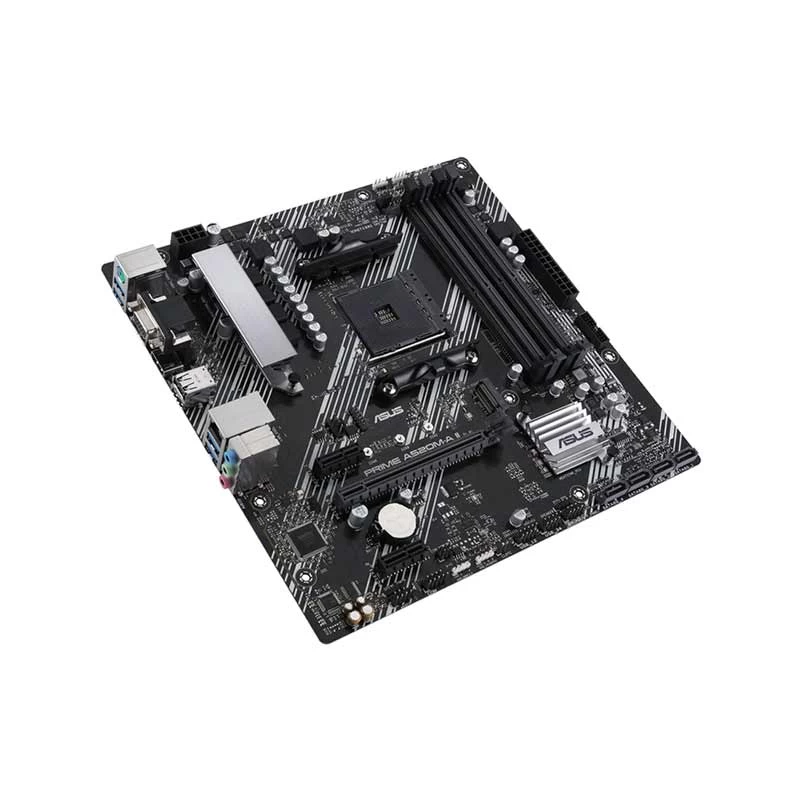

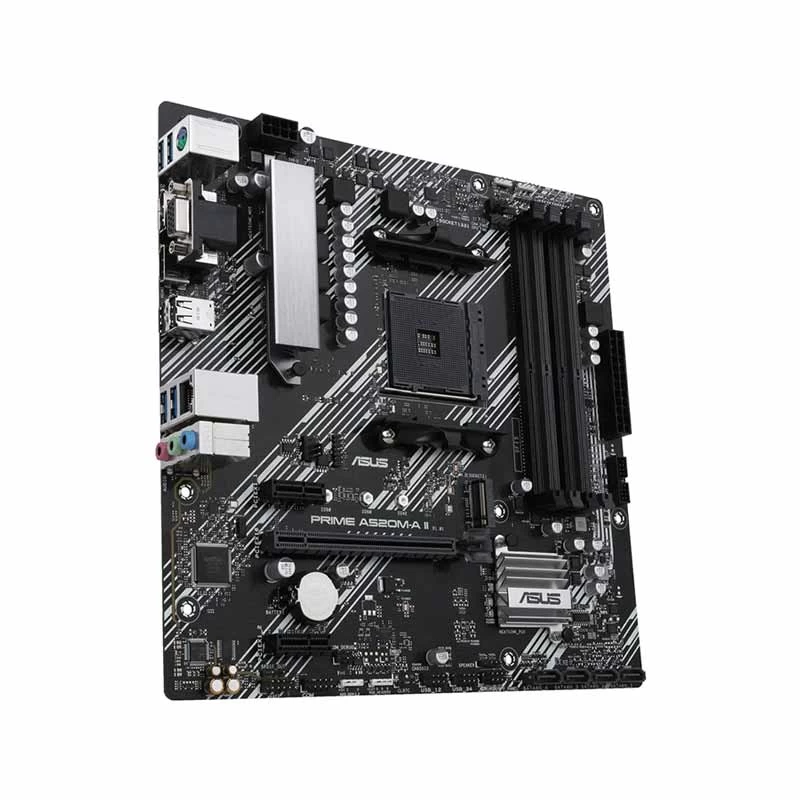

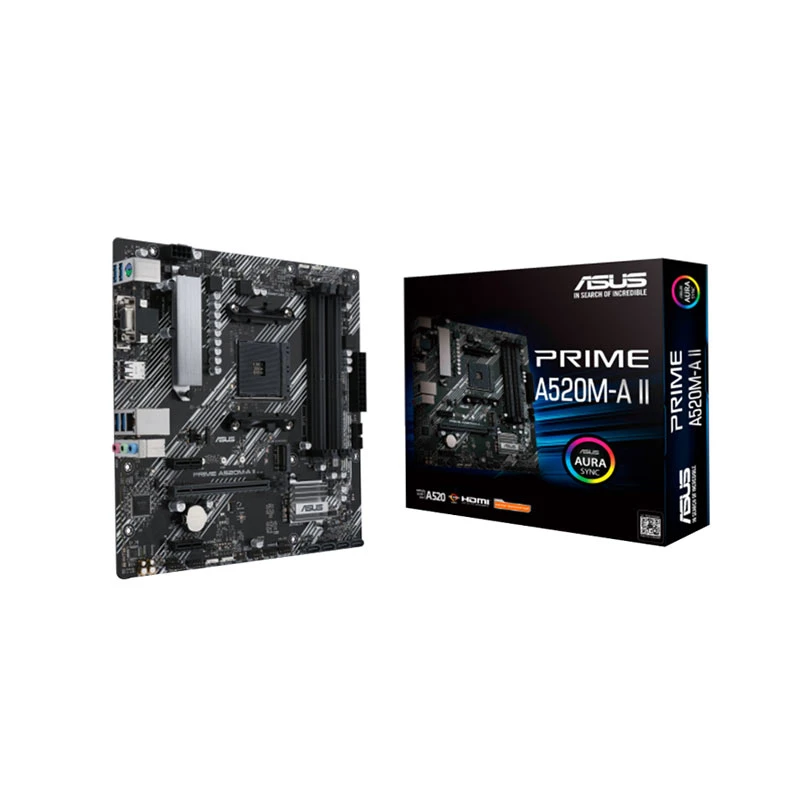

Asus PRIME A520M-A II DDR4 AMD Motherboard
Product Id: 02.02.006.464
Brand
Asus
Regular Price Tk 11,880
Monthly EMI Tk 990
Special Price Tk 10,950
Quick Overview
- Chipset - AMD A520
- Memory Max. - 128GB
- Memory Slot - 4
- Sockets Supported - AM4
- Supported CPU - AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Generation - Not Applicable
General
Brand
Asus
Model
Asus PRIME A520M-A II
Body Color
Black
CPU
Chipset Brand
AMD
Chipset
AMD A520
Sockets Supported
AM4
Built-in Processor
No
Supported CPU
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Generation
Not Applicable
Memory Support
Memory Type
DDR4
Memory MHz
4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory
Memory Channel
Dual
Memory Slot
4
Memory Max.
128GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
1
M.2/SSD Expansion Slot Details
1 x M.2 (M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 3.0 x 16 (supports x16 mode), 2 x PCIe 3.0 x 1
Audio & Video
Audio Chipset
Realtek ALC887/897
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek 1Gb Ethernet
LAN Speed (Mbps)
10/100/1000Mbps
WiFi
No
WiFi Technology
No
Ports
USB Port
4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4 x SATA
Thunderbolt
No
Technical Info
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 10
RGB Support
RGB
RGB Sync
Aura RGB
RGB Connector
2 x AURA RGB headers
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
128 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 10
Warranty
Warranty
3 Year
Warranty Details
3 Years Replacement Warranty
Additional Info
Feature
Special Features: ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O, ASUS Q-Design: ASUS Q-DIMM, ASUS Q-Slot.
Others
Internal I/O Connectors: Fan and cooling related: 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers, Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector, Storage related: 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports, Miscellaneous: 2 x AURA Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header. Back Panel I/O Ports: 1 x PS/2 Keyboard/Mouse combo port.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus PRIME A520M-A II Motherboard In Bangladesh
AMD A520 (Ryzen AM4) micro ATX motherboard with M.2, DP, HDMI,D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 ports, and Aura Sync RGB lighting support
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+
- Ultrafast connectivity: M.2 support,1 Gb Ethernet, USB 3.2 Gen 1 Type-A
- Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
ASUS Prime series is expertly engineered to unleash the full potential of AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
What is the price of Asus PRIME A520M-A II Motherboard In Bangladesh?
The price of Asus PRIME A520M-A II Motherboard starts from 10,950 . The price may vary due to your customization and product availability. You can buy Asus PRIME A520M-A II Motherboard from our website or visit our showrooms nearby.
