Brand

Asus

Model

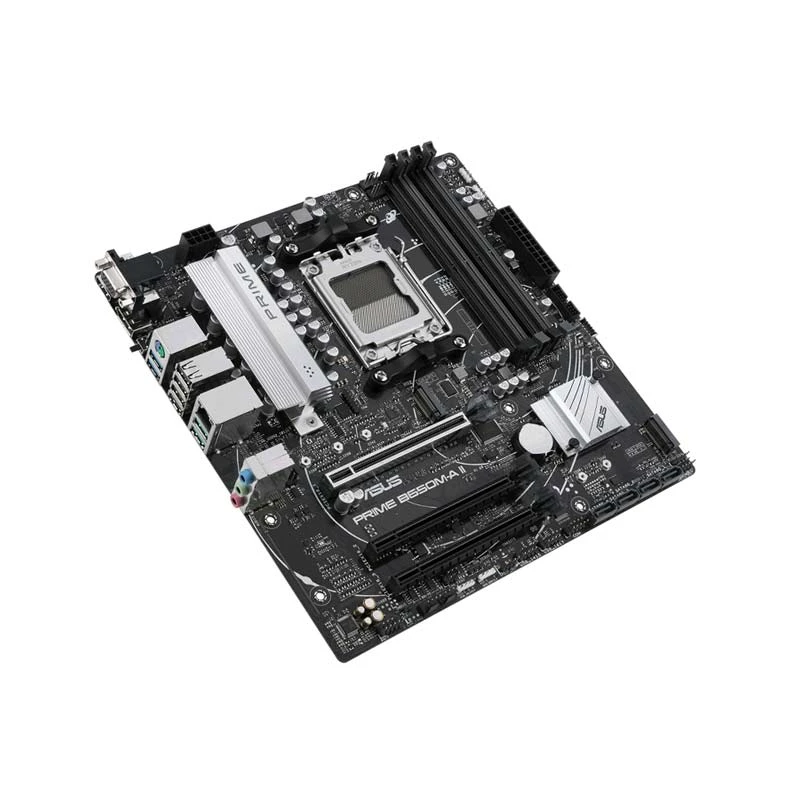

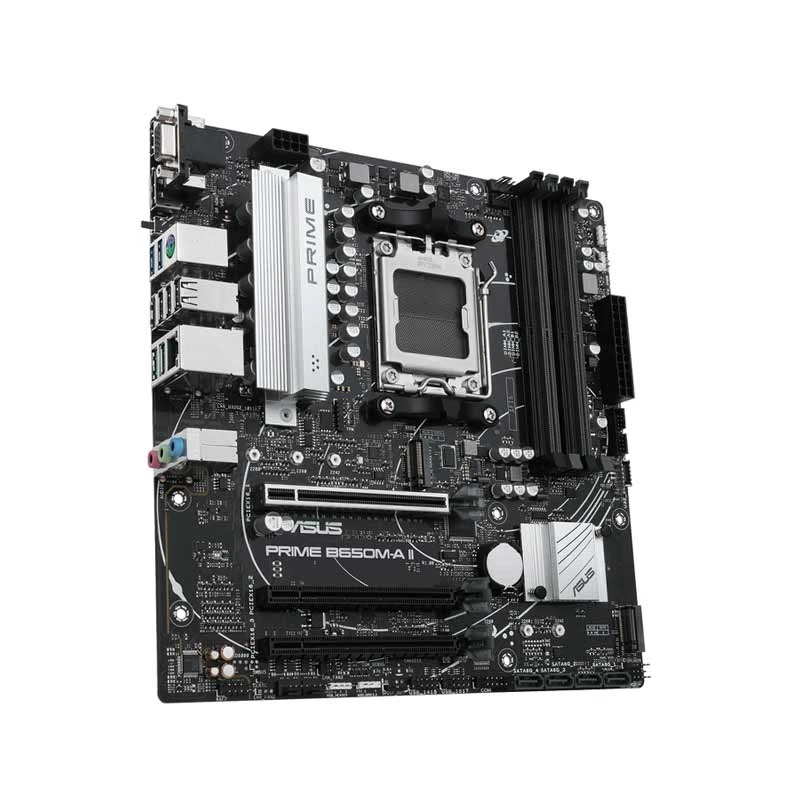

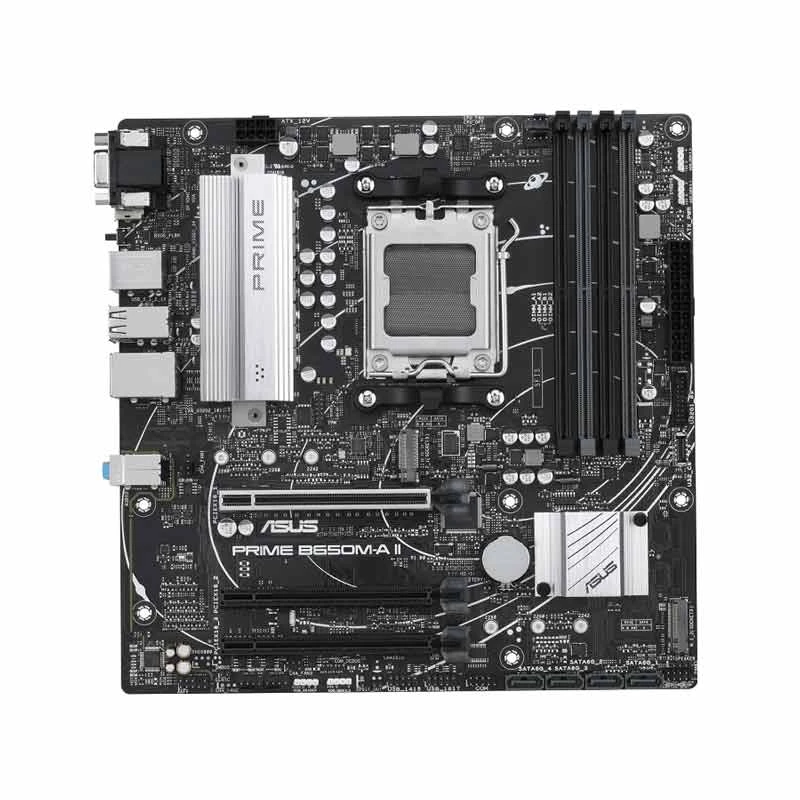

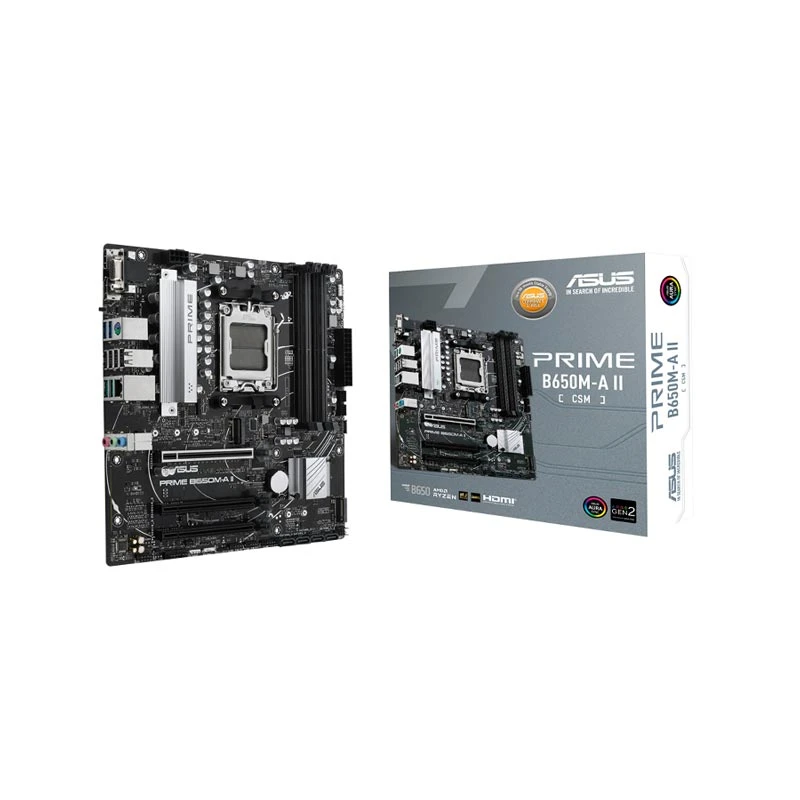

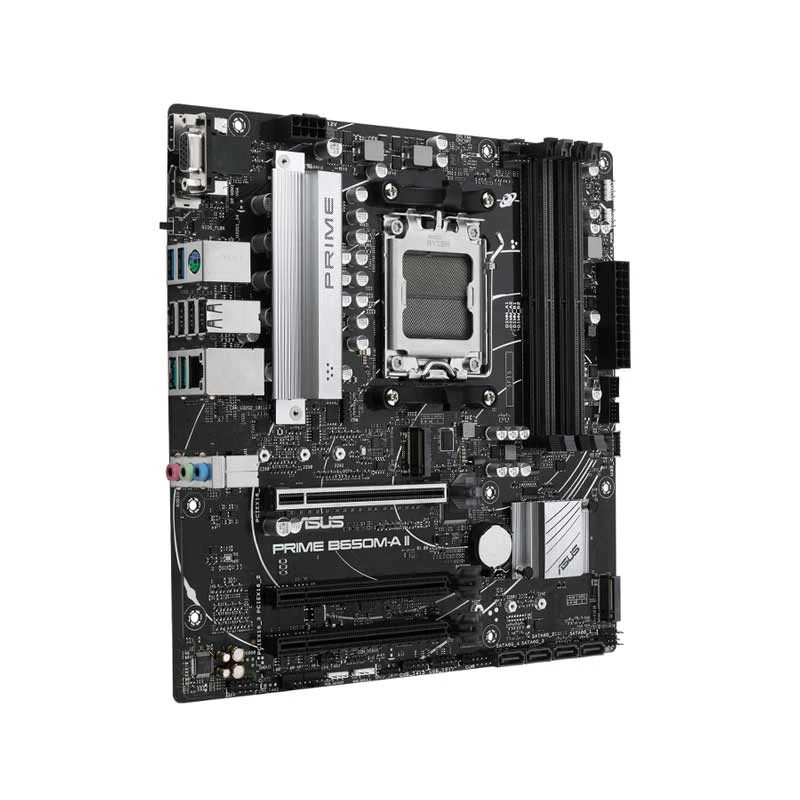

Asus PRIME B650M-A II-CSM

Chipset

AMD B650

Sockets Supported

AM5

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

192GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Form Factor

Micro-ATX

Supported Operating System

Windows 11, Windows 10 64-bit

Body Color

Black

Warranty

3 Year Replacement

General

Brand

Asus

Model

Asus PRIME B650M-A II-CSM

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD B650

Sockets Supported

AM5

Built-in Processor

Supported CPU

AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR5

Memory MHz

7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory

Memory Channel

Dual

Memory Slot

Memory Max.

192GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

2 x M.2 (M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode))

M.2/SSD Slot Gen

Up to Gen 5

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

1 x PCIe 4.0 x16 slot (supports x16 mode), 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), 2 x PCIe 4.0 x16 slots (support x1 mode)

Audio & Video

Audio Chipset

Realtek 7.1 Surround Sound High Definition Audio CODEC

Audio Channel

7.1

Network & Connectivity

LAN Chipset

1 x Realtek 2.5Gb Ethernet

LAN Speed (Mbps)

10/ 100/ 1000/ 2500Mbps

WiFi

Ports

USB Port

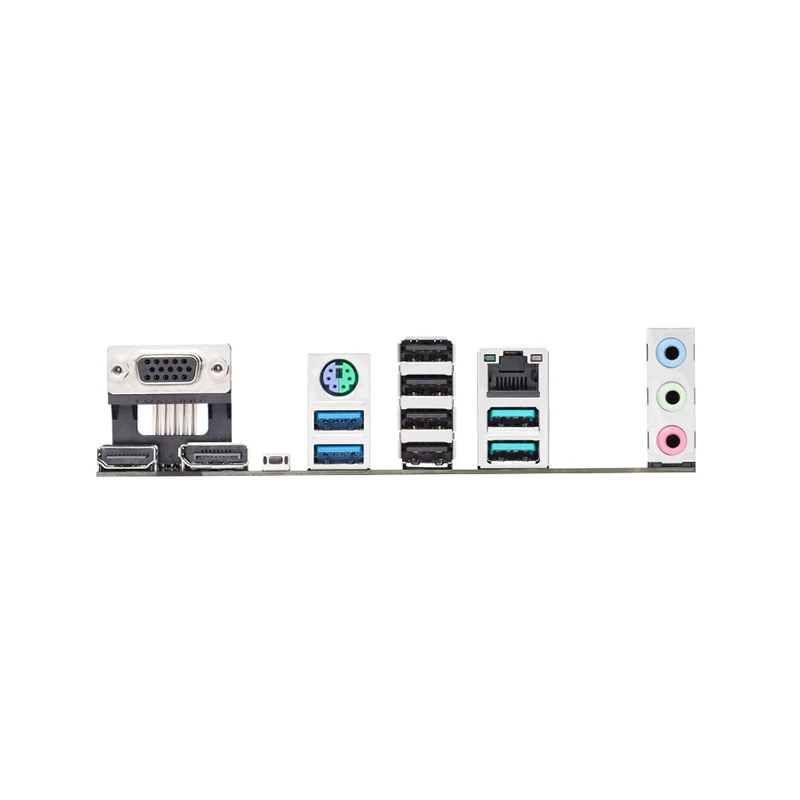

2 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

4 x SATA

Thunderbolt

Technical Info

Back-Connect Design

Cable Management

Front

DirectX Support

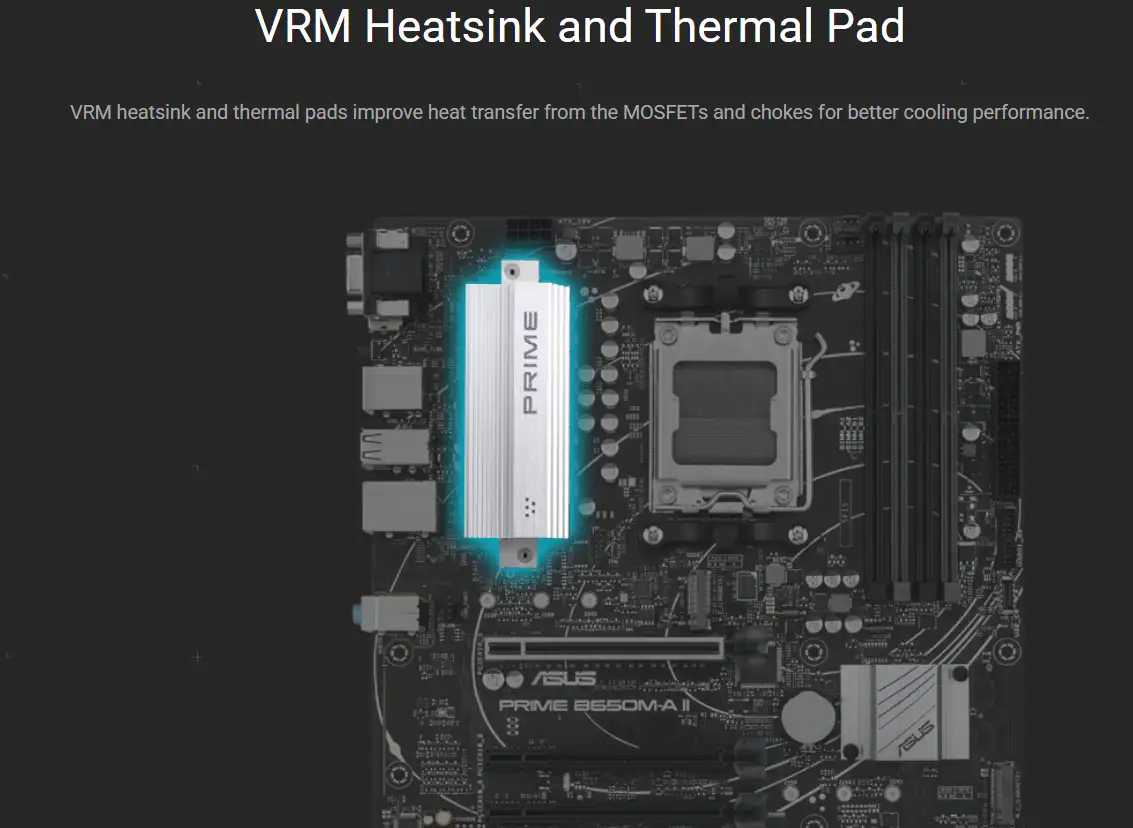

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

0/1/10

RGB Support

ARGB

RGB Sync

Aura Sync

RGB Connector

3 x Addressable Gen 2 headers

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

256 Mb Flash ROM

BIOS Model

UEFI AMI BIOS

Compatibility

Supported Operating System

Windows 11, Windows 10 64-bit

Compatible Products

AM5 Socket AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

Warranty

3 Year Replacement

Additional Info

Feature

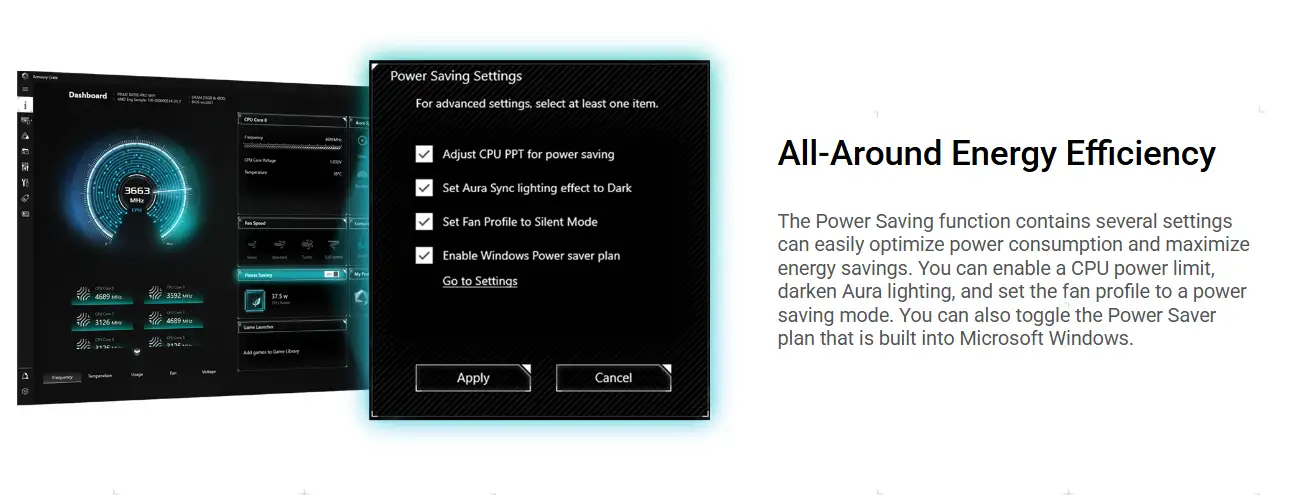

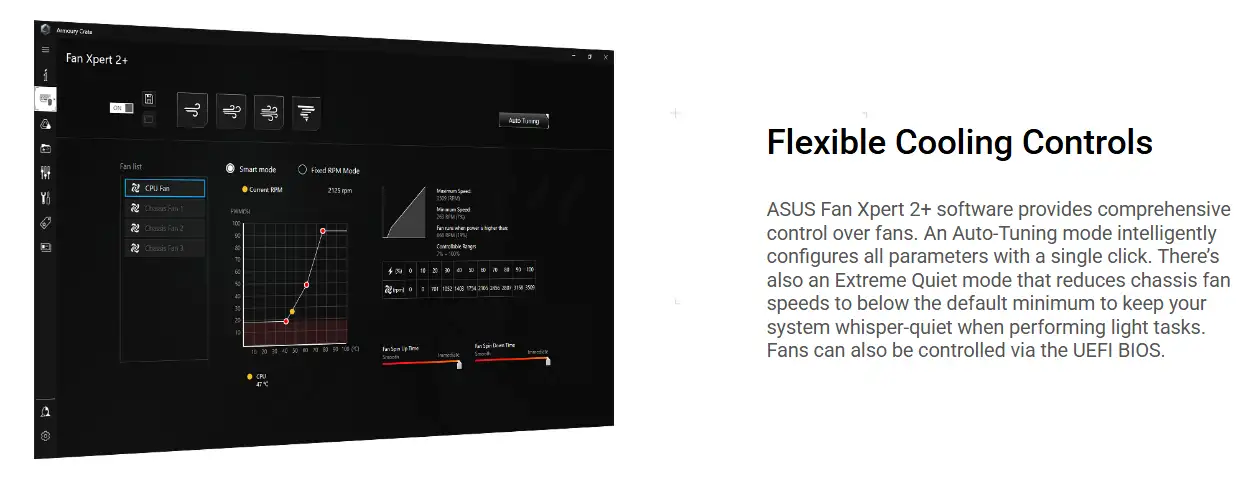

Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers. ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, Safeslot Core+, Stainless-Steel Back I/O, ASUS Q-Design: Q-DIMM, Q-LED Core, Q-Slot, ASUS Thermal Solution, VRM heatsink design, ASUS EZ DIY: BIOS FlashBack button, BIOS FlashBack LED, Aura Sync: Aura RGB header, Addressable Gen 2 headers, ASUS Exclusive Software, Armoury Crate: Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving, AI Suite 3: TurboV EVO, DIGI+ VRM, PC Cleaner, ASUS CPU-Z: Norton Anti-virus software (Free Trial version), WinRAR, UEFI BIOS, ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, Manageability, WOL by PME, PXE. Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications. Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C.ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking. Optimize IT endpoint management. Automate IT maintenance. Securely manage all of endpoints.

Others

Dual Channel Memory Architecture, Supports AMD Extended Profiles for Overclocking (EXPO), OptiMem II, Audio: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback, Back Panel I/O Ports: 3 x Audio jacks, 1 x BIOS FlashBack button, 1 x PS/2 Keyboard/Mouse combo port. Internal I/O Connectors: Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 3 x 4-pin Chassis Fan headers, Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Asus PRIME B650M-A II-CSM Motherboard In Bangladesh

What is the price of Asus PRIME B650M-A II-CSM Motherboard In Bangladesh?

The price of Asus PRIME B650M-A II-CSM Motherboard starts from 16,900 . The price may vary due to your customization and product availability. You can buy Asus PRIME B650M-A II-CSM Motherboard from our website or visit our showrooms nearby.
