Brand

Asus

Model

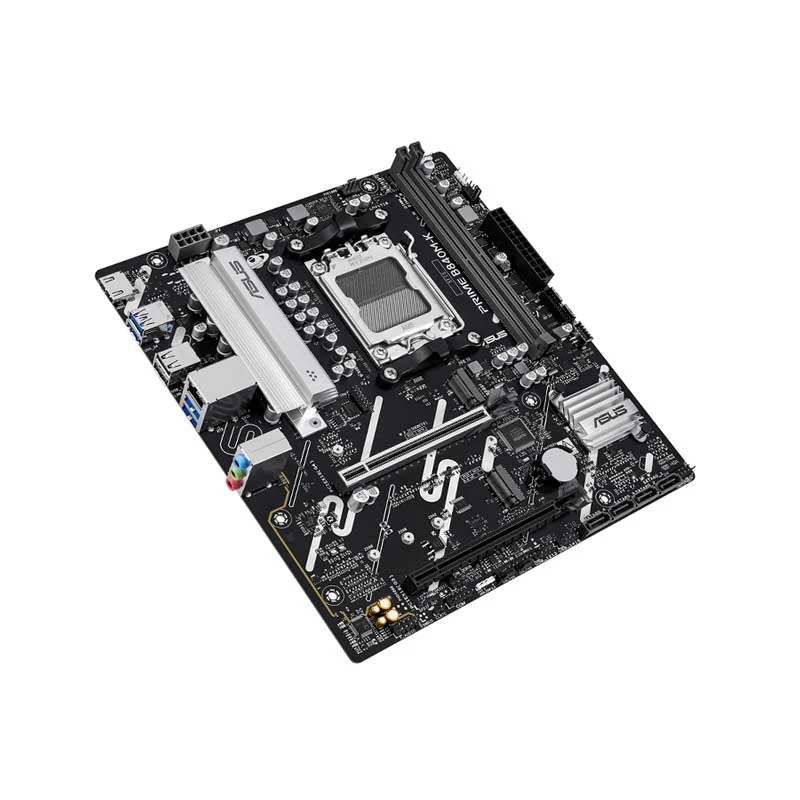

Asus PRIME B840M-K

Chipset

AMD B840

Sockets Supported

AM5

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

128GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Form Factor

Micro-ATX

Supported Operating System

Windows 11, Windows 10 64-bit

Body Color

Black

Warranty

3 Year Replacement

General

Brand

Asus

Model

Asus PRIME B840M-K

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD B840

Sockets Supported

AM5

Built-in Processor

Supported CPU

AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors. Supports Up To AMD 170W CPU.

Generation

Not Applicable

Memory Support

Memory Type

DDR5

Memory MHz

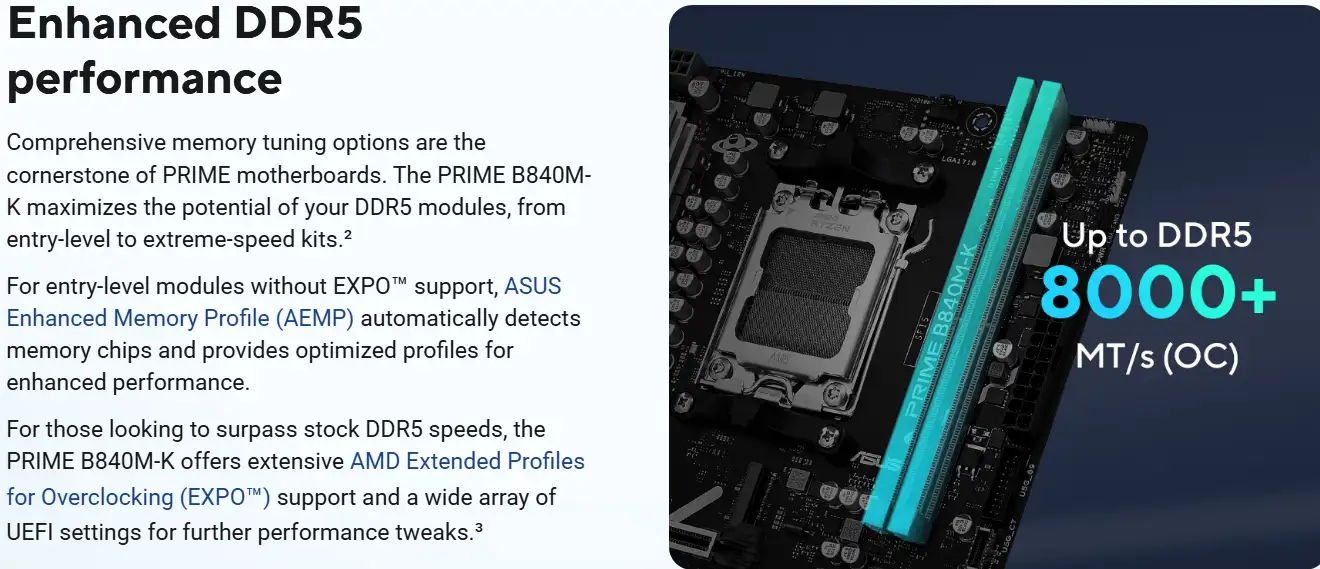

Up to 8000+MT/s(OC) ECC & Non-ECC Un-Buffered DIMM

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

2 x DIMM Slot

Memory Max.

128GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

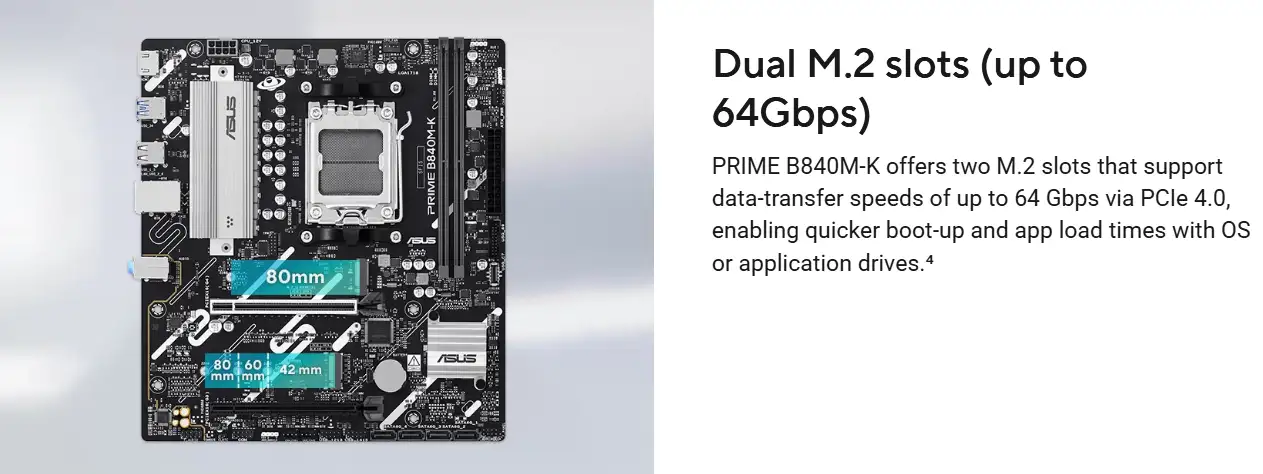

2 x M.2 Slot (M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode))

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated With Processor

PCI Express Slot

1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16

Audio & Video

Audio Channel

7.1

Network & Connectivity

LAN Chipset

10/10/1000/2500Mbps

WiFi

Ports

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

4 x SATA Port

Thunderbolt

Technical Info

Back-Connect Design

Cable Management

Front

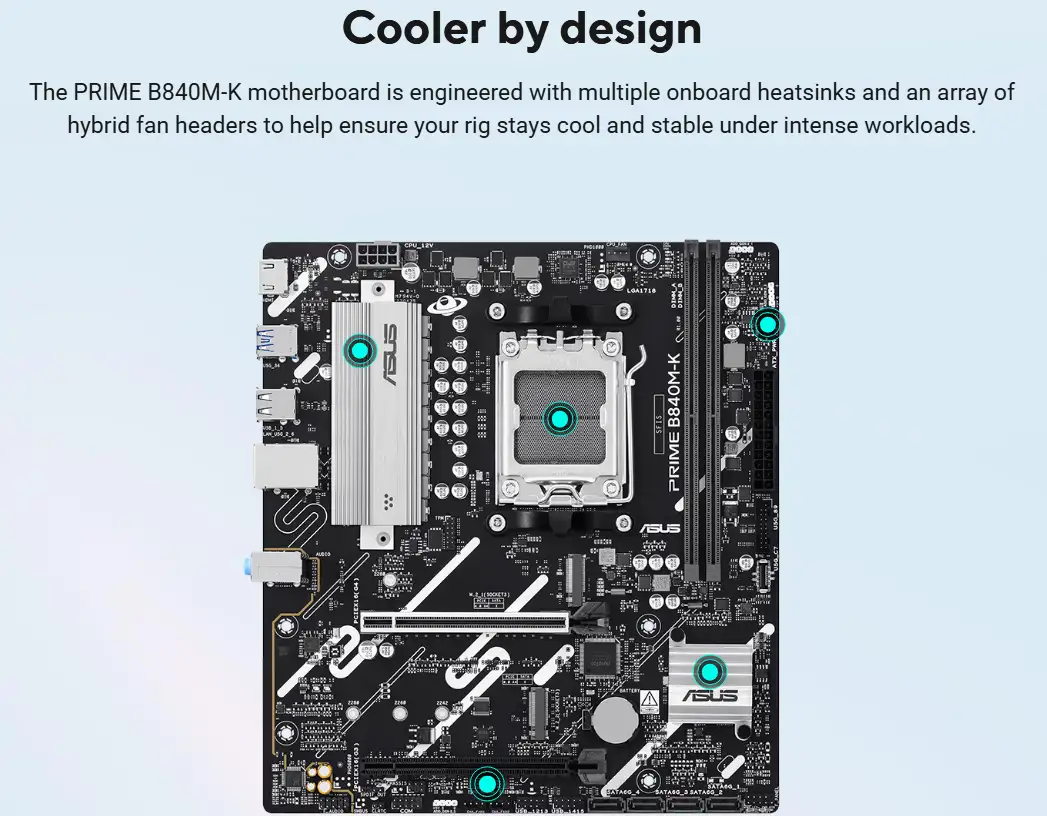

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

AMD RAIDXpert2 Technology, RAID 0/1/5/10.

RGB Support

ARGB

RGB Sync

Asus Aura Sync

RGB Connector

3 x Addressable RGB Gen 2 headers

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

32MB (256Mb) Flash ROM

BIOS Model

UEFI AMI BIOS

Compatibility

Supported Operating System

Windows 11, Windows 10 64-bit

Compatible Products

AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors. Supports Up To AMD 170W CPU.

Warranty

3 Year Replacement

Additional Info

Feature

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. The PRIME B840M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. Its designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Others

Memory: Supports AMD Extended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP). Audio: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers. Back Panel I/O Ports: 4 x USB 5Gbps ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x HDMI port, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks. Internal I/O Connectors: Fan and Cooling Related- 1 x 4-pin CPU Fan header, 3 x 4-pin Chassis Fan headers. Power Related- 1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connector. Storage Related- 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports. USB- 1 x USB 5Gbps connector (supports USB Type-C), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports. Miscellaneous- 3 x Addressable RGB Gen 2 headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1 pin), 1 x 10-1 pin Front Panel System header. Manageability: WOL by PME, PXE. Form Factor: micro-ATX 9.6 inch x 8.7 inch (24.4 x 22.1cm).

Details

Features of Asus PRIME B840M-K Motherboard In Bangladesh

What is the price of Asus PRIME B840M-K Motherboard In Bangladesh?

The price of Asus PRIME B840M-K Motherboard starts from 20,900 . The price may vary due to your customization and product availability. You can buy Asus PRIME B840M-K Motherboard from our website or visit our showrooms nearby.
