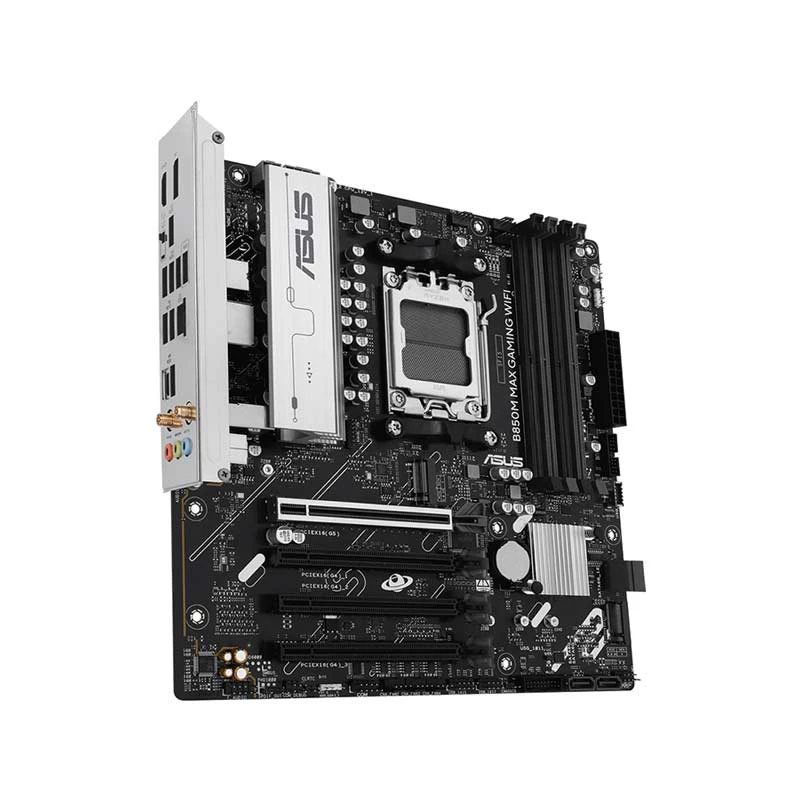

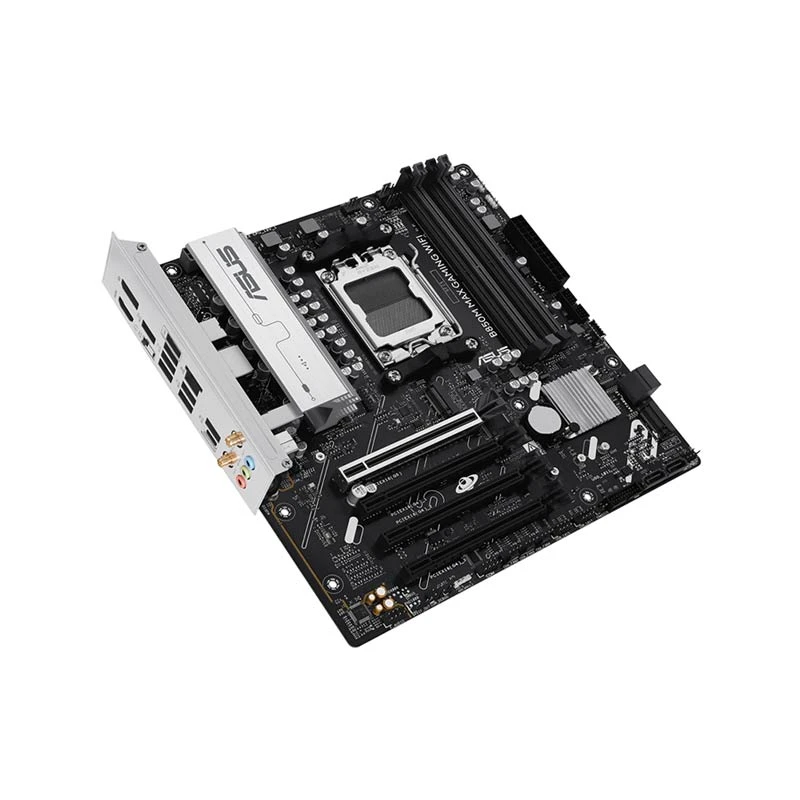

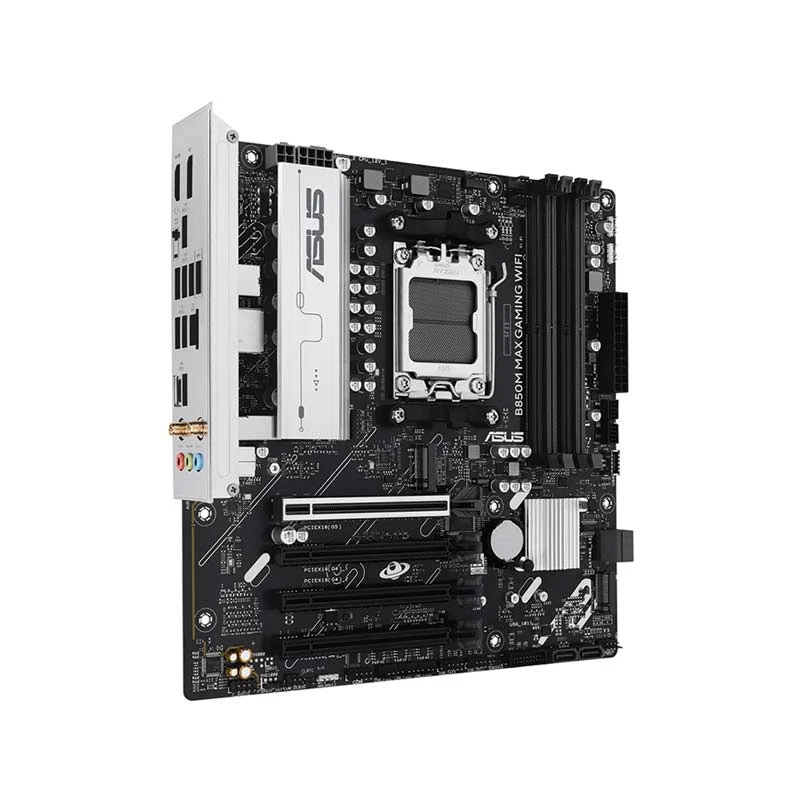

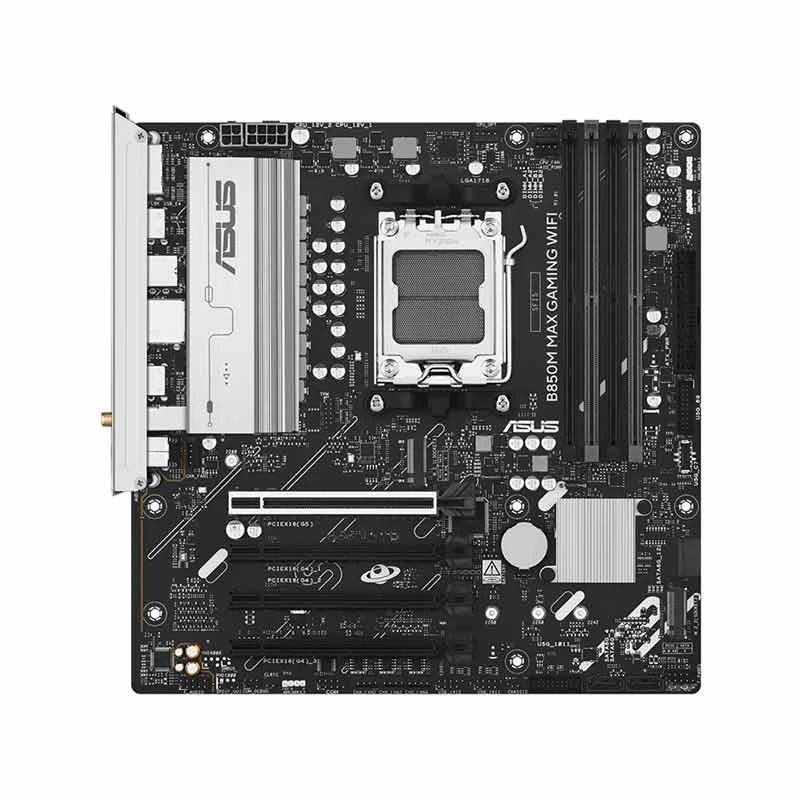

ASUS B850M MAX GAMING (Wi-Fi 6) DDR5 AMD Motherboard #B850M MAX GAMING WIFI

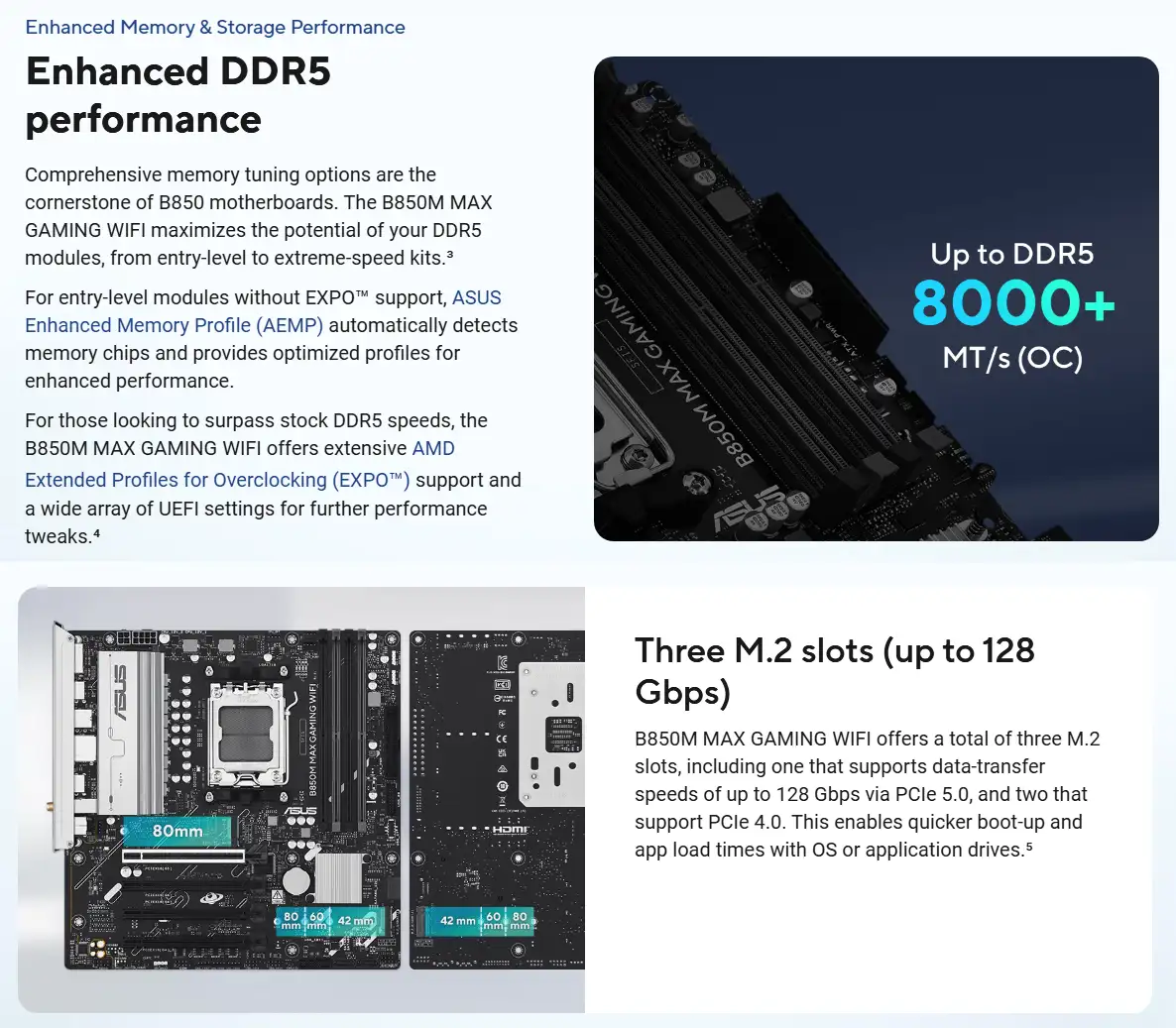

Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP)
Memory Max.
256GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
3
M.2/SSD Expansion Slot Details
3 x M.2 slots (1 x M.2 Key M, type 2280 supports PCIe 4.0 x4 mode, 1 x M.2 Key M, type 2242/2260/2280 supports PCIe 4.0 x4 mode, 1 x M.2 Key M, type 2242/2260/2280 supports PCIe 4.0 x2 mode)
M.2/SSD Slot Gen
Up to Gen 4
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x16 slot (supports x16 mode), 3 x PCIe 4.0 x16 slot (support x1 mode)
Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek 1Gb Ethernet
LAN Speed (Mbps)
10/100/1000 Mbps

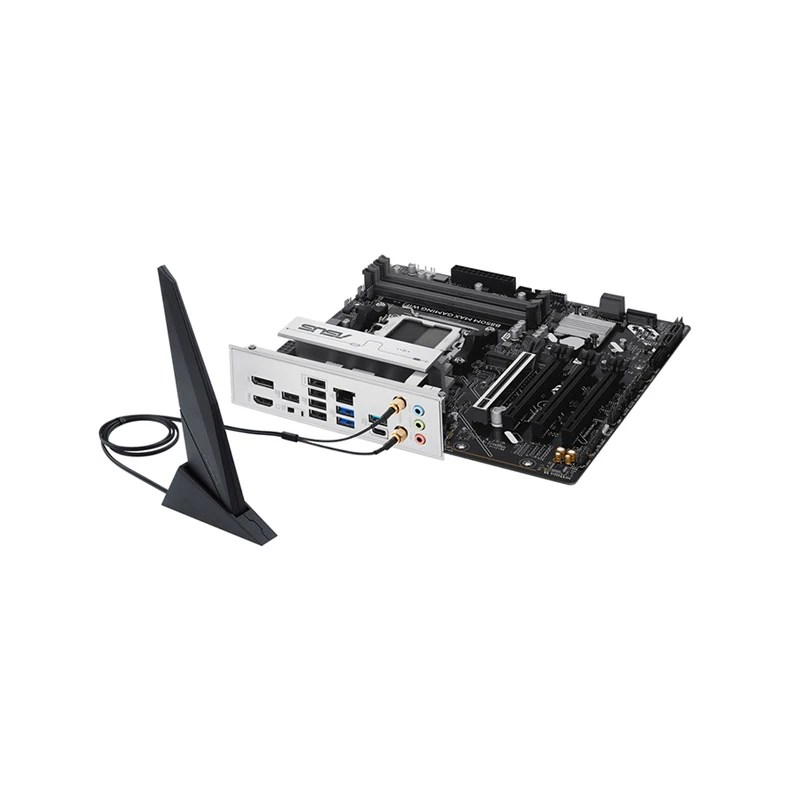

WiFi
Yes

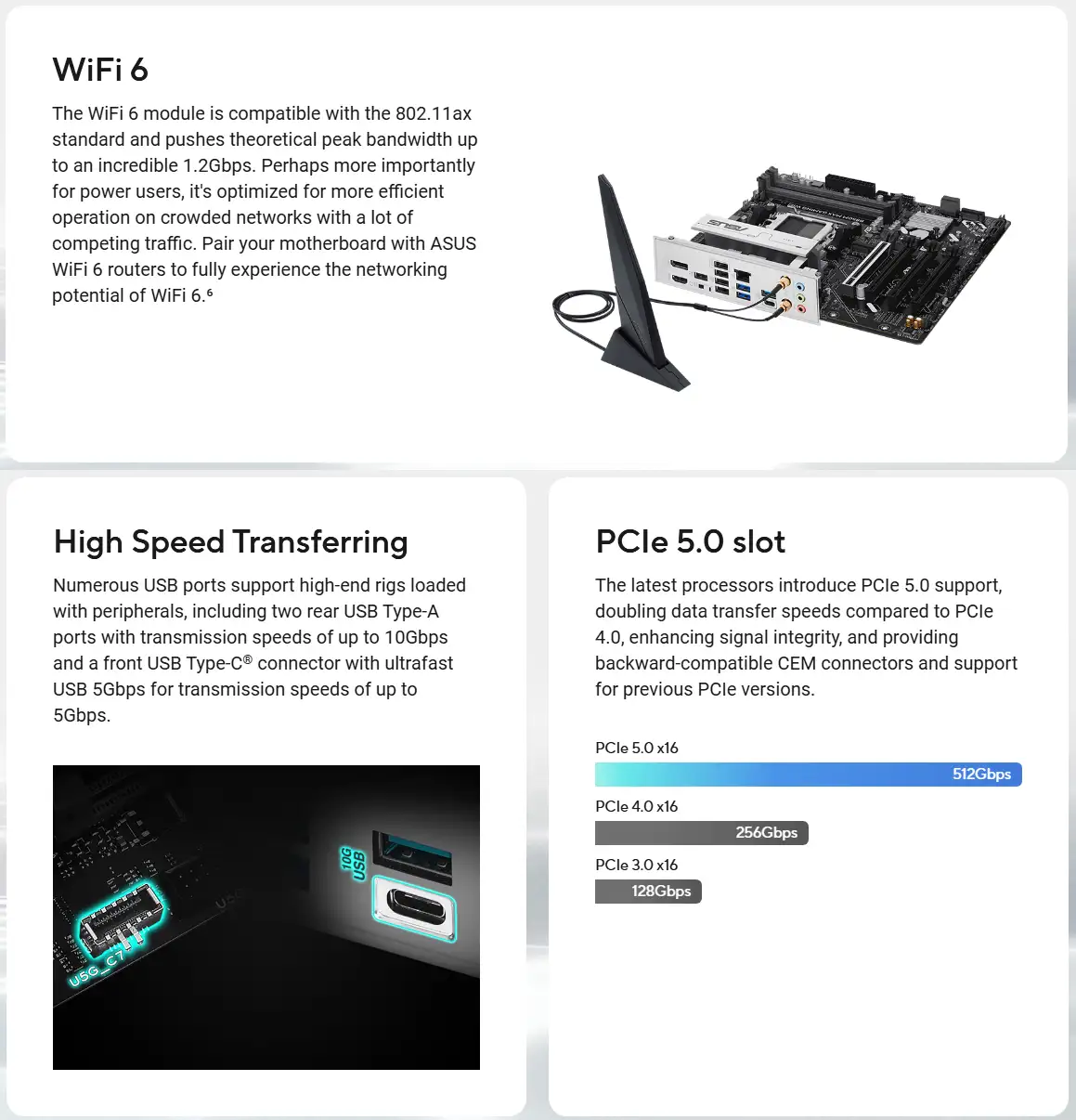

WiFi Technology
Wi-Fi 6
Bluetooth
Bluetooth 5.4

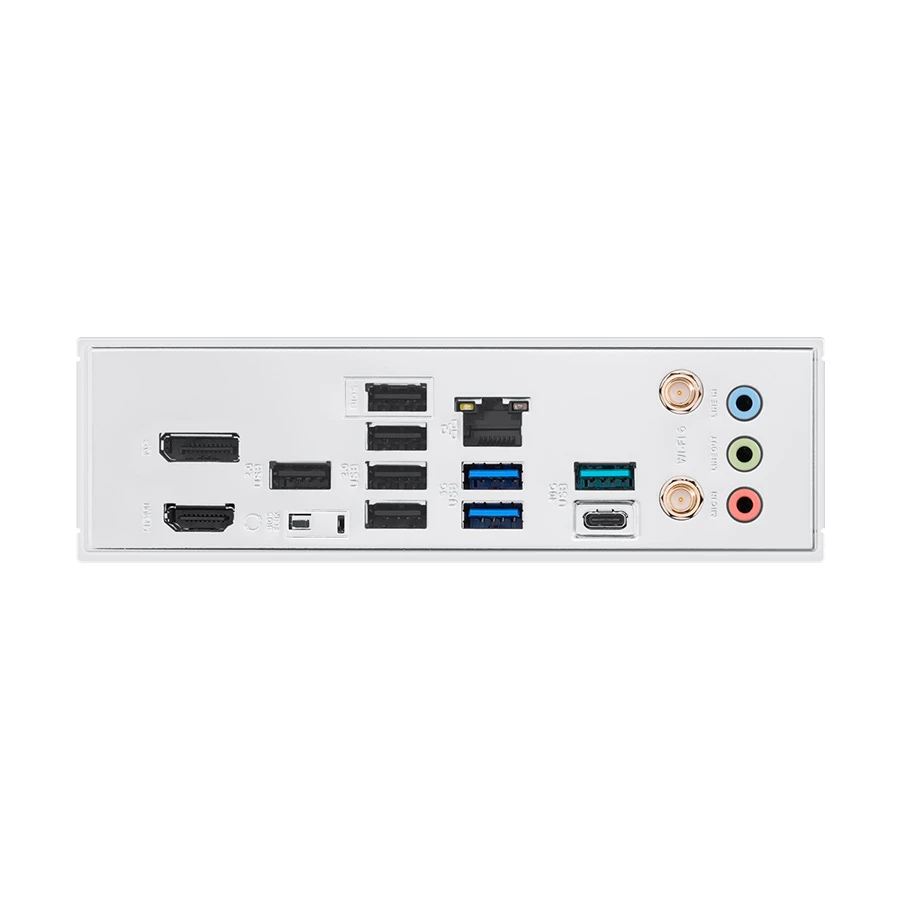

Ports
USB Port
1 x USB 10Gbps Type-A, 1 x USB 10Gbps Type-C, 2 x USB 5Gbps Type-A, 5 x USB 2.0 Type-A)
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
2 x SATA
Thunderbolt
No
TPM Port
Yes
COM Port
Yes
Technical Info
Back-Connect Design
No
Cable Management
Front

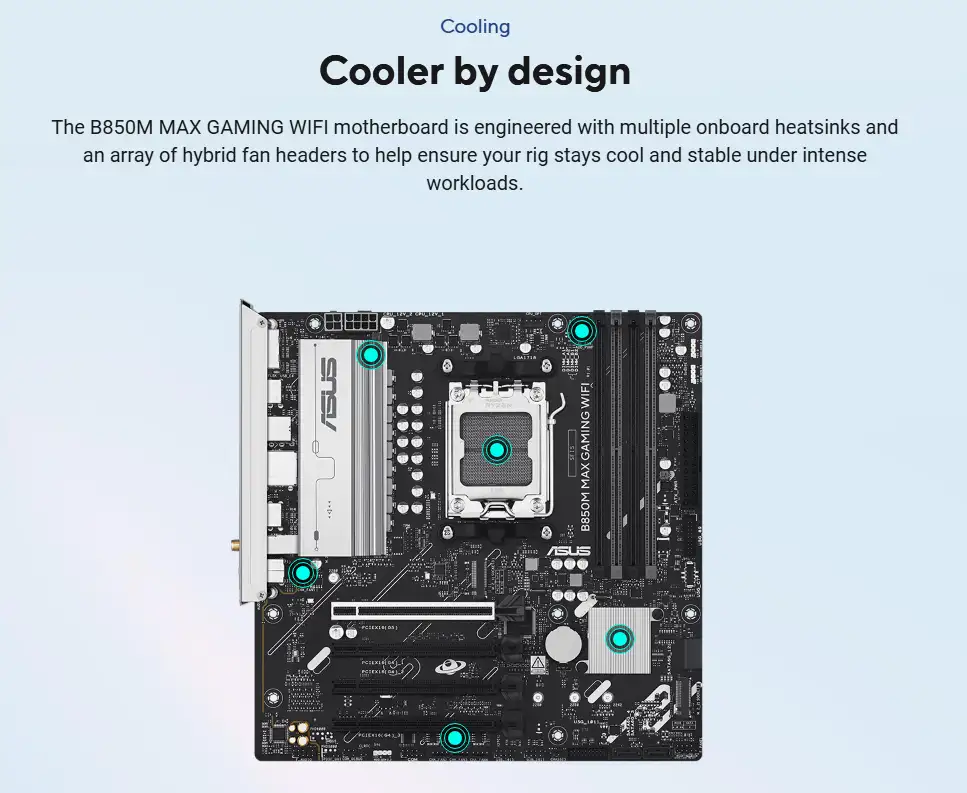

Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0 , 1 , 5, 10
RGB Support
ARGB
RGB Sync
Aura Sync
RGB Connector
3 x Addressable RGB Gen 2 headers
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
256 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11 / 10
Warranty
Warranty Details
3 Year Replacement
Additional Info
Others
Internal I/O Connectors: (Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connectors 1 x 4-pin +12V CPU Power connectors Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header).
Country Of Origin
Taiwan
Made in/ Assemble
China
