N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.

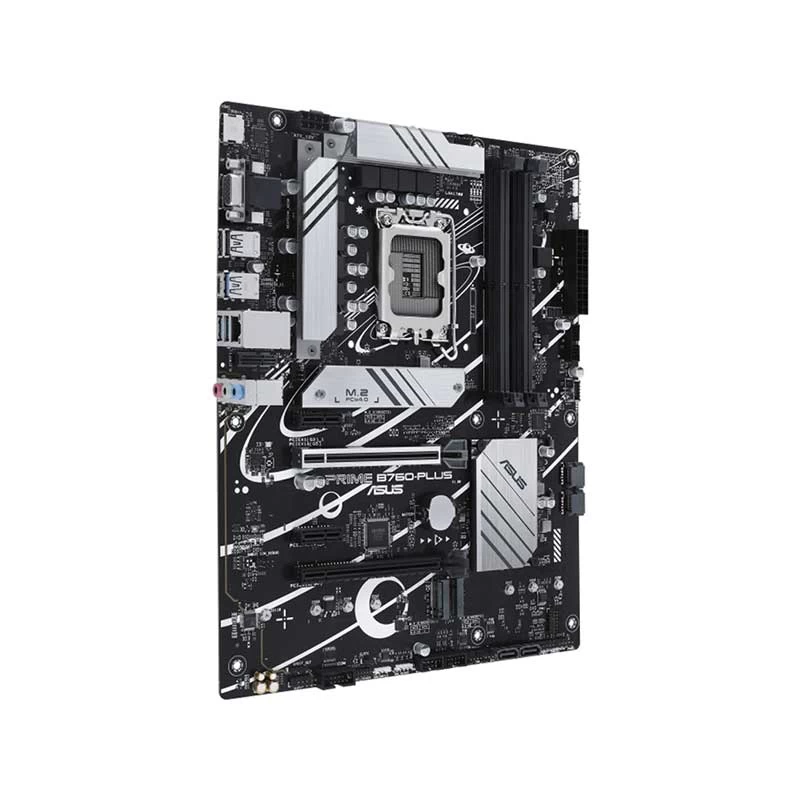

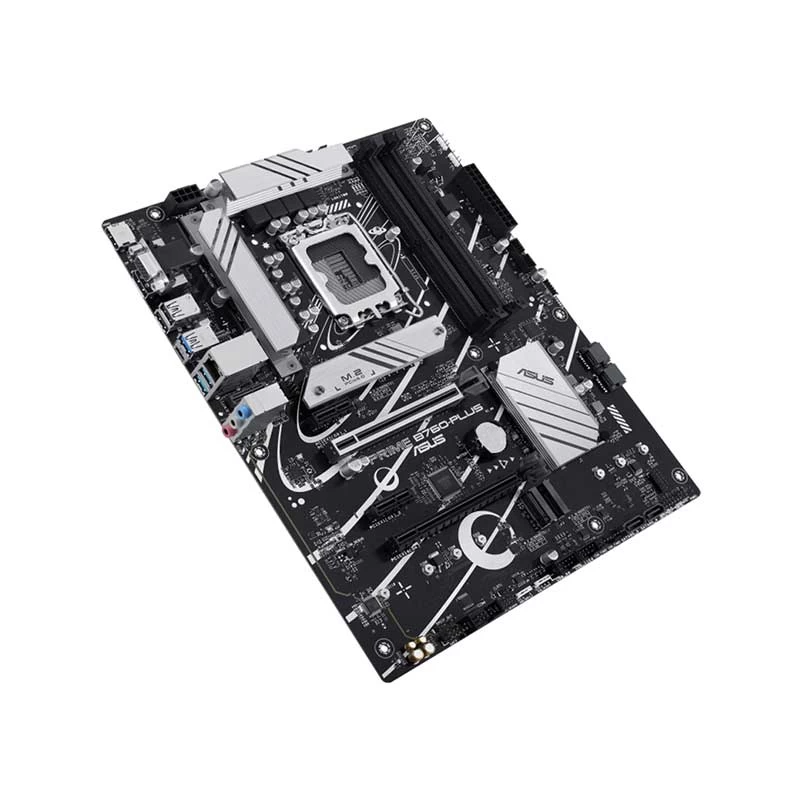

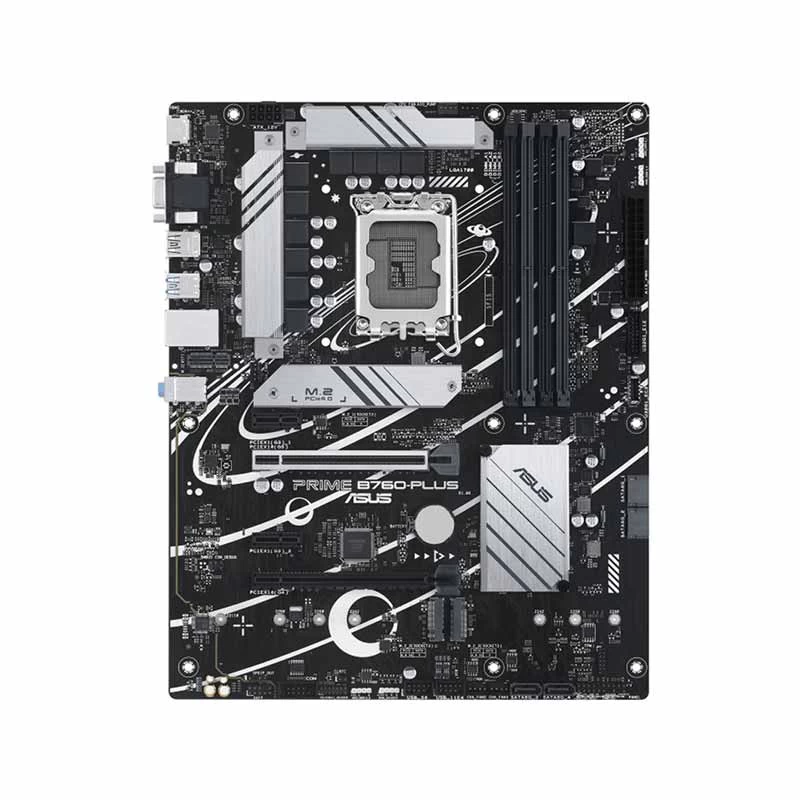

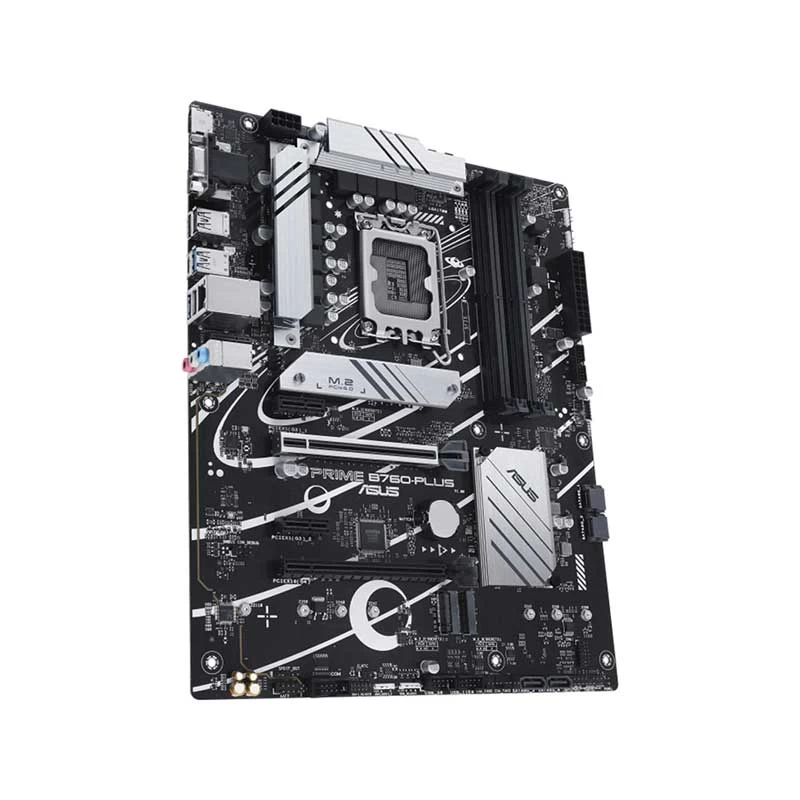

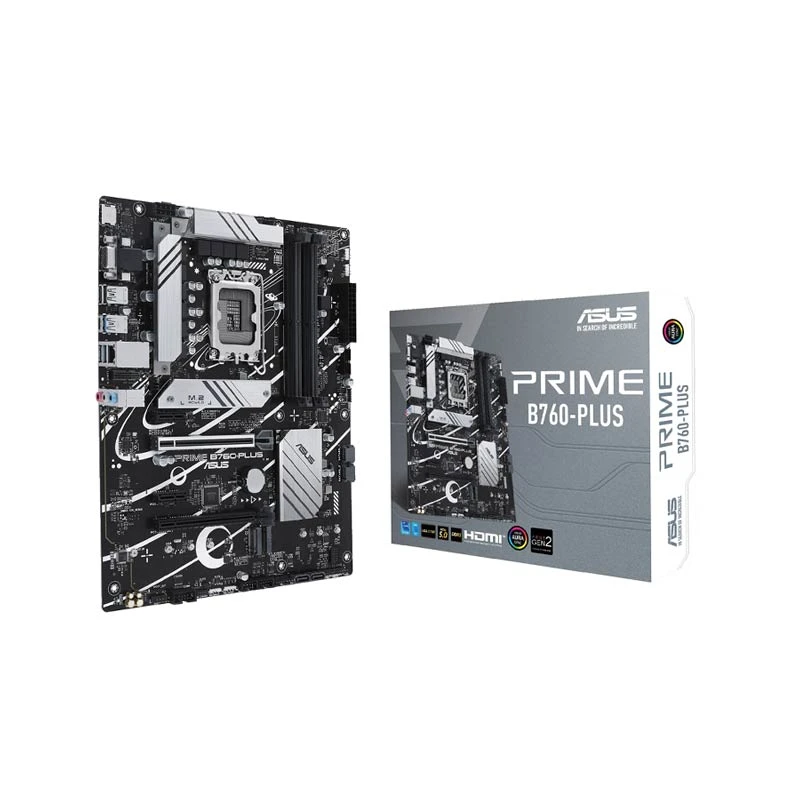

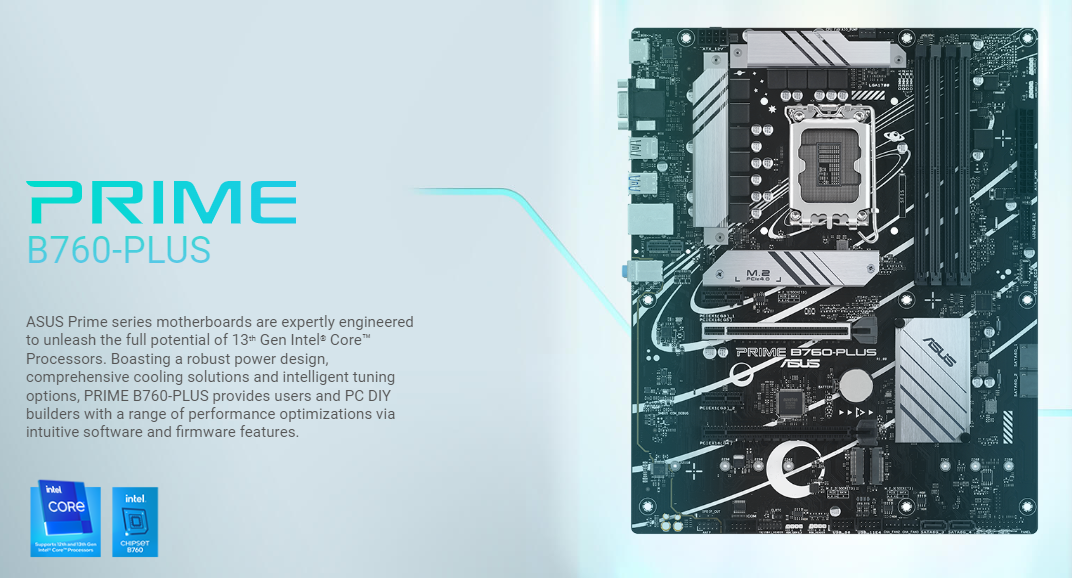

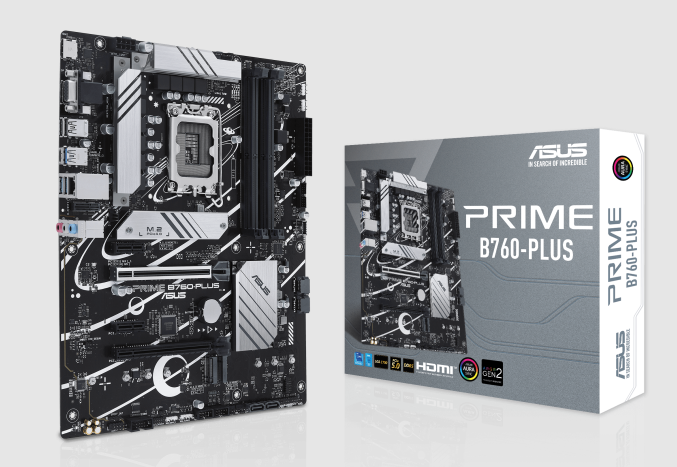

Asus PRIME B760-PLUS DDR5 Intel Motherboard

Product Id: 02.01.006.466

Brand Asus

Regular Price Tk 26,260 Monthly EMI Tk 2,188
Special Price Tk 24,400

Quick Overview

  • Chipset - Intel B760
  • Memory Max. - 192GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - 13th/14th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors.
  • Generation - 12th/13th/14th
General
Brand
Asus

Model
Asus PRIME B760-PLUS

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B760

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
13th/14th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors.

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz

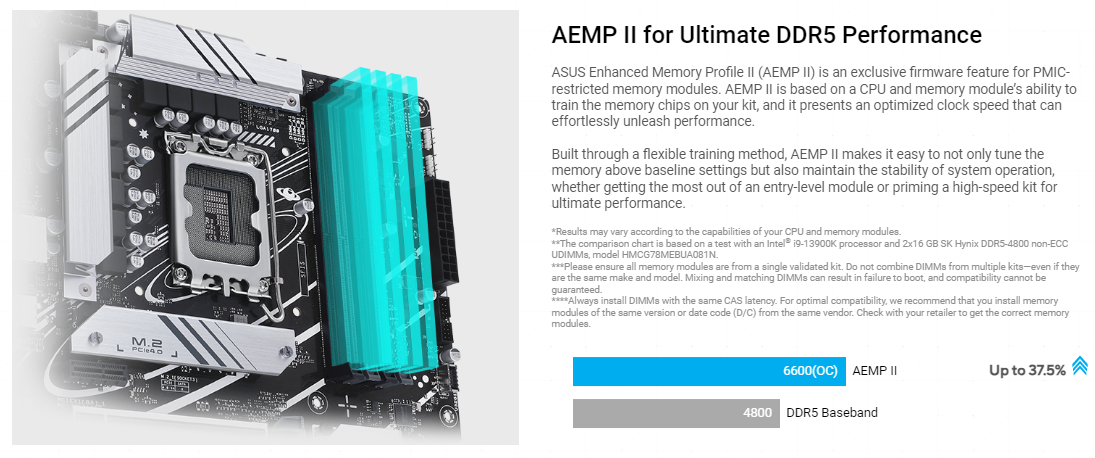

7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory.

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DIMM

Memory Max.
192GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
3

M.2/SSD Expansion Slot Details

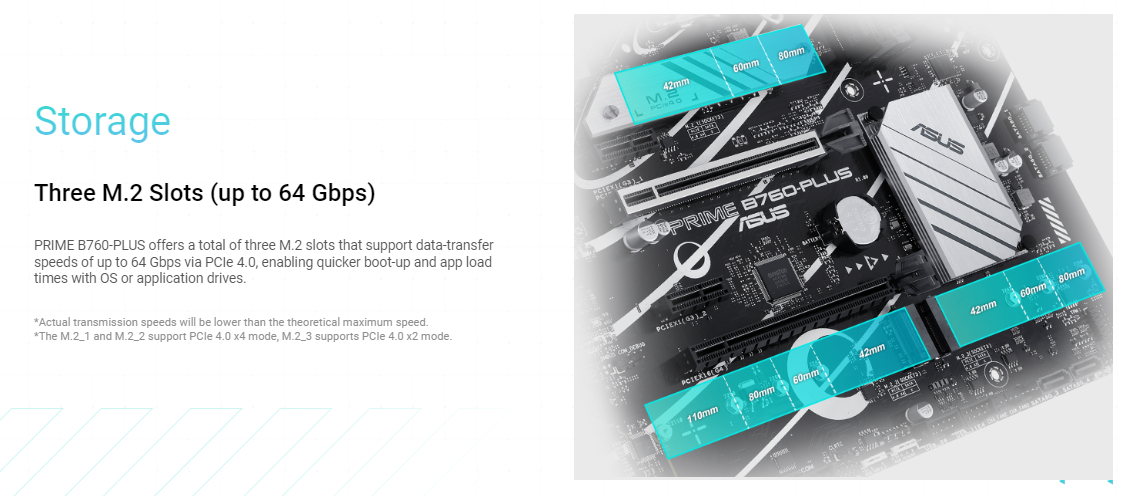

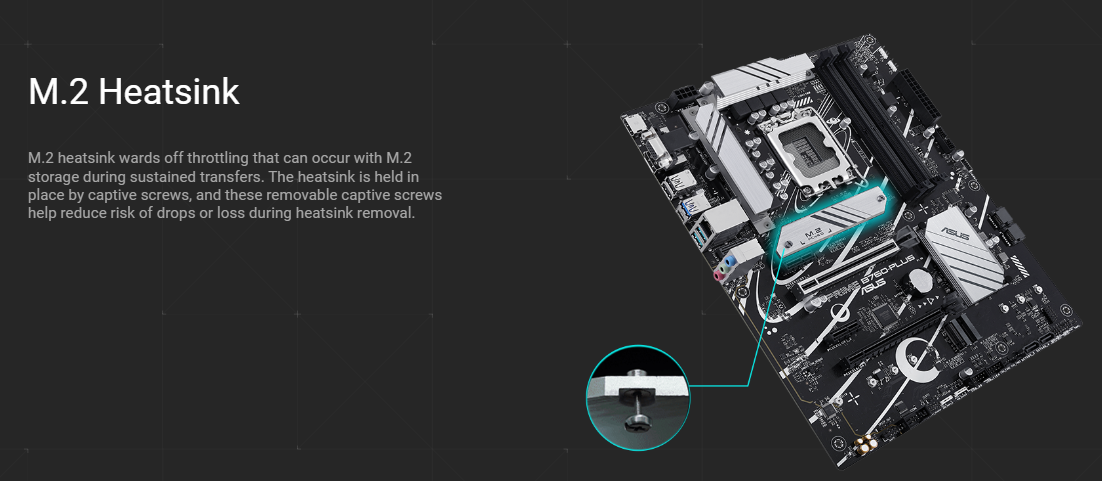

3 x M.2 slots (1 x M.2 Key M type 2242/2260/2280 supports PCIe 4.0 x4 mode, 1 x M.2 (Key M) type 2242/2260/2280/22110 supports PCIe 4.0 x4 mode, 1 x M.2 (Key M) type 2242/2260/2280 supports PCIe 4.0 x2 mode)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot

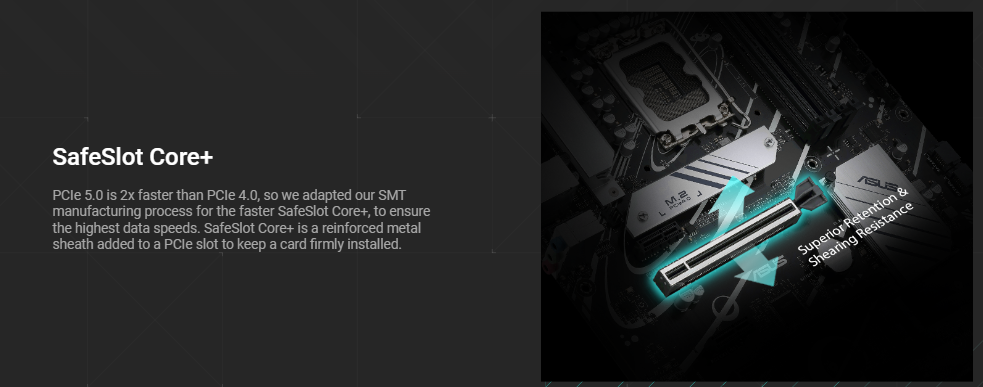

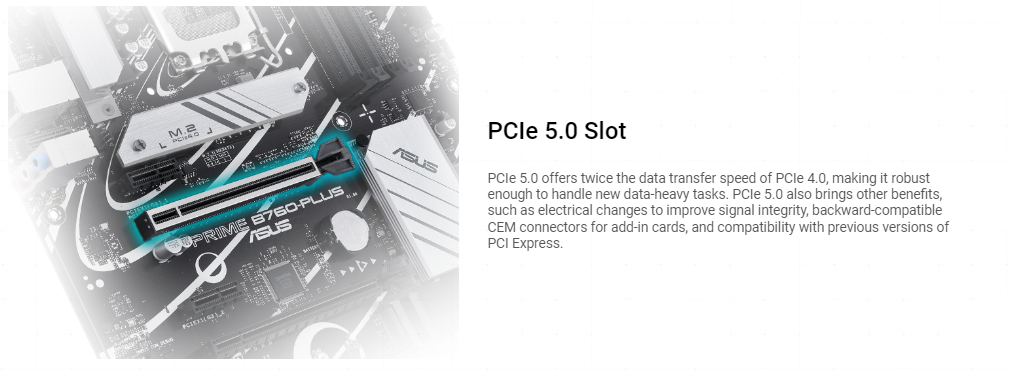

1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 3.0 x1 slots.


Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 2.5Gb Ethernet

LAN Speed (Mbps)
10/100/1000/2500Mbps

WiFi
No

Bluetooth
No


Ports
USB Port

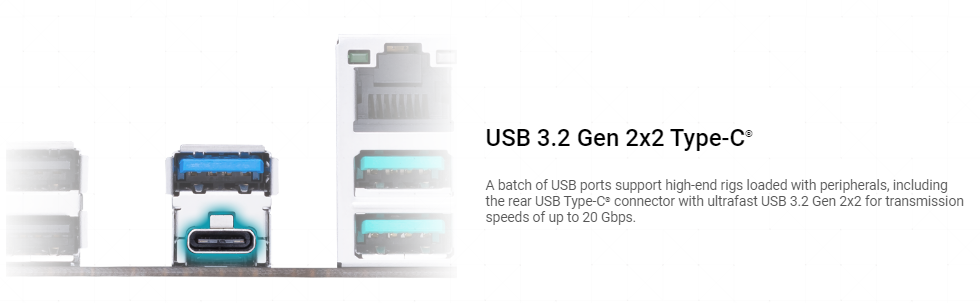

1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A

VGA Port
1

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
1

TPM Port
1

COM Port
1


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Sync

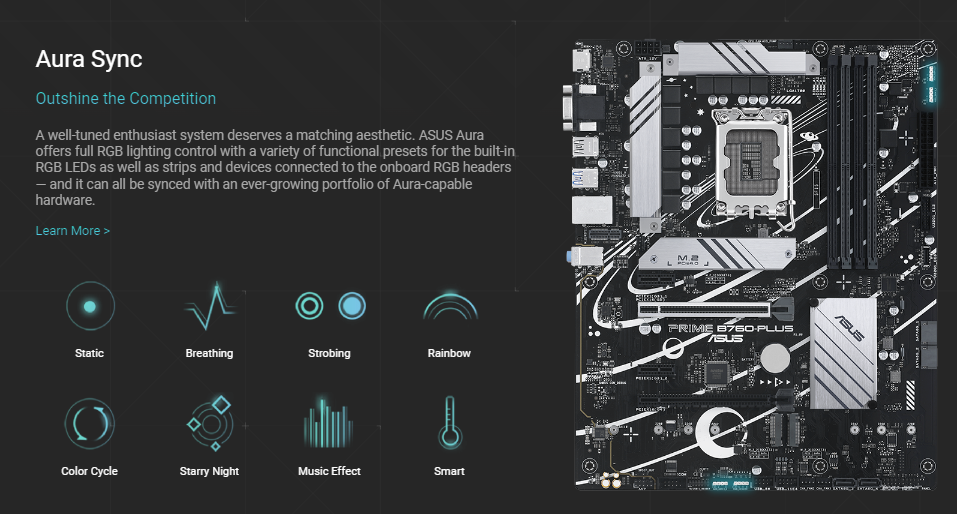

Aura Sync

RGB Connector
1 x Aura RGB header

Approx. Power Consumption
60W

Form Factor
ATX


Bios Information
BIOS Type
128 Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 10 / 11

Compatible Products
Compatible with LGA1700 Socket 12th, 13th & 14th Gen Intel Processor.


Warranty
Warranty
3 Year

Warranty Details
3 Years Replacement Warranty


Additional Info
Feature
Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers,

Others

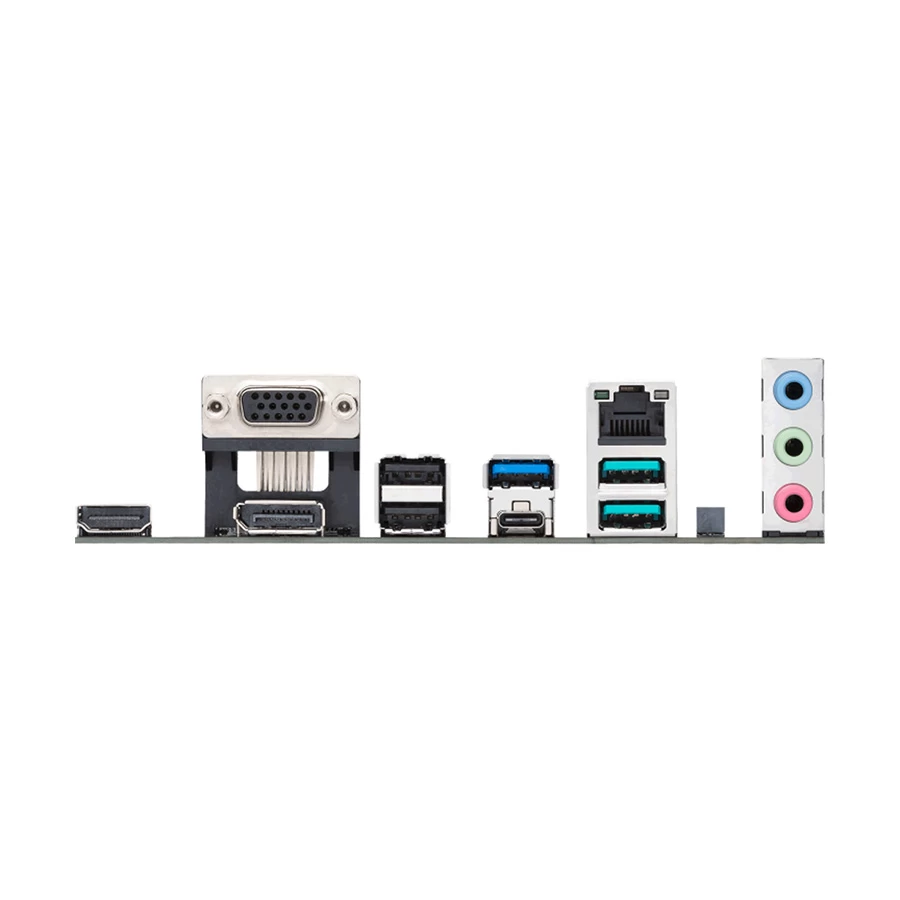

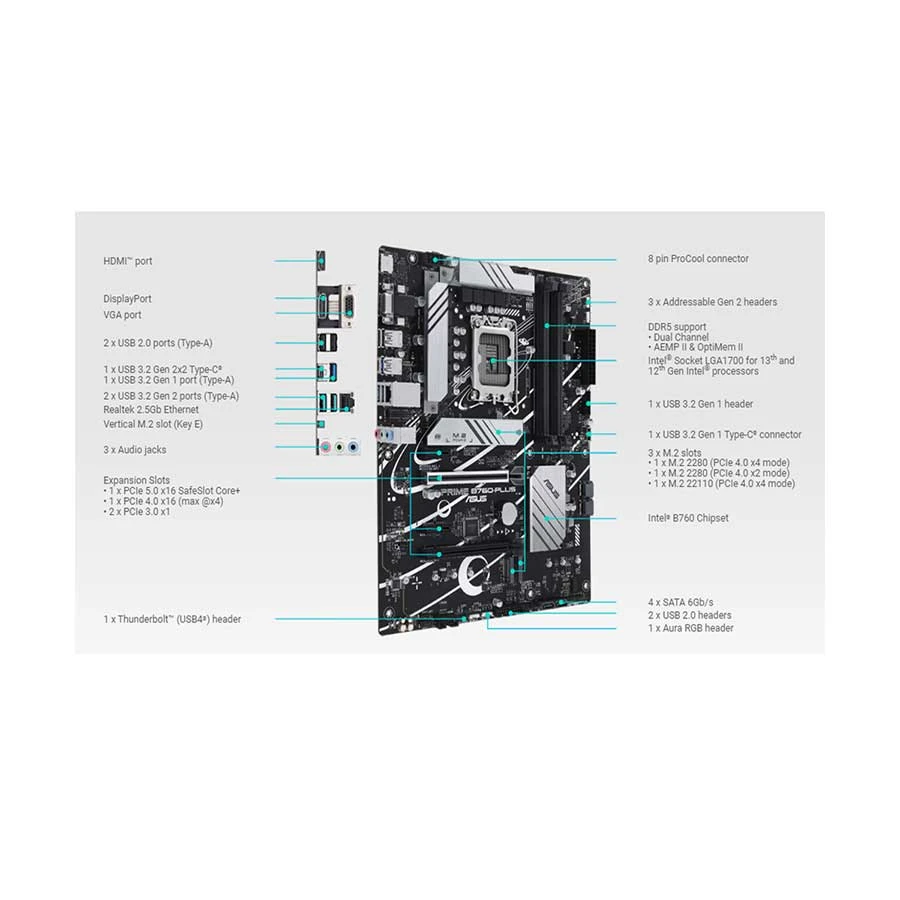

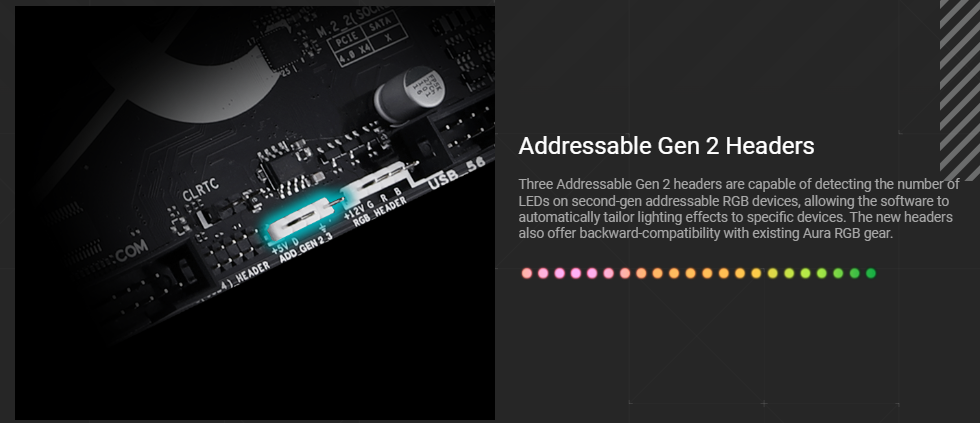

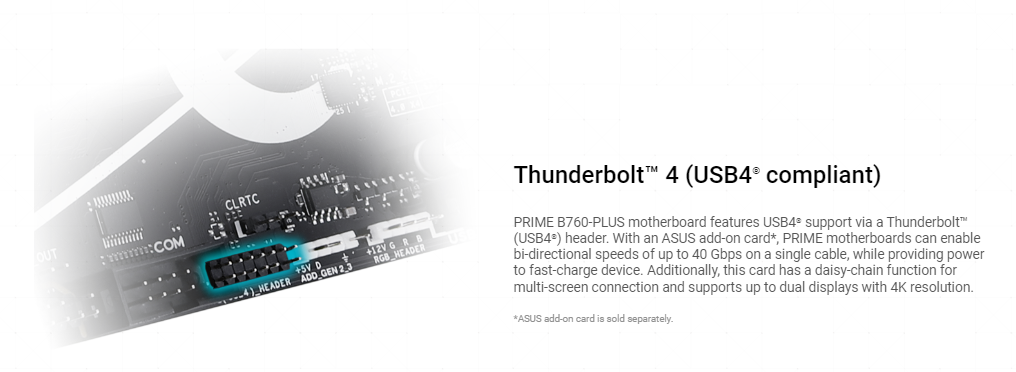

Back Panel I/O Ports: (1 x Vertical M.2 slot (Key E), 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks), Internal I/O Connectors: 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB 4) header)

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
