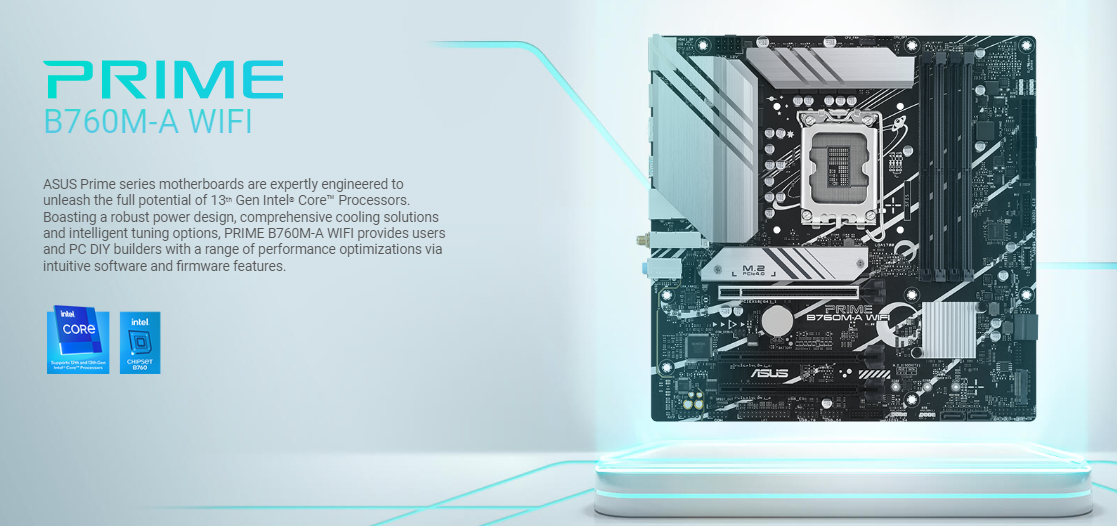

Asus PRIME B760M-A (Wi-Fi 6) DDR5 Motherboard

Product Id: 02.01.006.470

Brand Asus

Regular Price Tk 29,620 Monthly EMI Tk 2,468
Special Price Tk 27,500

Quick Overview

  • Chipset - Intel B760
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - 14th/13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
General
Brand
Asus

Model
Asus PRIME B760M-A (Wi-Fi 6)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B760

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
14th/13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz

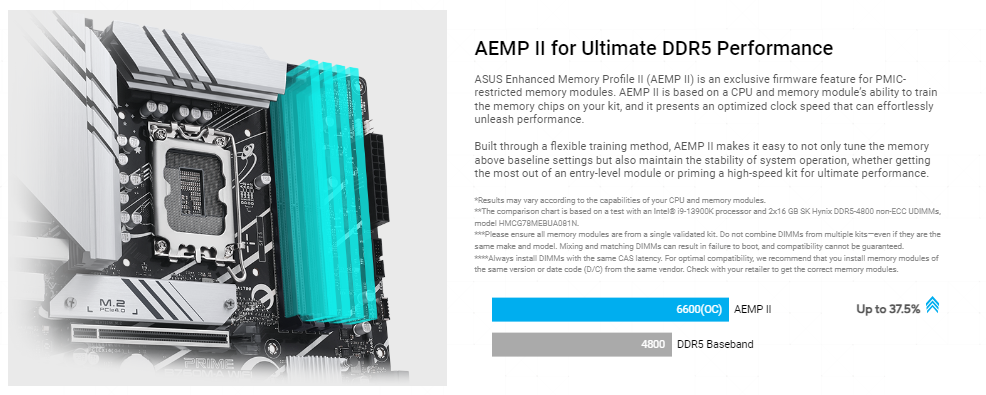

7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory

Memory Channel
2

Memory Slot
4

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

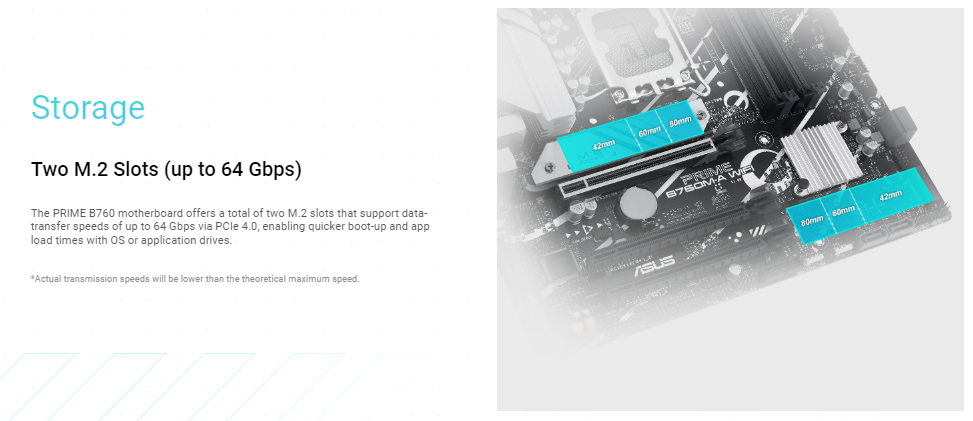

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 (1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel 14th/13th & 12th Gen Processors, 1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot

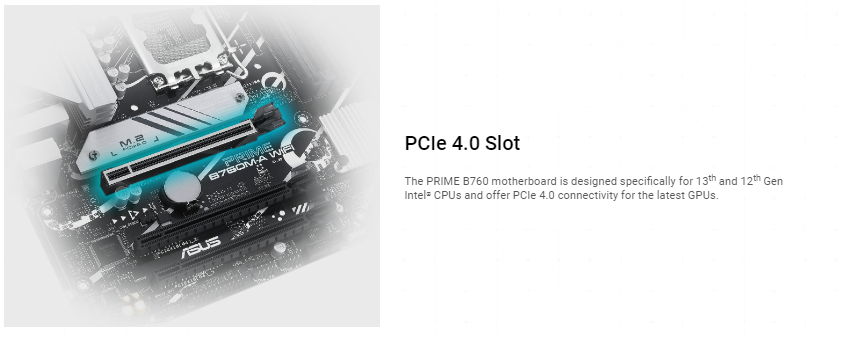

1 x PCIe 4.0 x 16 (Intel 14th/13th & 12th Gen Processors), 1 x PCIe 4.0 x 16 (supports x4 mode), 1 x PCIe 4.0 x 16 (supports x1 mode) (Intel B760 Chipset)


Audio & Video
Audio Chipset
Realtek High Definition Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 2.5Gb Ethernet

LAN Speed (Mbps)
10/ 10/ 1000/ 2500Mbps

WiFi
Yes

WiFi Technology
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Bluetooth
Bluetooth 5.2


Ports
USB Port
4 x USB 2.0 Type-A, 2 x USB 3.2 Gen 2 Type-A

VGA Port
No

DVI Port
No

HDMI Port
2

DisplayPort (DP)
1

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
1

COM Port
1


Technical Info
CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Sync

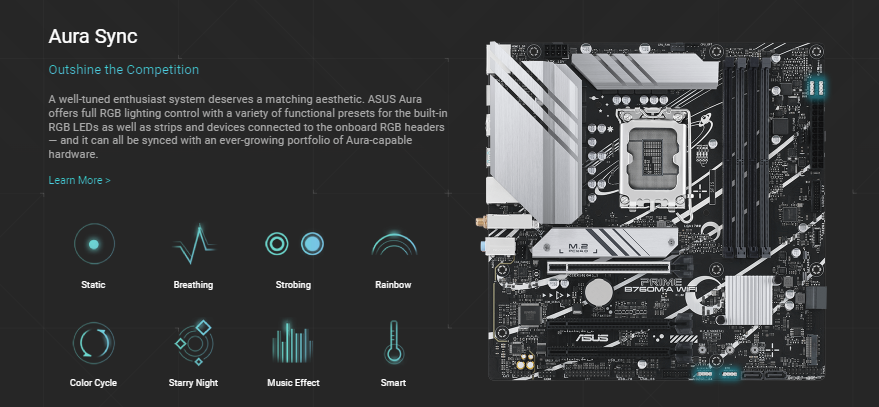

Aura Sync

RGB Connector
1 x Aura RGB header

Approx. Power Consumption
65W

Form Factor
Micro-ATX


Bios Information
BIOS Type
128 Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 11, 10

Compatible Products
Core i3, Core i5, Core i7, Core i9, Pentium Gold (12th Gen & 13th/14th Gen)


Warranty
Warranty
3 Year

Warranty Details
3 Years Replacement Warranty


Additional Info
Feature

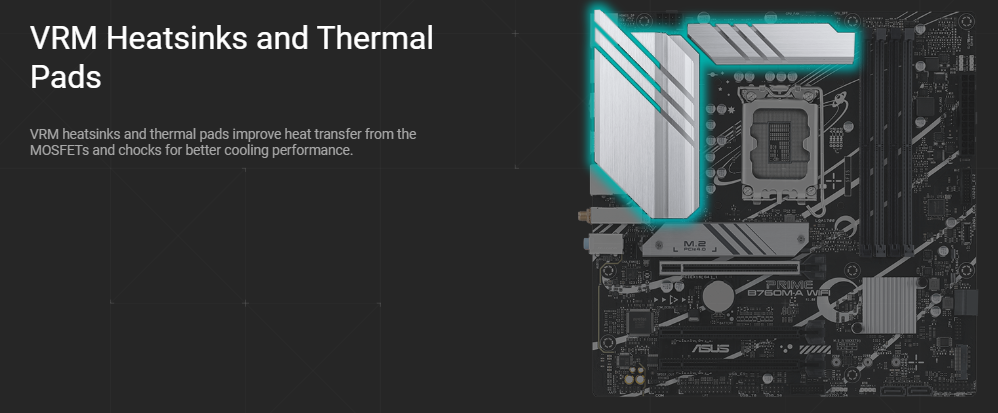

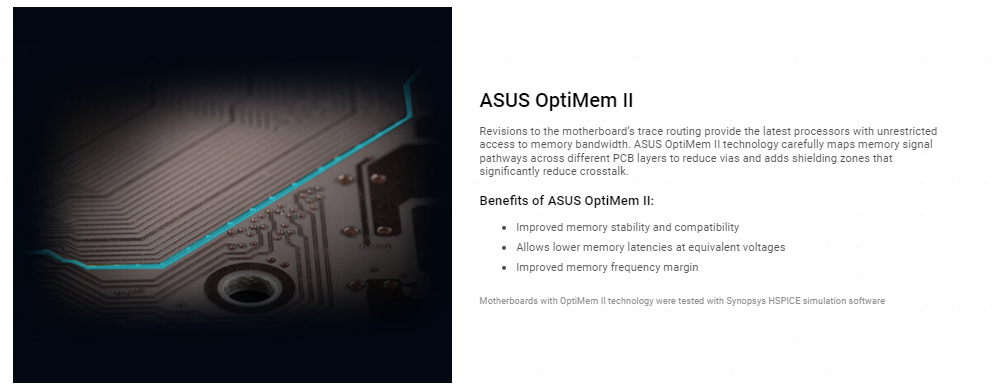

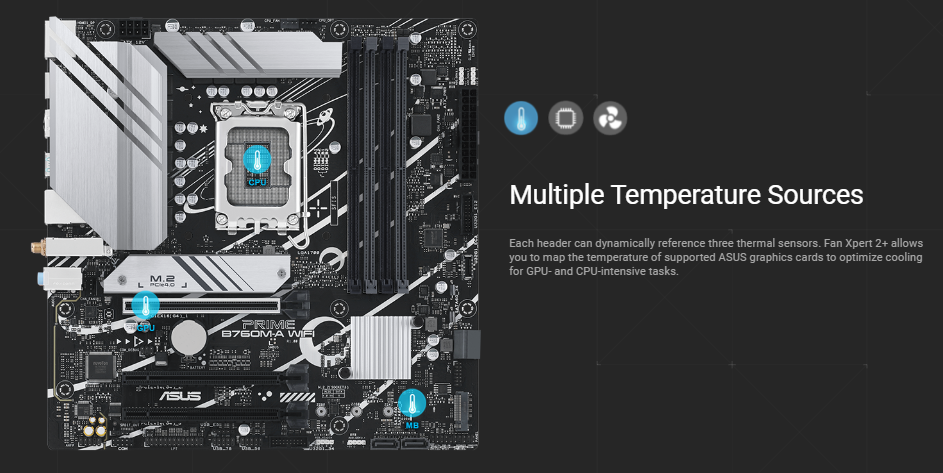

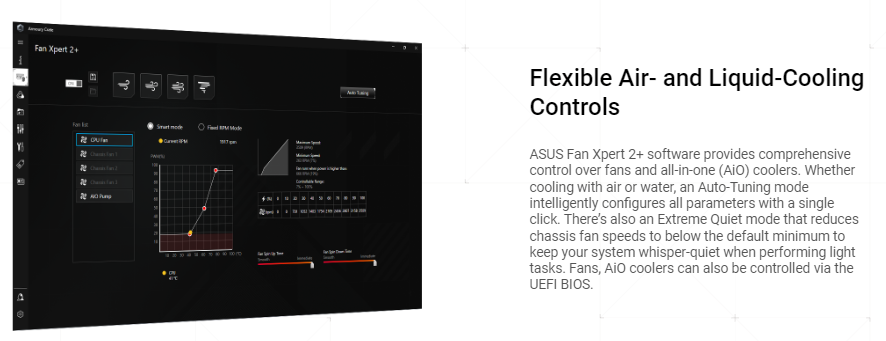

Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, ASUS Exclusive Software, ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware. Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II. Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.

Others

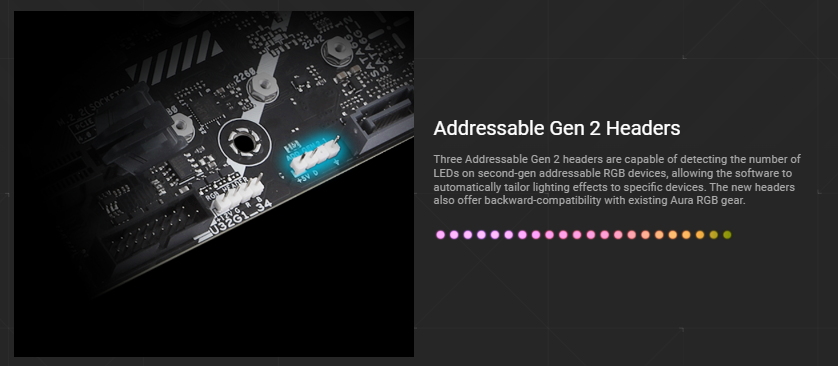

Internal I/O Connectors: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 3 x Addressable Gen 2 headers, 1 x Front Panel Audio header (AAFP), 1 x Clear CMOS header, 1 x LPT header, 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header with Chassis intrude function.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
