Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Memory Max.
256GB
Optane Memory Support
No
Storage
Storage Interface
6Gb/s, 3Gb/s
M.2/SSD Expansion Slot
2
M.2/SSD Expansion Slot Details
2 x M.2 (1 x M.2 connector M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSDs/ PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector M key, type 22110/2280 supporting PCIe 4.0 x4/x2 SSD)
M.2/SSD Slot Gen
Up to Gen 5
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Audio & Video
Audio Chipset
Realtek Audio CODEC
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN
LAN Speed (Mbps)
10/10/1000/2500 Mbps
WiFi
Yes
WiFi Technology
Realtek Wi-Fi 6E
Bluetooth
Bluetooth 5.3

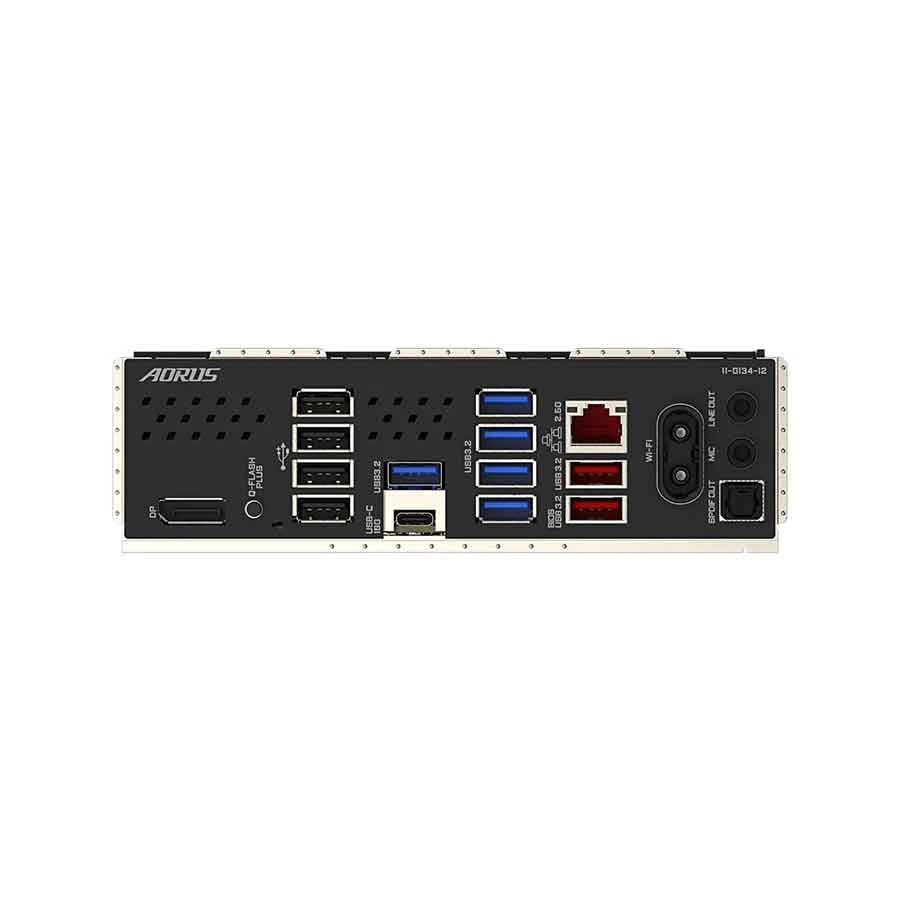

Ports
USB Port
4 x USB 2.0/1.1 Type-A, 5 x USB 3.2 Gen 1 Type-A, 2 x USB 3.2 Gen 2 Type-A, 1 x USB USB 3.2 Gen 2 Type-C
VGA Port
No
DVI Port
No
HDMI Port
No
DisplayPort (DP)
1
IDE Port
No
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
Yes
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Connector
3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 256 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Warranty
Warranty
3 year
Additional Info
Others
Internal I/O Connectors: (1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper).
Country Of Origin
Taiwan
Made in/ Assemble
China
