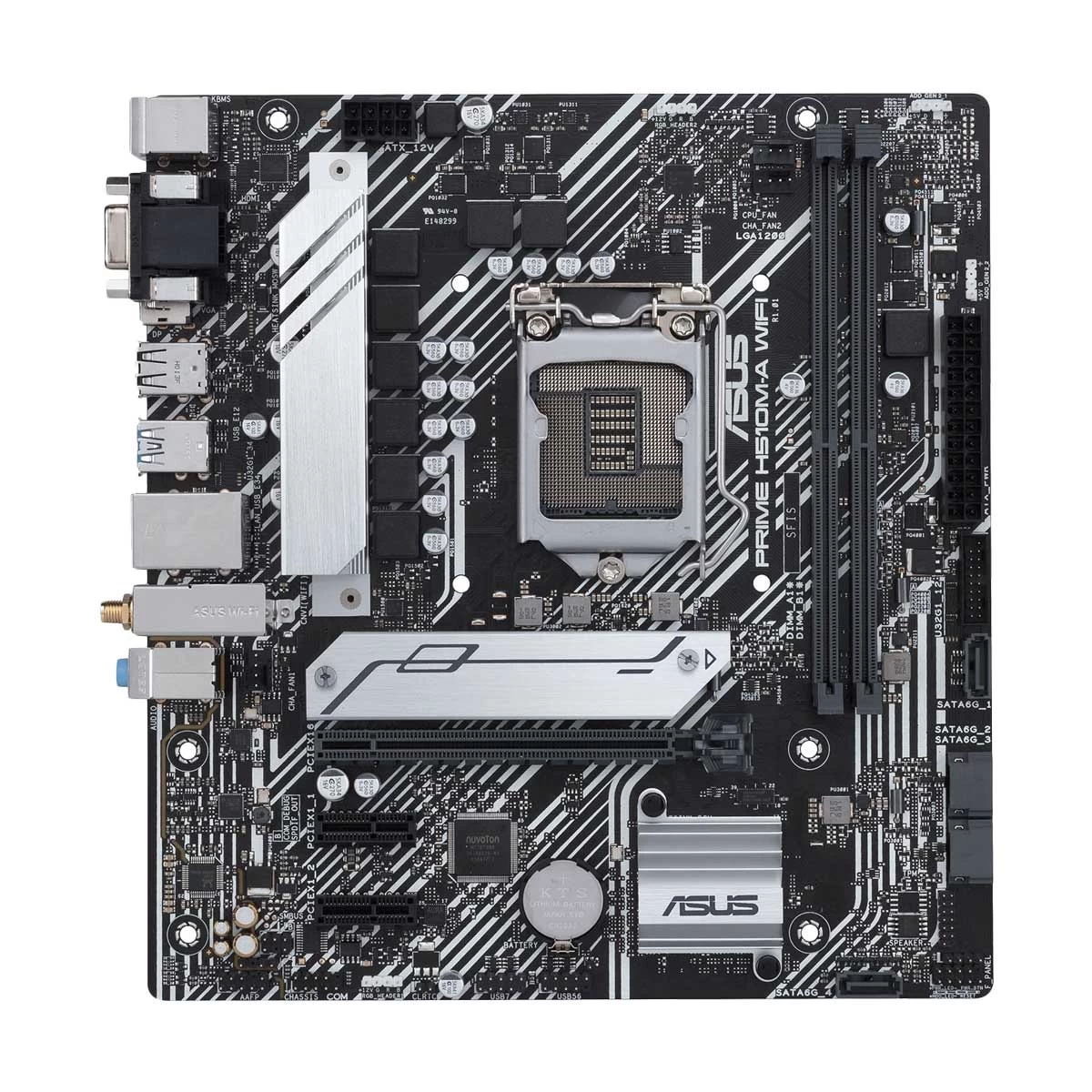

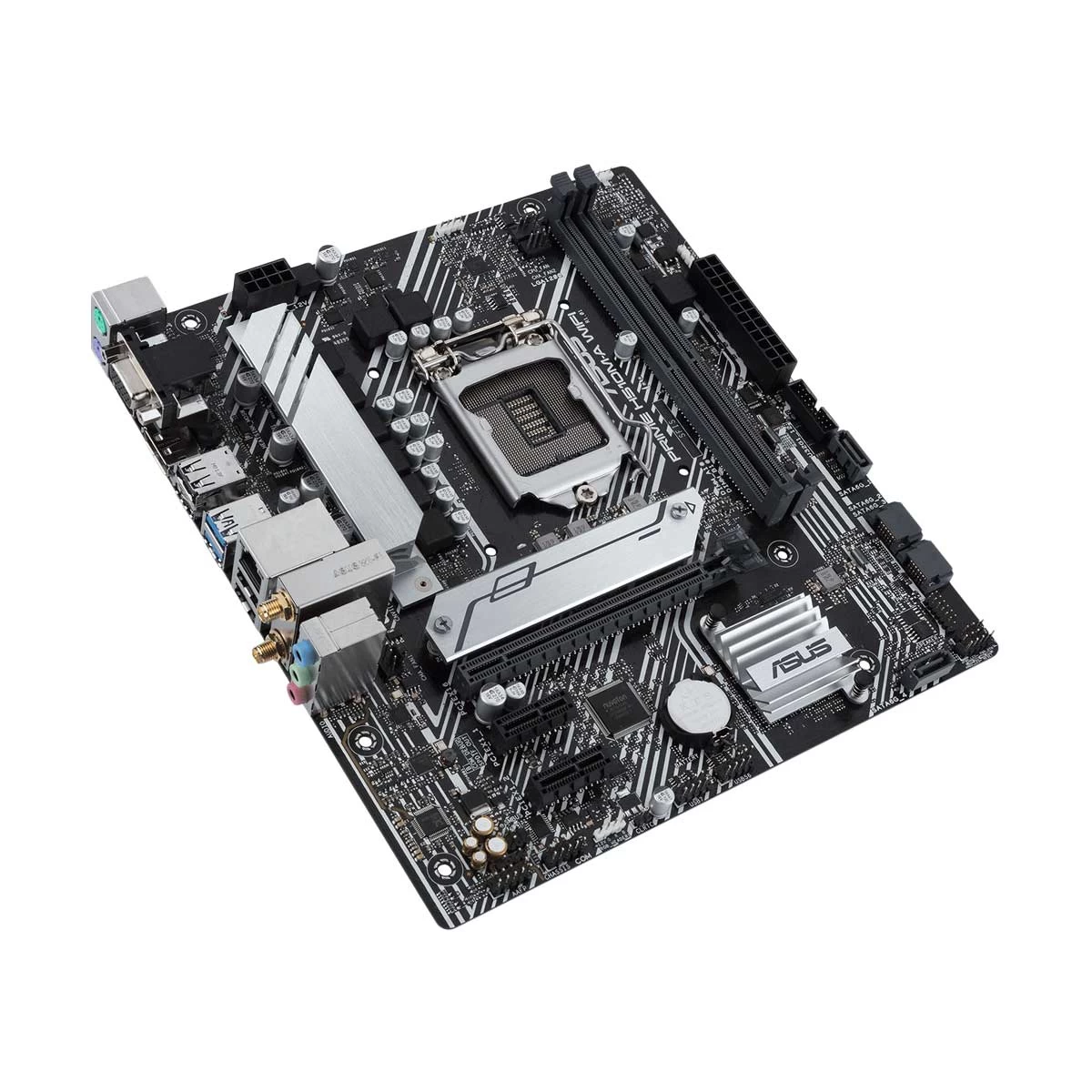

Asus PRIME H510M-A Wi-Fi DDR4 Motherboard
Product Id: 02.01.006.340
Brand
Asus
Quick Overview
- Chipset - Intel H510
- Sockets Supported - LGA1200
- Supported CPU - 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
- Generation - 10th/11th
- Memory Slot - 2
- Memory Max. - 64GB
- Back-Connect Design - No
Brand
Asus
Model
Asus PRIME H510M-A (Wi-Fi)
Chipset
Intel H510
Sockets Supported
LGA1200
Built-in Processor
No
Generation
10th/11th
Back-Connect Design
No
Memory Type
DDR4
Memory Slot
2
Memory Max.
64GB
Optane Memory Support
No
Graphics
Integrated
Graphics Chipset
Integrated with Processor
M.2/SSD Expansion Slot
1
WiFi
Yes
Bluetooth
Bluetooth 5.1
Form Factor
Micro-ATX
Supported Operating System
Windows 10
Body Color
Black
Warranty Details
3 Years Replacement Warranty
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details

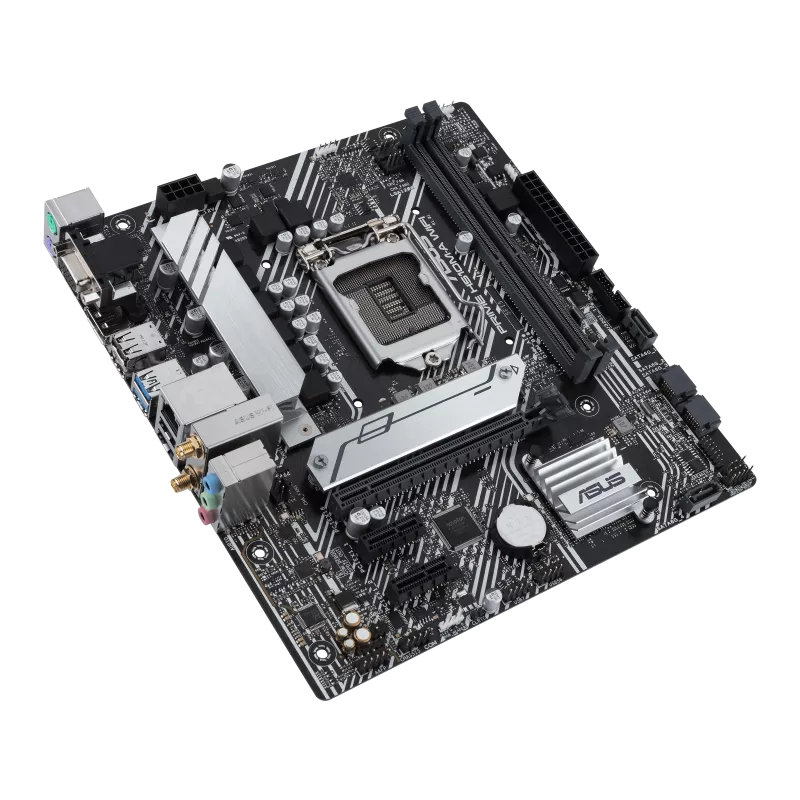

Features of Asus PRIME H510M-A (Wi-Fi) Motherboard In Bangladesh
_1701851962.webp)

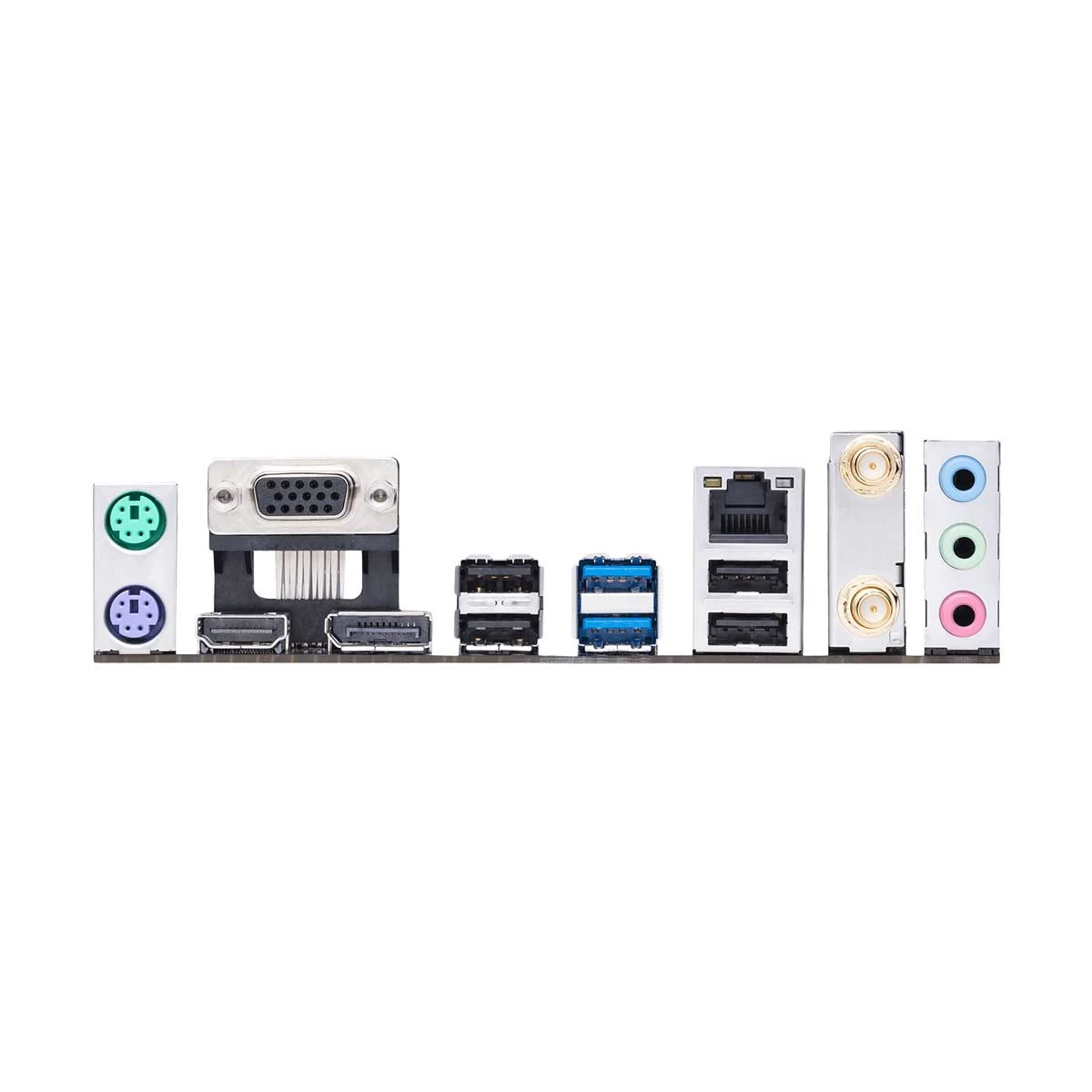

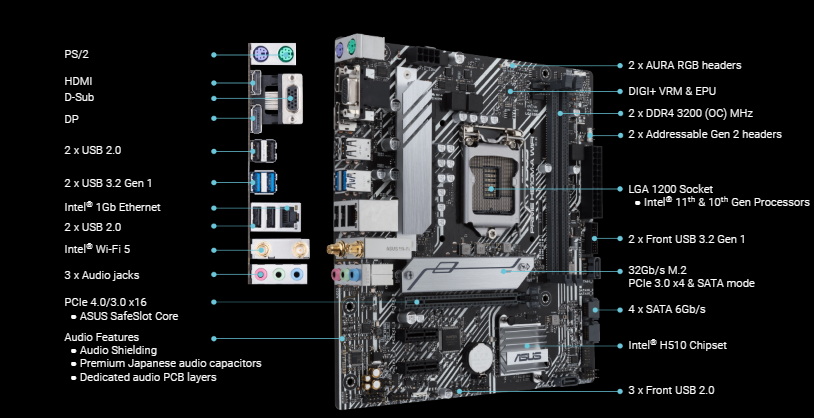

Intel® H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® WiFi 5, Intel® 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, and AURA Addressable Gen 2 headers
- Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors
- Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink and Fan Xpert 2+
- Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel® WiFi 5, Intel® 1 Gb Ethernet and USB 3.2 Gen 1
- Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
 2_1701852105.png)
Prime
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel® Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H510M-A WIFI provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

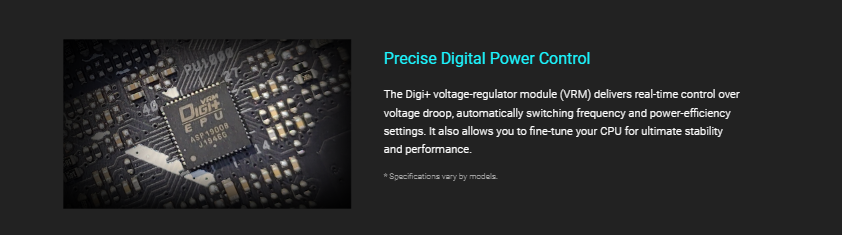

Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.
 3_1701852442.png)
Cool to the Core
Prime H510 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

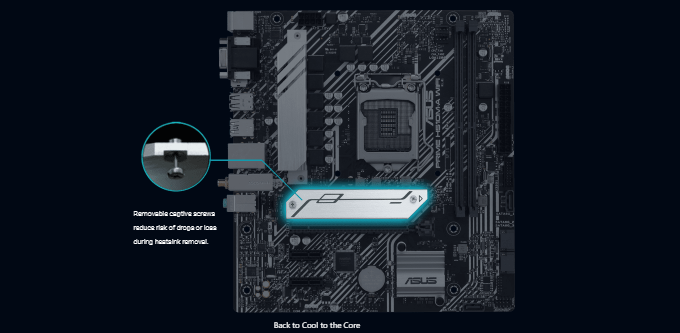

M.2 Heatsink
An M.2 drive sits under a passive heatsink to ward off the throttling that can occur with sustained transfers. The heatsink is held in place by easily-removable captive screws.
 4_1701852671.png)

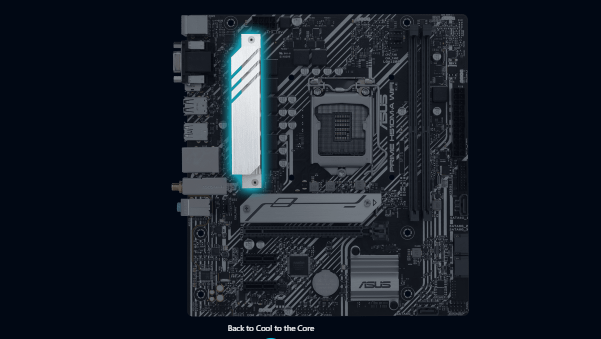

VRM Heatsink and Thermal Pad
The VRM heatsink with underneath thermal pad improves heat transfer from the MOSFETs for better cooling performance.
 5_1701852760.png)
Build on a Solid Foundation
ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
M.2 (up to 32 Gbps)
The M.2 supports x4 PCI Express 3.0 bandwidth, up to 32Gb/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.
 6_1701852991.png)

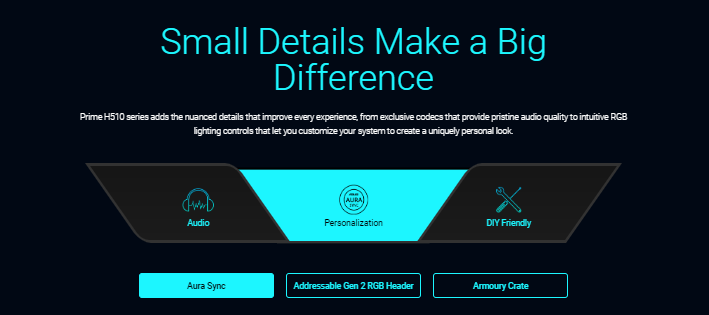

Aura Sync
Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Addressable Gen 2 RGB Header
Two addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear
Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and news to help you stay in touch with the ASUS community.
What is the price of Asus PRIME H510M-A (Wi-Fi) Motherboard In Bangladesh?
The price of Asus PRIME H510M-A (Wi-Fi) Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Asus PRIME H510M-A (Wi-Fi) Motherboard from our website or visit our showrooms nearby.
