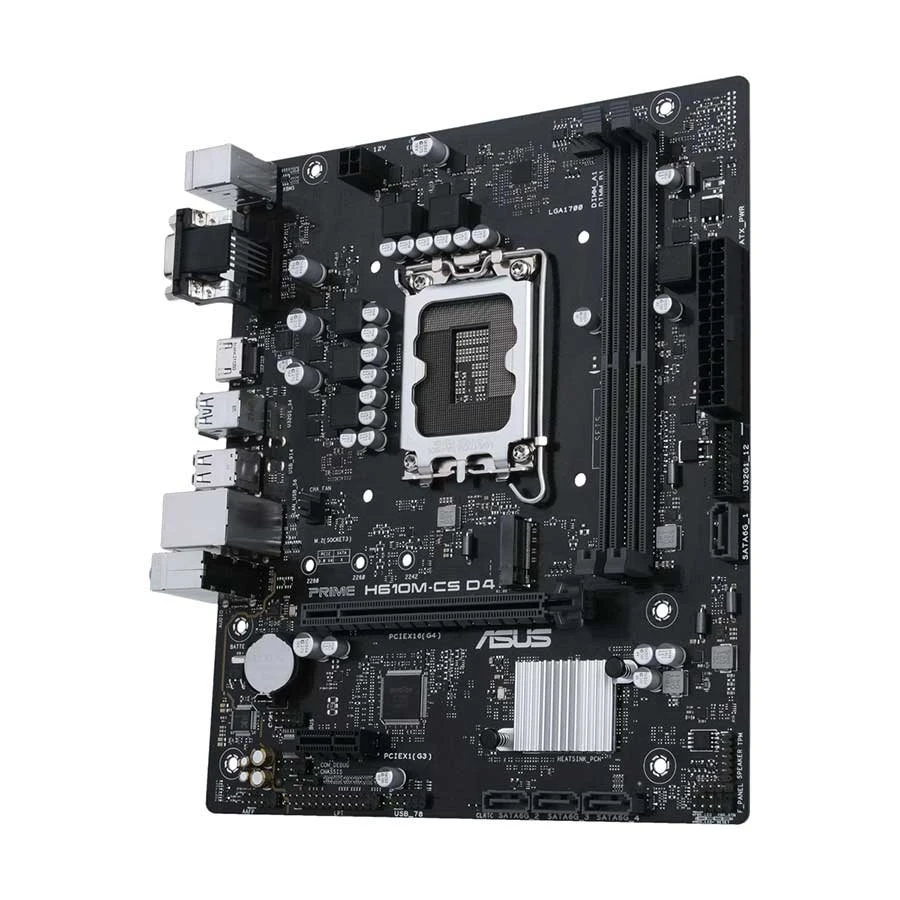

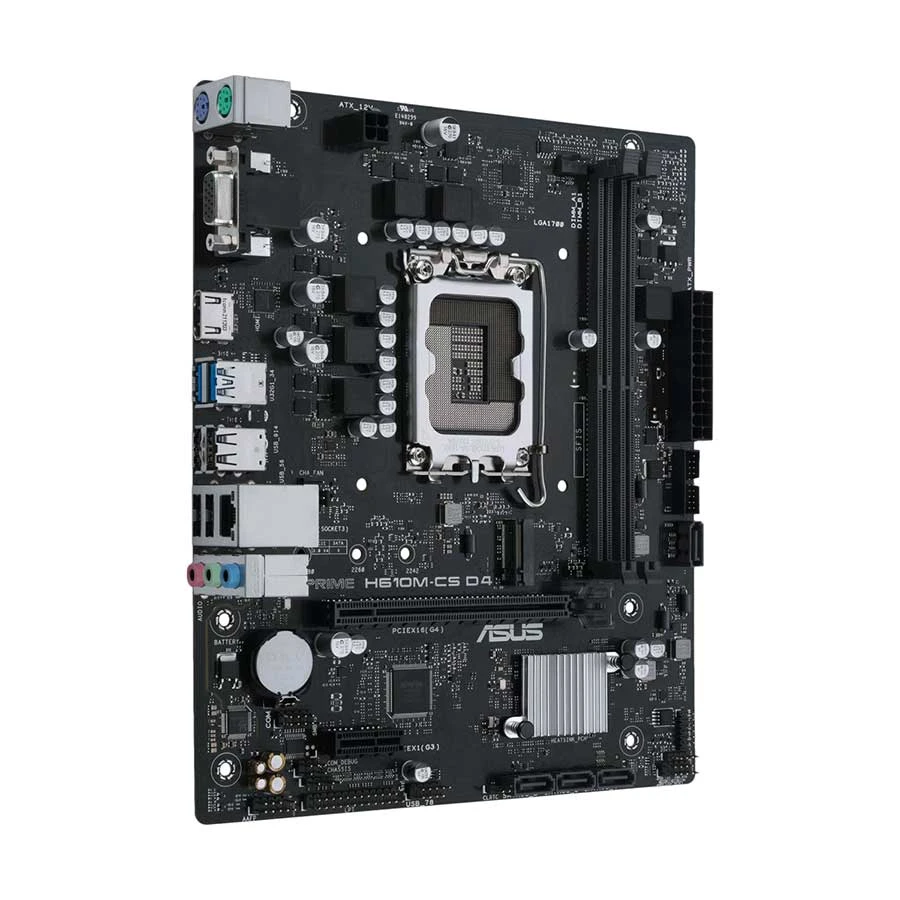

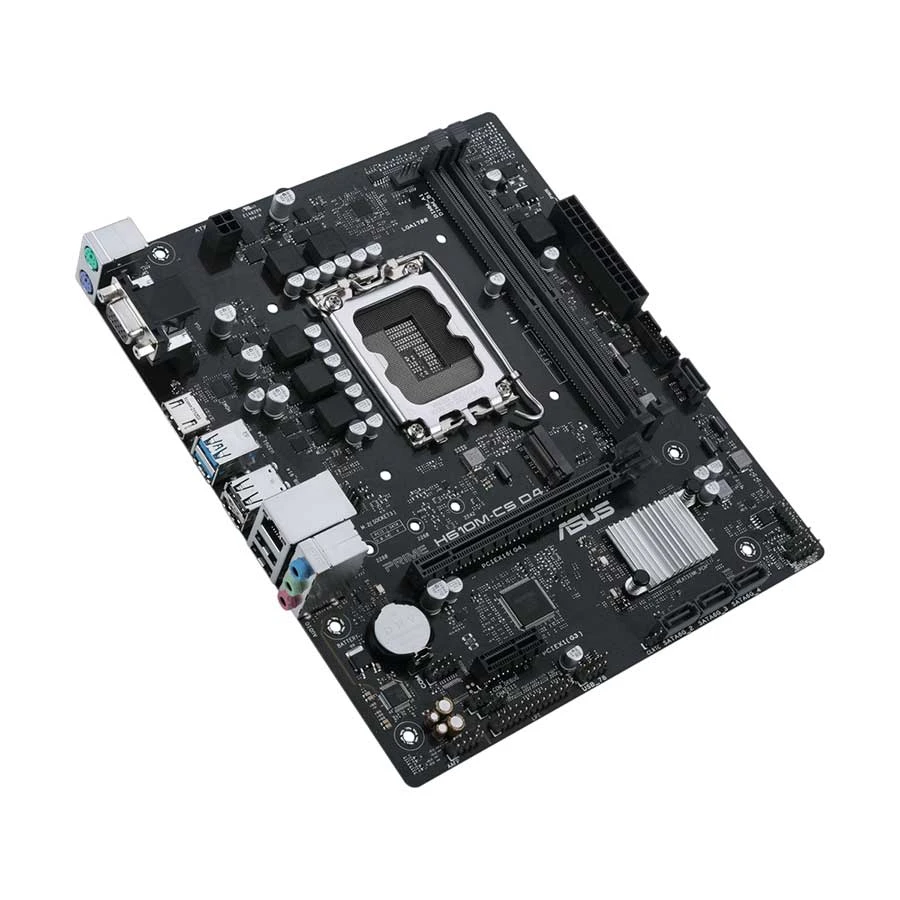

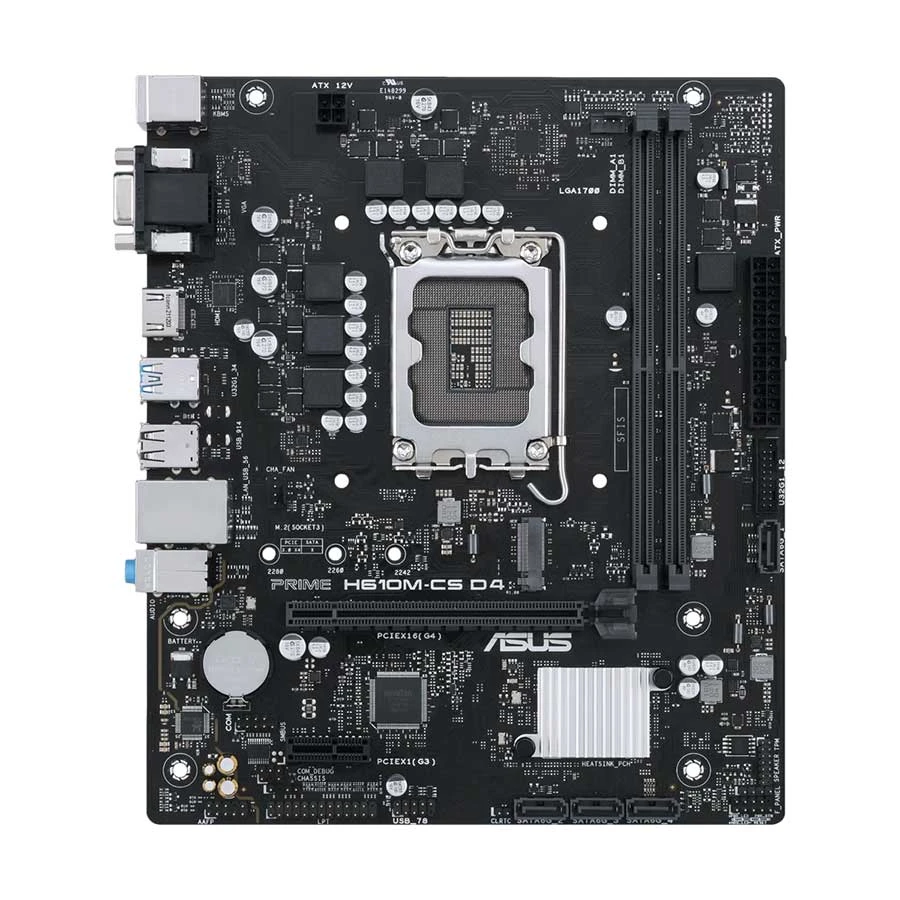

Asus PRIME H610M-CS D4 DDR4 Intel Motherboard

Product Id: 02.01.006.491

Brand Asus

Regular Price Tk 12,700 Monthly EMI Tk 1,058
Special Price Tk 11,800

Quick Overview

  • Chipset - Intel H610
  • Memory Max. - 64GB
  • Memory Slot - 2
  • Sockets Supported - LGA1700
  • Supported CPU - 12th/13th Gen Intel Core, Pentium Gold and Celeron Processors
  • Generation - 12th/13th
General
Brand
Asus

Model
Asus PRIME H610M-CS D4

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel H610

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
12th/13th Gen Intel Core, Pentium Gold and Celeron Processors

Generation
12th/13th


Memory Support
Memory Type
DDR4

Memory MHz
3200MHz/ 3000MHz/ 2933MHz/ 2800MHz/ 2666MHz/ 2400MHz/ 2133MHz Non-ECC, Un-buffered Memory

Memory Channel
Dual

Memory Slot
2

Memory Max.
64GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details

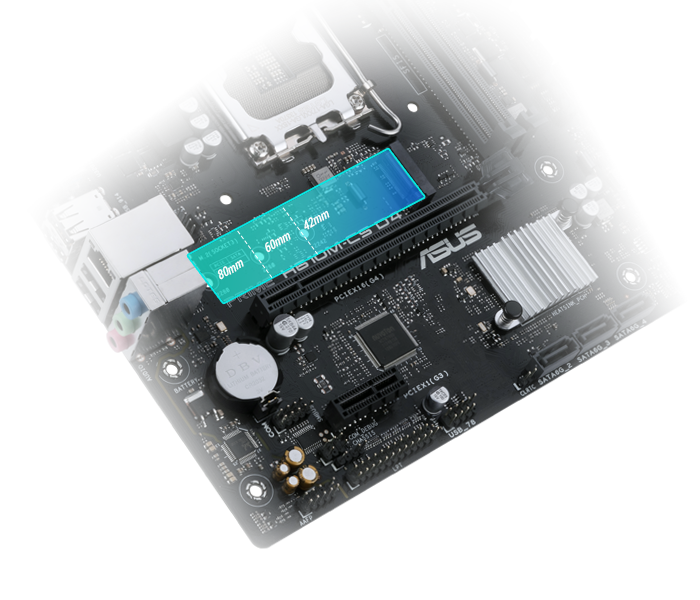

1 x M.2 2242/2260/2280 (supports PCIe 3.0 x4 mode)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot

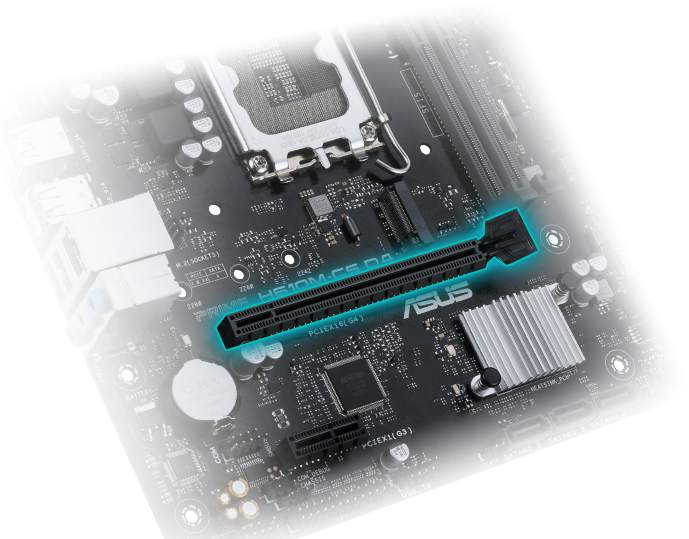

1 x PCIe 4.0 x16 SafeSlot Core, 1 x PCIe 3.0 x1


Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 1Gb Ethernet

LAN Speed (Mbps)
0/100/1000 Mbps

WiFi
No


Ports

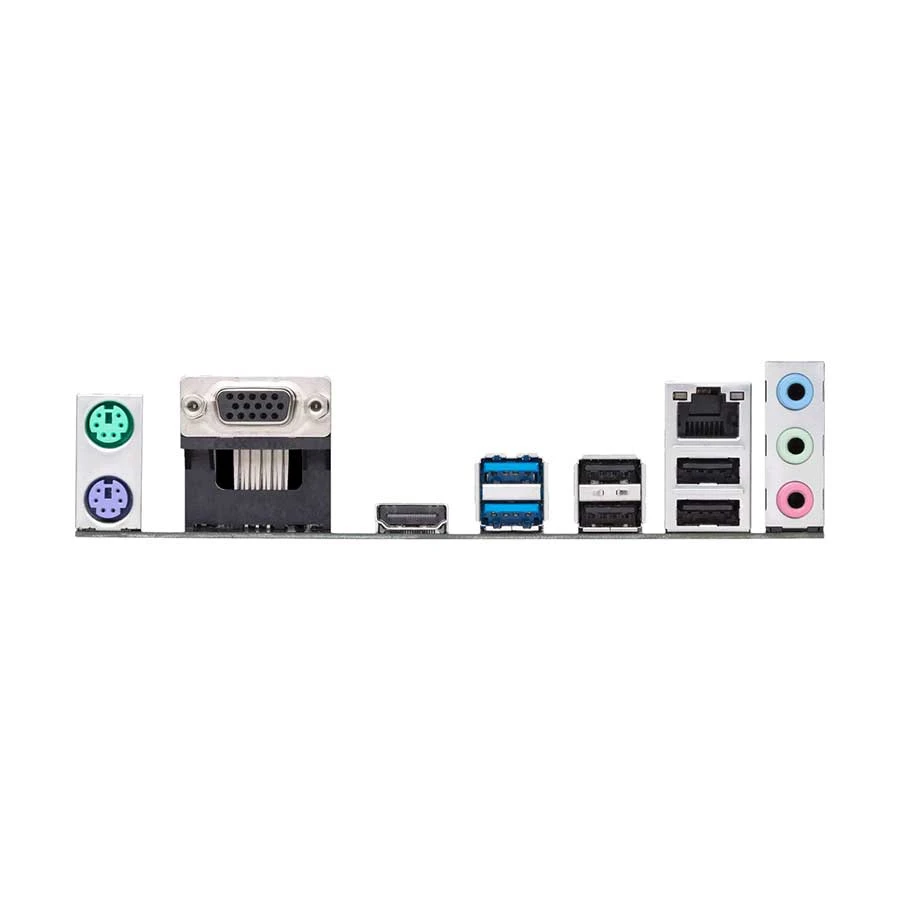

USB Port
2 x USB 3.2 Gen 1 ports (2 x Type-A),4 x USB 2.0 ports (4x Type-A)

VGA Port
1

DVI Port
No

HDMI Port
1

DisplayPort (DP)
No

SATA Port
4

Thunderbolt
No

TPM Port
Yes


Technical Info
CrossFire Support
No

Sli Support
No

RGB Support
No

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Model
UEFI BIOS


Compatibility
Supported Operating System
System Window 10, 11

Compatible Products
Intel Core i7 12700K, Intel Core i9 12900K, Intel Core i5 12400, Intel Core i3 12100, Intel Core i5 13600K, Intel Core i7 13700KF, Intel Core i5 12400, Intel Core i5 12400F, Intel Core i3 12100, Intel Core i3 13100F, Intel Core i7 12700, Intel Core i5 13500, Intel Core i5 13400, Intel Core i5 13400F, Intel Core i7 13700K, Intel Core i7 12700K, Intel Core i5 13600K, Intel Core i9 12900K, Intel Core i3 13100


Warranty
Warranty
3 Year

Warranty Details
3 Year Replacement


Additional Info
Feature

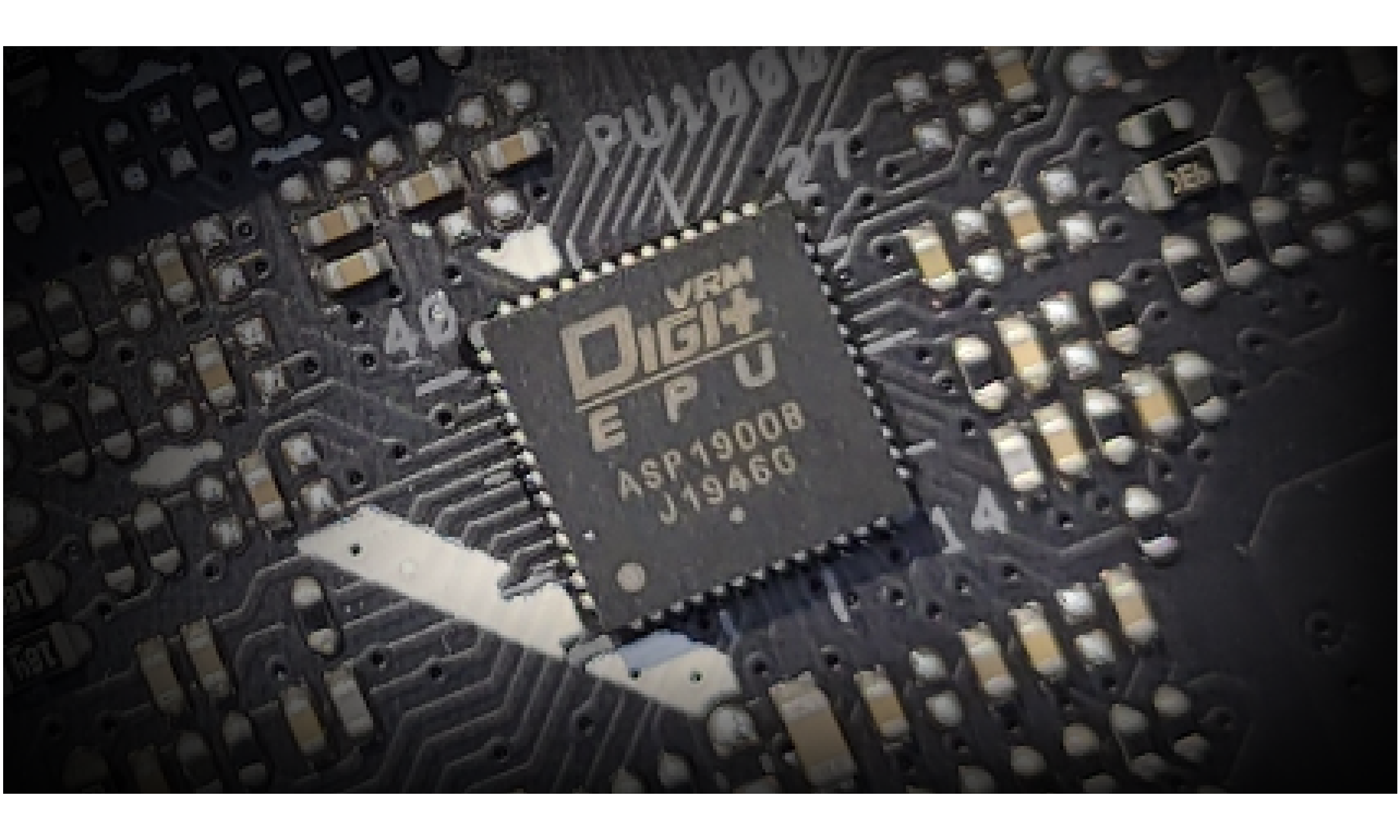

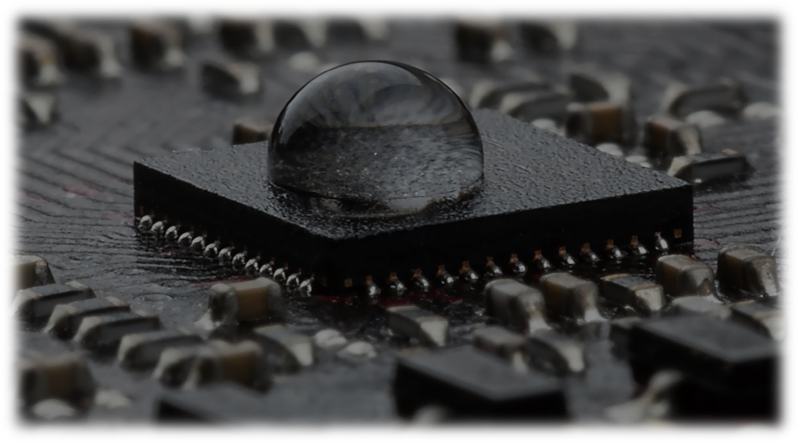

Intel LGA 1700 socket: Ready for 12th Gen Intel processors, Comprehensive cooling: PCH heatsink, Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1, 5X Protection III: Multiple hardware safeguards for all-round protection, Luminous anti-moisture coating: Keep key components from moisture and corrosion

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
