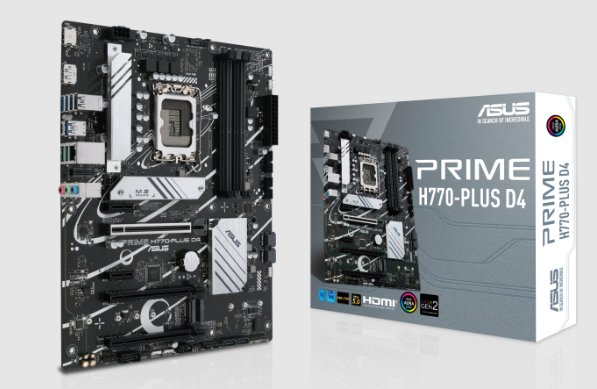

Asus PRIME H770-PLUS D4 DDR4 Intel Motherboard

Product Id: 02.01.006.457

Brand Asus

Regular Price Tk 25,500 Monthly EMI Tk 2,125
Special Price Tk 23,500

Quick Overview

  • Chipset - Intel H770
  • Sockets Supported - LGA1700
  • Supported CPU - 12th / 13th / 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors.
  • Generation - 12th/13th/14th
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
Asus

Model
Asus PRIME H770-PLUS D4

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel H770

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
12th / 13th / 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors.

Generation
12th/13th/14th


Memory Support
Memory Type
DDR4

Memory MHz
5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DIMM

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
3

M.2/SSD Expansion Slot Details
3 x M.2 (1st slot (Key M), type 2242/2260/2280 supports PCIe 4.0 x4 mode, 2nd M.2 slot (Key M), type 2242/2260/2280/22110 supports PCIe 4.0 x4 mode, 3rd M.2 slot (Key M), type 2242/2260/2280 supports PCIe 4.0 x4 & SATA modes)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCIe 5.0 x16 slot, 2 x PCIe 4.0 x16 slots (support x4 mode), 2 x PCIe 3.0 x1 slots


Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 2.5Gb Ethernet

LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps

WiFi
No

WiFi Technology
No

Bluetooth
No

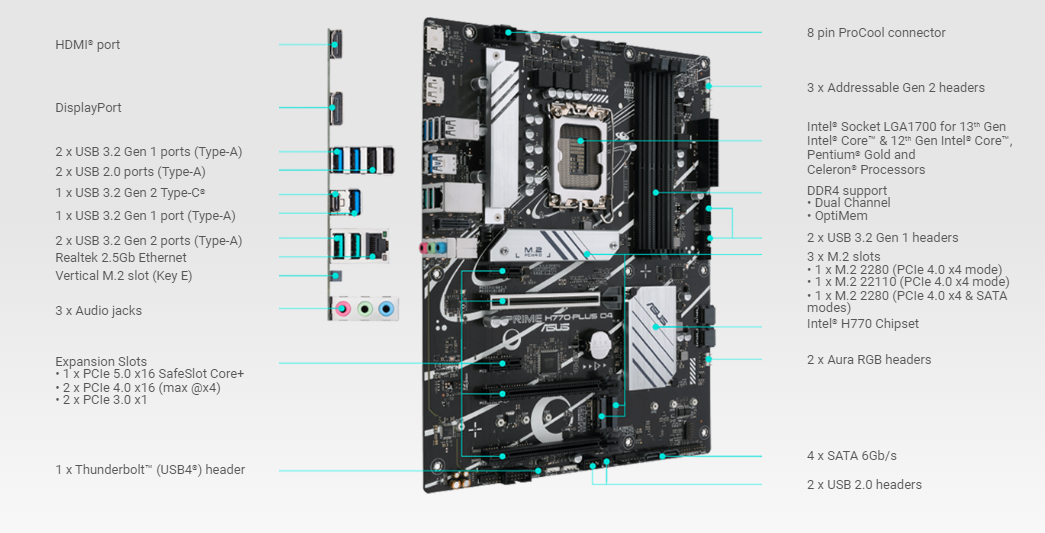

Ports
USB Port
2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4

Thunderbolt
1

TPM Port
1

COM Port
1


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0/1/5/10

RGB Support
RGB

RGB Sync
Aura Sync

RGB Connector
2 x Aura RGB headers

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
192 (128+64) Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 10 / 11

Compatible Products
Intel Core i9/ i7/ i5/ i3,  Pentium, Celeron processors (12th Gen,13th Gen & 14th Gen). LGA1700 socket.


Warranty
Warranty Details
3 Years Replacement Warranty


Additional Info
Feature
ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync

Others
Internal I/O Connectors: ( 1 x 4-pin CPU Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function)

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
