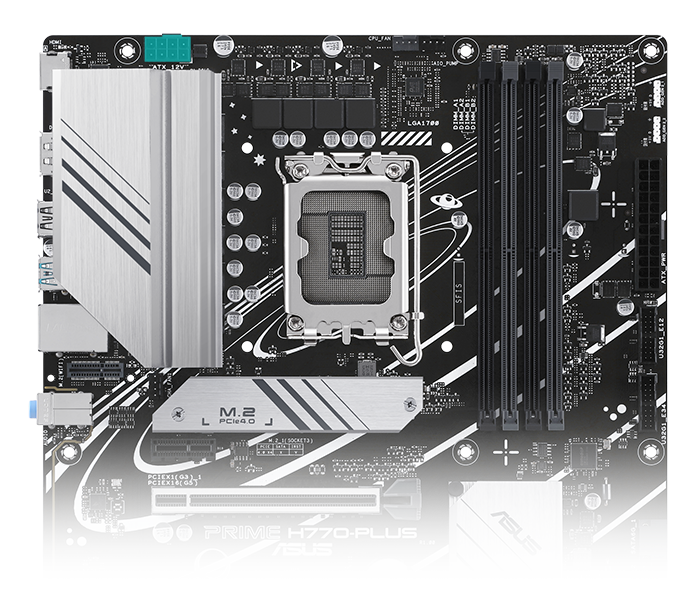

Asus PRIME H770-PLUS DDR5 Intel Motherboard
Product Id: 02.01.006.477
Brand
Asus
Regular Price Tk 29,620
Monthly EMI Tk 2,468
Special Price Tk 27,500
Quick Overview
- Chipset - Intel H770
- Memory Max. - 192GB
- Memory Slot - 4
- Sockets Supported - LGA1700
- Supported CPU - Supports 14th, 13th Gen & 12th Gen intel Core, Pentium Gold and Celeron Processors
- Generation - 12th/13th/14th
General
Brand
Asus
Model
Asus PRIME H770-PLUS
Body Color
Black
CPU
Chipset Brand
Intel
Chipset
Intel H770
Sockets Supported
LGA1700
Built-in Processor
No
Supported CPU
Supports 14th, 13th Gen & 12th Gen intel Core, Pentium Gold and Celeron Processors
Generation
12th/13th/14th
Memory Support
Memory Type
DDR5
Memory MHz
7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory
Memory Channel
Dual
Memory Slot
4
Memory Slot (Additional Info)
4 x DIMM
Memory Max.
192GB
Memory Max. (Additional Info)
192GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
3
M.2/SSD Expansion Slot Details
3 x M.2 slots (1 x M.2 2280 (PCIe 4.0 x4 mode), 1 x M.2 2280 (PCIe 4.0 x4 & SATA modes), 1 x M.2 22110 (PCIe 4.0 x4 mode))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
PCI Express Slot
1 x PCIe 5.0 x16 slot, 2 x PCIe 4.0 x16 slots (support x4 mode), 2 x PCIe 3.0 x1 slots.
Audio & Video
Audio Channel
7.1
Network & Connectivity
LAN Speed (Mbps)
10/100/1000/2500Mbps
WiFi
No
Bluetooth
No
Ports
USB Port
3 x USB 3.2 Gen 2 (10G) ports (2 x Type-A + 1 x USB Type-C), 3 x USB 3.2 Gen 1 (5G) ports (3 x Type-A), 2 x USB 2.0 ports (2 x Type-A)
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4
Thunderbolt
No
Technical Info
CrossFire Support
No
Sli Support
No
Raid Support
0/1/5/10
RGB Support
RGB
RGB Sync
Aura Sync RGB
RGB Connector
2 x Aura RGB headers
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
192 (128+64) Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11 & 10 (64-bit)
Compatible Products
Supports 14th, 13th Gen & 12th Gen intel Core, Pentium Gold and Celeron Processors
Warranty
Warranty
3 Year
Warranty Details
3 Years Replacement Warranty
Additional Info
Feature
Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors, Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C and Thunderbolt (USB4) header support. Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+. Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware. Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.
Others
Wireless & Bluetooth: Vertical M.2 slot only (Key E, CNVi & PCIe), Back Panel I/O Ports: 3 x USB 3.2 Gen 2 (10G) ports (2 x Type-A + 1 x USB Type-C), 3 x USB 3.2 Gen 1 (5G) ports (3 x Type-A), 2 x USB 2.0 ports (2 x Type-A) , 1 x DisplayPort, 1 x HDMI port, 1 x Vertical M.2 slot (Key E), 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks. Internal I/O Connectors: Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, Power related : 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related : 3 x M.2 slots (Key M) , 4 x SATA 6Gb/s ports, USB : 2 x USB 3.2 Gen 1 (5G) headers support 4 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 3 additional USB 2.0 ports, Miscellaneous: 3 x Addressable Gen 2 headers, 2 x Aura RGB headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderbolt (USB4) header.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus PRIME H770-PLUS Motherboard In Bangladesh
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th/14th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H770-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
M.2 Heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.
ProCool Connector
Proprietary connector augments the motherboard's link to the PSU with 8 pin connector that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
AEMP II for Ultimate DDR5 Performance
ASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.

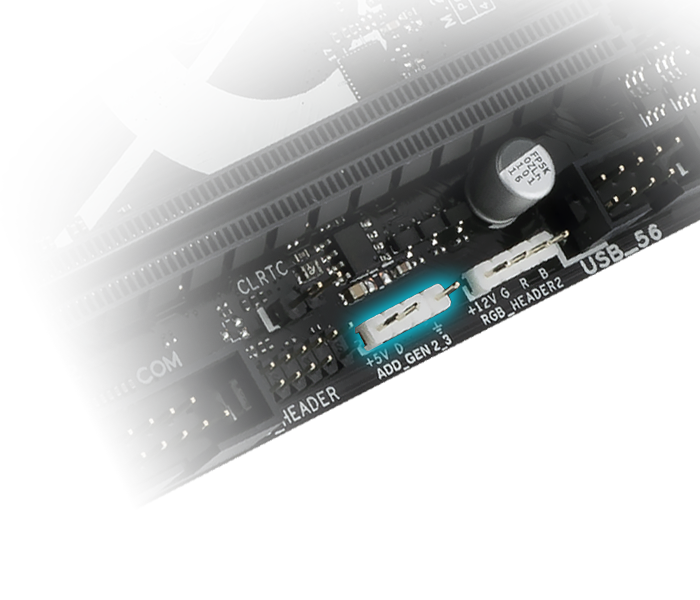

Addressable Gen 2 Headers
Three Addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
What is the price of Asus PRIME H770-PLUS Motherboard In Bangladesh?
The price of Asus PRIME H770-PLUS Motherboard starts from 27,500 . The price may vary due to your customization and product availability. You can buy Asus PRIME H770-PLUS Motherboard from our website or visit our showrooms nearby.
