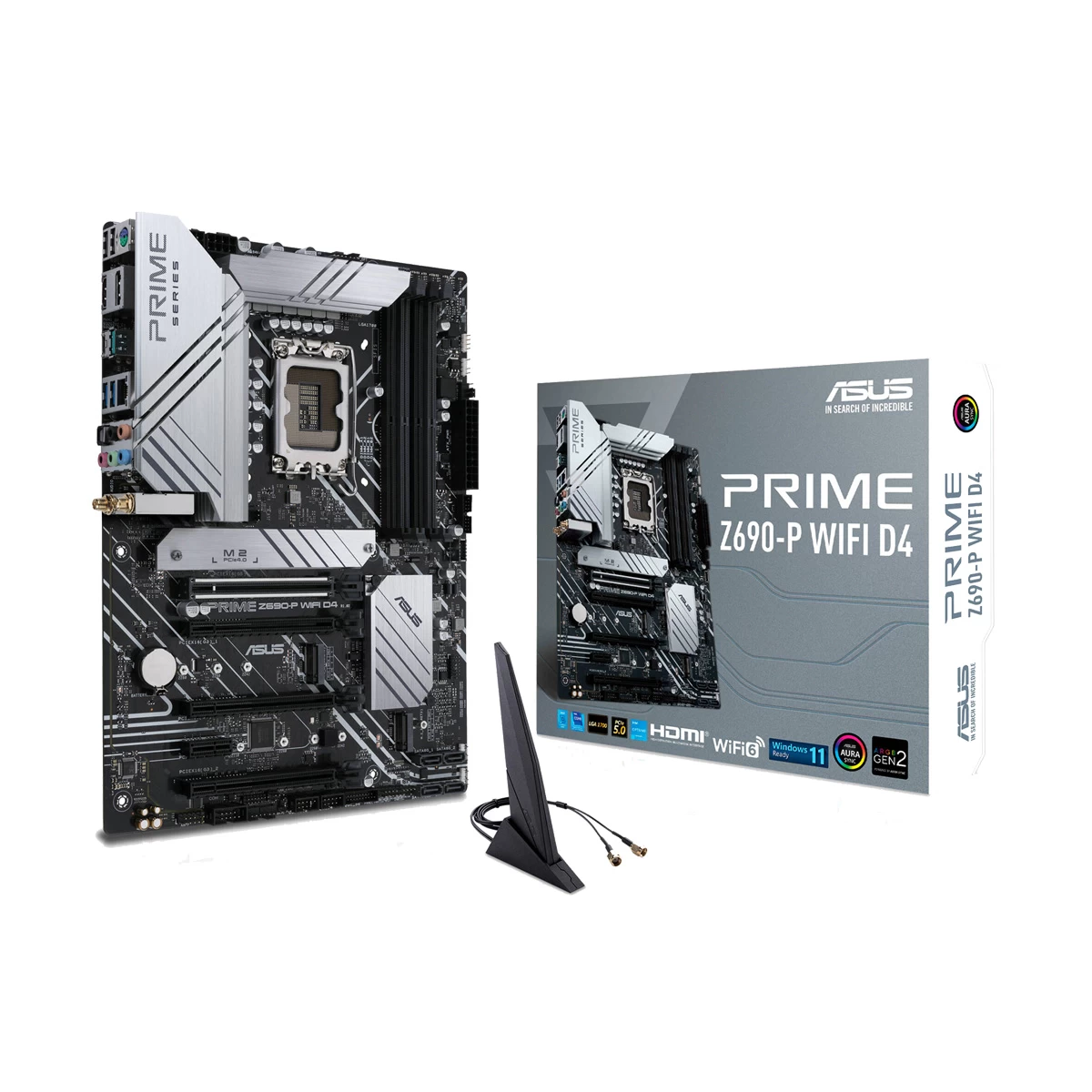

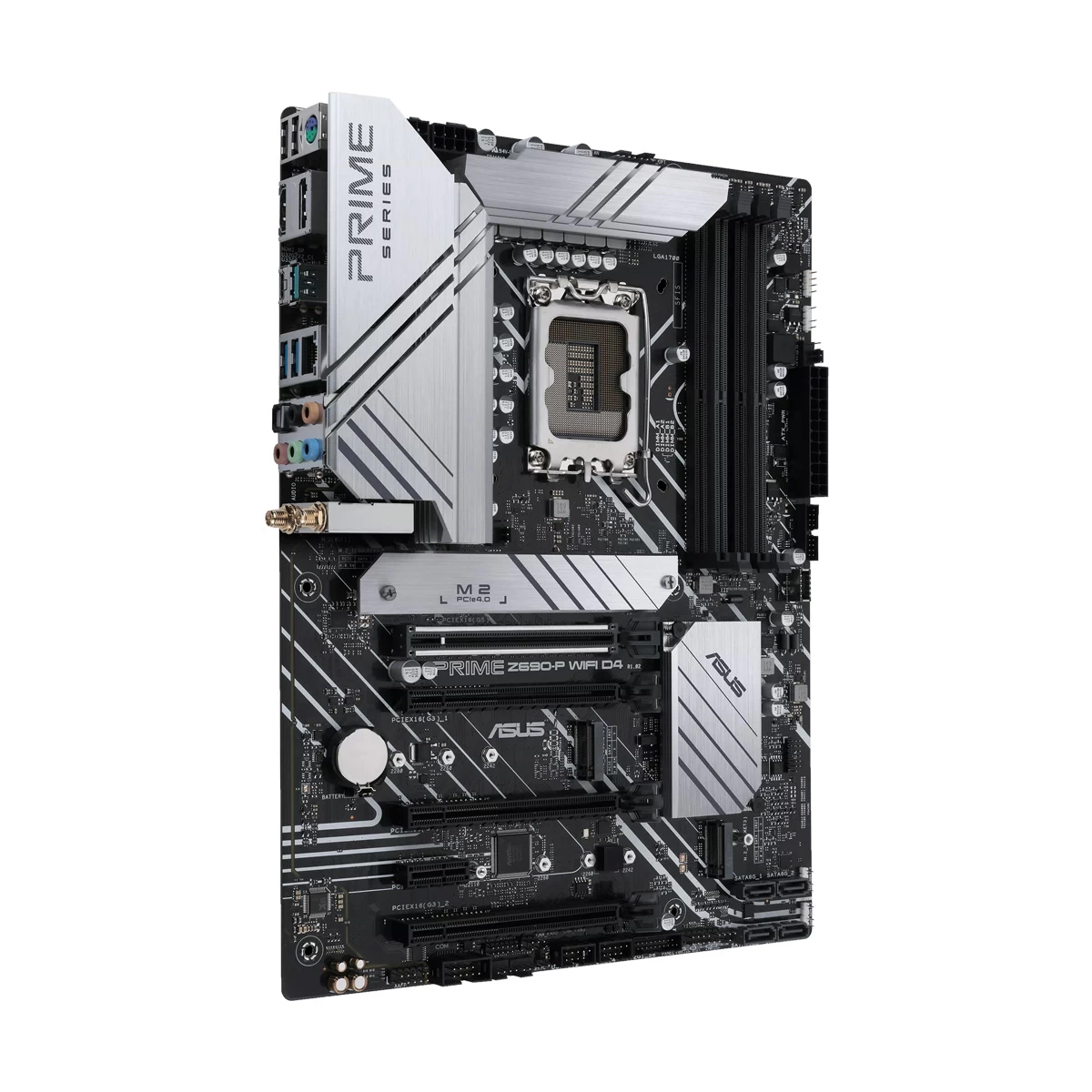

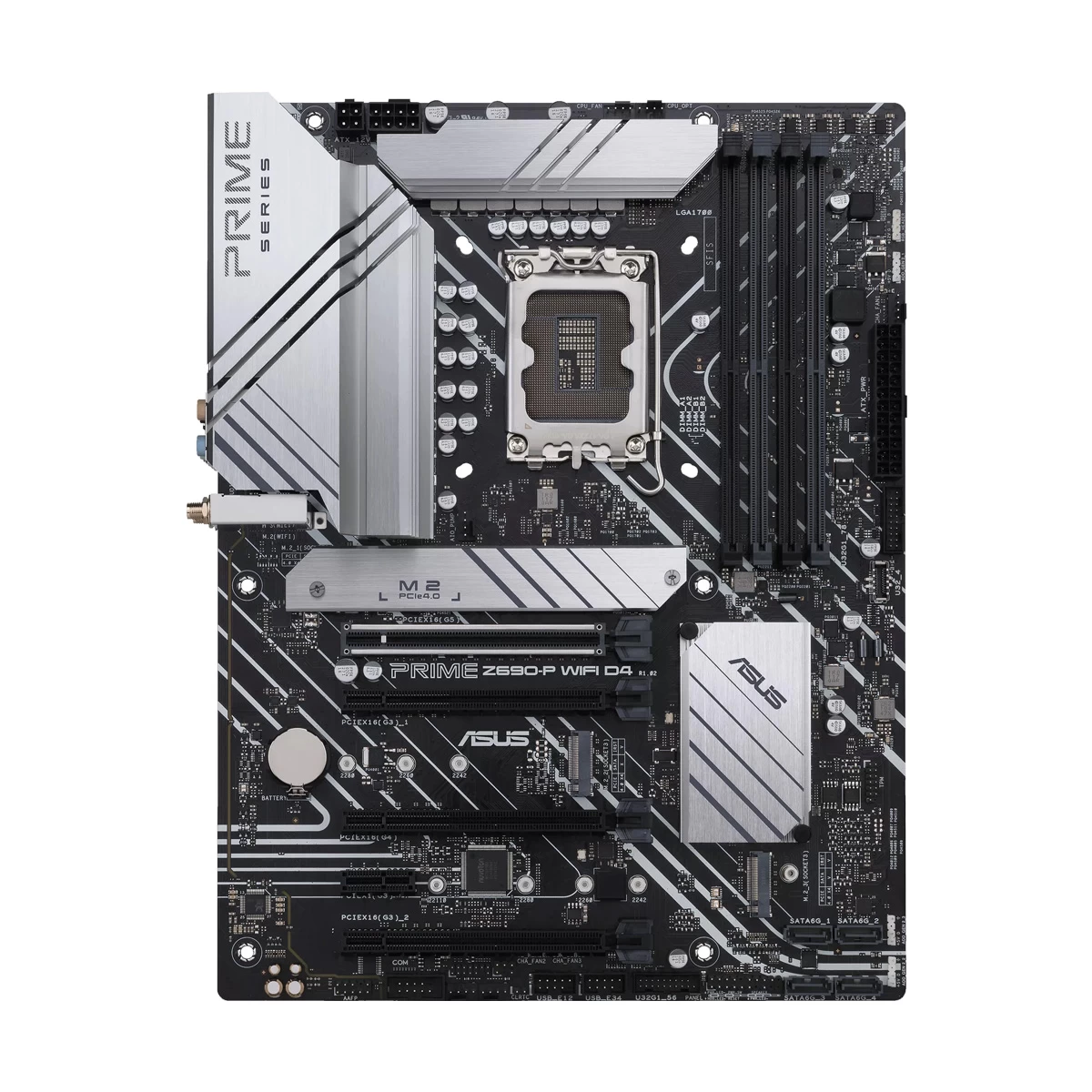

Asus PRIME Z690-P D4 (Wi-Fi 6) DDR4 12th/13th Gen Intel LGA1700 Socket Motherboard

Product Id: 02.01.006.362

Brand Asus

Regular Price Tk 0
Special Price Tk 0

This item is discontinued.

Quick Overview

  • Chipset - Intel Z690
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - 12th/13th Gen Intel Core Processors & Pentium Gold and Celeron Processors
  • Generation - 12th/13th
General
Brand
Asus

Model
Asus PRIME Z690-P D4

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel Z690

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
12th/13th Gen Intel Core Processors & Pentium Gold and Celeron Processors

Generation
12th/13th


Memory Support
Memory Type
DDR4

Memory MHz
5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DIMM

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
3

M.2/SSD Expansion Slot Details
3 x M.2 ( 1 x M.2, type 2242/2260/2280/22110), (1 x M.2, type 2242/2260/2280 (supports PCIe 4.0 x4 mode), (1 x M.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes))


Graphics
Graphics
Integrated

Graphics Chipset
Integrated with Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCIe 5.0/4.0/3.0 x16 slot, 1 x PCIe 4.0/3.0 x16 slot, 2 x PCIe 3.0 x16 slots, 1 x PCIe 3.0 x1 slot


Audio & Video
Audio Chipset
Realtek audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 2.5Gb Ethernet

LAN Speed (Mbps)
2.5Gbps

WiFi
Yes

WiFi Technology
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Bluetooth
Bluetooth 5.2

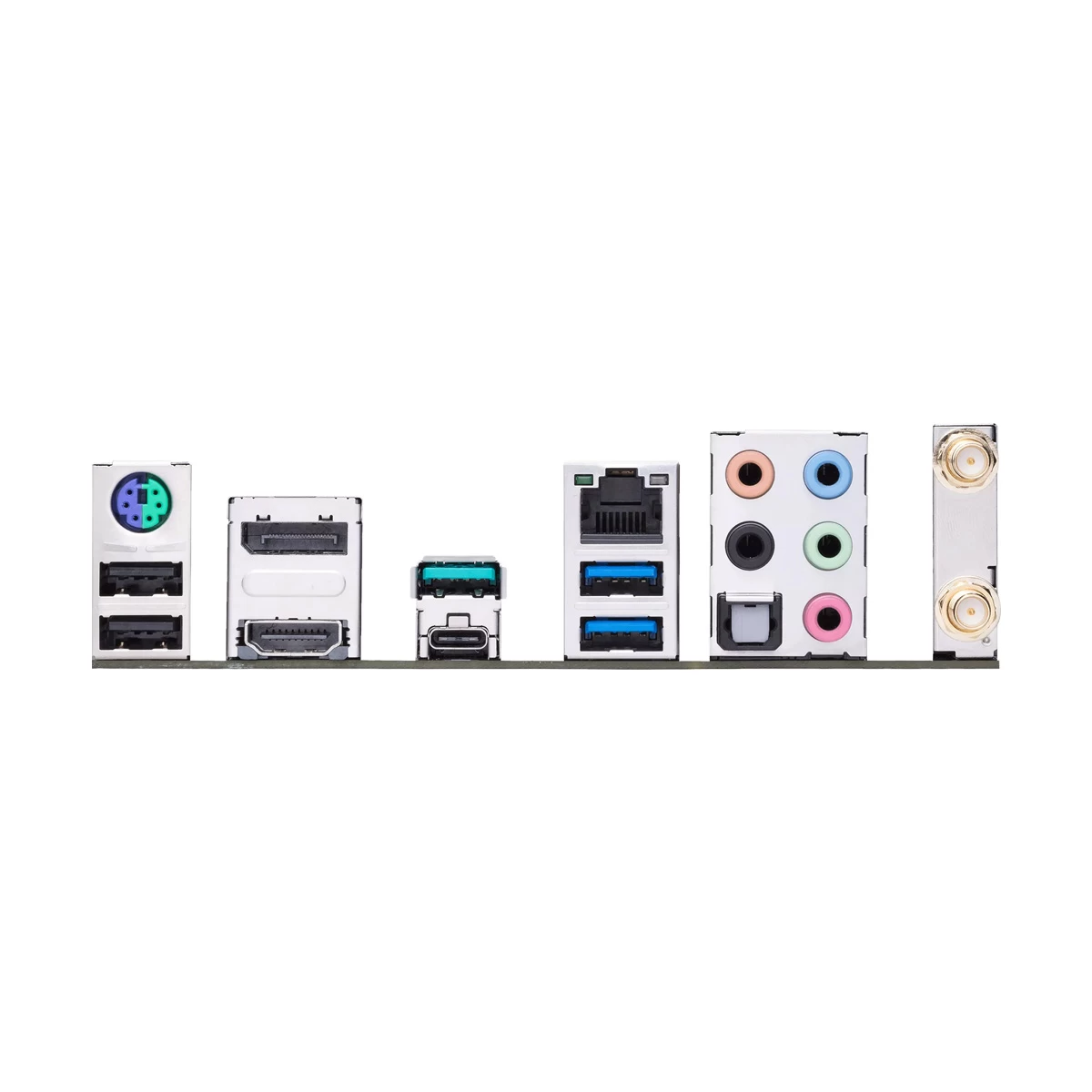

Ports
USB Port
1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4

Thunderbolt
No

TPM Port
Yes

COM Port
Yes


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Sync
Aura Sync

RGB Connector
1 x AURA RGB header

Approx. Power Consumption
90W

Form Factor
ATX


Bios Information
BIOS Type
192 (128+64) Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 10, Windows 11

Compatible Products
LGA1700 Socket 12th & 13th Gen Intel Processor


Warranty
Warranty
3 Year

Warranty Details
3 Years Replacement Warranty


Additional Info
Feature
Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery

Others
Port: 5 x Audio jacks

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
