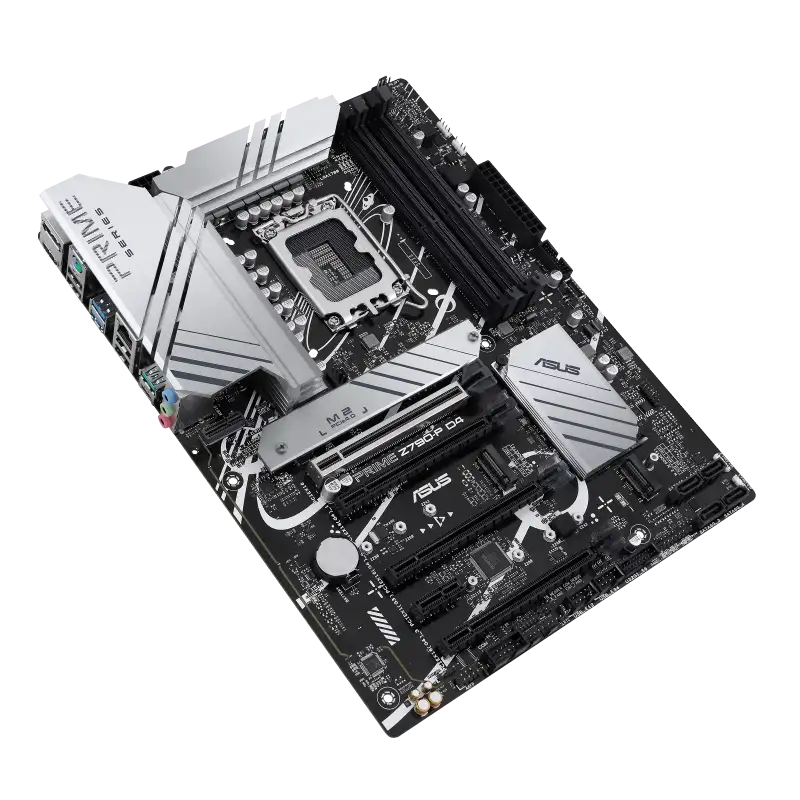

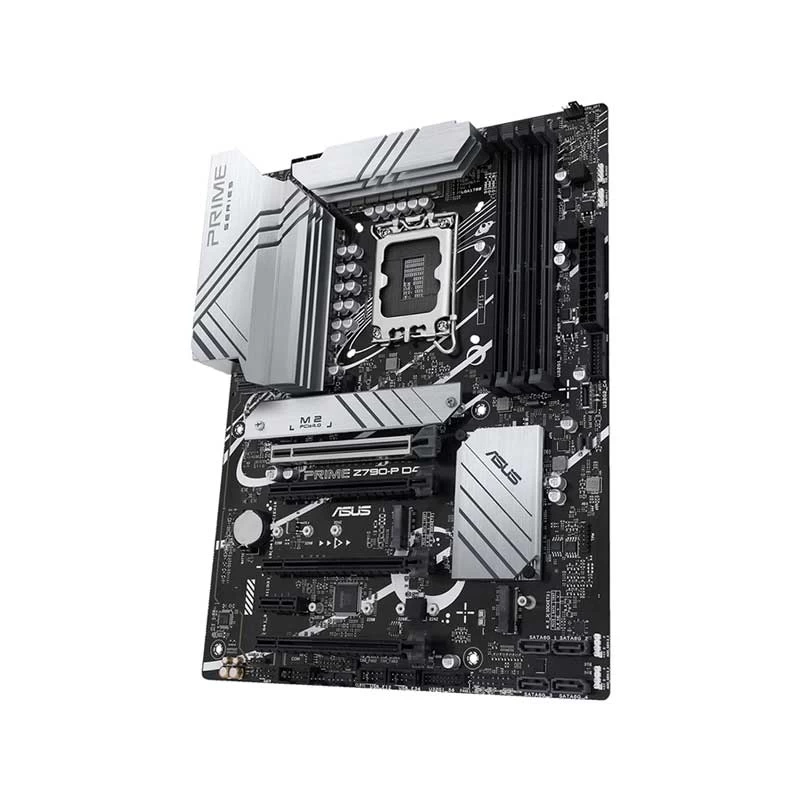

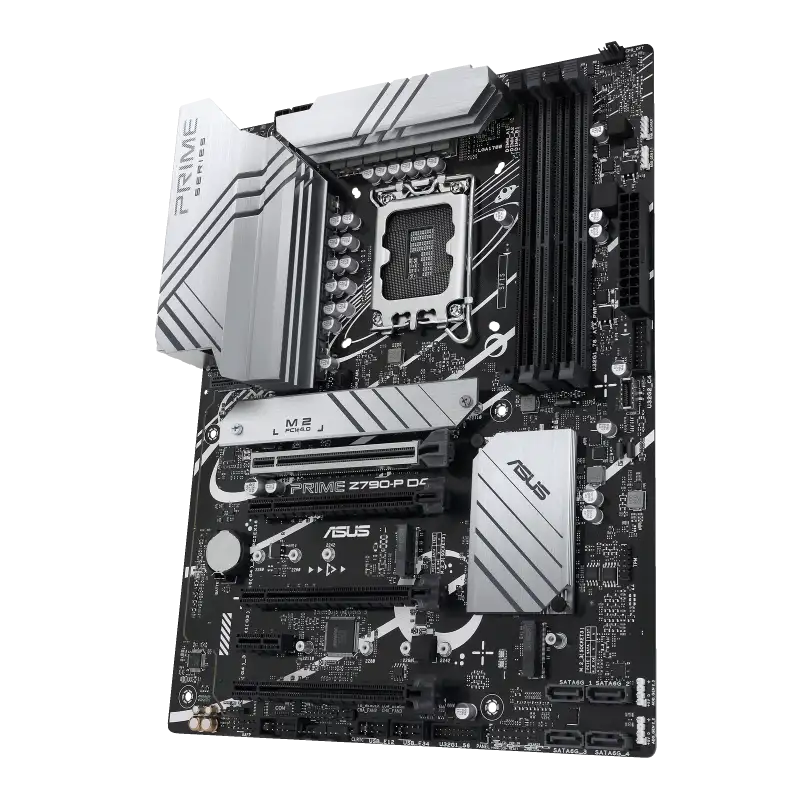

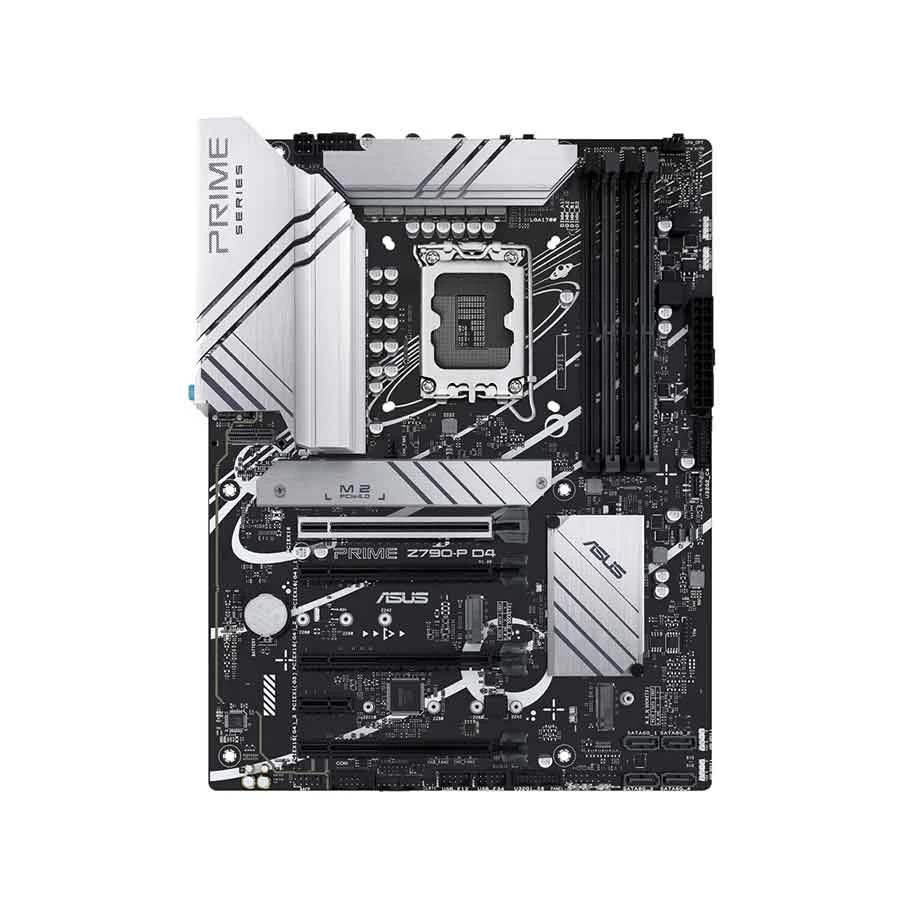

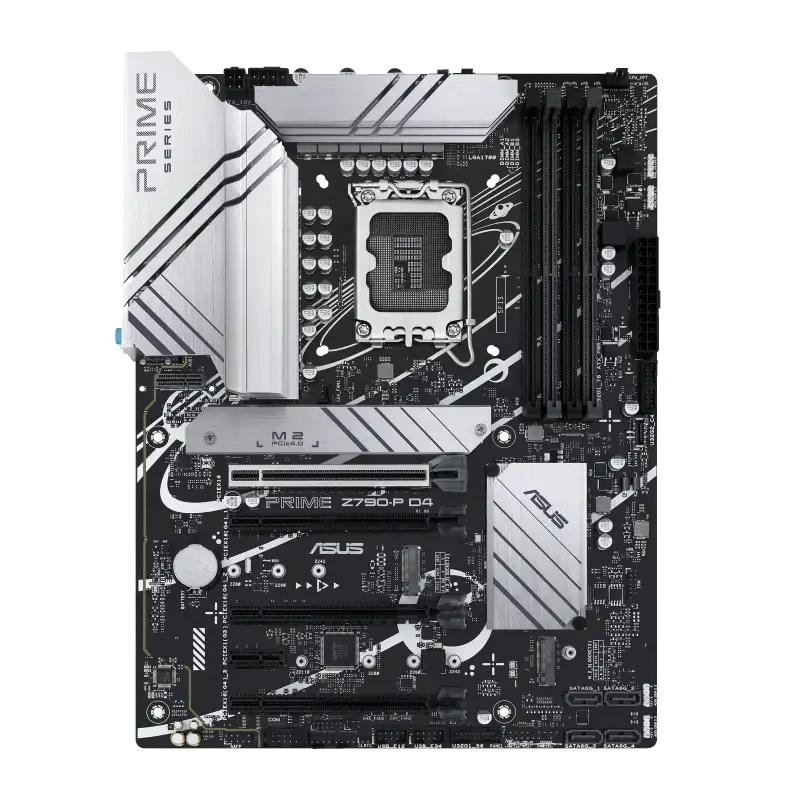

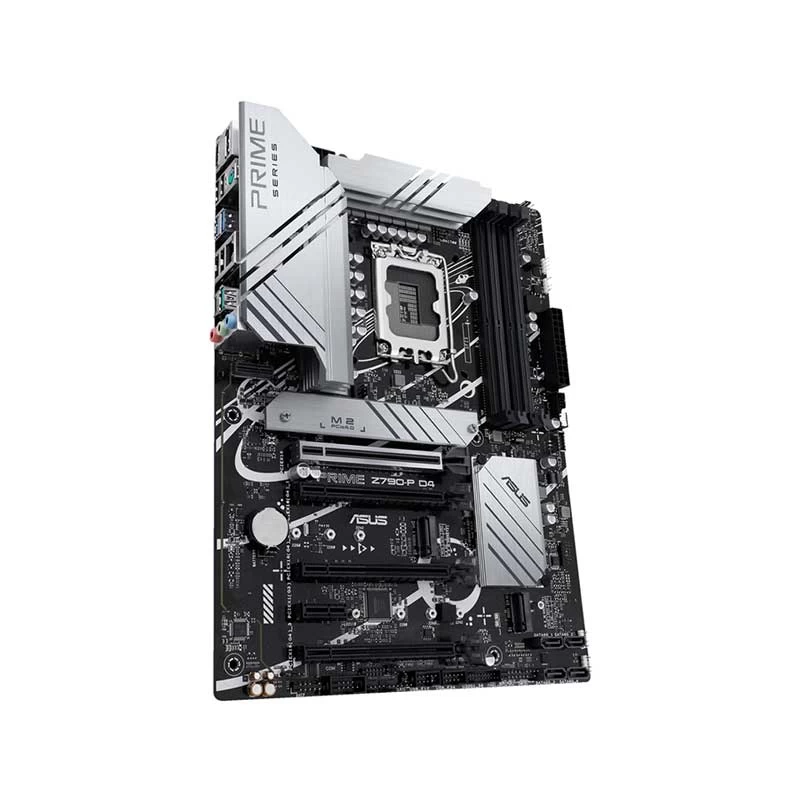

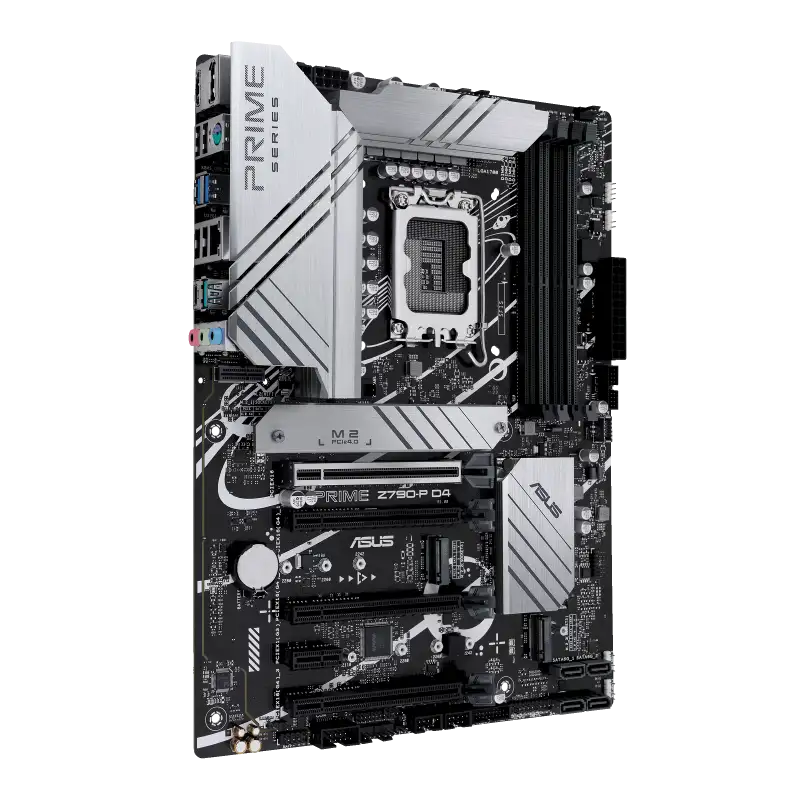

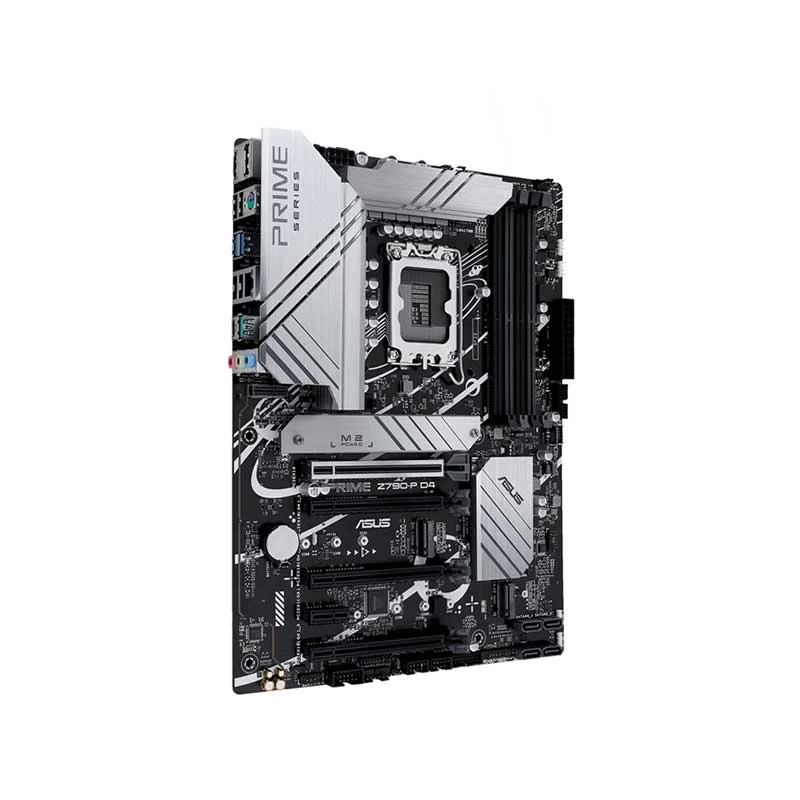

ASUS PRIME Z790-P D4-CSM DDR4 Motherboard (Bundle with PC)

Item: ASUS PRIME Z790-P D4-CSM DDR4 Motherboard (Bundle with PC)
Rating: 5
Author: Verified Buyer

8 reviews

Product Id: 02.01.006.452

This item is discontinued.

Quick Overview

Form Factor - ATX
Chipset - Intel Z790
Sockets Supported - LGA1700
Supported CPU - 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Generation - 12th/13th
Memory Slot - 4
Memory Max. - 128GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Asus

Model

Asus PRIME Z790-P D4-CSM

Chipset

Intel Z790

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

128GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

ATX

Supported Operating System

Windows 11, 10

Body Color

Black

Warranty

3 Years Replacement Warranty

General

Brand

Asus

Model

Asus PRIME Z790-P D4-CSM

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel Z790

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors

Generation

12th/13th

Memory Support

Memory Type

DDR4

Memory MHz

5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

4 x DIMM

Memory Max.

128GB

Memory Max. (Additional Info)

Max. 128GB, DDR4

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

3 x M.2, ((1 x M.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), 1 x M.2, type 2242/2260/2280 (supports PCIe 4.0 x4 mode),1 x M.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes))

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

1 x PCIe 5.0 x16 slot, 3 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot(Chipset)

Audio & Video

Audio Chipset

High Definition Audio CODEC

Audio Channel

7.1

Network & Connectivity

WiFi

WiFi Technology

Bluetooth

Ports

USB Port

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C), 1 x USB 3.2 Gen 2 port (1 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A)

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

Thunderbolt

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

FireWire

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

RGB

RGB Sync

Aura RGB

RGB Connector

1 x Aura RGB header

Approx. Power Consumption

90W

Form Factor

ATX

Bios Information

BIOS Type

192 (128+64) Mb Flash ROM

BIOS Model

UEFI AMI BIOS

Compatibility

Supported Operating System

Windows 11, 10

Compatible Products

Core i3 12100F, Core i3 12100, Core i3 12100, Core i3 13100F, Core i5 12400F, Core i5 13400F, Core i7 12700, Core i5 13600K

Warranty

3 Years Replacement Warranty

Additional Info

Feature

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P D4-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Others

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-P D4-CSM motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Asus PRIME Z790-P D4-CSM Motherboard In Bangladesh

PRIME Z790-P D4-CSM

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P D4-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY

Intelligent Control

AI Cooling II

UEFI BIOS

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

PERFORMANCE

The PRIME Z790-P D4-CSM motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

What is the price of Asus PRIME Z790-P D4-CSM Motherboard In Bangladesh?

The price of Asus PRIME Z790-P D4-CSM Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Asus PRIME Z790-P D4-CSM Motherboard from our website or visit our showrooms nearby.
