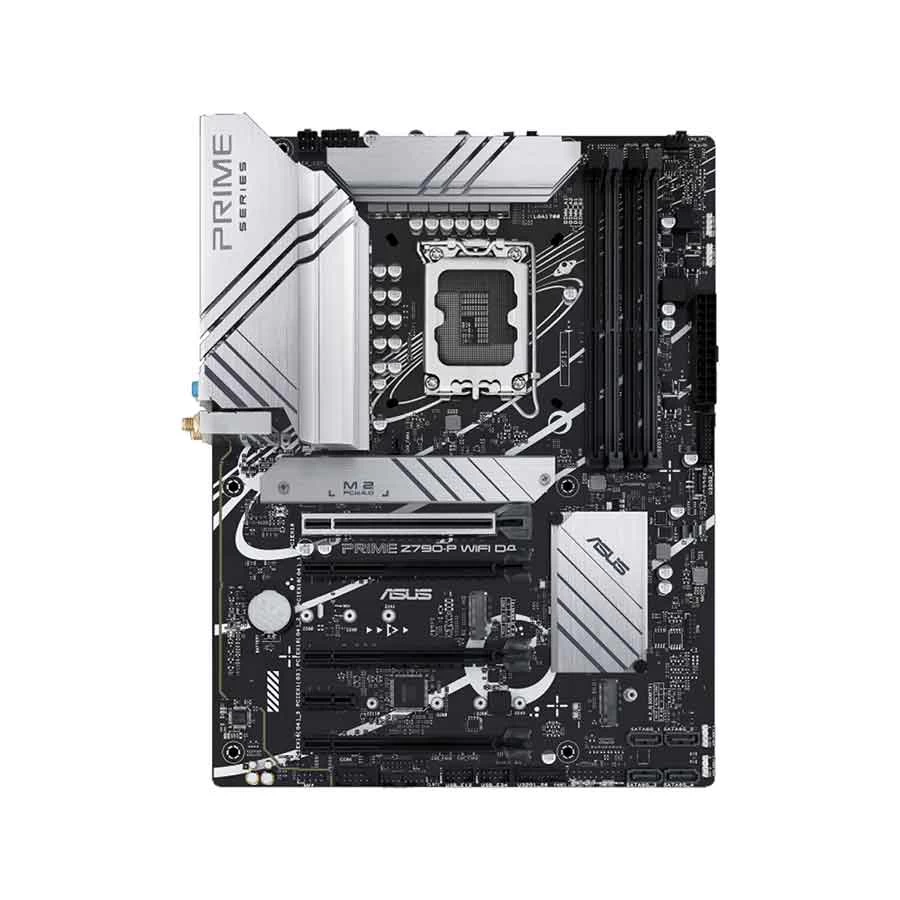

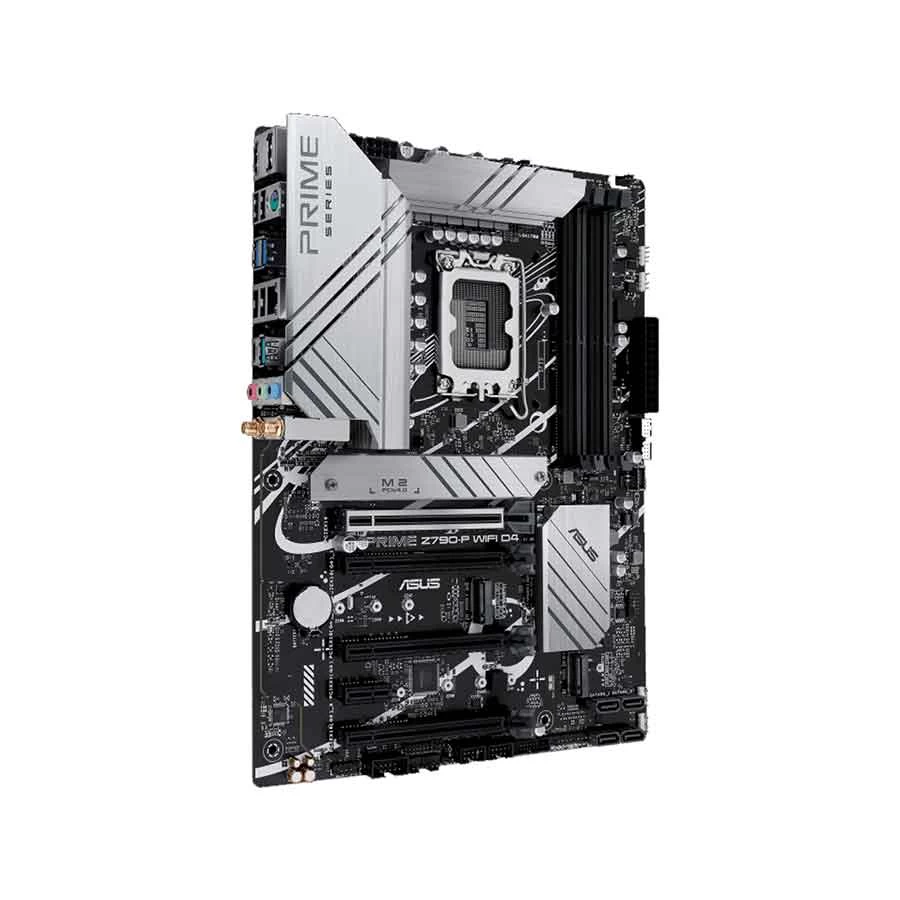

Asus PRIME Z790-P D4-CSM (Wi-Fi 6) DDR4 Motherboard (Bundle with PC)

Product Id: 02.01.006.453

Brand Asus

Regular Price Tk 0
Special Price Tk 0

This item is discontinued.

See similar model

Quick Overview

  • Chipset - Intel Z790
  • Sockets Supported - LGA1700
  • Supported CPU - 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors.
  • Generation - 12th/13th
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
Asus

Model
Asus PRIME Z790-P D4-CSM (Wi-Fi 6)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel Z790

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors.

Generation
12th/13th


Memory Support
Memory Type
DDR4

Memory MHz
5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DIMM

Memory Max.
128GB

Memory Max. (Additional Info)
Max. 128GB, DDR4

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
3

M.2/SSD Expansion Slot Details
3 x M.2, ((1 x M.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)), (1 x M.2, type 2242/2260/2280 (supports PCIe 4.0 x4 mode), (1 x M.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes))


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCIe 5.0 x16 slot, 3 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot


Audio & Video
Audio Chipset
Realtek High Definition Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 2.5Gb Ethernet port

LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps

WiFi
Yes

WiFi Technology
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Bluetooth
Bluetooth 5.2

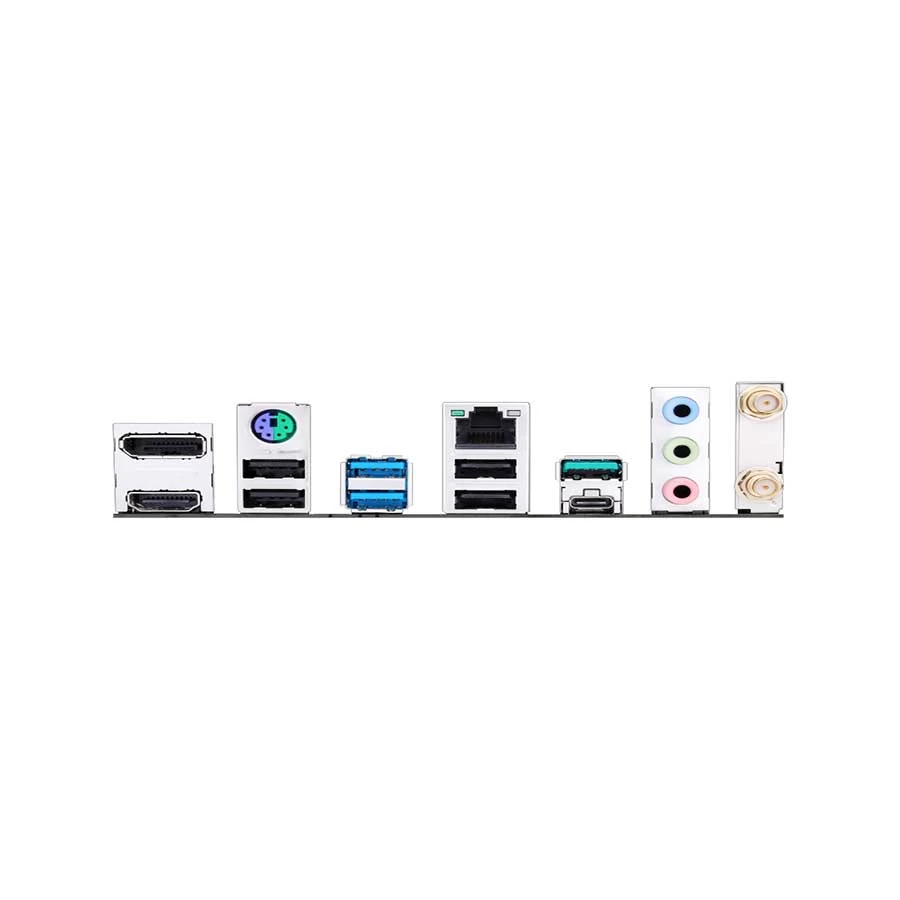

Ports
USB Port
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C), 1 x USB 3.2 Gen 2 port (1 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) ,

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4

Thunderbolt
1

TPM Port
1


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0/ 1/ 5/ 10

RGB Support
RGB

RGB Connector
1 x Aura RGB header

Approx. Power Consumption
90W

Form Factor
ATX


Bios Information
BIOS Type
192 (128+64) Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 11, 10

Compatible Products
Core i3 13100F, Core i3 13100, Core i5 13400, Core i7 13700, Core i7 13700K, Core i9 13900KF, Core i9 13900K, Core i3 13100 Processor.


Warranty
Warranty
3 Year

Warranty Details
3 Years Replacement Warranty


Additional Info
Feature
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P WIFI D4-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Others
Dual Channel Memory Architecture, Supports Intel Extreme Memory Profile (XMP), OptiMem II,3 x Audio Jacks, All-Around Energy Efficiency

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
