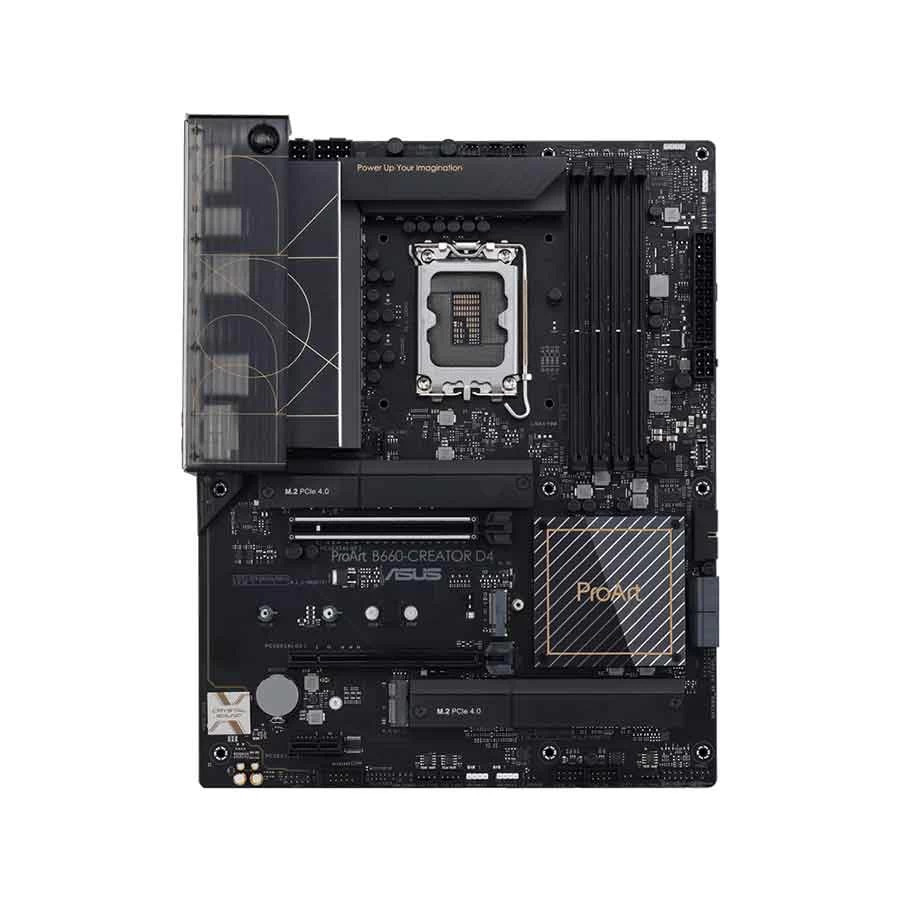

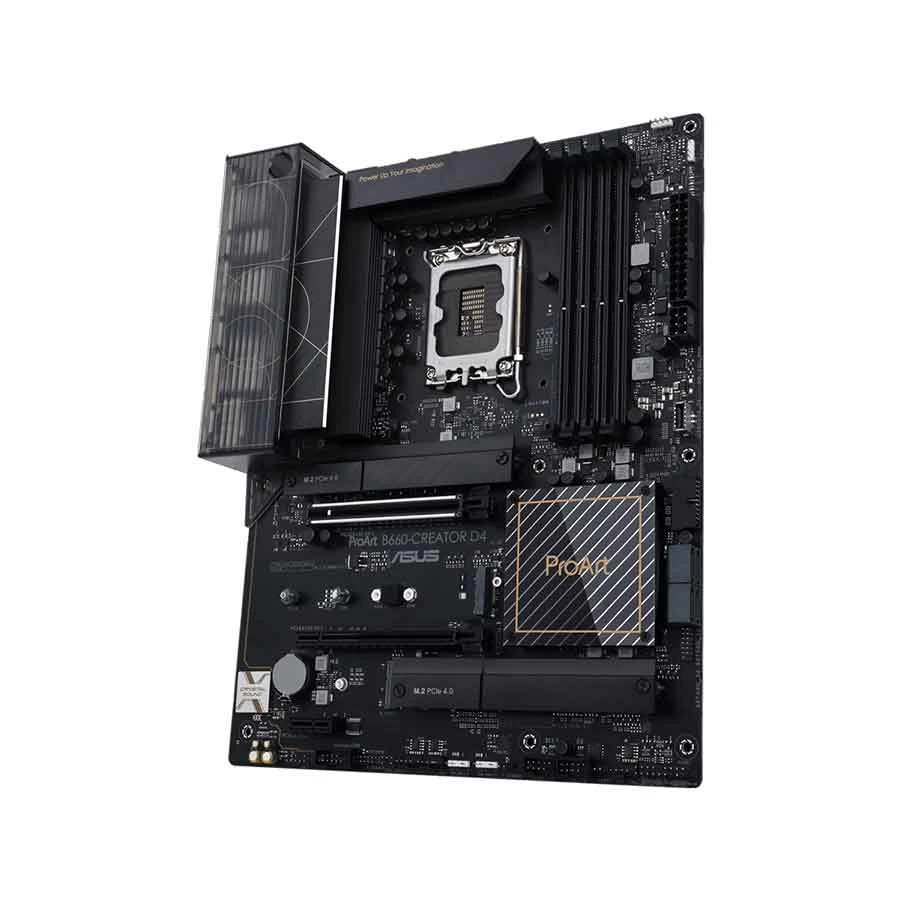

ASUS ProArt B660-CREATOR D4 DDR4 12th/13th Gen Intel LGA1700 Socket Motherboard

Item: ASUS ProArt B660-CREATOR D4 DDR4 12th/13th Gen Intel LGA1700 Socket Motherboard
Rating: 5
Author: Verified Buyer

1 reviews

Product Id: 02.01.006.394

Out Of Stock

See similar model

Quick Overview

Form Factor - ATX
Chipset - Intel B660
Sockets Supported - LGA1700
Supported CPU - Intel Core, Pentium Gold and Celeron Processors
Generation - 12th/13th
Memory Slot - 4
Memory Max. - 128GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Asus

Model

Asus ProArt B660-CREATOR D4

Chipset

Intel B660

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

128GB

Optane Memory Support

Yes

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

ATX

Supported Operating System

Windows 10/ 11

Body Color

Black

Warranty

3 Years Replacement Warranty

General

Brand

Asus

Model

Asus ProArt B660-CREATOR D4

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel B660

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

Intel Core, Pentium Gold and Celeron Processors

Generation

12th/13th

Memory Support

Memory Type

DDR4

Memory MHz

5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

4 x DIMM

Memory Max.

128GB

Optane Memory Support

Yes

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

3 x M.2 (1 x M.2, 2242/ 2260/ 2280/ 22110), (1 x M.2, 2242/ 2260/ 2280, PCIe 3.0 x4), (1 x M.2, 2242/ 2260/ 2280/ 22110, PCIe 4.0 x4)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

1 x PCIe 5.0/4.0/3.0 x16 slot, 1 x PCIe 3.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x1 slot

Audio & Video

Audio Chipset

Realtek 7.1 Surround Sound High Definition Audio CODEC

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek 2.5Gb Ethernet, Intel 1Gb Ethernet

LAN Speed (Mbps)

10/100/1000/2500 Mb/s

WiFi

WiFi Technology

Not Applicable

Bluetooth

Ports

USB Port

1 x USB 3.2 Gen 2 Type-C, 4 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

4 x SATA

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

DirectX Support

Heatsink

Yes

FireWire

CrossFire Support

Sli Support

Raid Support

0,1,5,10

RGB Support

RGB

RGB Sync

Aura Sync

RGB Connector

1 x AURA RGB header

Approx. Power Consumption

70W

Form Factor

ATX

Bios Information

BIOS Type

128 Mb

BIOS Model

UEFI BIOS

Compatibility

Supported Operating System

Windows 10/ 11

Compatible Products

LGA1700 Socket 12th & 13th Gen Intel Processor

Warranty

3 Years Replacement Warranty

Additional Info

Feature

2.5 Gb & 1 Gb onboard Ethernet, three M.2 slots, ThunderboltTM header support, USB-C DisplayPortTM and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+, 12+1 power stages rated for 50 amps, PCIe 5.0 ready, Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control

Others

Back Panel I/O Ports: 1 x Thunderbolt header , 1 x Realtek 2.5Gb Ethernet port, 1 x Intel 1Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port. Internal I/O Connectors: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal Sensor header, 1 x Thunderbolt header. Manageability: WOL by PME, PXE

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Asus ProArt B660-CREATOR D4 Motherboard In Bangladesh

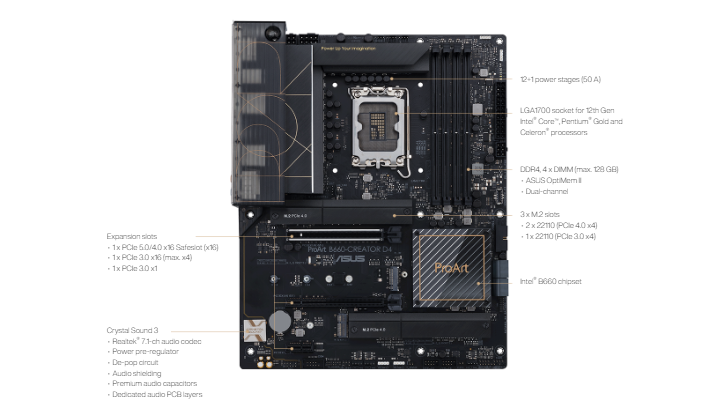

Intel® B660 LGA 1700 ATX motherboard built for creators, with PCIe® 5.0, DDR4, 2.5 Gb and 1 Gb Ethernet, three PCIe 4.0 M.2 slots, plus USB-C DisplayPort™ and a USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+

Socket LGA 1700 for 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
Comprehensive connectivity: 2.5 Gb & 1 Gb onboard Ethernet, three M.2 slots, ThunderboltTM header support, USB-C DisplayPortTM and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+
Next-gen performance: 12+1 power stages rated for 50 amps, PCIe® 5.0 ready
Optimized thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, six 4-pin PWM fan headers and an AIO pump header
ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control
Advanced security management: USB port restriction, software blacklisting and Windows Registry protection via ASUS Control Center Express

Comprehensive Connectivity

An array of powerful I/O ports — including 2.5 Gb and 1 Gb Ethernet ports and three M.2 slots — enables quick data transfers and extensive storage options.

Next-Gen Performance

With tailored CPU power delivery and support for high-performance memory, ProArt B660-Creator D4 easily handles the demands of the latest 13th & 12th Gen Intel Core processors. It features an intelligent VRM design that’s rated for 50 amps, plus carefully selected components and memory layout optimizations for multithreaded tasks such as 3D animation and video editing.

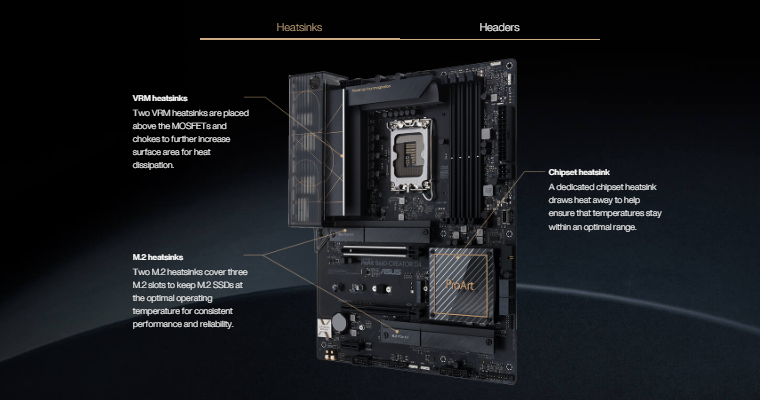

Optimized Cooling Design

Maintaining system stability under heavy loads is of paramount importance, so ProArt B660-Creator D4 features comprehensive cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Integrated premium components and multiple fan headers are also vital design elements that provide the best foundation for content creation systems.

Perfect for Content Creation

ProArt exclusive software utilities deliver intuitive system monitoring, audio and networking enhancements that enable a smoother workflow.

Trusted Stability

ProArt B660-Creator D4 is engineered and rigorously tested to offer superior quality, stability and compatibility ― all to ensure that it empowers creativity for years to come.

What is the price of Asus ProArt B660-CREATOR D4 Motherboard In Bangladesh?

The price of Asus ProArt B660-CREATOR D4 Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Asus ProArt B660-CREATOR D4 Motherboard from our website or visit our showrooms nearby.
