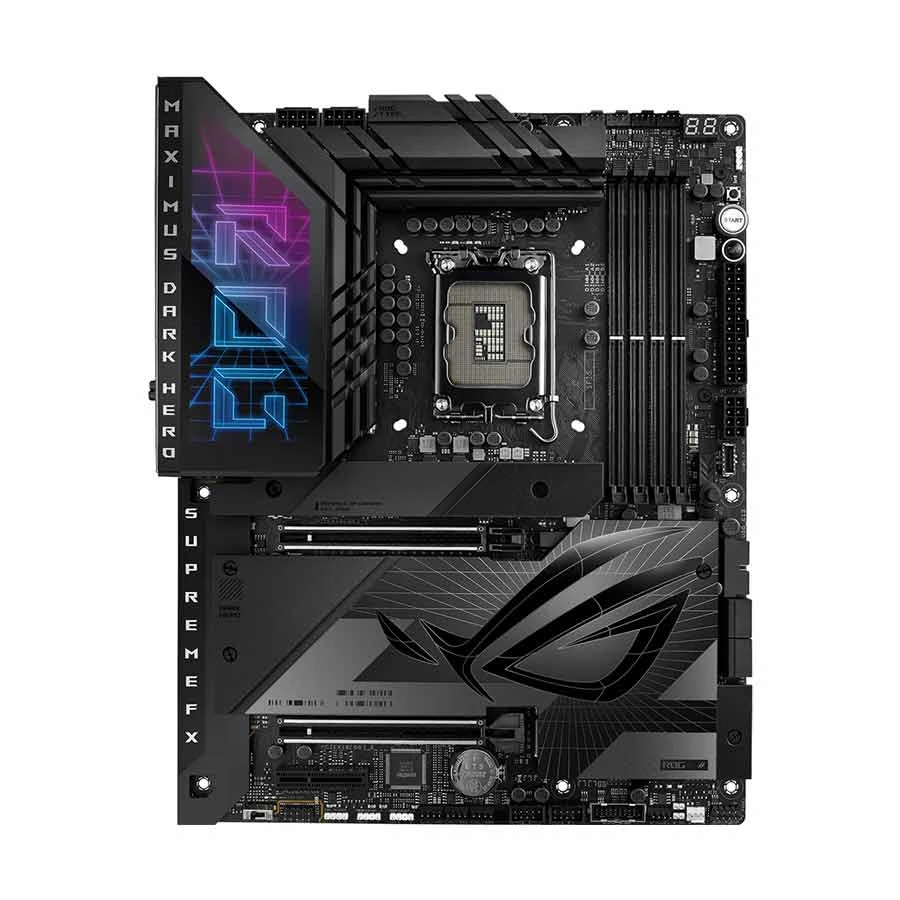

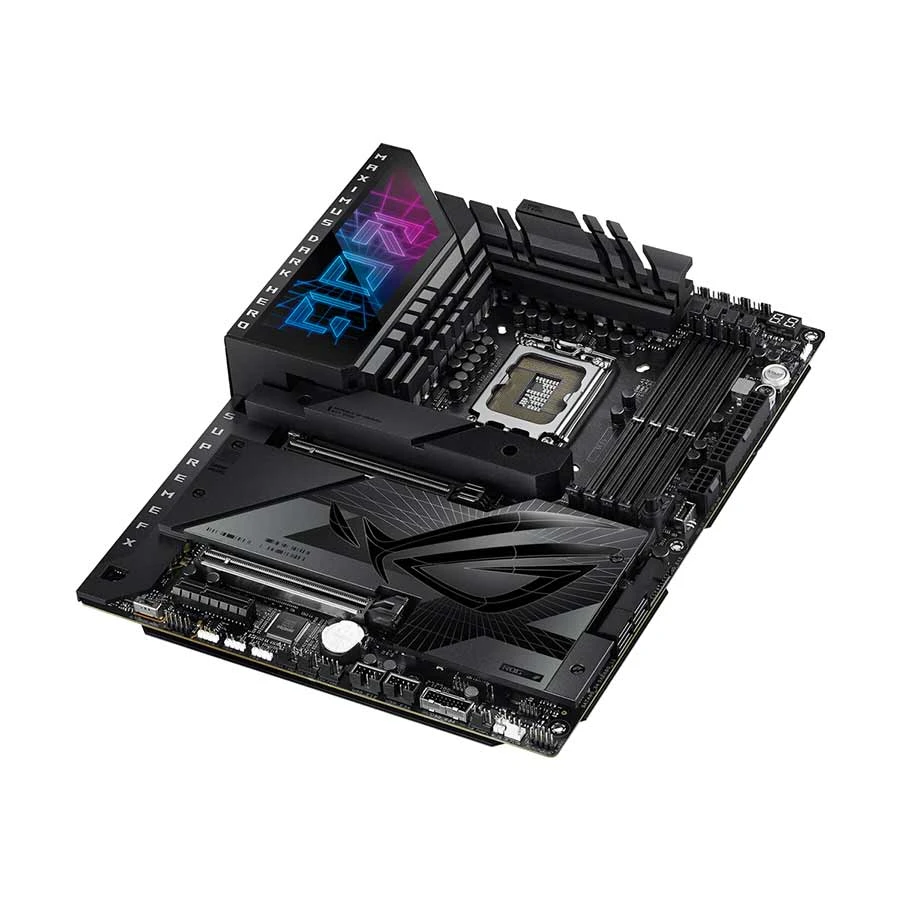

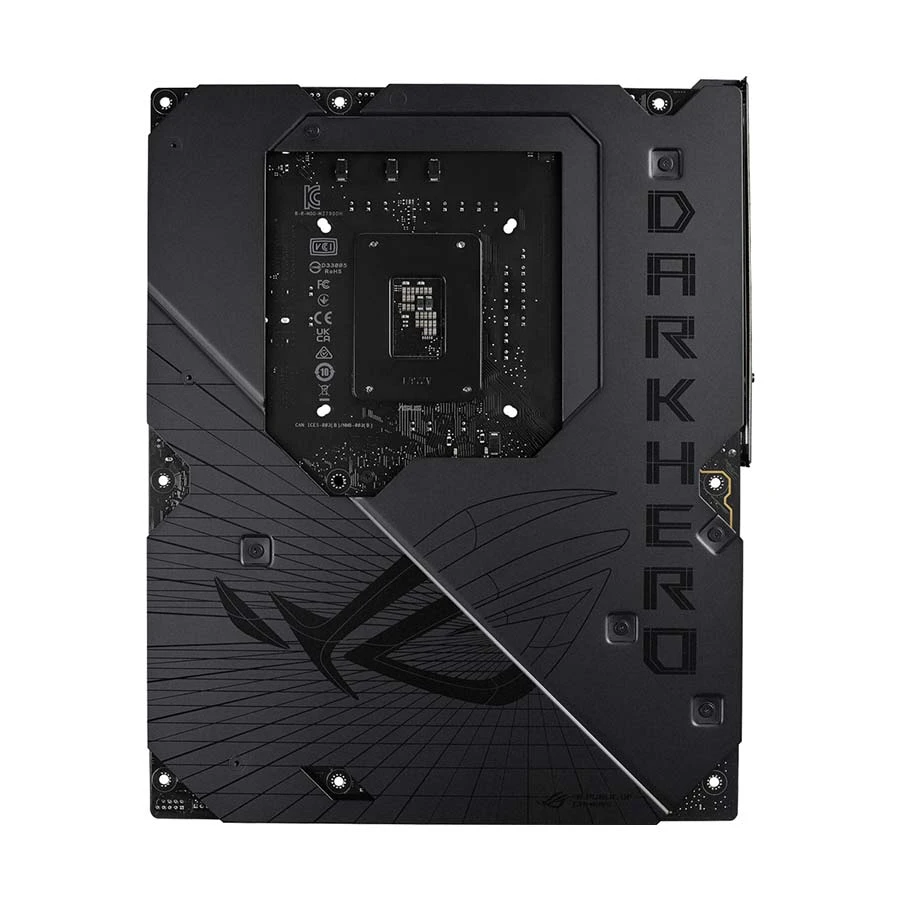

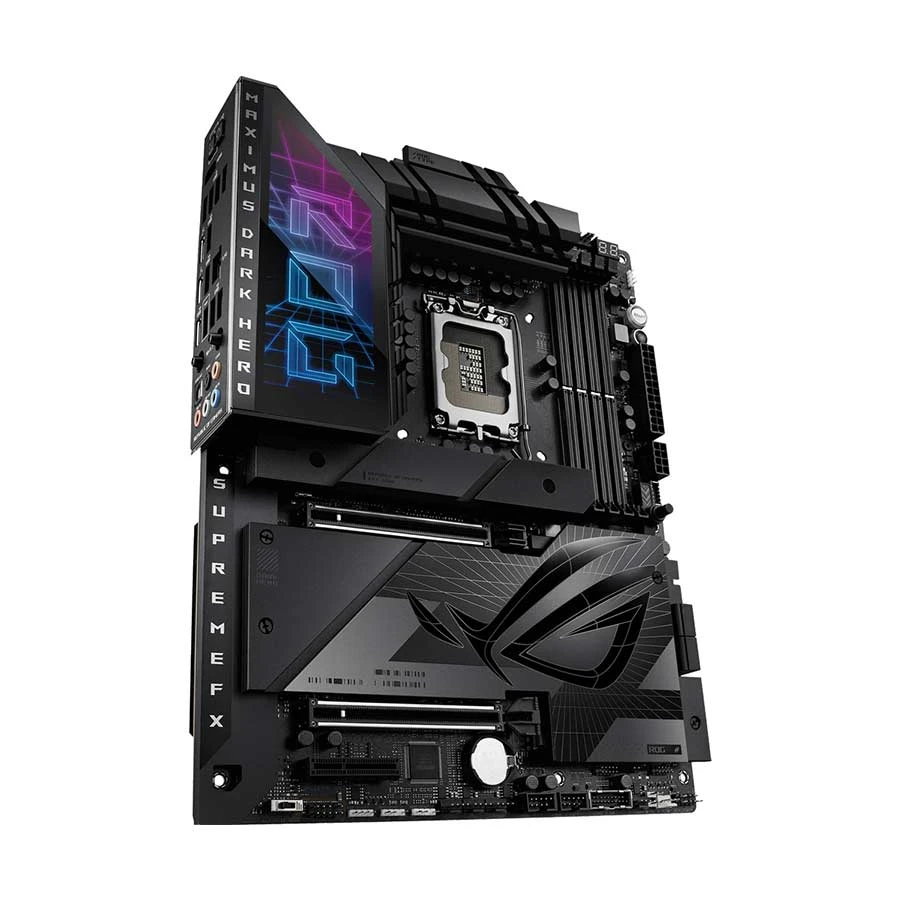

Asus ROG MAXIMUS Z790 DARK HERO (Wi-Fi 7) DDR5 Intel Gaming Motherboard
Product Id: 02.01.006.481
Brand
Asus
Regular Price Tk 110,670
Monthly EMI Tk 9,223
Special Price Tk 102,500
Quick Overview
- Chipset - Intel Z790
- Memory Max. - 192GB
- Memory Slot - 4
- Sockets Supported - LGA1700
- Supported CPU - Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
- Generation - 12th/13th/14th
General
Brand
Asus
Model
Asus ROG MAXIMUS Z790 DARK HERO (Wi-Fi 7)
Body Color
Black
CPU
Chipset Brand
Intel
Chipset
Intel Z790
Sockets Supported
LGA1700
Built-in Processor
No
Supported CPU
Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Generation
12th/13th/14th
Memory Support
Memory Type
DDR5
Memory MHz
8000+(OC)/ 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory
Memory Channel
Dual
Memory Slot
4
Memory Max.
192GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
5
M.2/SSD Expansion Slot Details
5 x M.2 (1 x M.2 (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.), 1 x M.2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.) (Processors), 1xx M.2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 1 x M.2 (Key M), type 2280 (supports PCIe 4.0 x4 mode), 1 x M.2 (Key M), type 2280 (supports PCIe 4.0 x4 mode) (Chipset))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
2 x PCIe 5.0 x 16 (support x16 or x8/x8 modes), 1 x PCIe 4.0 x 4
Audio & Video
Audio Chipset
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Intel 2.5Gb Ethernet
LAN Speed (Mbps)
10/ 10/ 1000/ 2500Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 7 (802.11be)
Bluetooth
Bluetooth 5.4
Ports
USB Port
4 x USB Type-A (5Gbps), 5 x USB Type-A, 1 x USB Type-C (10Gbpsc)
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
SATA Port
4 x SATA
Thunderbolt
2
TPM Port
No
Technical Info
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
RGB
RGB Sync
AURA Sync
RGB Connector
1 x AURA RGB header
Approx. Power Consumption
90W
Form Factor
ATX
Bios Information
BIOS Type
256 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11, 10
Compatible Products
Core i3, Core i5, Core i7, Core i9, Pentium Gold (12th Gen, 13th Gen & 14th Gen)
Warranty
Warranty
3 Year
Warranty Details
3 Year Replacement
Additional Info
Feature
Extreme OC Kit, Extreme Engine Digi+, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, AURA Sync, Front Panel USB 20G with Quick Charge 4+ Support.
Others

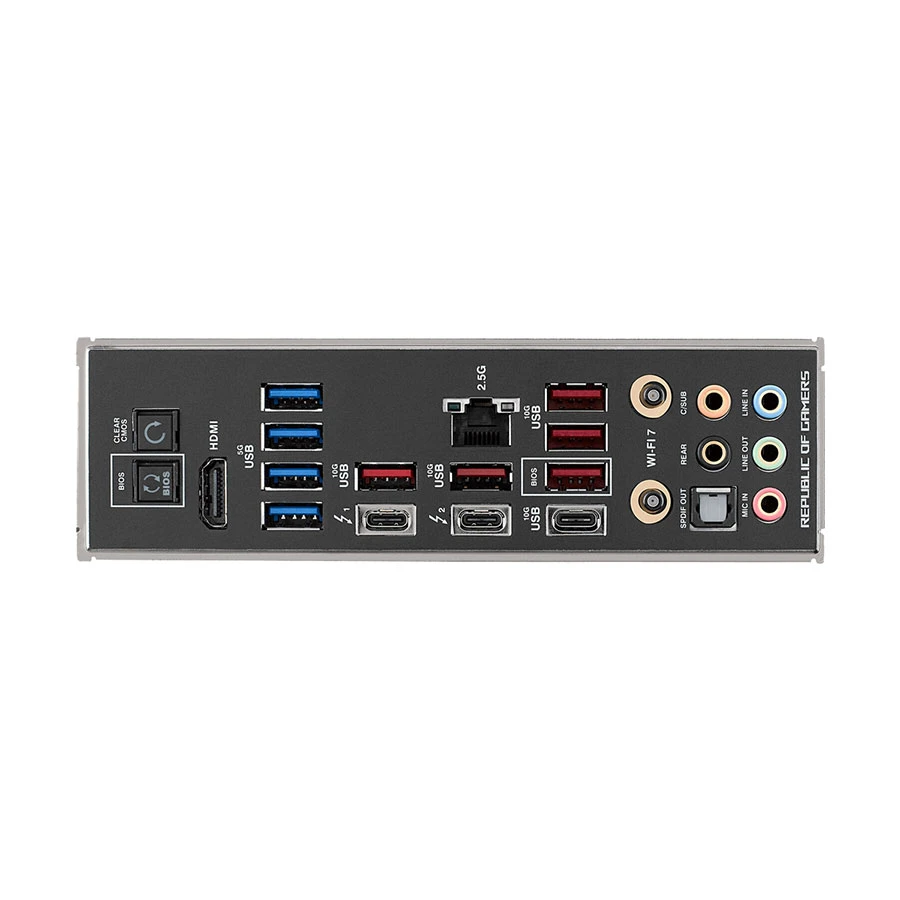

Back Panel I/O Ports: 1 x Wi-Fi Module, 1 x Intel 2.5Gb Ethernet port, 5 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button, 1 x Clear CMOS button, Internal I/O Connectors: Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, 1 x W_PUMP+ header, 1 x 2-pin Water In header, 1 x 2-pin Water Out header, 1 x 3-pin Water Flow header, Power related: 1 x 24-pin main power connector, 2 x 8-pin +12V power connector, 1 x 8-pin PCIe power connector, Miscellaneous: 3 x Addressable Gen 2 headers, 1 x FlexKey button, 1 x Front panel audio header (F_AUDIO), 1 x Start button, 1 x ReTry button, 1 x 10-1 pin system panel header, 1 x Thermal sensor header, 1 x CPU over voltage jumper, 1 x Alternative PCIe mode switch.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus ROG MAXIMUS Z790 DARK HERO (Wi-Fi 7) Motherboard In Bangladesh

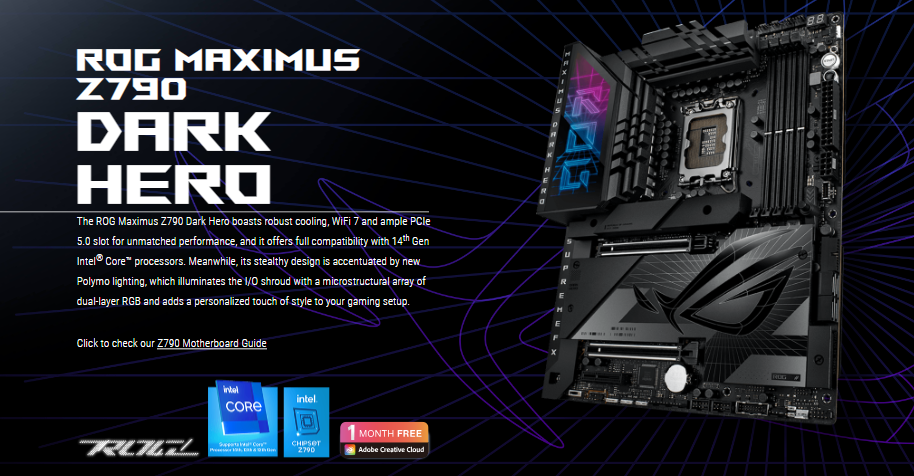

 2_1702461551.png)

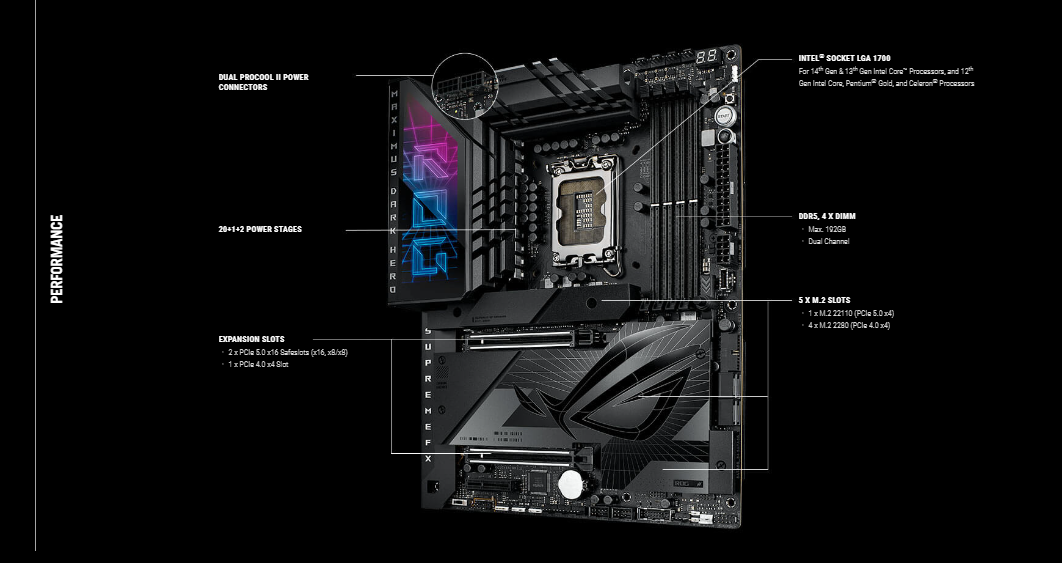

EXTREME POWER & PERFORMANCE
 3_1702461551.png)

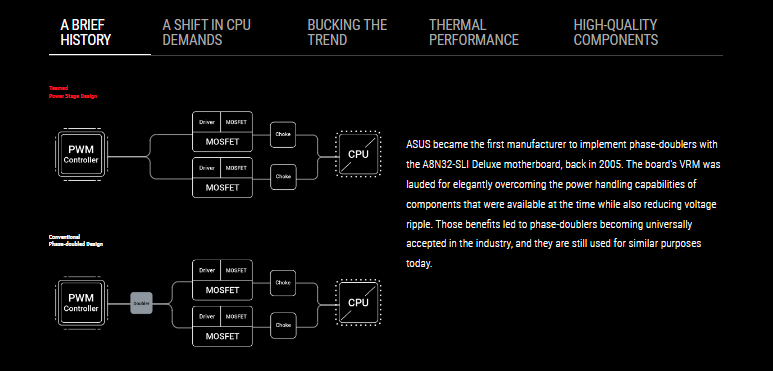

TEAMED POWER ARCHITECTURE
Today's CPU architectures place incredible demands on motherboard power design by transitioning from deep power-saving modes, going from lower-power mode to full load in an instant. The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.
 4_1702461551.png)

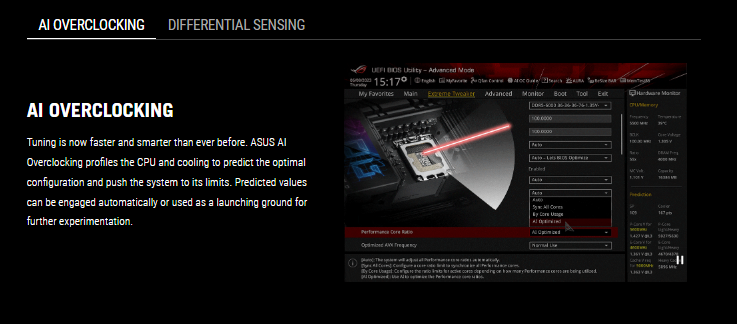

ROG OVERCLOCKING TECHNOLOGIES
Psyche up and engage the Dark Hero overclocker in you, with onboard intelligence to scan, predict, and adapt CPU performance parameters, and tools to command and track system vitals.
 5_1702461551.png)

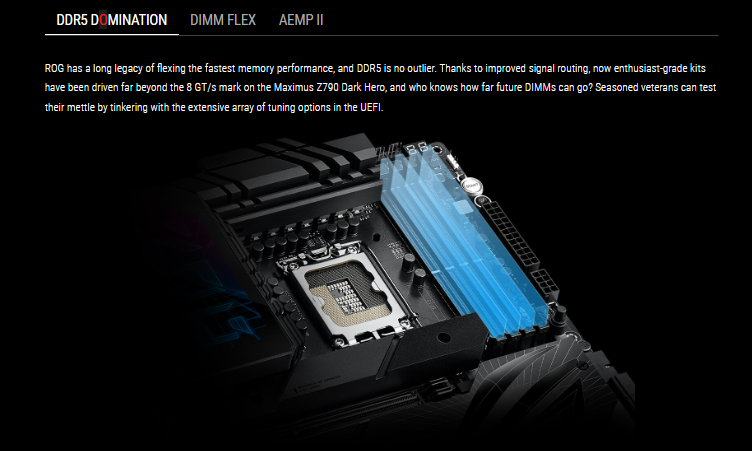

MEMORY
Comprehensive memory tuning options are the cornerstone of ROG motherboards. With the ROG Maximus Z790 Dark Hero, you can extract all of the potential out of your DDR5 modules, regardless of if they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
- DDR5 DOMINATION
- DIMM FLEX
- AEMP II
 6_1702461631.png)

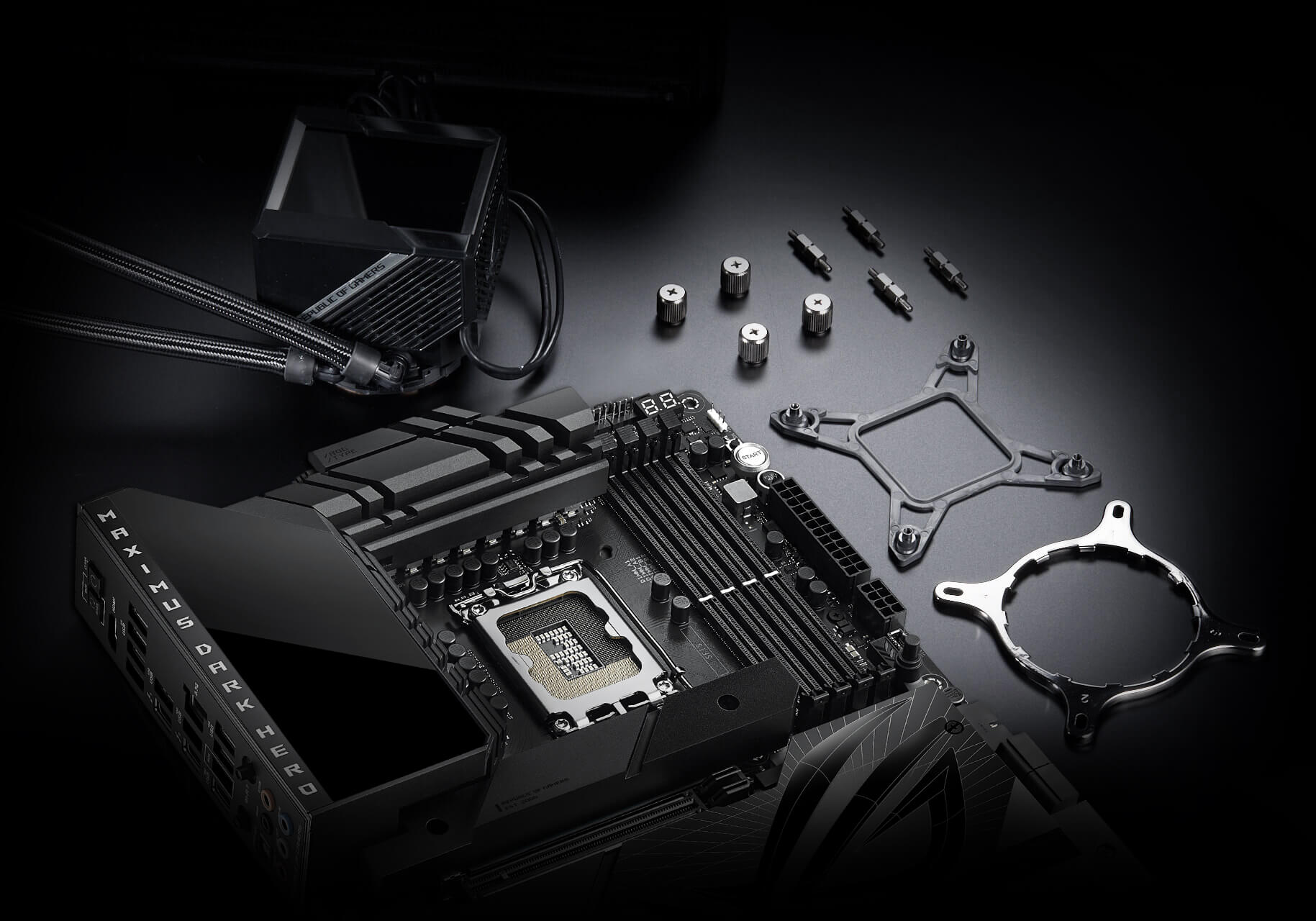

COOLER COMPATIBILITY
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new Z790 motherboards, empowering you to build your dream gaming rig.
 10_1702461631.jpg)

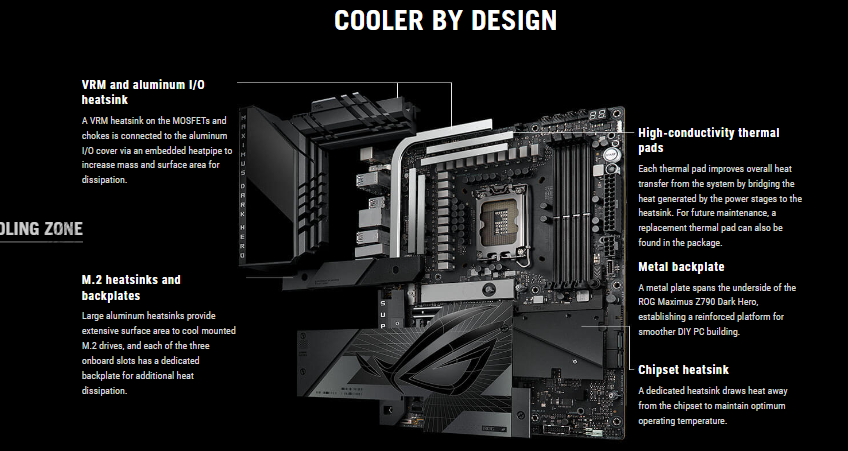

 7_1702461631.png)

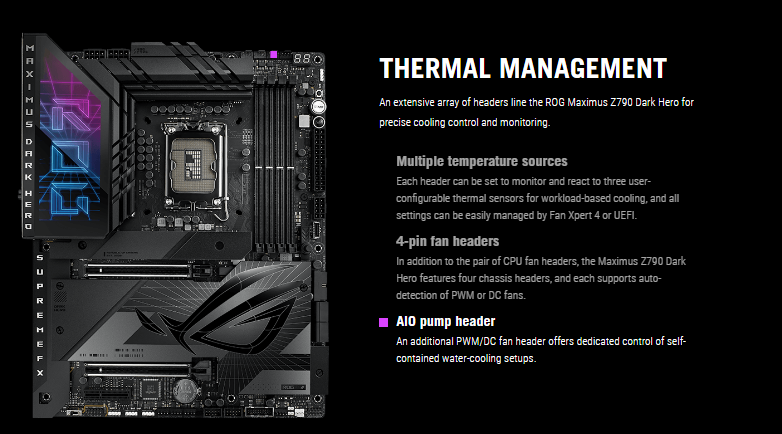

 8_1702461631.png)
WIFI 7
Next-gen WiFi 7* chipset introduces all-new ultrawide 320 MHz channel bandwidth in the 6 GHz band and 4096 QAM, delivering up to 2.4X ultra-fast WiFi speeds**. The revolutionary Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.
-
2.5Gb ETHERNET
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.
-
DIY-FRIENDLY FEATURES

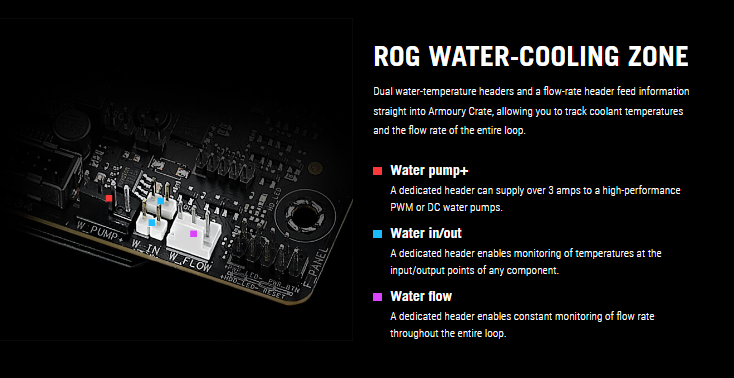

 9_1702461631.png)
AI COOLING II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
TWO-WAY AI NOISE CANCELATION
This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.
Hear the difference
AI NETWORKING
GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA® GeForce NOW to ensure the lowest latency possible during intense game streaming cloud gaming sessions. To provide a better user’s experience, GameFirst is now integrated into Armoury Crate.

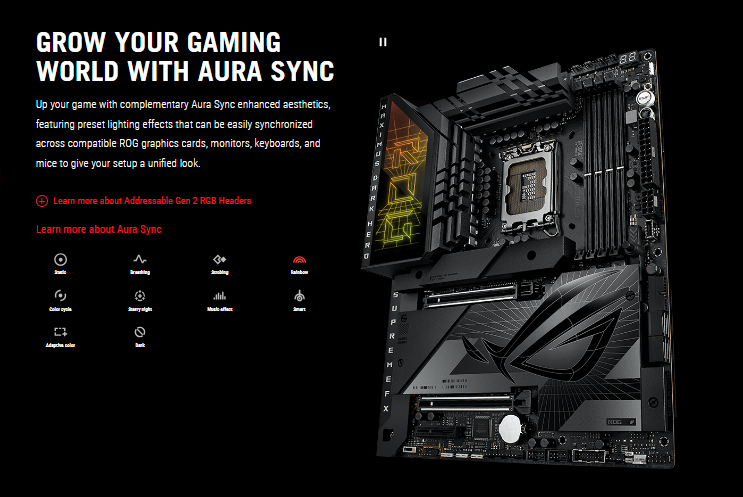

 11_1702461658.png)
ARMOURY CRATE
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.
You can use Armoury Crate to download drivers, tools, and user manuals, and to register products. It also taps into a special news feed that connects you to the global ASUS gaming community.
*Windows 10 or 11 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.
What is the price of Asus ROG MAXIMUS Z790 DARK HERO (Wi-Fi 7) Motherboard In Bangladesh?
The price of Asus ROG MAXIMUS Z790 DARK HERO (Wi-Fi 7) Motherboard starts from 102,500 . The price may vary due to your customization and product availability. You can buy Asus ROG MAXIMUS Z790 DARK HERO (Wi-Fi 7) Motherboard from our website or visit our showrooms nearby.
