Asus ROG MAXIMUS Z790 FORMULA (Wi-Fi 7) DDR5 Intel Gaming Motherboard

Product Id: 02.01.006.493

Brand Asus

Regular Price Tk 115,880 Monthly EMI Tk 9,657
Special Price Tk 107,000

Quick Overview

  • Chipset - Intel Z790
  • Memory Max. - 192GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
General
Brand
Asus

Model
Asus ROG MAXIMUS Z790 FORMULA (Wi-Fi 7)

Body Color
Black & White


CPU
Chipset Brand
Intel

Chipset
Intel Z790

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz
8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory

Memory Channel
Dual

Memory Slot
4

Memory Max.
192GB


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
5

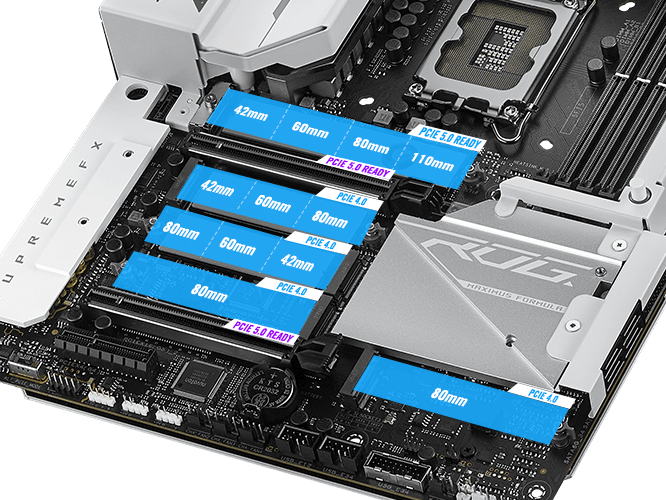

M.2/SSD Expansion Slot Details
5 x M.2 (1 x M.2 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), 2 x M.2 2242/2260/2280 (supports PCIe 4.0 x4 mode), 2 x M.2 2280 (supports PCIe 4.0 x4 mode))


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

PCI Express Slot
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes), 1 x PCIe 4.0 x4 slot


Audio & Video
Audio Chipset
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 5Gb Ethernet

LAN Speed (Mbps)
100/1000/2500/5000 Mbps

WiFi
Yes

WiFi Technology
Wi-Fi 7

Bluetooth
Bluetooth 5.4


Ports

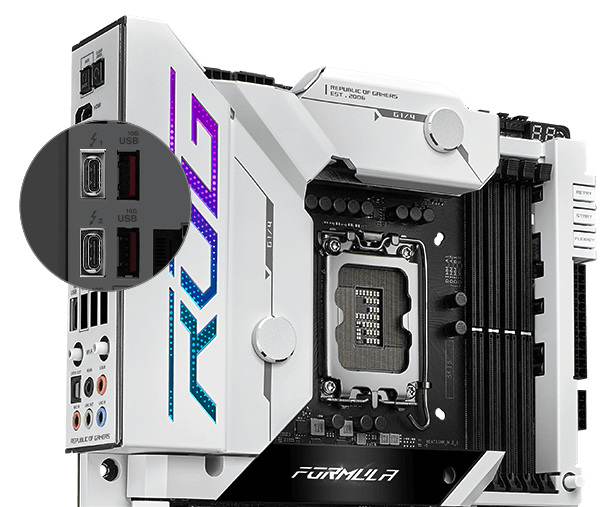

USB Port
2 x Thunderbolt 4 USB Type-C ports, 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C), 4 x USB 5Gbps ports (4 x Type-A)

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
No

SATA Port
4

Thunderbolt
2


Technical Info
CrossFire Support
No

Sli Support
No

Raid Support
0/ 1/ 5/ 10

RGB Support
RGB

RGB Sync
Aura Sync

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
256 Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Window 10, 11

Compatible Products
Intel Core i7 12700K, Intel Core i9 12900K, Intel Core i5 12400, Intel Core i3 12100, Intel Core i5 13600K, Intel Core i7 13700KF, Intel Core i5 12400, Intel Core i5 12400F, Intel Core i3 12100, Intel Core i3 13100F, Intel Core i7 12700, Intel Core i5 13500, Intel Core i5 13400, Intel Core i5 13400F, Intel Core i7 13700K, Intel Core i7 12700K, Intel Core i5 13600K, Intel Core i9 12900K, Intel Core i3 13100


Warranty
Warranty
3 Year

Warranty Details
3 Year Replacement


Additional Info
Feature
The ROG Maximus Z790 Formula is the ultimate motherboard to feature our head-turning Moonlight White aesthetic. Beneath this bold expression lies a powerhouse arsenal of features, including the exclusive HybridChill VRM cooling system ready to elevate 14th-gen Intel processors, advanced DDR5 settings, a multitude of PCIe 5.0 slots for both graphics cards and storage, blistering Intel Wi-Fi 7 networking and a full slate of customizable ARGB lightning to make your premium build truly stand out from the crowd.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
