Asus ROG STRIX B760-A GAMING (Wi-Fi 6E) DDR5 Motherboard
Product Id: 02.01.006.467
Brand
Asus
Quick Overview
- Chipset - Intel B760
- Sockets Supported - LGA1700
- Supported CPU - 13th/14th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors.
- Generation - 12th/13th/14th
- Memory Slot - 4
- Memory Max. - 192GB
- Back-Connect Design - No
Brand
Asus
Model
Asus ROG STRIX B760-A GAMING (Wi-Fi 6E)
Chipset
Intel B760
Sockets Supported
LGA1700
Built-in Processor
No
Generation
12th/13th/14th
Back-Connect Design
No
Memory Type
DDR5
Memory Slot
4
Memory Max.
192GB
Optane Memory Support
No
Graphics
Integrated
Graphics Chipset
Integrated With Processor
M.2/SSD Expansion Slot
3
WiFi
Yes
Bluetooth
Bluetooth 5.3
Form Factor
ATX
Supported Operating System
Windows 10 / 11
Body Color
Black
Warranty Details
3 Years Replacement Warranty
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus ROG STRIX B760-A GAMING (Wi-Fi 6E) Motherboard In Bangladesh
ROG STRIX B760-A GAMING WIFI
Just like its formidable sibling, the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform, with PCIE 5.0, USB 3.2 GEN 2x2, and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5, bringing even more bandwidth to the table for games and apps.
 _1703399557.png)

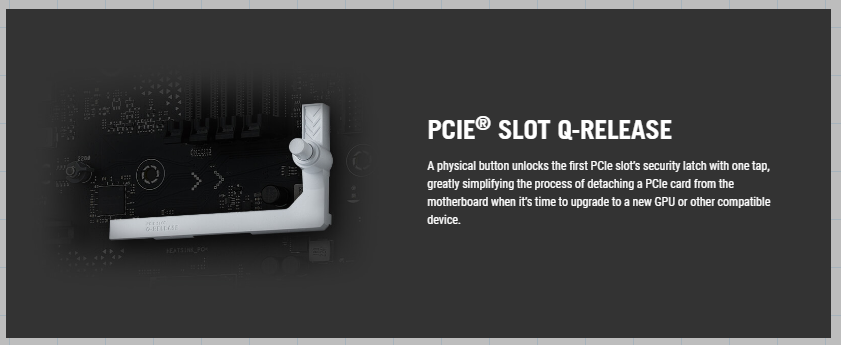

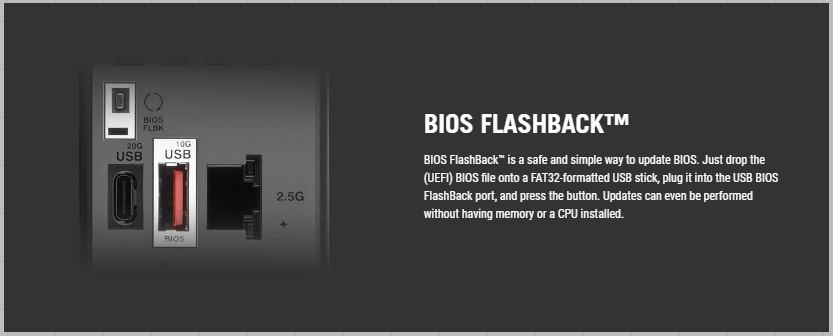

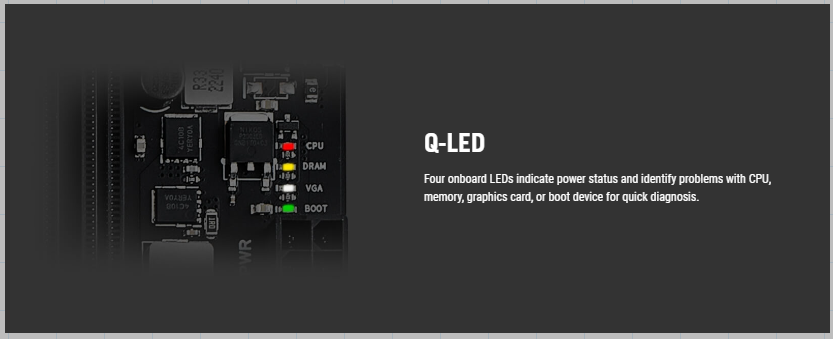

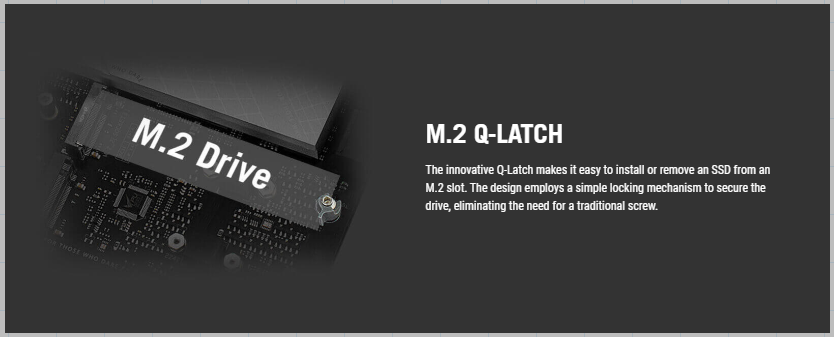

DIY-FRIENDLY FEATURES
 2-1_1703399557.png)
 2-2_1703399557.png)
 2-3_1703399557.png)
 2-4_1703399557.png)
SPECIFICATIONS

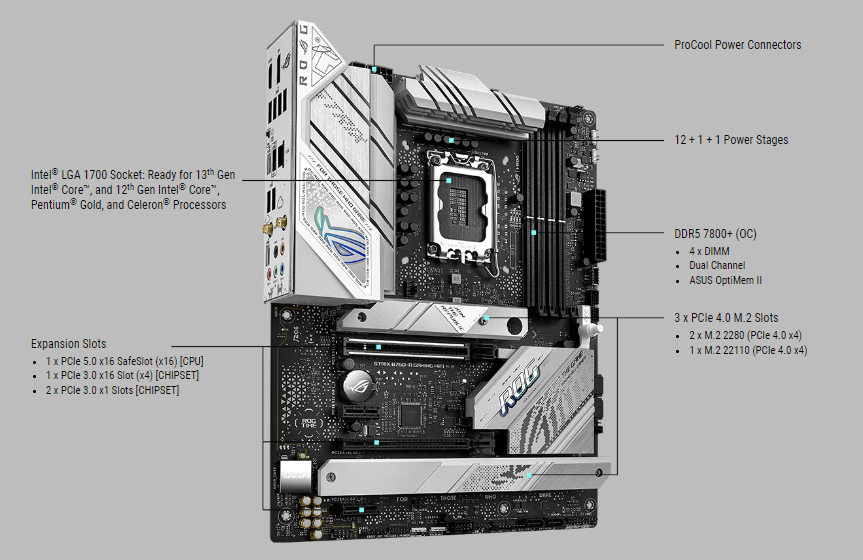

PERFORMANCE
 3-1_1703399557.png)

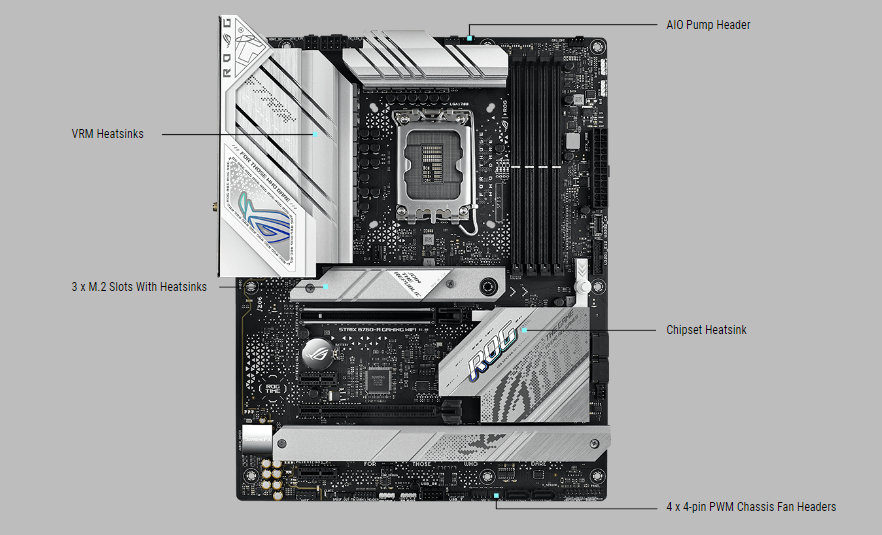

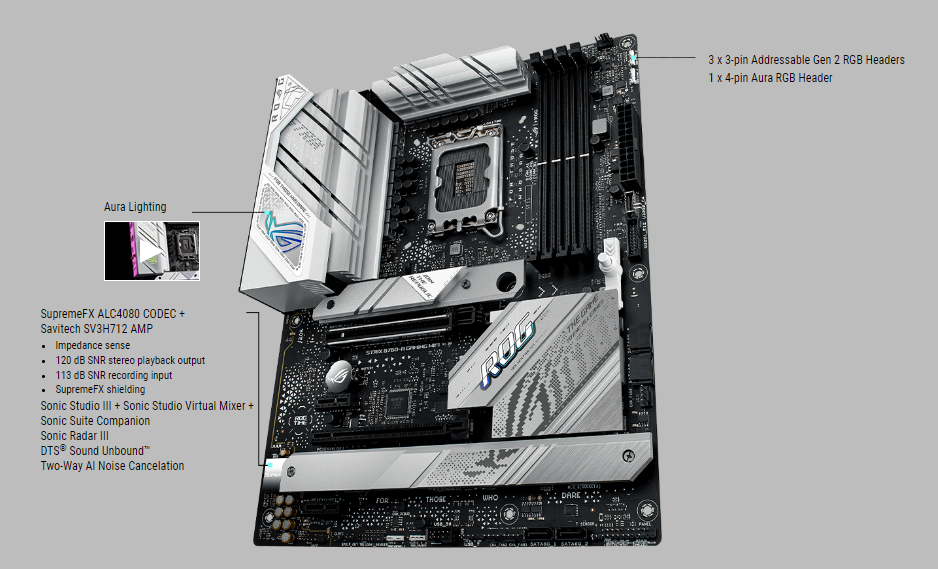

COOLING
 3-3_1703399557.png)
GAMING IMMERSION
 3-2_1703399557.png)

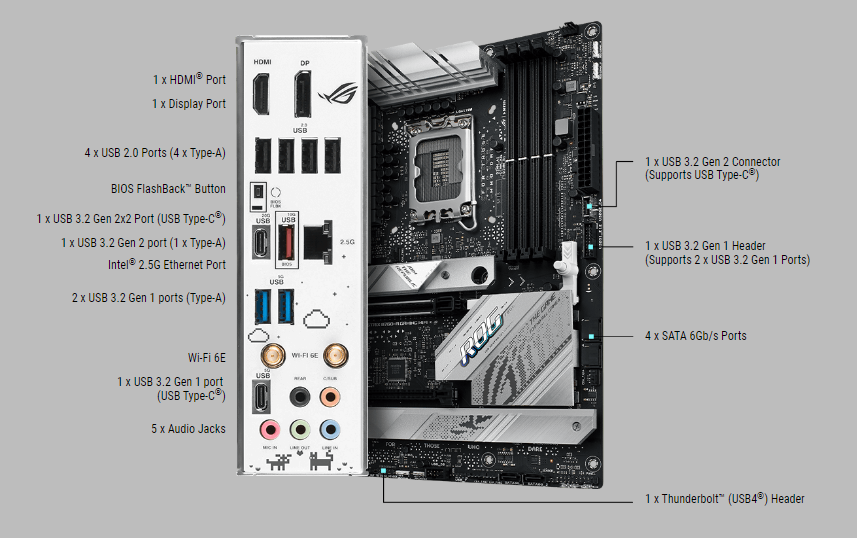

CONNECTIVITY
 3-4_1703399557.png)
ALL-ROUND PERFORMANCE
The neat aesthetics of the Strix B760-A were no distraction when crafting this motherboard’s power delivery and thermal arrays. You’ll get a fully fledged gaming experience and then some with this beast.

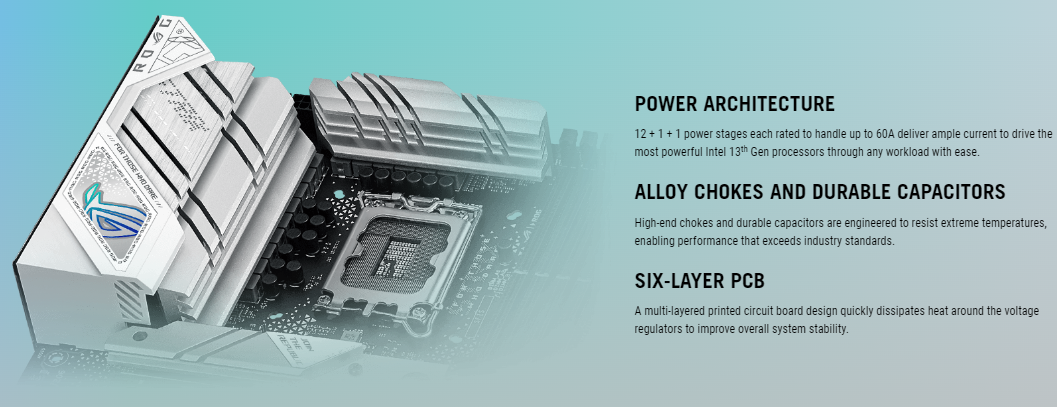

POWER DESIGN
 4-1_1703399557.png)

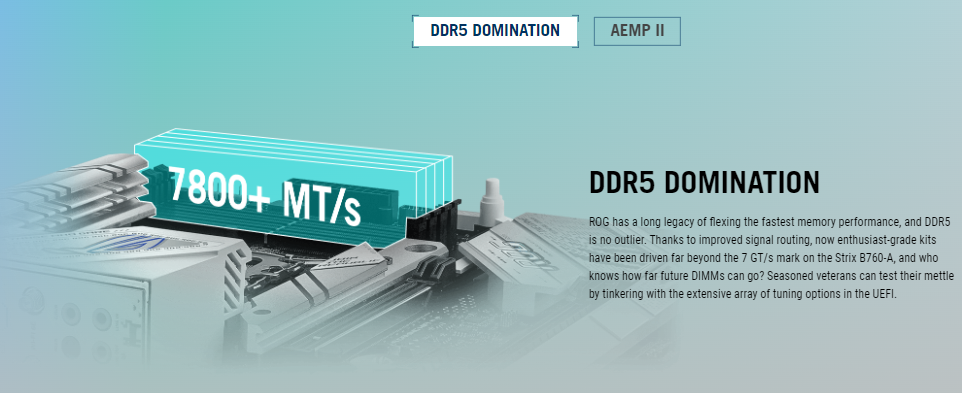

MEMORY
 4-2_1703399603.png)
AEMP II
ASUS Enhanced Memory Profile (AEMP) is an exclusive hardware and firmware solution to overclock generic memory modules. AEMP’s second version allows for automatic tuning of kits during system startup and leverages the PCB trace optimizations of the Strix B760-A to push frequencies higher than ever before. AEMP II can even overclock mixed kits in a quad-DIMM arrangement, and the vast library of support now extends to nearly every DDR5 module that does not otherwise have XMP support.

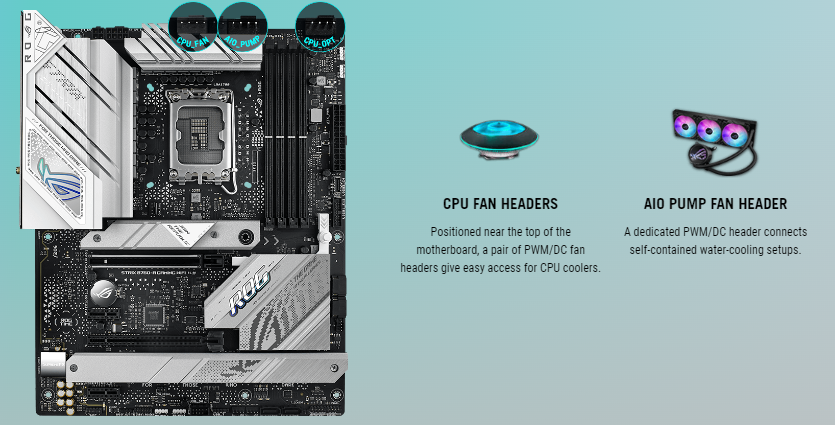

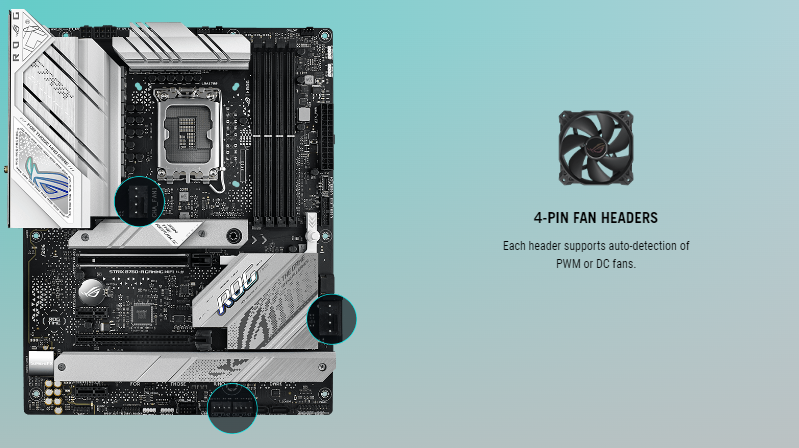

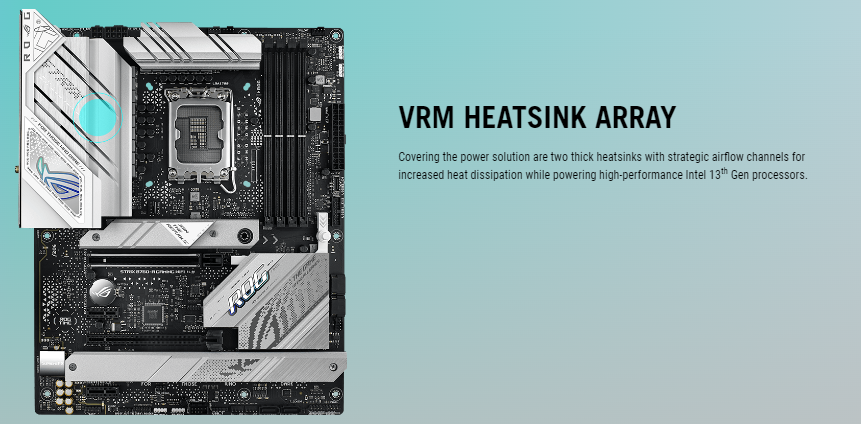

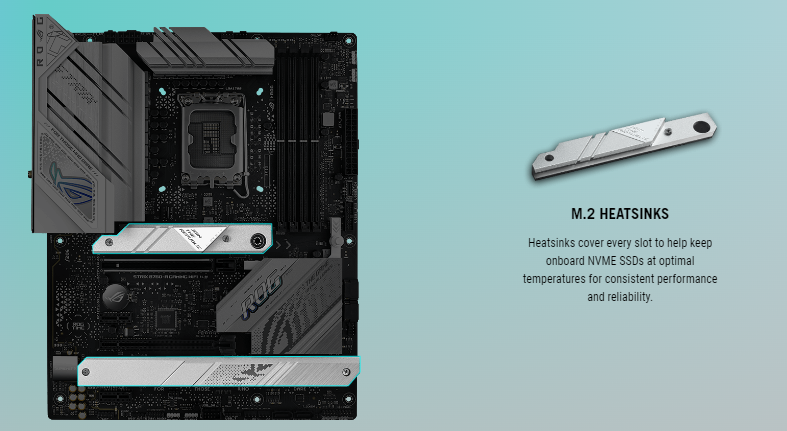

COOLING
 4-3_1703399603.png)
 4-4_1703399603.png)
 4-5_1703399603.png)
 4-6_1703399603.png)

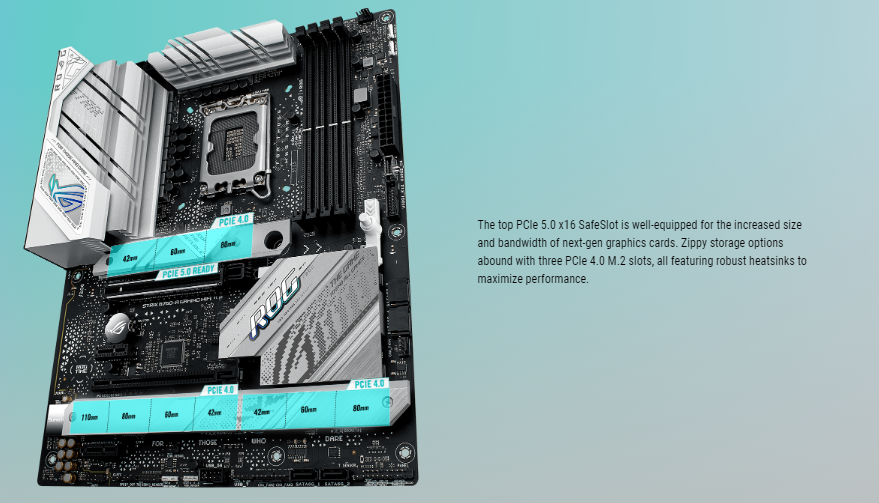

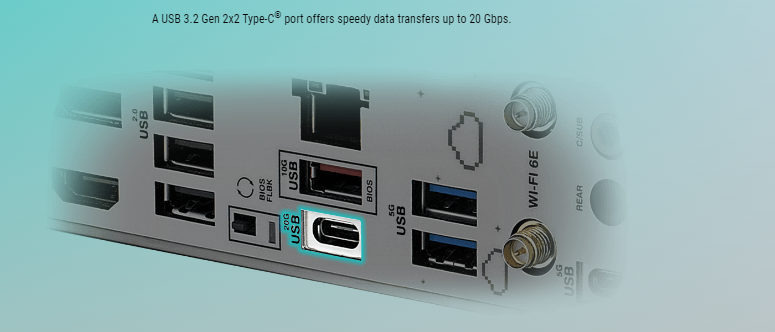

LEADING CONNECTIVITY
The Strix B760-A is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.
 5-1_1703399603.png)
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
Intel 2.5G Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.
 5-2_1703399603.png)

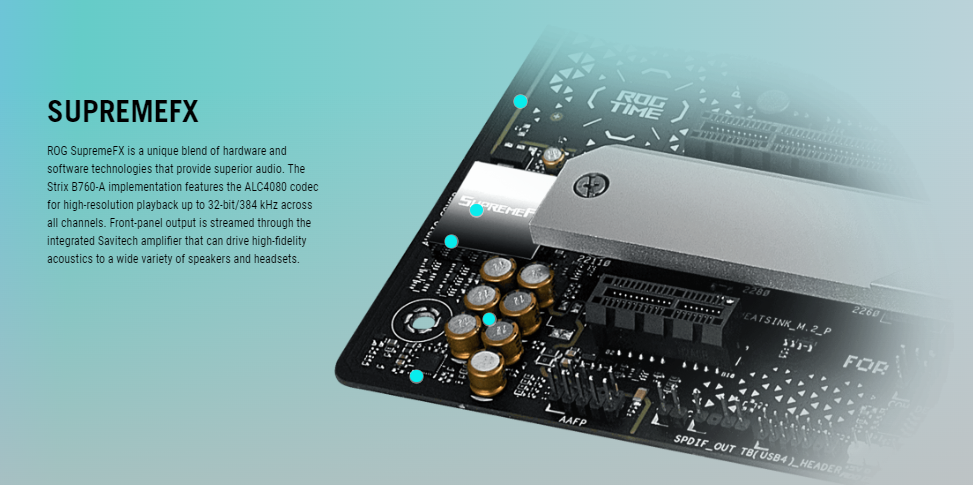

AUDIO
 5-3_1703399603.png)
PLAY IN STYLE
Bold aesthetics and Aura Sync RGB controls let the ROG Strix B760-A shine in every build.

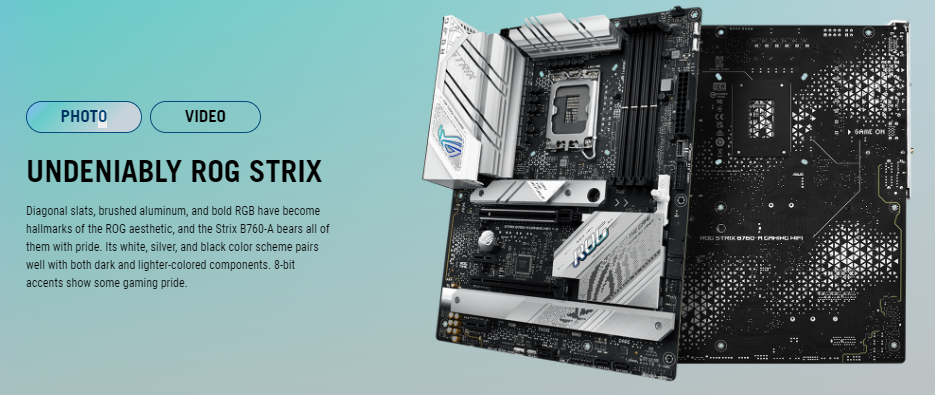

ID DESIGN
 6-1_1703399603.png)

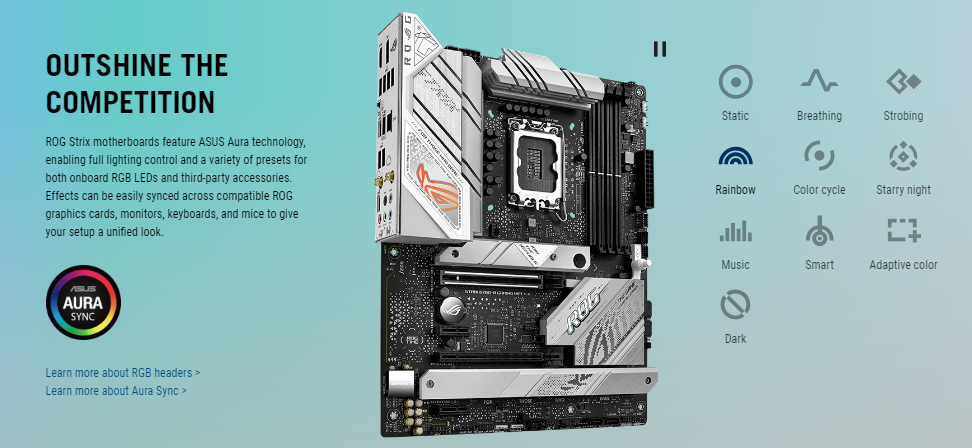

AURA SYNC
 6-2_1703399603.png)

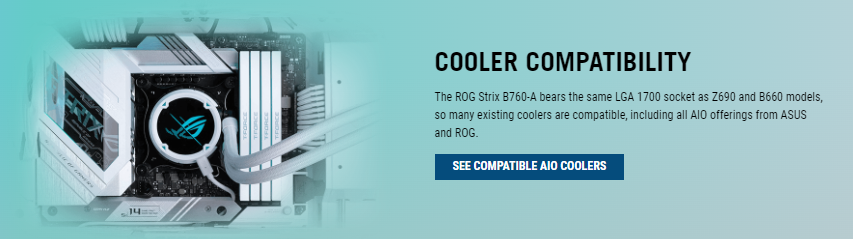

COMPATIBILITY
 6-3_1703399603.png)
ECOSYSTEM
 6-4_1703399603.png)
SOFTWARE UTILITIES
A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.
INTELLIGENT CONTROL
 7_1703399603.png)
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
- ADVANCED MODE
- EZ MODE
- MEMTEST86
AI Suite 3 gives you digital power controls and hardware monitoring directly from the OS. Intuitive sliders and dials let you take command of your VRM, including tweaking load-line calibration, switching frequency, and voltage droop, all while tracking CPU vitals and fan speeds in real time.
GAMING AUDIO
- Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
- Through the pre-loaded DTS® Sound Unbound™ app, the ROG Strix B760-A envelops you in rich audio, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Microsoft spatial sound technology, DTS Sound Unbound creates an audial 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep, or other sound in your virtual environment.
AIDA64 EXTREME
The ROG Strix B760-A includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers
ARMOURY CRATE
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.
What is the price of Asus ROG STRIX B760-A GAMING (Wi-Fi 6E) Motherboard In Bangladesh?
The price of Asus ROG STRIX B760-A GAMING (Wi-Fi 6E) Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Asus ROG STRIX B760-A GAMING (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
