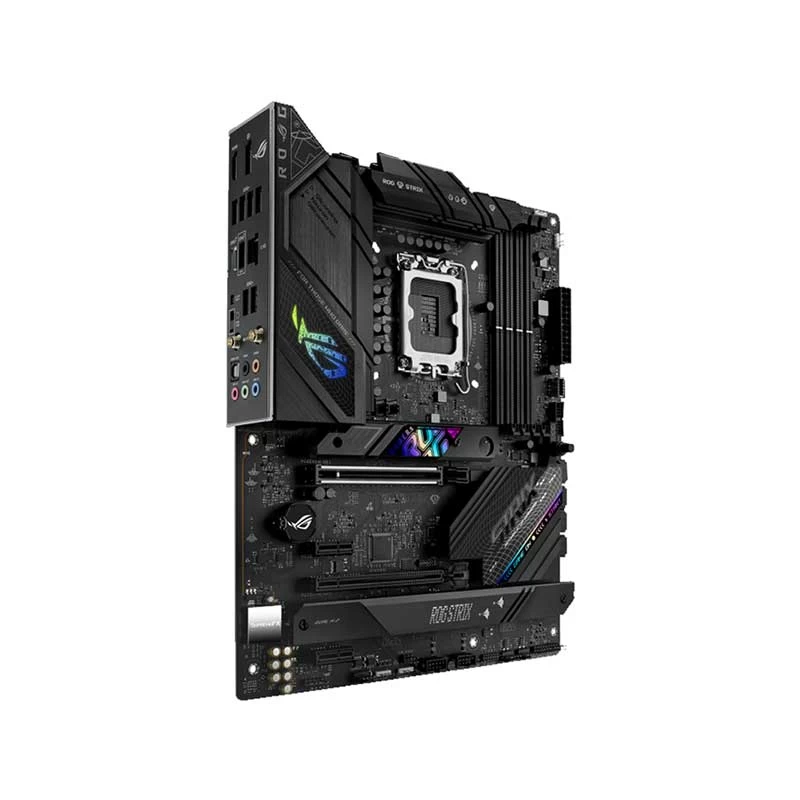

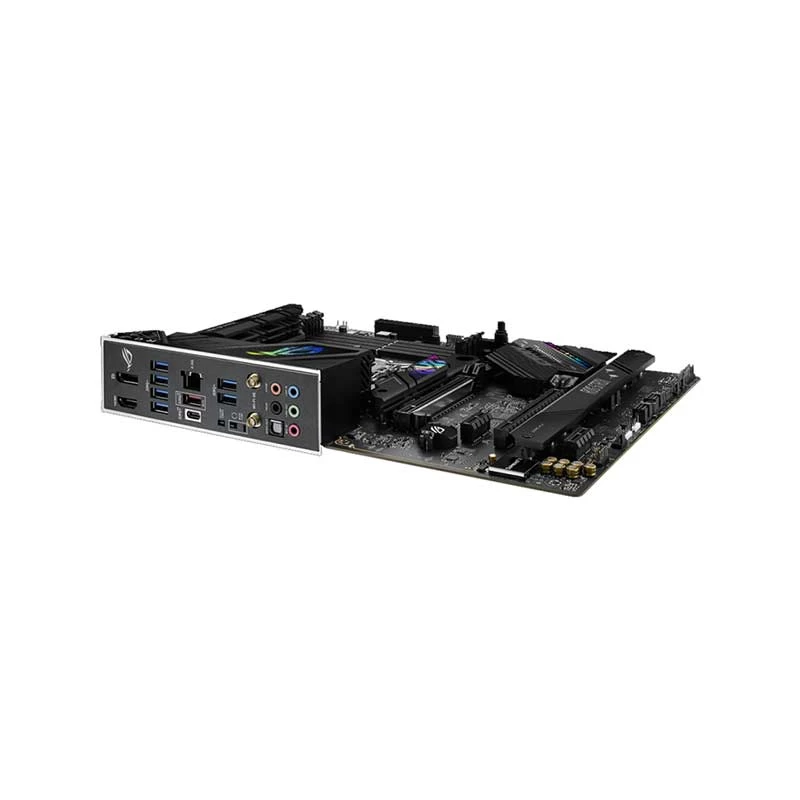

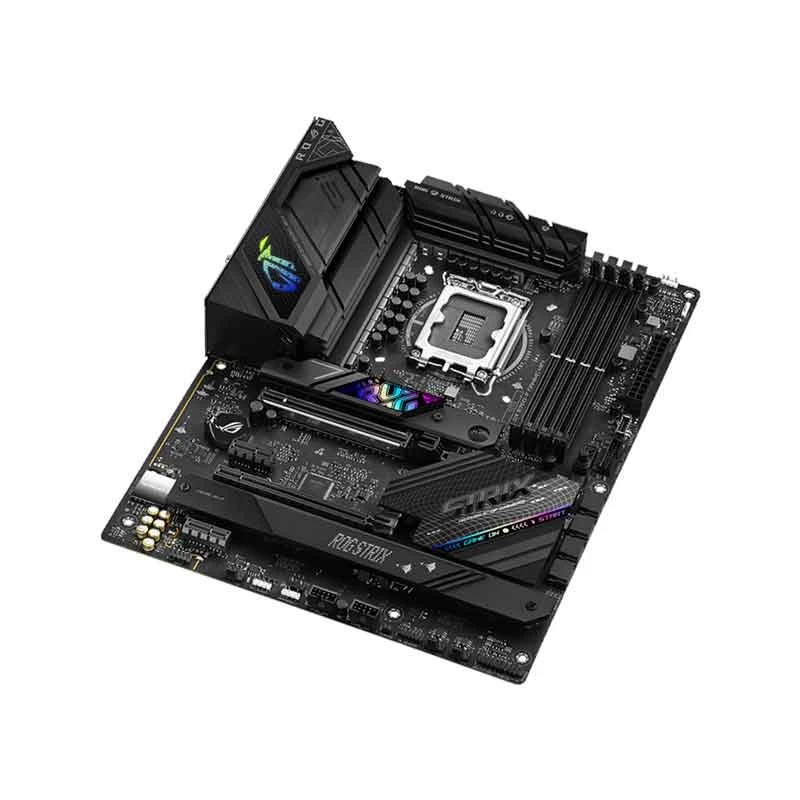

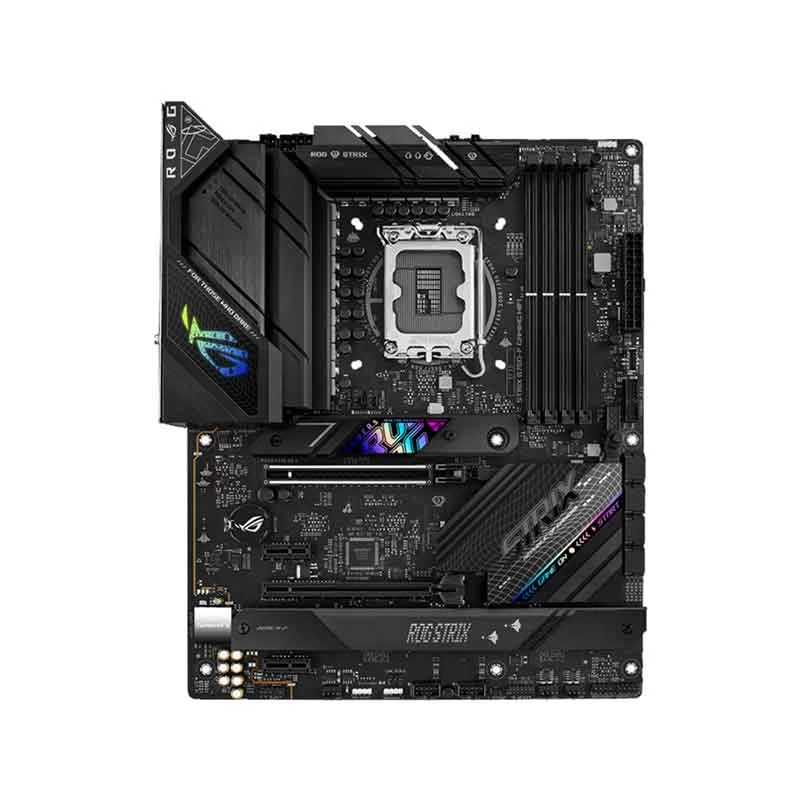

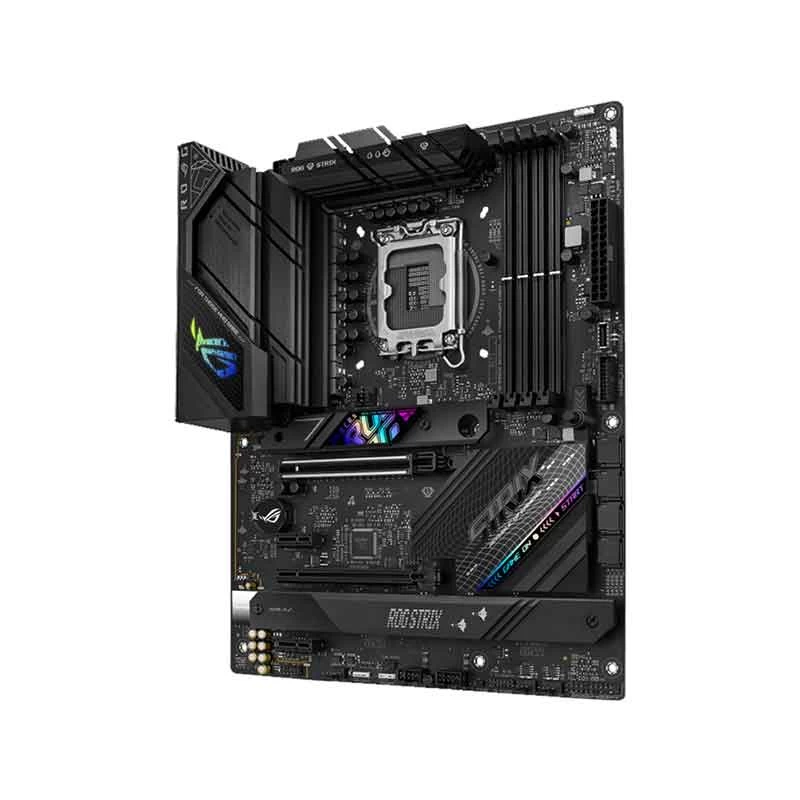

Asus ROG STRIX B760-F GAMING (Wi-Fi 6E) DDR5 Intel Motherboard
Product Id: 02.01.006.438
Brand
Asus
Regular Price Tk 41,880
Monthly EMI Tk 3,490
Special Price Tk 38,800
Quick Overview
- Chipset - Intel B760
- Memory Max. - 128GB
- Memory Slot - 4
- Sockets Supported - LGA1700
- Supported CPU - 13th/14th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors.
- Generation - 12th/13th/14th
General
Brand
Asus
Model
Asus ROG STRIX B760-F GAMING (Wi-Fi 6E)
Body Color
Black
CPU
Chipset Brand
Intel
Chipset
Intel B760
Sockets Supported
LGA1700
Built-in Processor
No
Supported CPU
13th/14th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors.
Generation
12th/13th/14th
Memory Support
Memory Type
DDR5
Memory MHz
7800(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz Non-ECC, Un-buffered Memory
Memory Channel
Dual
Memory Slot
4
Memory Slot (Additional Info)
4 x DIMM
Memory Max.
128GB
Memory Max. (Additional Info)
Max. 128GB, DDR5
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
3
M.2/SSD Expansion Slot Details
3 x M.2, ((1 x M.2, type 2242/2260/2280/22110),(2 x M.2, type 2242/2260/2280))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 3.0 x16 ,2 x PCIe 3.0 x1
Audio & Video
Audio Chipset
ROG SupremeFX High Definition Audio CODEC ALC4080
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Intel 2.5Gb Ethernet
WiFi
Yes
WiFi Technology
Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Bluetooth
Bluetooth 5.3
Ports
USB Port
1 x USB 3.2 Gen 2x2, 1 x USB 3.2 Gen 2, 6 x USB 3.2 Gen 1
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
4
Thunderbolt
1
TPM Port
No
COM Port
No
Technical Info
DirectX Support
No
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
RGB
RGB Sync
Aura RGB
RGB Connector
1 x Aura RGB header
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
256 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 10 / 11
Compatible Products
LGA1700 Socket 12th, 13th & 14th Gen Intel Processor
Warranty
Warranty
3 Year
Warranty Details
3 Years Replacement Warranty
Additional Info
Feature

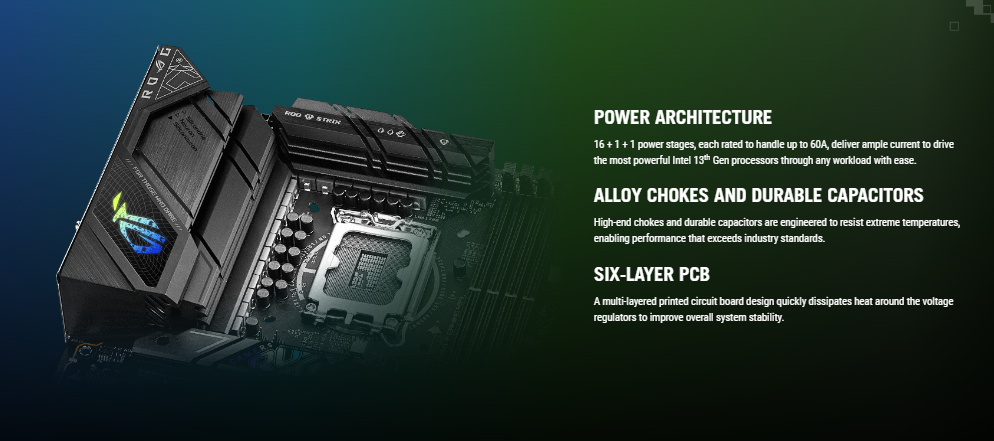

POWER ARCHITECTURE: 16 + 1 power stages, each rated to 60A, deliver ample current to drive the most powerful Intel 12th/13th/14th Gen processors through any workload with ease. ALLOY CHOKES AND DURABLE CAPACITORS. High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards. SIX-LAYER PCB: A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.
Others
Leap into the future with the ROG Strix B760-F, a fantastic upgrade into 12th/13th/14th Gen with its dominant power solution and best-in-class DDR5 speeds. Its next-gen PCIe 5.0 slot gives overwhelming graphics card throughput for maximum FPS, and you can minimize lag via hyperfast WiFi 6E or 2.5G LAN. All these perks come alongside distinctive rainbow stripes and retro accents so you can show off your gamer pride.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus ROG STRIX B760-F GAMING (Wi-Fi 6E) Motherboard In Bangladesh
 1_1703136762.png)

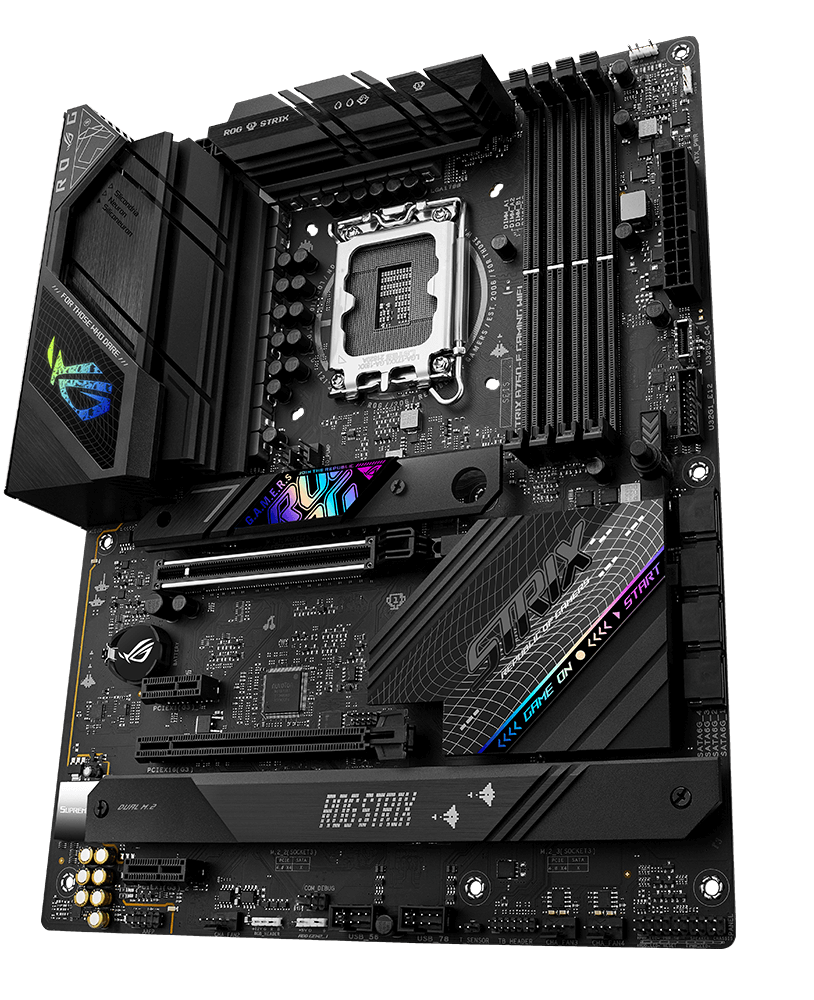

ROG STRIX B760-F GAMING WIFI
Leap into the future with the ROG Strix B760-F, a fantastic upgrade into 13th Gen with its dominant power solution and best-in-class DDR5 speeds. Its next-gen PCIe 5.0 slot gives overwhelming graphics card throughput for maximum FPS, and you can minimize lag via hyperfast WiFi 6E or 2.5G LAN. All these perks come alongside distinctive rainbow stripes and retro accents so you can show off your gamer pride.
DIY-FRIENDLY FEATURES
PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.
CLEAR CMOS
The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.
BIOS FLASHBACK™
BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
Q-LED
Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.

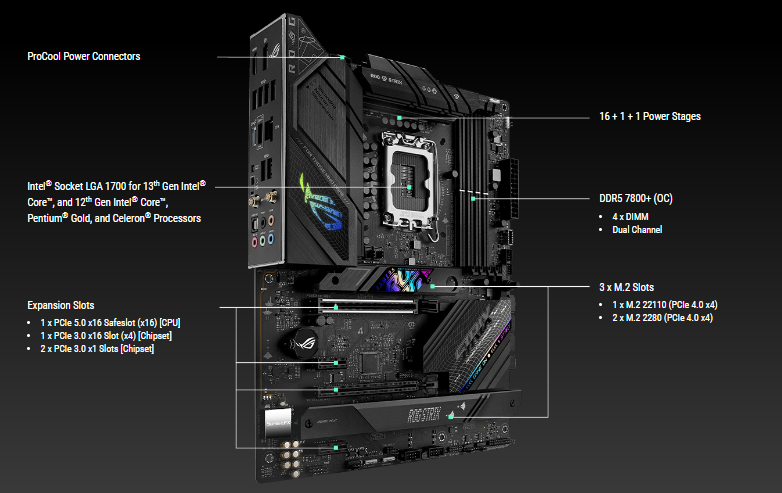

PERFORMANCE
 2_1703136762.png)

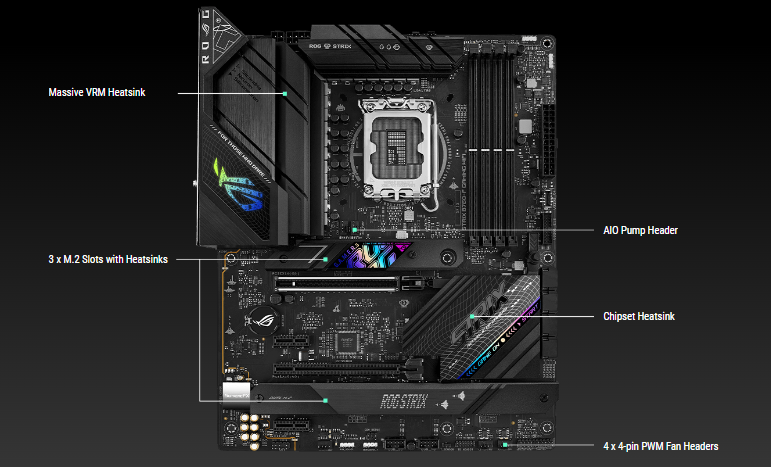

COOLING
 3_1703136762.png)

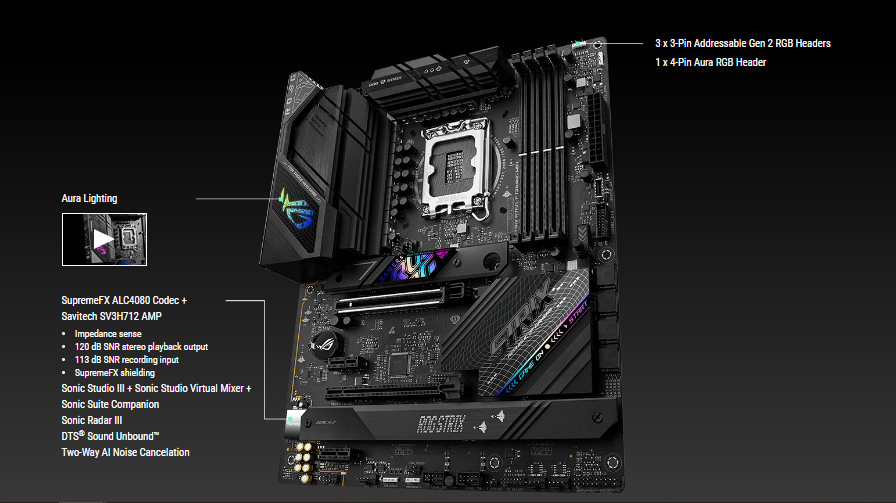

GAMING IMMERSION
 4_1703136762.png)

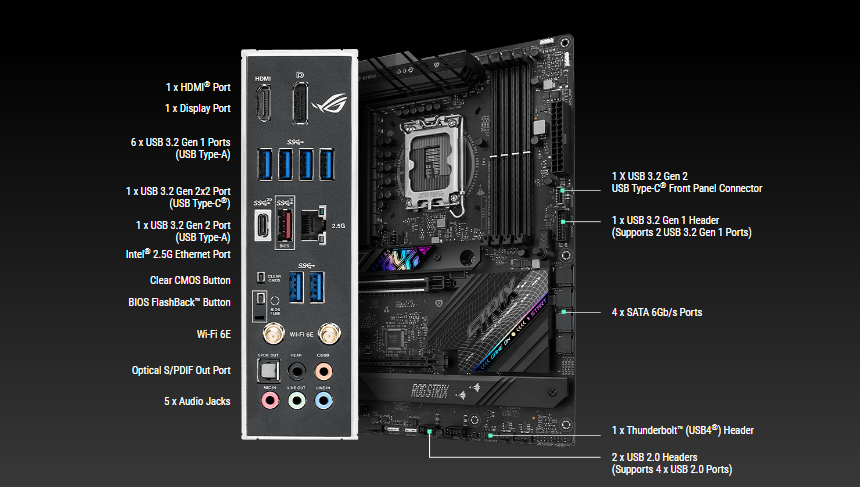

CONNECTIVITY
 5_1703136762.png)

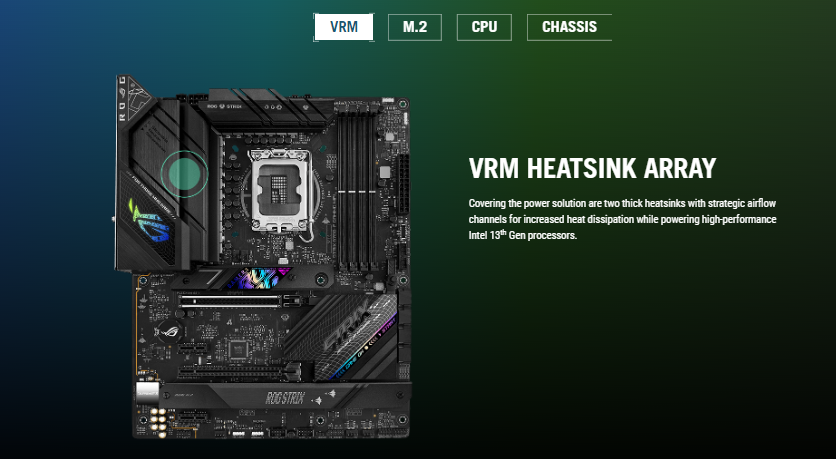

ALL-ROUND PERFORMANCE
With a powerful VRM and thick stacked heatsinks, the ROG Strix B760-F is ready for any chip in the Intel 13th Gen lineup. Connected devices can run at incredible speeds as well, thanks to immense PCIe bandwidth.
 6_1703136762.png)

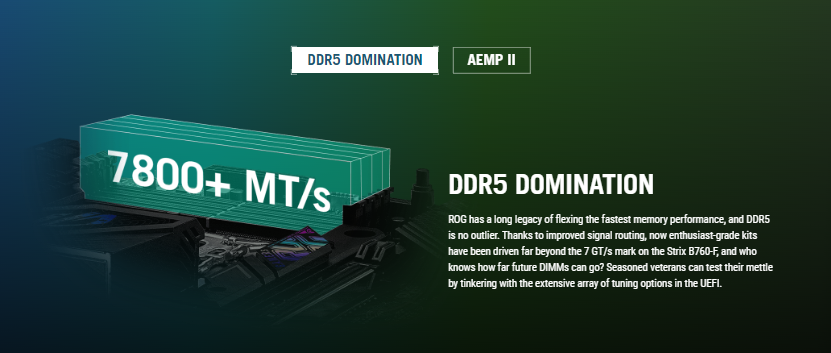

 7_1703136762.png)
 8_1703136762.png)

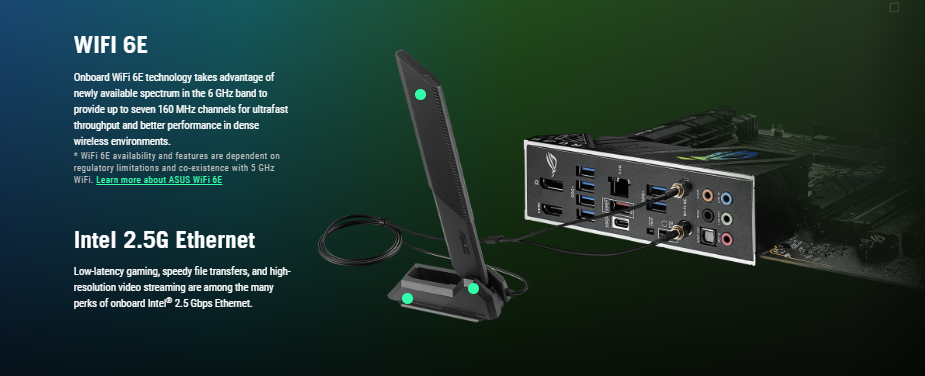

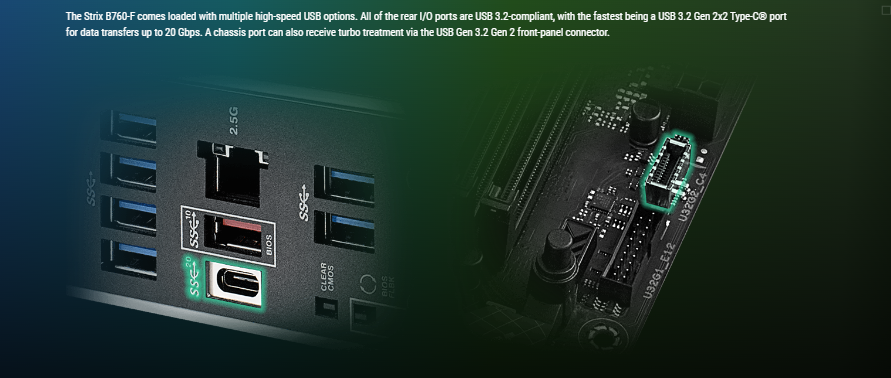

LEADING CONNECTIVITY
Supersmooth networking, extensive USB bandwidth, and immersive audio all come together to give the ROG Strix B760-F a robust connectivity package.
 9_1703136762.png)
 10_1703136762.png)

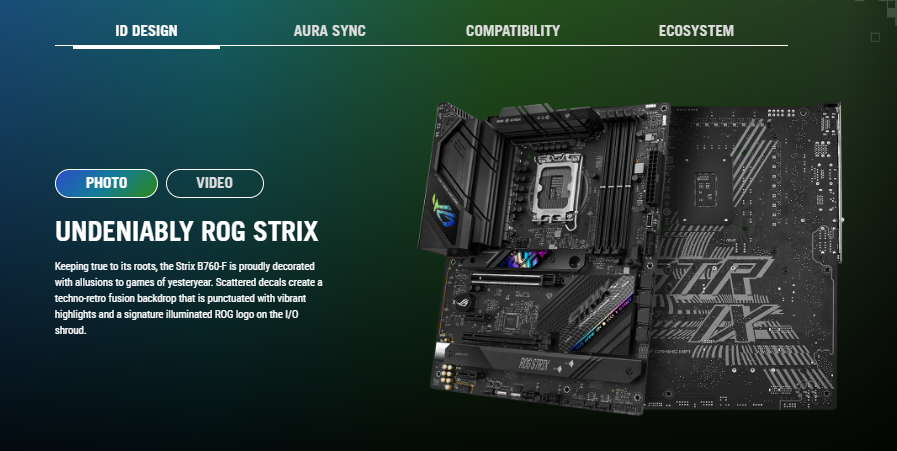

PLAY IN STYLE
With colorful accents, Aura Sync lighting, and a sleek black PCB, the ROG Strix B760-F gives you a bold start to your rig, especially when complemented by similarly vibrant products in the ROG ecosystem.
 11_1703136762.png)

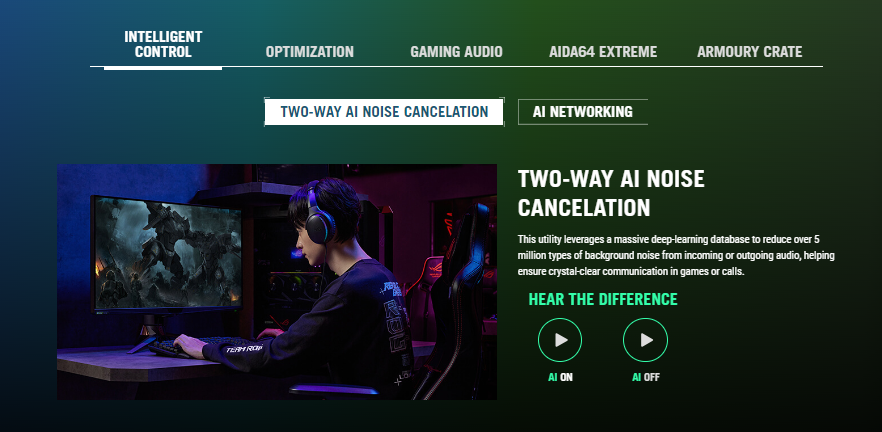

SOFTWARE UTILITIES
Take command of your system through a bevy of ROG-exclusive tools that let you maximize performance and customize your experience.
 12_1703136762.png)
