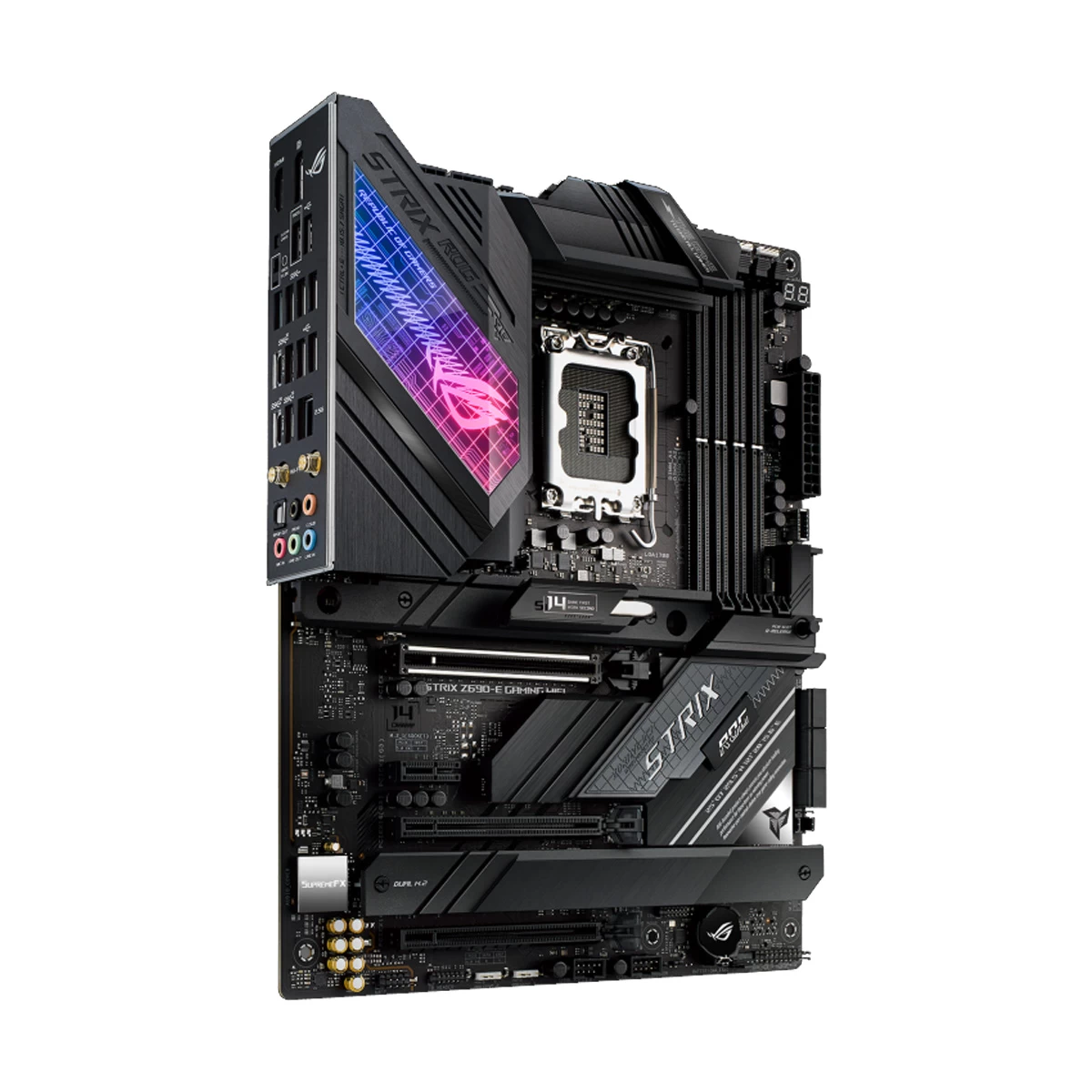

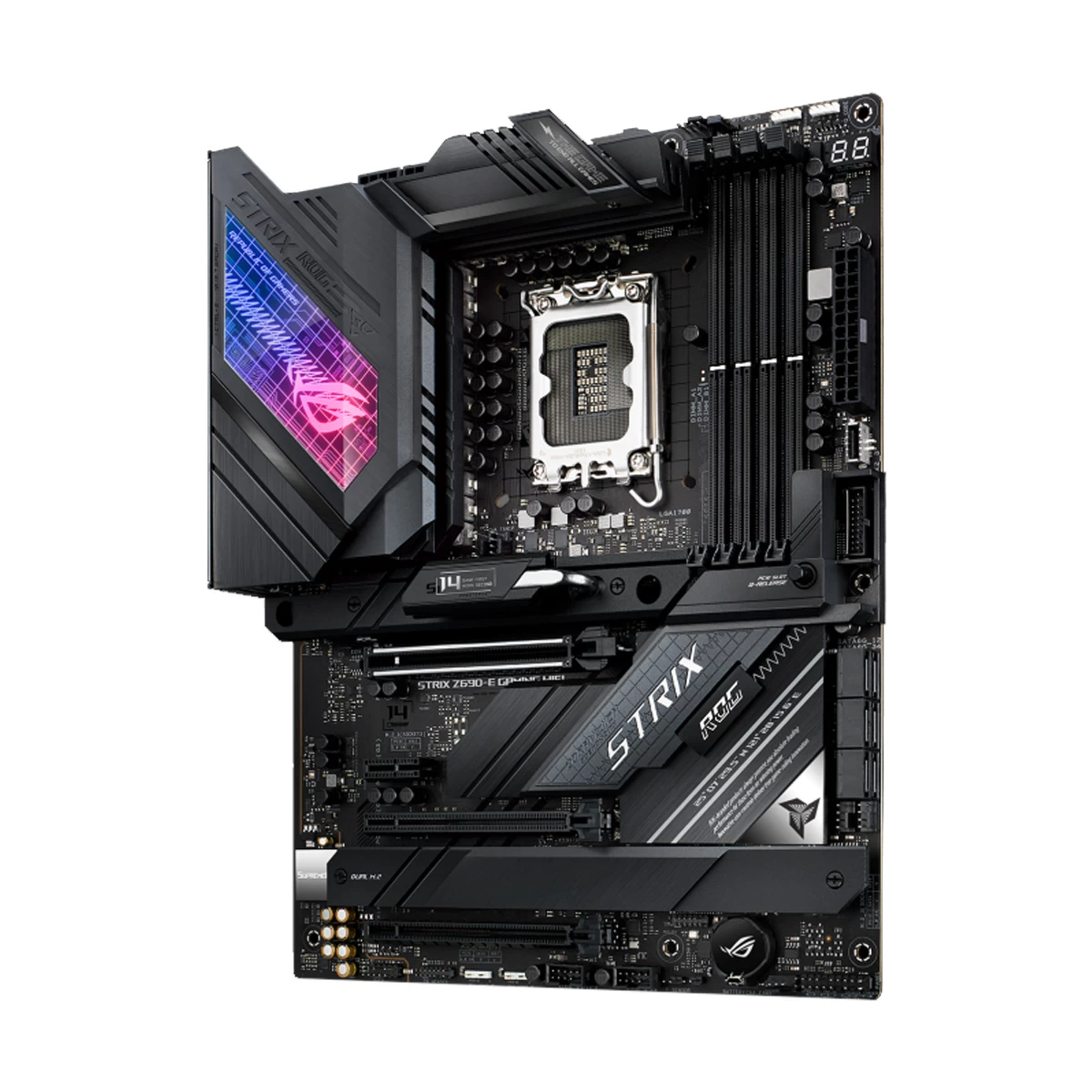

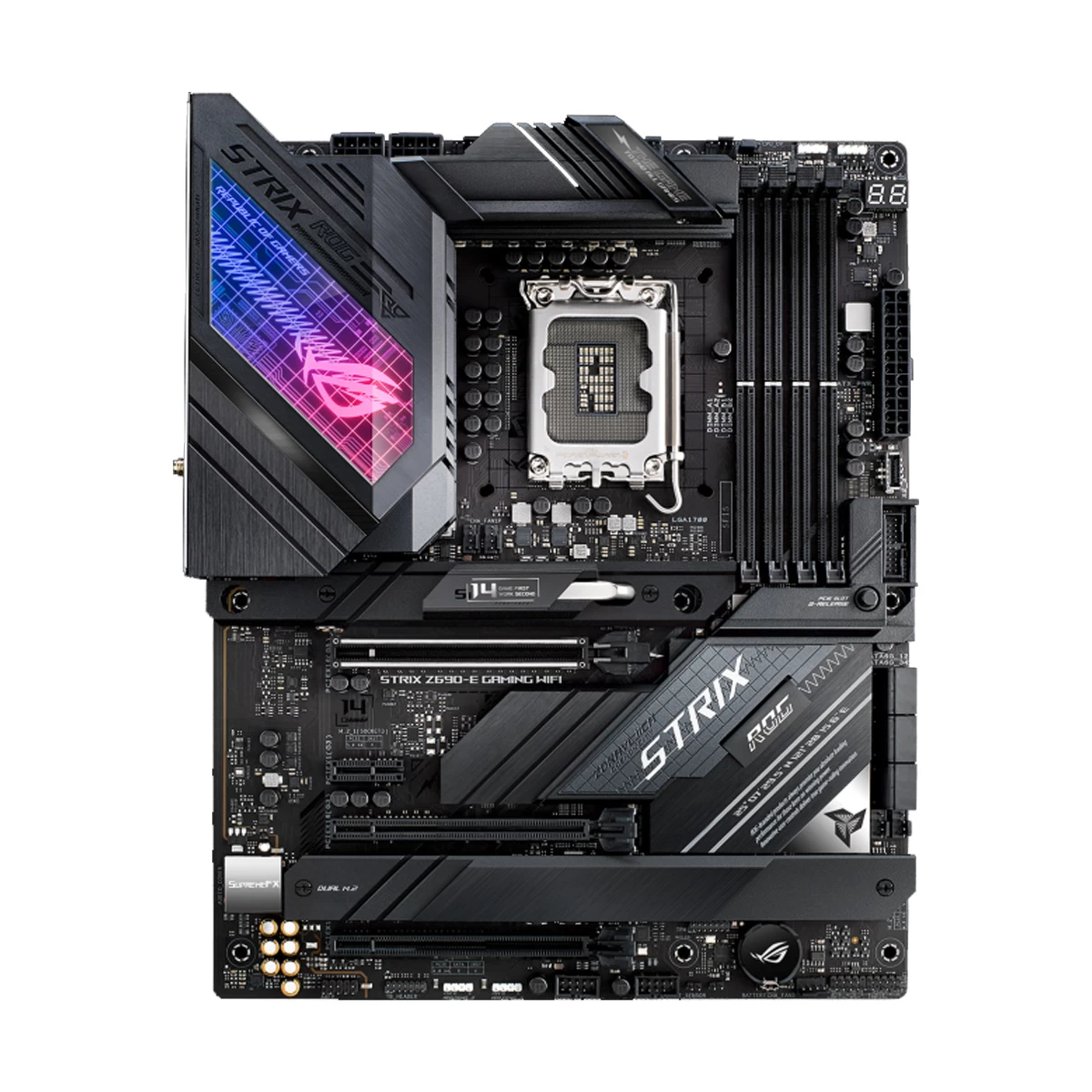

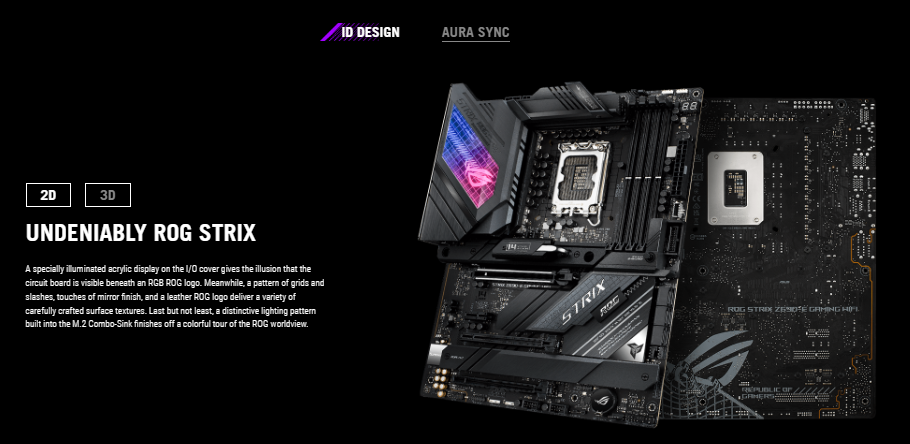

Asus ROG STRIX Z690-E GAMING (Wi-Fi 6E) DDR5 12th/13th Gen Intel LGA1700 Socket Motherboard
Product Id: 02.01.006.368
Brand
Asus
Quick Overview
- Chipset - Intel Z690
- Sockets Supported - LGA1700
- Supported CPU - 12th/13th Gen Intel Core Processors & Pentium Gold and Celeron Processors
- Generation - 12th/13th
- Memory Slot - 4
- Memory Max. - 128GB
- Back-Connect Design - No
Brand
Asus
Model
Asus ROG STRIX Z690-E GAMING (Wi-Fi 6E)
Chipset
Intel Z690
Sockets Supported
LGA1700
Built-in Processor
No
Generation
12th/13th
Back-Connect Design
No
Memory Type
DDR5
Memory Slot
4
Memory Max.
128GB
Optane Memory Support
No
Graphics
Integrated
Graphics Chipset
Integrated with Processor
M.2/SSD Expansion Slot
3
WiFi
Yes
Bluetooth
Bluetooth 5.2
Form Factor
ATX
Supported Operating System
Windows 10/11
Body Color
Black
Warranty Details
3 year
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus ROG STRIX Z690-E GAMING (Wi-Fi 6E) Motherboard In Bangladesh
ROG STRIX Z690-E GAMING WIFI

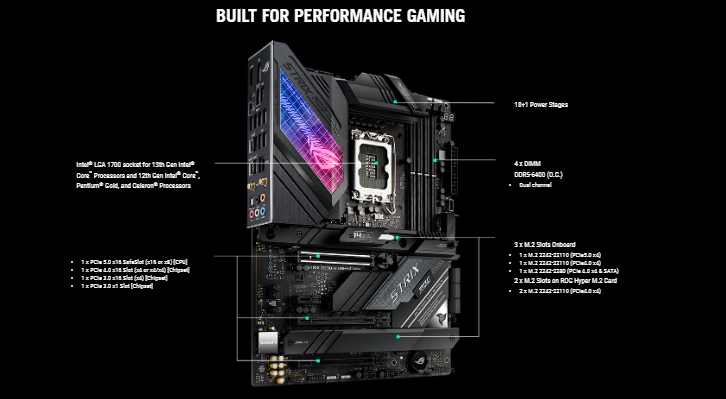

Intel® Z690 LGA 1700 ATX motherboard with PCIe® 5.0, 18+1 power stages, DDR5, Two-Way AI Noise Cancelation, WiFi 6E, Intel® 2.5 Gb Ethernet, five M.2 slots with heatsinks (including two on the bundled ROG Hyper M.2 card), PCIe® 5.0 NVMe® SSD support, M.2 Combo-Sink, M.2 backplate, PCIe® Slot Q-Release, USB 3.2 Gen 2x2 Type-C®, SATA and Aura Sync RGB lighting
- Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ Processors and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
- Optimal Power Solution: 18+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, an M.2 Combo-sink for PCIe® 5.0 M.2 slot and M.2 heatsinks for two M.2 slots

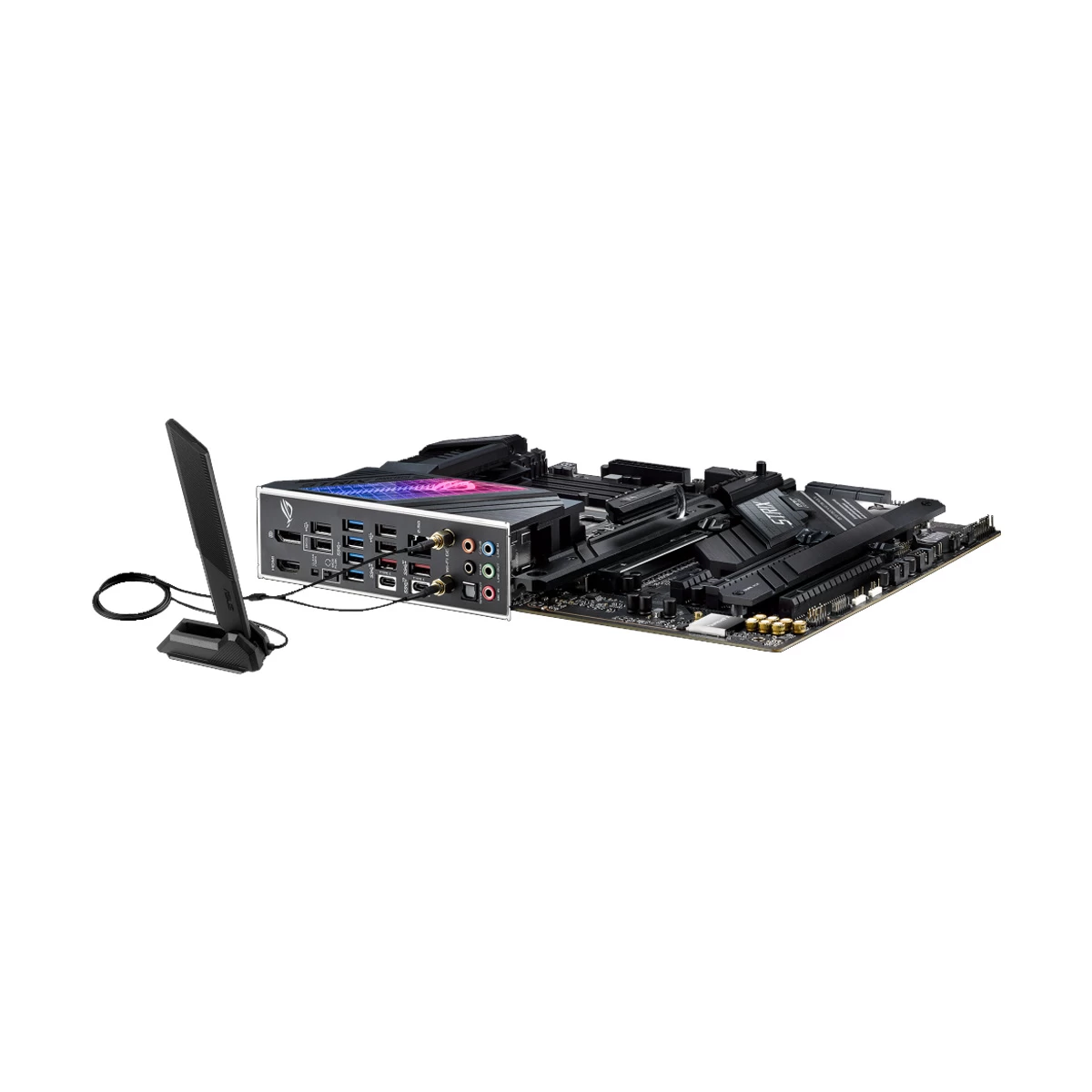

- High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, five M.2 slots (including two on the bundled ROG Hyper M.2 card) plus USB 3.2 Gen 2x2 Type-C®
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: PCIe® Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and three addressable Gen 2 headers
- Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
- Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86
ALL-ROUND PERFORMANCE
ROG Strix Z690-E Gaming WiFi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings. And Two-Way AI Noise Cancelation helps ensure crystal-clear in-game communication.
POWER DESIGN
Digital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs.
- POWER STAGES - 18+1 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering power and efficiency that the latest Intel processors can take full advantage of.
- ALLOY CHOKES AND DURABLE CAPACITORS - High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
- 8+8 PIN PROCOOL II POWER CONNECTOR - ASUS ProCool II connectors are built to tight specifications to ensure full contact with power supply cable wiring. A metal sheath improves heat dissipation, and low electrical impedance helps prevent hotspots and bolsters reliability.
- DIGI+ POWER CONTROL - The Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultrasmooth and clean power delivery to the CPU.
- EIGHT-LAYER PCB - Multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
LEADING CONNECTIVITIY

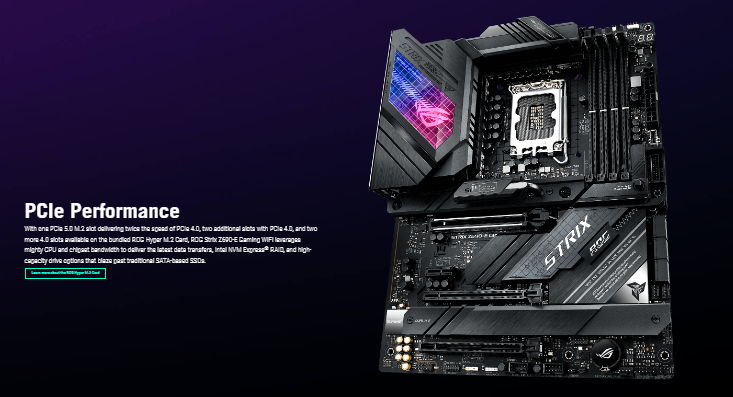

ROG Strix Z690-E Gaming WiFi delivers wickedly fast connectivity, supersmooth online experiences and ultrafast data transfers, including onboard PCIe 5.0 M.2 support and a ROG Hyper M.2 Card for potentially huge storage capacity. Add alongside those perks, we’ve managed to cram in an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.
DDR5 Overclocking Strength - ASUS Enhanced Memory Profile
Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, the ROG Strix Z690-E Gaming WiFi breaks performance limits with a stacked suite of overclocking parameters for both high-speed kits and entry-level memory modules that have a locked power management integrated circuit (PMIC):
New to overclocking? Click here to learn about the ASUS-exclusive AEMP technology
- A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing users to sidestep the default 1.1-volt limit and push frequency and timings to the max.
- Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. ROG motherboards leverage special onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.
PLAY IN STYLE
Pair ROG Strix Z690-E Gaming WiFi with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
ROG GIVES YOU MORE

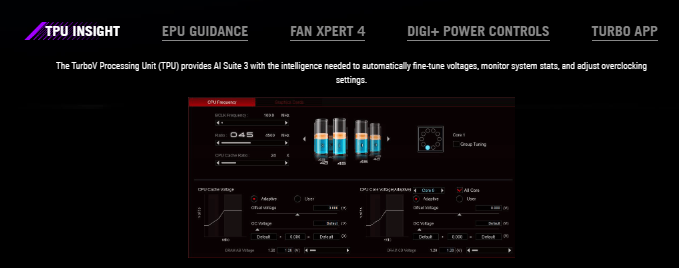

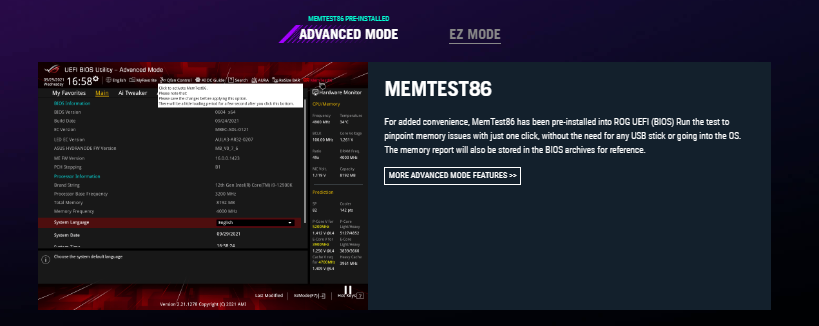

ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. To further aid system setup and performance tuning, the highly acclaimed AIDA64 and MemTest86 utilities have also been added to the mix.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
5-WAY OPTIMIZATION
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
What is the price of Asus ROG STRIX Z690-E GAMING (Wi-Fi 6E) Motherboard In Bangladesh?
The price of Asus ROG STRIX Z690-E GAMING (Wi-Fi 6E) Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Asus ROG STRIX Z690-E GAMING (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
