N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.

Asus TUF GAMING B760-PLUS (Wi-Fi 6) DDR5 Motherboard

Product Id: 02.01.006.444

Brand Asus

Regular Price Tk 31,680 Monthly EMI Tk 2,640
Special Price Tk 29,400

Quick Overview

  • Chipset - Intel B760
  • Sockets Supported - LGA1700
  • Supported CPU - 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
  • Generation - 12th/13th
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
Asus

Model
Asus TUF GAMING B760-PLUS (Wi-Fi 6)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B760

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors

Generation
12th/13th


Memory Support
Memory Type
DDR5

Memory MHz
7800(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz Non-ECC, Un-buffered Memory

Memory Channel
Dual

Memory Slot
4

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
3

M.2/SSD Expansion Slot Details
3 x M.2 (1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4), 1 x M.2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4), 1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4))


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCIe 5.0 x 16 (Intel 13th & 12th Gen Processors), 1 x PCIe 3.0 x 16, 2 x PCIe 3.0 x 1 (Intel B760 Chipset)


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 2.5Gb Ethernet

LAN Speed (Mbps)
10/100/1000/2500Mbps

WiFi
Yes

WiFi Technology
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Bluetooth
Bluetooth 5.2


Ports
USB Port
1 x USB 3.2 Gen Type-C, 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1 Type-A, 1 x USB 2.0 Type-A

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
2 x SATA

Thunderbolt
1

COM Port
1


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0/1/5/10

RGB Support
RGB

RGB Sync
Aura Sync

RGB Connector
1 x Aura RGB header

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
128 Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 11, 10

Compatible Products
Core i3, Core i5, Core i7, Core i9, Pentium Gold (12th Gen & 13th Gen)


Warranty
Warranty
3 Year

Warranty Details
3 Years Replacement Warranty


Additional Info
Feature

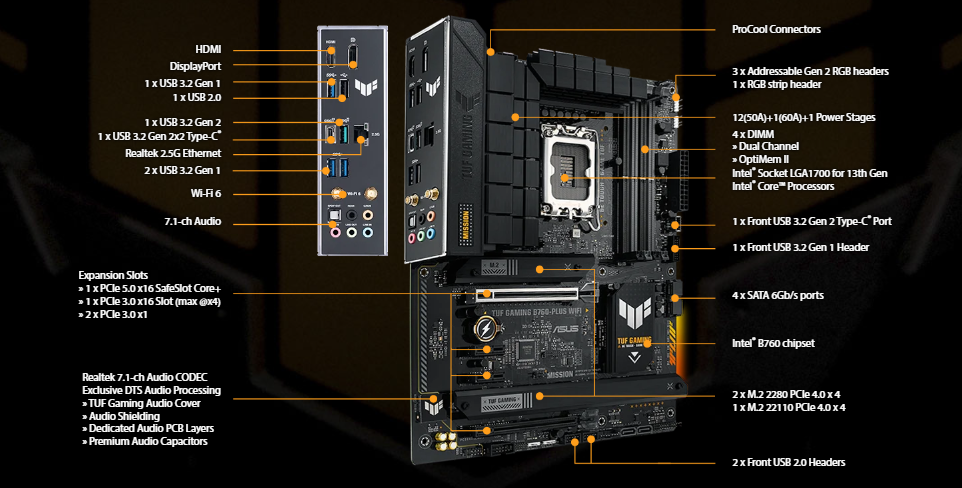

Asus Tuf Protection: Digi+ Vrm (- Digital Power Design With Drmos), Esd Guards, Tuf Languard, Overvoltage Protection, Safeslot Core+, Stainless-Steel Back I/O, Asus Q-Design, M.2 Q-Latch, Q-Dimm, Q-Led (Cpu [Red], Dram [Yellow], Vga [White], Boot Device [Yellow Green]), Q-Slot, Asus Thermal Solution, M.2 Heatsink, Vrm Heatsink Design, Asus Ez Diy, Cpu Socket Lever Protector, Procool, Pre-Mounted I/O Shield, Safeslot Core+, Safedimm, Software Features: ASUS Exclusive Software Armoury Crate: Aura Creator, Aura Sync, Fan Xpert 4, Power Saving, Two-Way AI Noise Cancellation, AI Suite 3, DIGI+ VRM, PC Cleaner, TUF GAMING CPU-Z, DTS Audio Processing, MyASUS, Norton 360 for Gamers, WinRAR.

Others
Internal I/O Connectors: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderbolt (USB4) header.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

QUESTION & ANSWER

Customer Questions
Q:
এইটা কি over clock করা যায়?
By Fardil Ahamed
A:
প্রিয় গ্রাহক, Asus TUF GAMING B760-PLUS (Wi-Fi 6) DDR5 Motherboard টি ওভারক্লক করা যাবে না, ধন্যবাদ!
By Ryans Computers Ltd. , 20 Feb 2024
Q:
Is it compatible with 14th gen processors?
By Hridoy Ahmed
A:
Dear Sir, Asus TUF GAMING B760-PLUS (Wi-Fi 6) DDR5 Motherboard will support Intel Core i7 14th Gen Raptor Lake Refresh 14700K processor, Thanks for your query!
By Ryans Computers Ltd. , 15 Feb 2024
Q:
Asus TUF GAMING B760-PLUS (Wi-Fi 6) DDR5 Motherboard Ai motherboard ki available hobe eid er por?
By Saikot
A:
প্রিয় গ্রাহক, এই প্রোডাক্ট টি বর্তমানে স্টক এ নেই, যখন ই স্টক এ আসবে পণ্যের বিবরণ, স্টক এবং প্রাইস আপডেট করে দেওয়া হবে, অনুগ্রহ করে আমাদের অফিসিয়াল ওয়েবসাইট এ চোখ রাখুন, ধন্যবাদ !
By Ryans Computers Ltd. , 25 Jun 2023
Your Question (Please don`t use any links, &, (, ), ?, /, +, $, # Symbols)

REVIEW

Customer Reviews
Nice product
By MD. MAHBUBUR RAHMAN . April, 2023
Good product
By MD.Shimul . April, 2023
so far its great
By Naimul Hasan . April, 2023
Good product
By Arafat Islam Sohag . April, 2023
It works correctly, I recommend
By Prince . April, 2023
Great for gamers and PC enthusiasts
By Sadman . April, 2023
Hope it will be stock in very soon.
By Sahad . April, 2023
Super Board
By Kazi Shahrier Rafid . April, 2023
Amazing motherboard ,great for gaming purpose
By Abul Hasem . April, 2023
