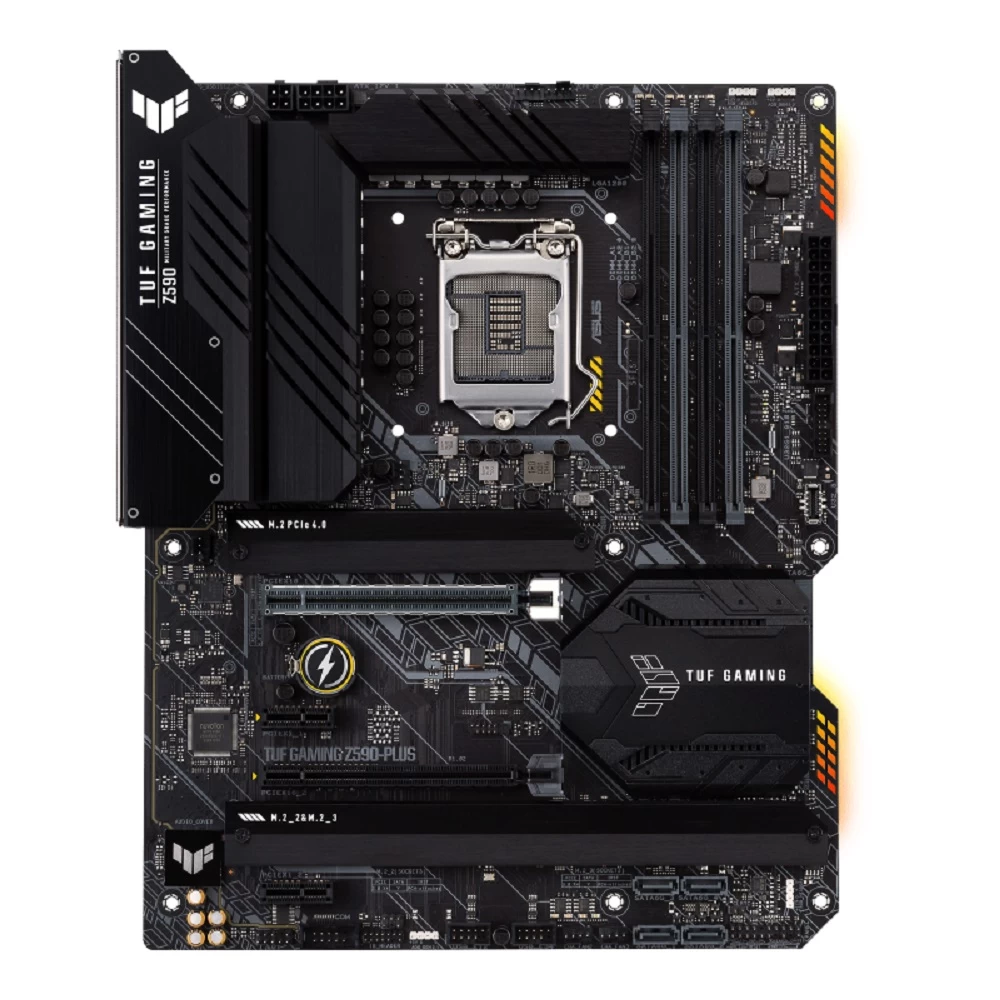

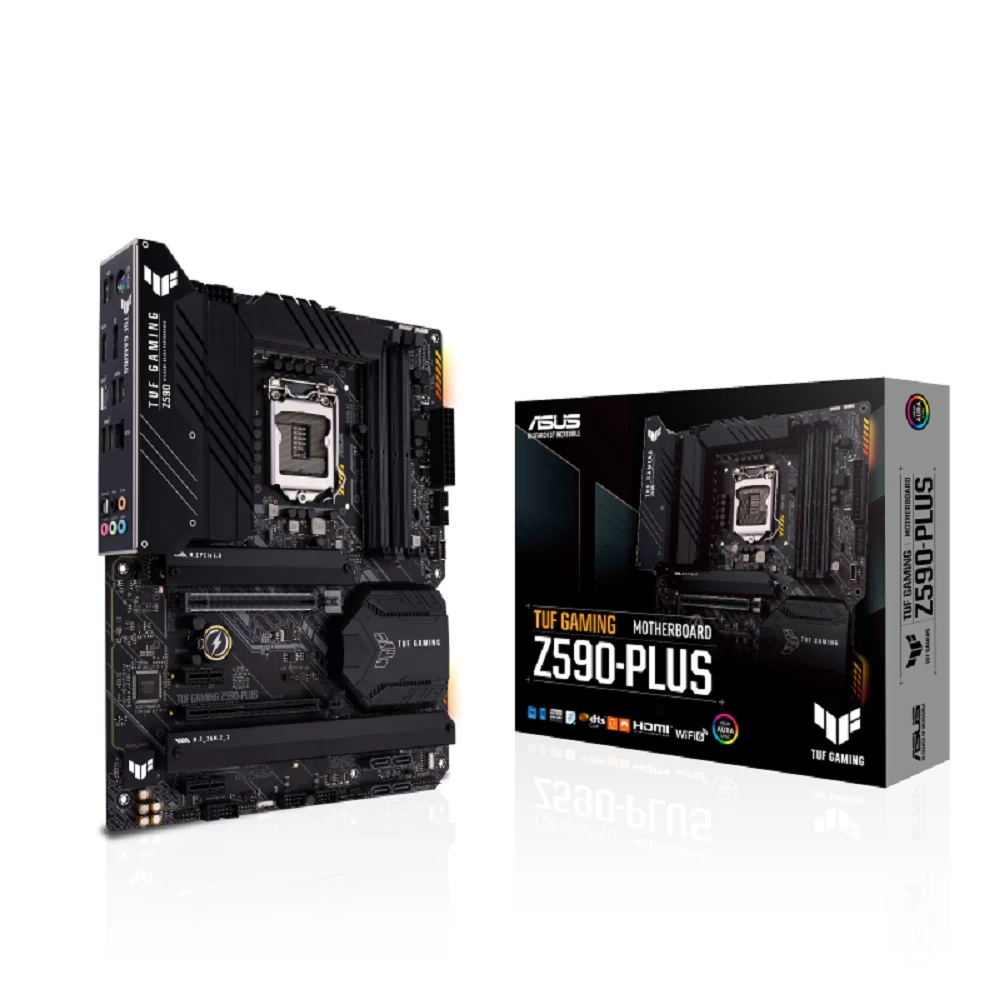

ASUS TUF Gaming Z590-PLUS DDR4 Motherboard (Bundle with PC)

Item: ASUS TUF Gaming Z590-PLUS DDR4 Motherboard (Bundle with PC)
Rating: 5
Author: Verified Buyer

1 reviews

Product Id: 02.01.006.358

This item is discontinued.

Quick Overview

Form Factor - ATX
Chipset - Intel Z590
Sockets Supported - LGA1200
Supported CPU - Intel Core, Pentium Gold and Celeron Processors
Generation - 10th/11th
Memory Slot - 4
Memory Max. - 128GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Asus

Model

Asus TUF GAMING Z590-PLUS

Chipset

Intel Z590

Sockets Supported

LGA1200

Built-in Processor

Generation

10th/11th

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

128GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated with Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

ATX

Supported Operating System

Windows 10

Body Color

Black

Warranty

3 year

General

Brand

Asus

Model

Asus TUF GAMING Z590-PLUS

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel Z590

Sockets Supported

LGA1200

Built-in Processor

Supported CPU

Intel Core, Pentium Gold and Celeron Processors

Generation

10th/11th

Memory Support

Memory Type

DDR4

Memory MHz

5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

4 x DIMM

Memory Max.

128GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

3 x M.2 slots (1 x M.2 type 2242/2260/2280/22110 PCIe 4.0 x4 mode), (1 x M.2 type 2242/2260/2280/22110 PCIe 3.0 x4 & SATA modes) (1 x M.2 type 2242/2260/2280 PCIe 3.0 x4 & SATA modes)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated with Processor

PCI Express Slot

1 x PCIe 4.0/3.0 x16 slot, 2 x PCIe 3.0 x1 slots

Audio & Video

Audio Chipset

Realtek ALC S1200A

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Intel I225-V 2.5Gb Ethernet

LAN Speed (Mbps)

10/100/1000/2500Mbps

WiFi

WiFi Technology

Not Applicable

Bluetooth

Ports

USB Port

1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

DirectX Support

Heatsink

Yes

FireWire

CrossFire Support

Sli Support

Raid Support

RGB Support

RGB

RGB Sync

Aura sync

RGB Connector

2 x AURA RGB headers

Approx. Power Consumption

90W

Form Factor

ATX

Bios Information

BIOS Type

192 (128+64) Mb Flash ROM

BIOS Model

UEFI AMI BIOS

Compatibility

Supported Operating System

Windows 10

Compatible Products

LGA1200 Socket 10th & 11th Gen Intel Processor

Warranty

3 year

Additional Info

Feature

Intel Z590 (LGA 1200) ATX gaming motherboard with 16 DrMOS power stages, PCIe 4.0, three M.2 slots, 2.5 Gb Ethernet, HDMI, DisplayPort, USB 3.2 Gen 2x2 Type-C, SATA 6 Gbps, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 support and Aura Sync RGB lighting, Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Core processors, Enhanced power solution: 14+2 DrMOS power stages, six-layer PCB, ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability, Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility, Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences, Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line i

Others

5 x Audio jacks, 1 x Optical S/PDIF out port, 1 x PS/2 Keyboard/Mouse combo port, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, 1 x Clear CMOS header

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Asus TUF GAMING Z590-PLUS Motherboard In Bangladesh

Asus TUF Gaming Z590-PLUS DDR4 Motherboard in Bangladesh

Asus TUF GAMING Z590-PLUSmotherboard is a renowned motherboard in Bangladesh. The Asus TUF Gaming Z590-PLUS DDR4 Motherboardis an Intel mainboard. The motherboard used an Intel Z590 chipset. LGA1200 Sockets Supported. In this motherboard, you can use an Intel Core, Pentium Gold and Celeron Processors. The Asus TUF GAMING Z590-PLUSmainboard has a Dual memory channel and 4 memory slot. It supports DDR4 5133(OC), 5000(OC), 4800(OC), 4700(OC), 4600(OC), 4500(OC), 4400(OC), 4266(OC), 4133(OC), 4000(OC), 3866(OC), 3733(OC), 3600(OC), 3466(OC), 3400(OC), 3333(OC), 3200, 3000, 2933, 2800, 2666, 2400, 2133 MHz ram. Maximum ram supports 128GB. Also, you can use 3 M.2/SSD Expansion Slot. Storage Interface is 6.0Gb/s. . Asus TUF Gaming Z590-PLUS DDR4 Motherboardcomes with Graphics. PCI Express Slot are 1 x PCIe 4.0/3.0 x16 slot, 2 x PCIe 3.0 x1 slots. The here audio chipset used Realtek ALC S1200A. Audio Channel available are 7.1, so you can enjoy crystal clear sound. For Network and Connectivity purposes the Asus motherboard offers Intel I225-V 2.5Gb Ethernet lan chipset and it’s speeds 10/100/1000/2500Mbps. USB port available One USB 3.2 Gen 2x2 Type-C, One USB 3.2 Gen 1 Type-C, Two USB 3.2 Gen 2 Type-A, Three USB 3.2 Gen 1 Type-A, Four USB 2.0 Type-A. Also, you will get VGA Port, DVI Port,HDMI Port, SATA Port and TPM Port. . It’s a ATX motherboard. Yes it’s a RGB support motherboard, also you can 2 x AURA RGB headers RGB connector. The Asus TUF Gaming Z590-PLUS DDR4 Motherboardsupported operating system is Windows 10. You will get a 3 year brand warranty.

What is the Asus TUF GAMING Z590-PLUSmotherboard Price in Bangladesh?

The Asus TUF GAMING Z590-PLUSmotherboard Price in Bangladesh is given upper. Ryans computers offer Asus TUF Gaming Z590-PLUS DDR4 Motherboardis the competitive price in BD. You can purchase it from our website or computer shop.

What is the price of Asus TUF GAMING Z590-PLUS Motherboard In Bangladesh?

The price of Asus TUF GAMING Z590-PLUS Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Asus TUF GAMING Z590-PLUS Motherboard from our website or visit our showrooms nearby.
