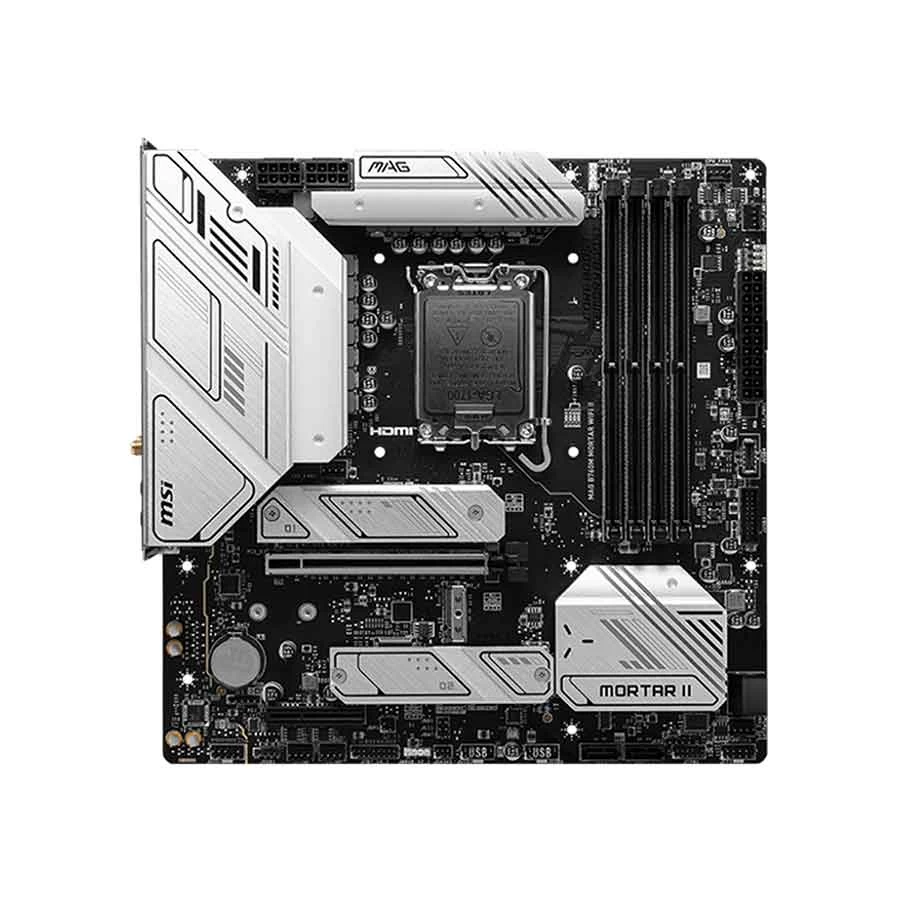

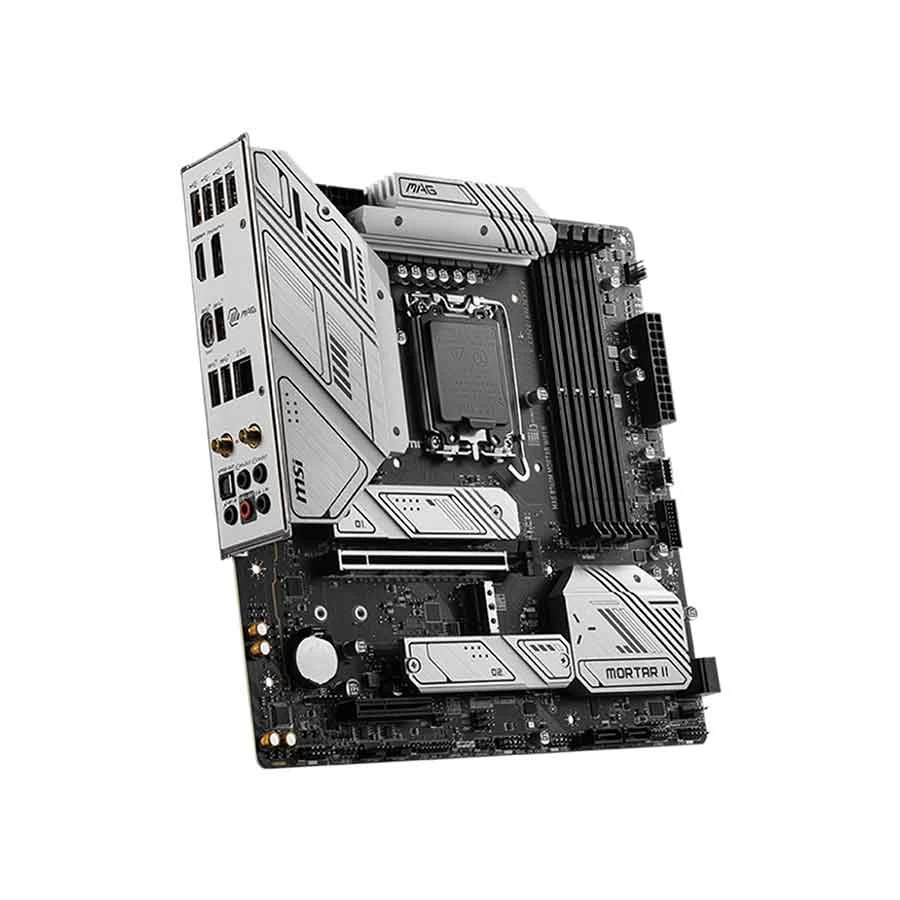

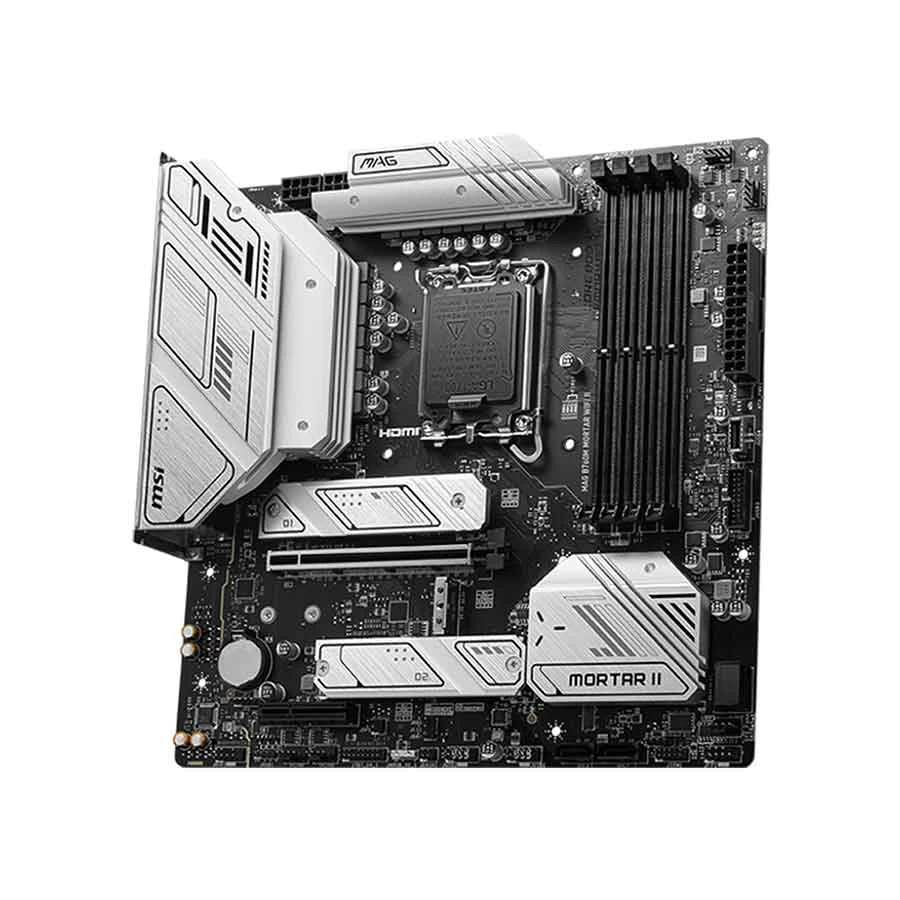

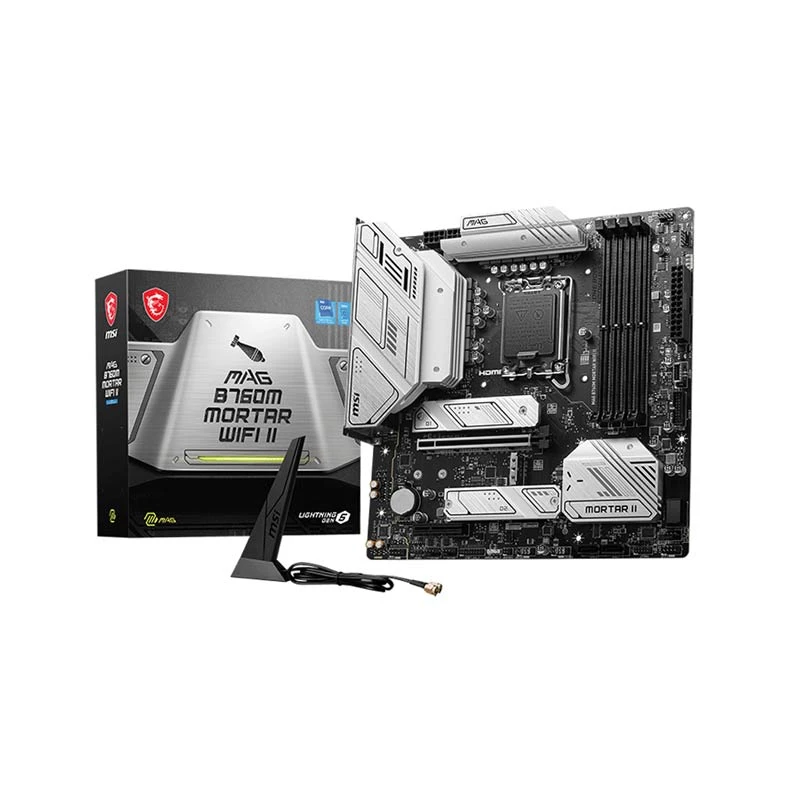

MSI MAG B760M MORTAR II (Wi-Fi 6E) DDR5 Intel Gaming Motherboard

Product Id: 02.01.033.400

Brand MSI

Regular Price Tk 27,890 Monthly EMI Tk 2,324
Special Price Tk 25,900

Quick Overview

  • Chipset - Intel B760
  • Sockets Supported - LGA1700
  • Supported CPU - 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
  • Memory Slot - 4
  • Memory Max. - 192GB
General
Brand
MSI

Model
MSI MAG B760M MORTAR II (Wi-Fi 6E)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B760

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz
7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Memory Channel
Dual

Memory Slot
4

Memory Max.
192GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
3

M.2/SSD Expansion Slot Details
3 x M.2 (1 x M.2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, 1 x M.2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 1 x M.2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

PCI Express Slot
1 x PCI-E x 16 (PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset))


Audio & Video
Audio Chipset
Realtek ALC897 Codec

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 2.5Gbps LAN

LAN Speed (Mbps)
10/100/1000/2500Mbps

WiFi
Yes

WiFi Technology
Wi-Fi 6E

Bluetooth
Bluetooth 5.3


Ports
USB Port
4 x USB 2.0, 3 x USB 3.2 Gen 2 Type A, 1 x USB 3.2 Gen 2 Type C

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
Yes

COM Port
No


Technical Info
CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Connector
1 x RGB LED connector (JRGB)

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Compatibility
Supported Operating System
Windows 11, Windows 10

Compatible Products
Core i3, Core i5, Core i7, Core i9, Pentium Gold (12th Gen, 13th Gen &1 4th Gen)


Warranty
Warranty Details
3 year


Additional Info
Feature
Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology. Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed. M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. PCI-E Steel Armor: Protecting VGA cards against bending and EMI. Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value. Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience. Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps. Core Boost: With premium layout and fully digital power design to support more cores and provide better performance. Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.

Others

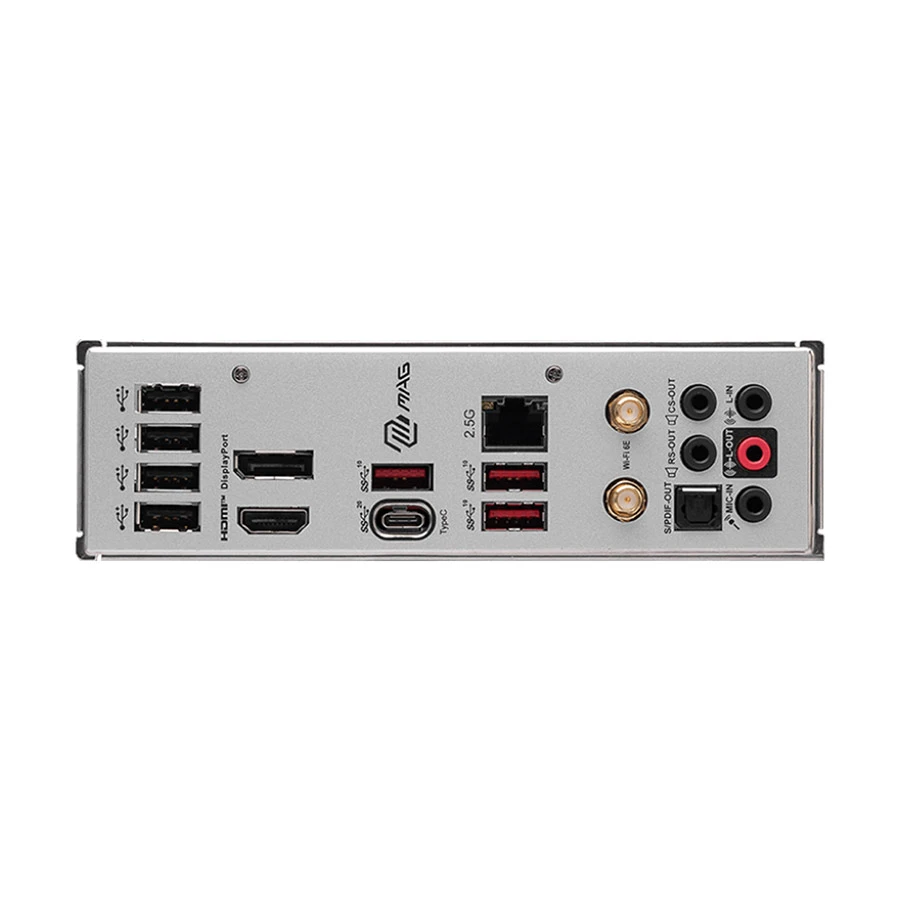

Internal I/O: 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 4x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller connector(JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), Led Feature: 4x EZ Debug LED, Back Panel Ports: HD Audio Connectors.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
