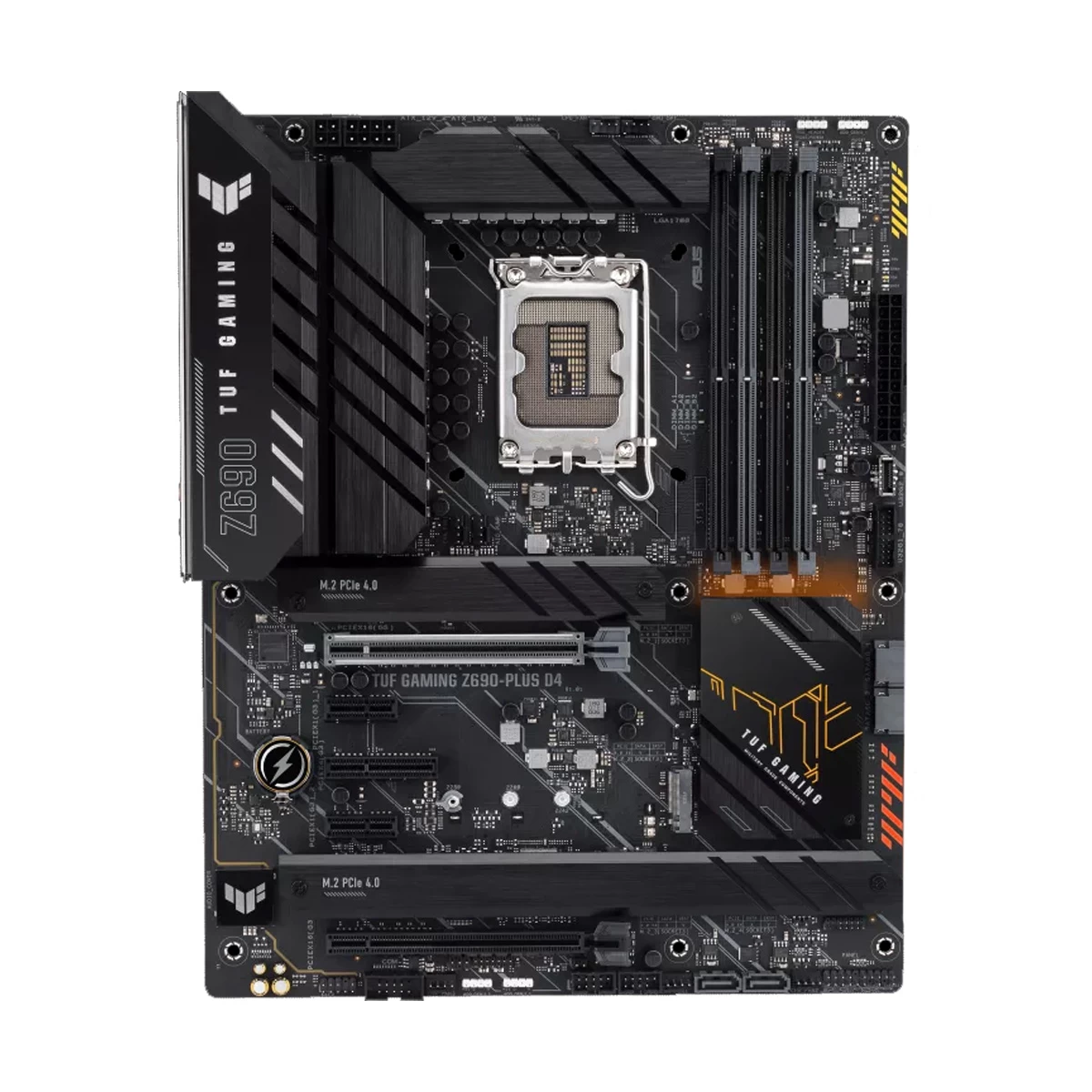

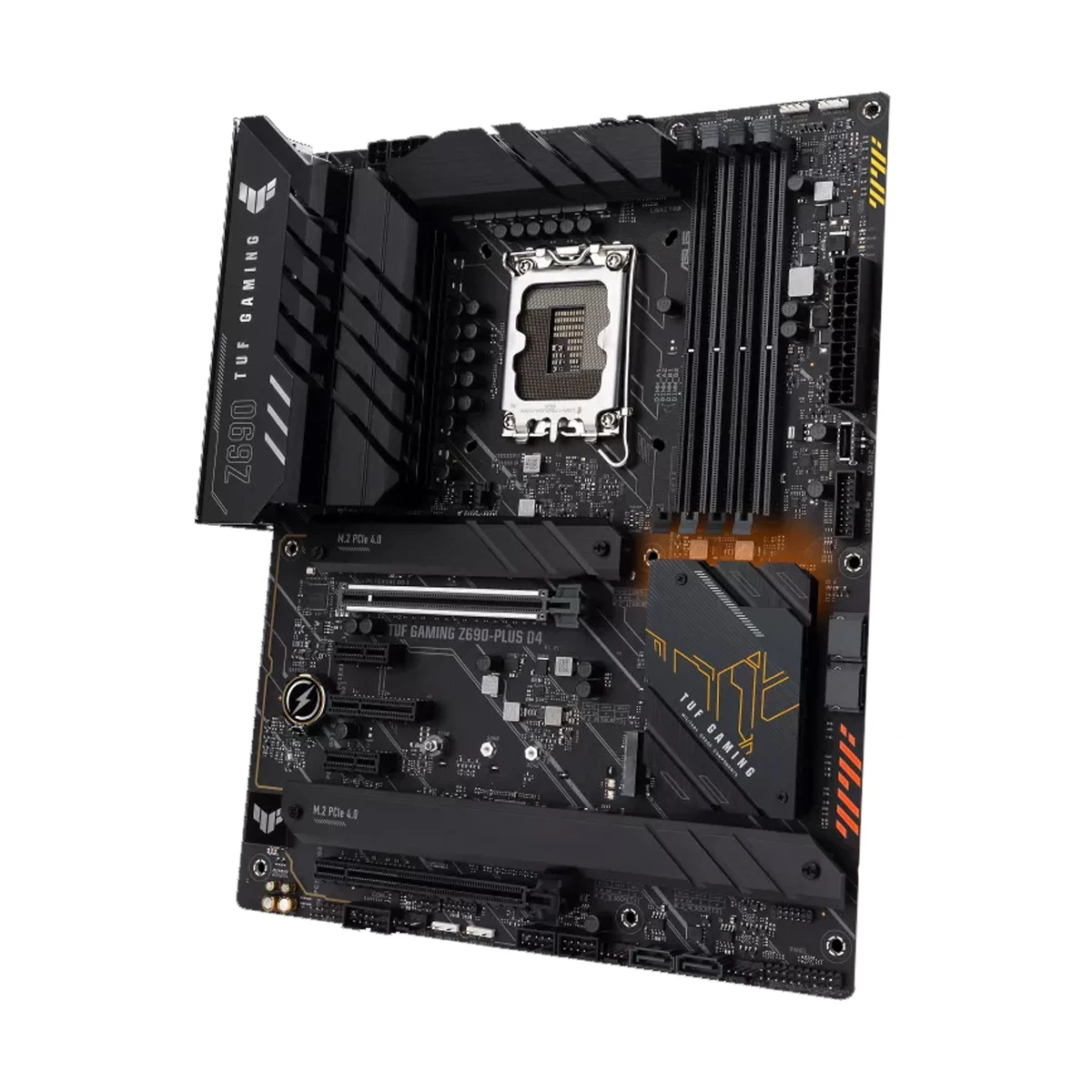

Asus TUF GAMING Z690-PLUS D4 DDR4 12th/13th Gen Intel LGA1700 Socket Motherboard

Product Id: 02.01.006.367

Brand Asus

Regular Price Tk 0
Special Price Tk 0

This item is discontinued.

See similar model

Quick Overview

  • Chipset - Intel Z690
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - 12th/13th Gen Intel Core Processors & Pentium Gold and Celeron Processors
  • Generation - 12th/13th
General
Brand
Asus

Model
Asus TUF GAMING Z690-PLUS D4

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel Z690

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
12th/13th Gen Intel Core Processors & Pentium Gold and Celeron Processors

Generation
12th/13th


Memory Support
Memory Type
DDR4

Memory MHz
5333(OC) /5133(OC) /5000(OC) /4800(OC) /4600(OC) /4400(OC) /4266(OC) /4133(OC) /4000(OC) /3866(OC) /3733(OC) /3600(OC) /3466(OC) /3400(OC) /3333(OC) /3200 /3000 /2933 /2800 /2666 /2400 /2133Mhz

Memory Channel
Dual

Memory Slot
4

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
4

M.2/SSD Expansion Slot Details
4 x M.2 (1 x M.2, type 2242/2260/2280/22110 support PCIe 4.0 x4 mode), (1 x M.2, type 2242/2260/2280 supports PCIe 4.0 x4 & SATA modes), (1 x M.2 type 2242/2260/2280/22110 supports PCIe 4.0 x4 mode), (1 x M.2 type 2242/2260/2280 supports PCIe 4.0 x4 mode)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated with Processor

PCI Express Slot
1 x PCIe 5.0 x16 slot, 1 x PCIe 3.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x4 slot, 2 x PCIe 3.0 x1 slots


Audio & Video
Audio Chipset
Realtek High Definition Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Intel 2.5Gb Ethernet

LAN Speed (Mbps)
10/100/1000/2500Mbps

WiFi
No


Ports

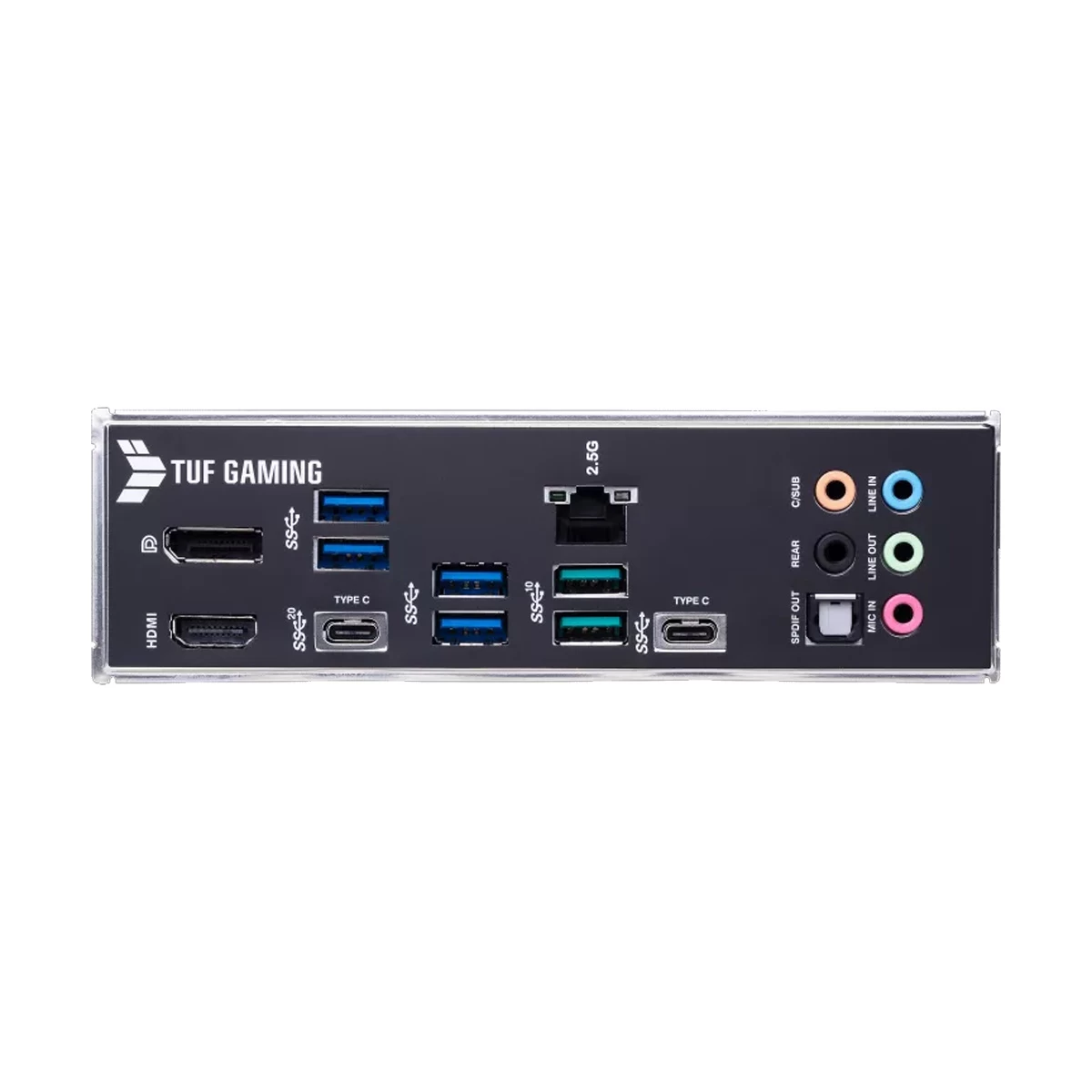

USB Port
1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 2 ports Type-A, 4 x USB 3.2 Gen 1 USB Type-A,1 x USB 3.2 Gen 1 Type-C

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

SATA Port
4

Thunderbolt
1


Technical Info
CrossFire Support
No

Sli Support
No

RGB Support
RGB

RGB Sync
Aura Sync

RGB Connector
1 x AURA RGB header

Approx. Power Consumption
90W

Form Factor
ATX


Bios Information
BIOS Type
192 (128+64) Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 10/11


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
ASUS Exclusive Software (Armoury Crate, AI Suite 3, MyAsus, WinRAR), Audio Features (Audio Shielding, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers, Audio Cover)

Others
Manageability: WOL by PME, PXE, Internal I/O Connectors: (1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, 1 x AURA RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderbolt header)

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
