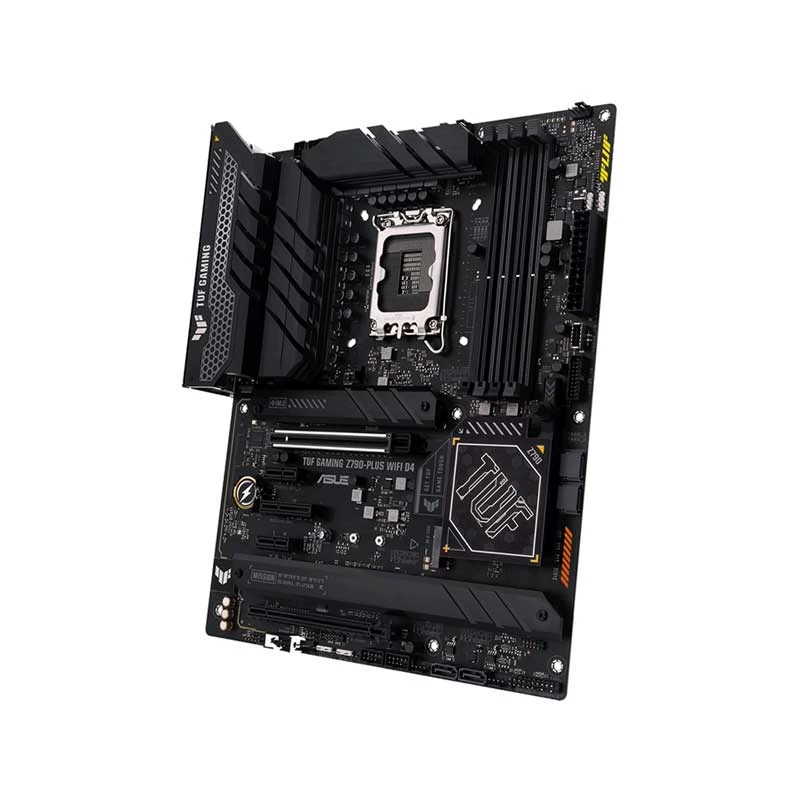

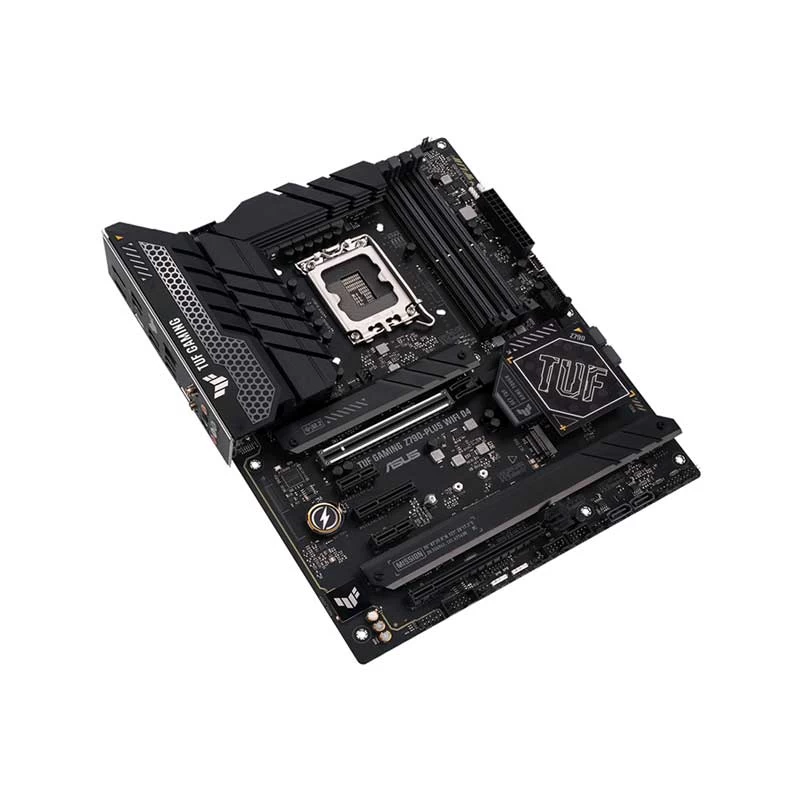

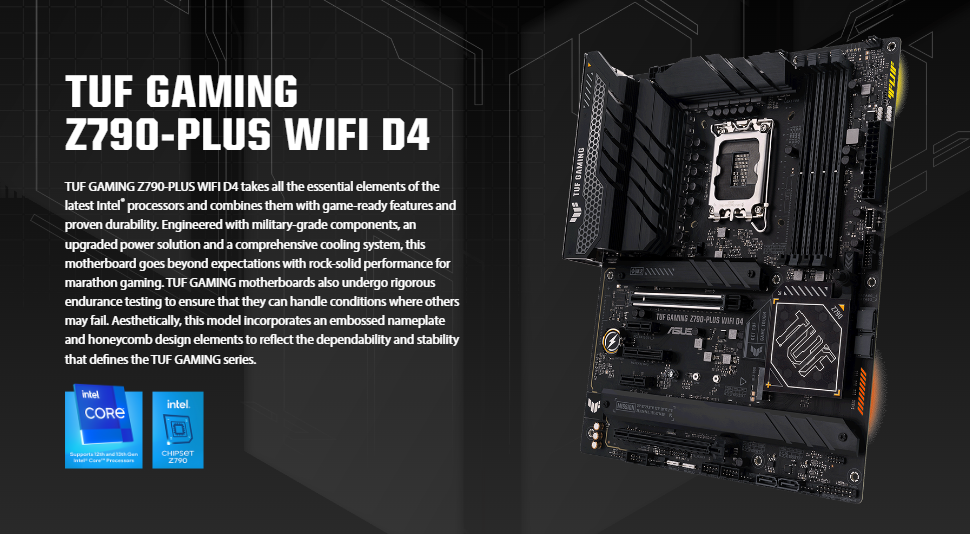

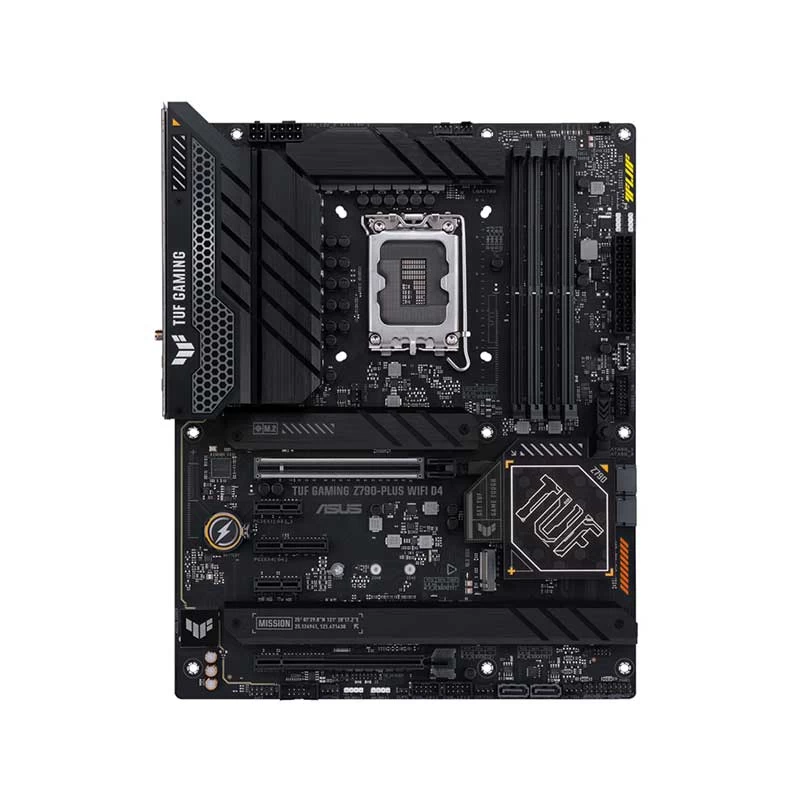

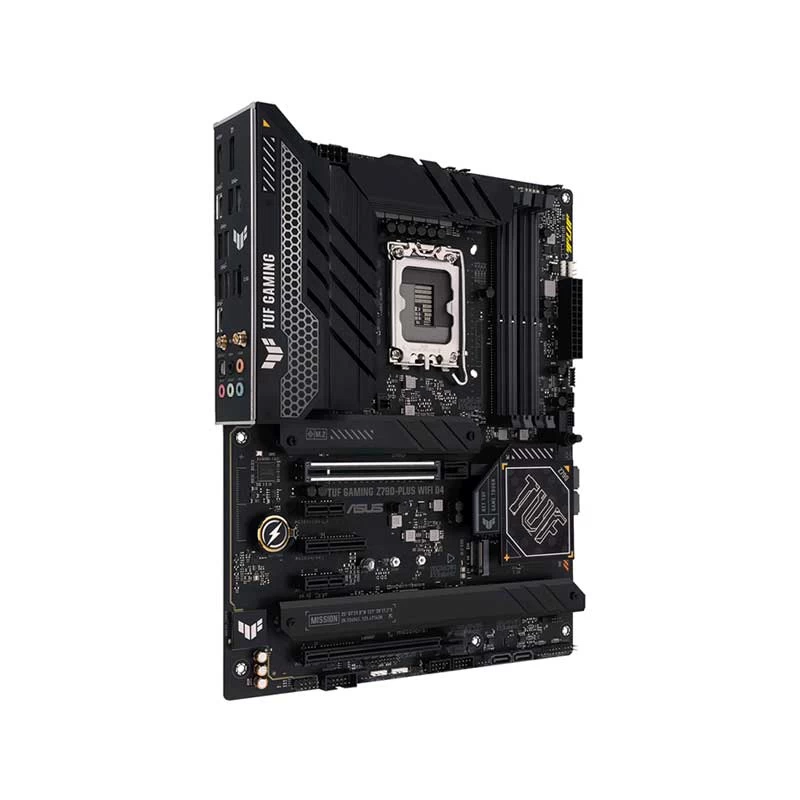

Asus TUF GAMING Z790-PLUS D4 (Wi-Fi 6) DDR4 Motherboard

Product Id: 02.01.006.456

Brand Asus

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - Intel Z790
  • Sockets Supported - LGA1700
  • Supported CPU - 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
  • Generation - 12th/13th
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
Asus

Model
Asus TUF GAMING Z790-PLUS D4 (Wi-Fi 6)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel Z790

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors

Generation
12th/13th


Memory Support
Memory Type
DDR4

Memory MHz
5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory

Memory Channel
Dual

Memory Slot
4

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
4

M.2/SSD Expansion Slot Details
4 x M.2 (2 x M.2 (Key M), type 2242/2260/2280/22110, 2 x M.2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) & SATA)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot

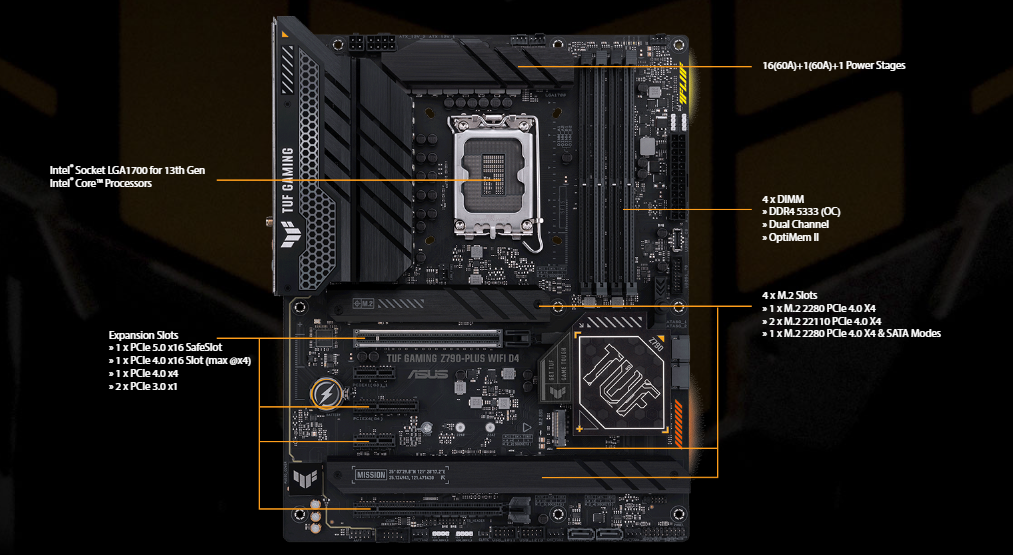

1 x PCIe 5.0 x 16, 1 x PCIe 4.0 x 16, 1 x PCIe 4.0 x 4, 2 x PCIe 3.0 x 1


Audio & Video

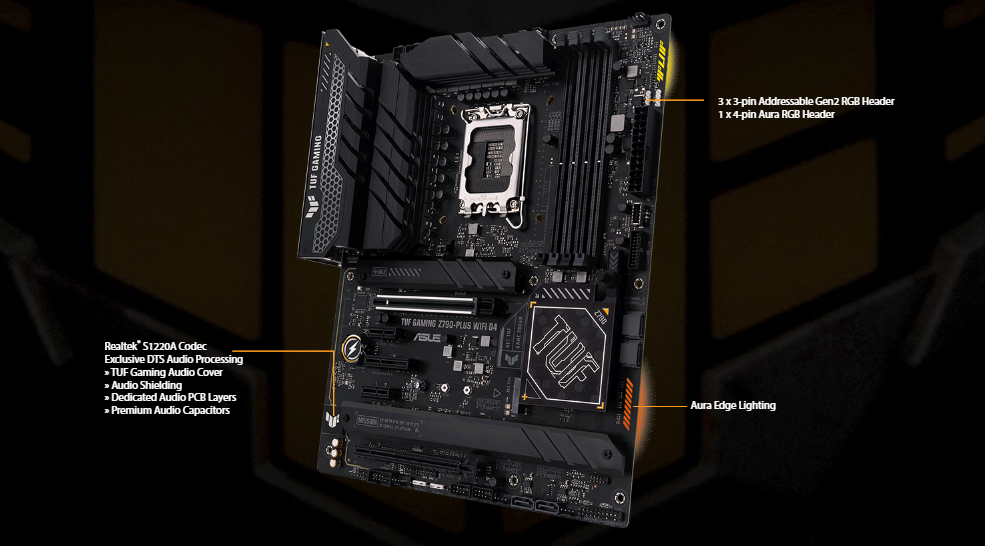

Audio Chipset
Realtek S1220A High Definition Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Intel 2.5Gb Ethernet

LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps

WiFi
Yes

WiFi Technology
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Bluetooth
Bluetooth 5.2

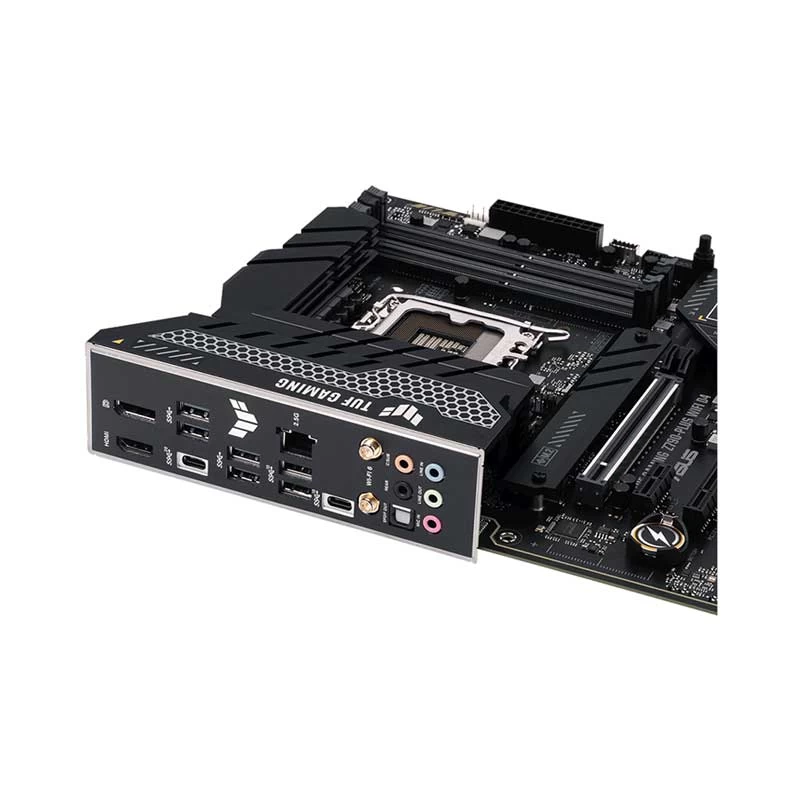

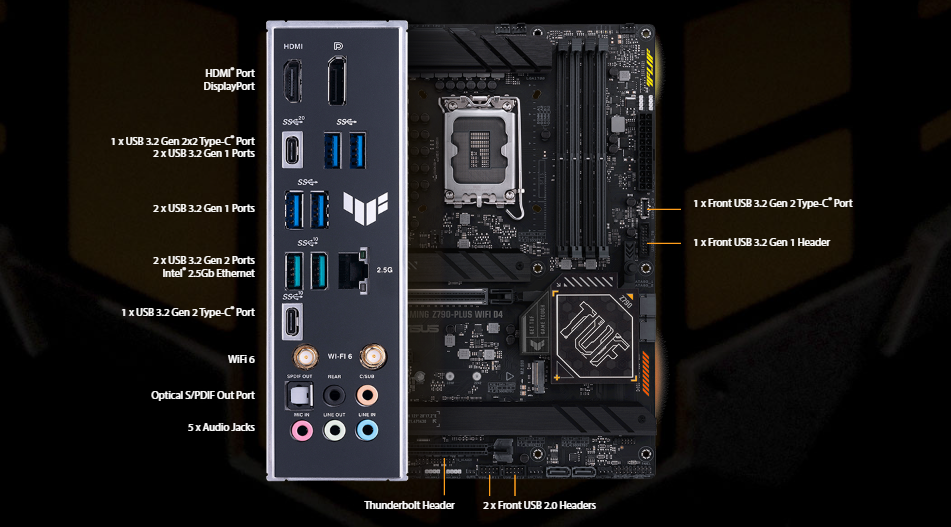

Ports
USB Port
4 x USB 3.2 Gen 1 Type A, 2 x USB 3.2 Gen 2 Type A, 2 x USB 3.2 Gen 2 Type C

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
1

TPM Port
No

COM Port
1


Technical Info
CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Sync
1 x Aura RGB header

Approx. Power Consumption
90W

Form Factor
ATX


Bios Information
BIOS Type
192 (128+64) Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 11, 10

Compatible Products
Core i3, Core i5, Core i7, Core i9, Pentium Gold (12th Gen & 13th Gen)


Warranty
Warranty Details
3 Years Replacement Warranty


Additional Info
Feature

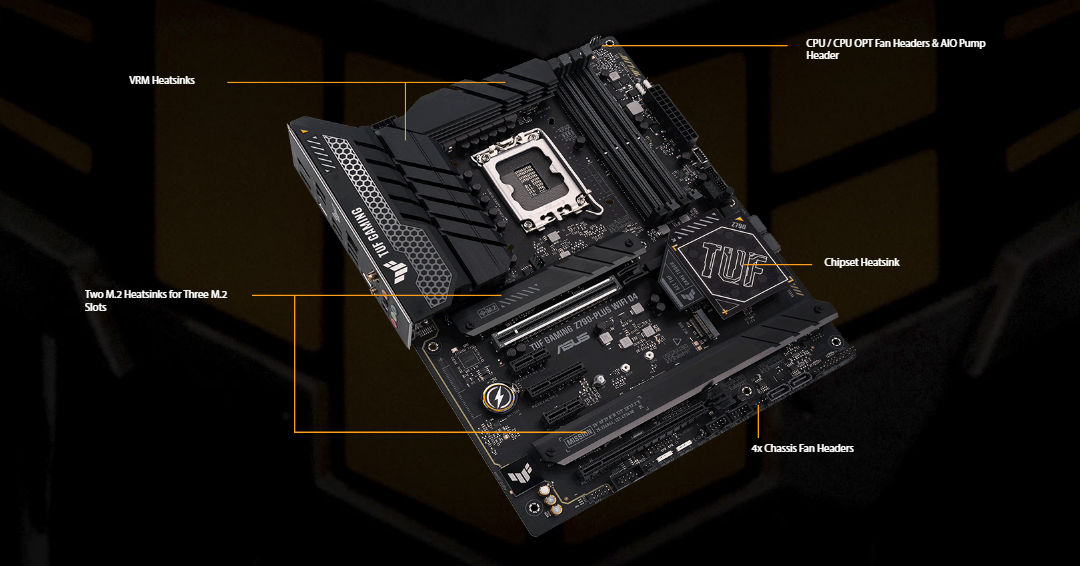

Asus tuf protection: DIGI+ VRM (- Digital power design with DrMOS), ESD Guards, TUF LANGuard, Overvoltage Protection, Safeslot, Stainless-Steel Back I/O, ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot, ASUS Thermal Solution:M.2 heatsink, VRM heatsink design, ASUS Exclusive Software: Armoury Crate, Aura Creator, Aura Sync, TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers.

Others
Internal I/O Connectors: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, Back Panel I/O Ports: 1 x Wi-Fi Module, 5 x Audio jacks, 1 x Optical S/PDIF out port.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
