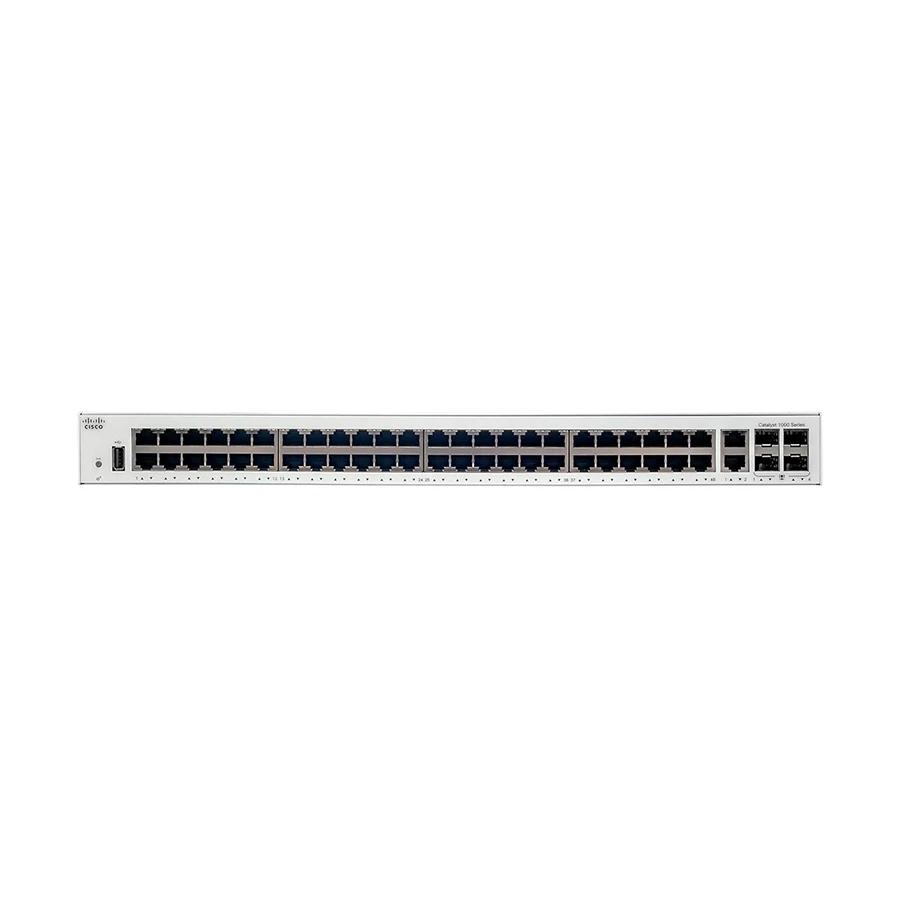

Cisco Catalyst 1000 Series 52 Port Network Switch #C1000-48T-4G-L
Product Id: 29.05.493.93
Brand
Cisco
Quick Overview
- Form Factor - Rackmount
- Port - Above 30 Port
- Type - Network Switch
- Manageability - Managed
- PoE - No
General
Brand
Cisco
Model
Cisco Catalyst 1000 Series
Type
Network Switch
Part No
C1000-48T-4G-L
Ports & Slots
Port
Above 30 Port
Number of Total Port
52 Port
Gigabit Port
52
SFP Port
4
SFP+ Port
No
PoE Port
No
PoE+ Port
No
Technical Info
PoE
No
Manageability
Managed
Interface(s)
48 x 10/100/1000 Ethernet ports, 4 x 10/100/1000 SFP uplinks
Memory
512MB
Connector Type
48 x 10/100/1000 RJ45 ports, 4 x 10/100/1000 RJ45 SFP uplinks
Switching Capacity
104 Gbps
MTBF
1,452,667 hours
Physical Description
Fan/Fanless
Fanless
Indicators
Per-port status: link integrity, disabled, activity, System status: system.
Body Color
Black
Form Factor
Rackmount
Dimension
444.5 x 272.542 x 43.942mm
Power
Power Supply
100 - 240 VAC, 50/ 60 Hz
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Console ports: (RJ-45 Ethernet, USB mini-B, USB-A port for storage and Bluetooth console), CPU: ARM v7 800 MHz, Flash memory: 256MB, Forwarding bandwidth: 52 Gbps, Forwarding rate(64byte L3 packets): 77.38 Mpps, Unicast MAC addresses: 16000, IPv4 unicast direct routes: 542, IPv4 unicast indirect routes: 256, IPv6 unicast direct routes: 414, IPv6 unicast indirect routes: 128, IPv4 static routes: 16, IPv6 static routes: 16, IPv4 multicast routes and IGMP groups: 1024, IPv6 multicast groups: 1024, IPv4/MAC security ACEs: 600, IPv6 security ACEs: 600, Maximum active VLANs: 256, VLAN IDs available: 4094, Maximum STP instances: 64, Maximum SPAN sessions: 4, MTU-L3 packet: 9198 bytes, Jumbo Ethernet frame: 10,240 bytes, Dying Gasp: Yes, Safety: (UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 GB 4943.1-2011), EMC: Emissions: (47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A), EMC: Immunity: (EN55024 (including EN 61000-4-5), EN300386, KN35), Environmental: (Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU).
Country Of Origin
USA
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
