Colorful CVN B550M GAMING FROZEN V15 DDR4 AMD AM4 Socket Motherboard

Item: Colorful CVN B550M GAMING FROZEN V15 DDR4 AMD AM4 Socket Motherboard
Rating: 5
Author: Verified Buyer

Product Id: 02.02.100.14

Out Of Stock

See similar model

Quick Overview

Form Factor - Micro-ATX
Chipset - AMD B550
Sockets Supported - AM4
Supported CPU - Supports AMD Ryzen Series Processors That Fit The AMD AM4 Slot
Generation - Not Applicable
Memory Slot - 4
Memory Max. - 128GB
Back-Connect Design - No
Body Color - White

Payment Method Shipping & Charge Order Procedure

Brand

Colorful

Model

Colorful CVN B550M GAMING FROZEN V15

Chipset

AMD B550

Sockets Supported

AM4

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

128GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 10/ 11

Body Color

White

Warranty

3 year

General

Brand

Colorful

Model

Colorful CVN B550M GAMING FROZEN V15

Body Color

White

CPU

Chipset Brand

AMD

Chipset

AMD B550

Sockets Supported

AM4

Built-in Processor

Supported CPU

Supports AMD Ryzen Series Processors That Fit The AMD AM4 Slot

Generation

Not Applicable

Memory Support

Memory Type

DDR4

Memory MHz

4000 (OC)/3800 (OC)/3600 (OC)/3200/2933/2666/2400MHz

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

4 x DDR4

Memory Max.

128GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

2 x M.2 Slot (1. supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4/SATA, CPU channel)), 2. supports 2280 M.2 SSD (PCIe 3.0 x4, PCH channel))

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated With Processor

PCI Express Slot

1xPCIe 4.0 x16 slot, 1xPCIe 3.0 x4 slot, 1xPCIe 3.0 x1 slot

Audio & Video

Audio Chipset

Realtek ALC897

Audio Channel

7.1

Network & Connectivity

LAN Chipset

RTL8125 2.5Gbit LAN

LAN Speed (Mbps)

10/ 10/ 1000/ 2500Mbps

WiFi

Bluetooth

Ports

USB Port

2 x USB 2.0, 3 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 1 Type-C

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

Thunderbolt

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

0 , 1 , 10

RGB Support

ARGB

RGB Connector

2 x 5V 3-pin ARGB pins, 2 x 12V 4-pin RGB pins

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

128M

BIOS Model

UEFI BIOS

Compatibility

Supported Operating System

Windows 10/ 11

Compatible Products

Supports AMD Ryzen Series Processors That Fit The AMD AM4 Slot

Warranty

3 year

Additional Info

Feature

CVN series exclusive customized white motherboard, CVN series customized frost cooling armor with full coverage condensing fins to enhance heat dissipation, Equipped with Realtek 2.5G fast wired network card, Support iGame Center light efficiency control software, which can synchronously adjust the light efficiency of heat sinks, cooling fans, and memory, Six major protective technologies ensure more stable product operation, Strict testing of 200 processes with guaranteed quality, Comprehensive upgrade of PCB atomization process.

Others

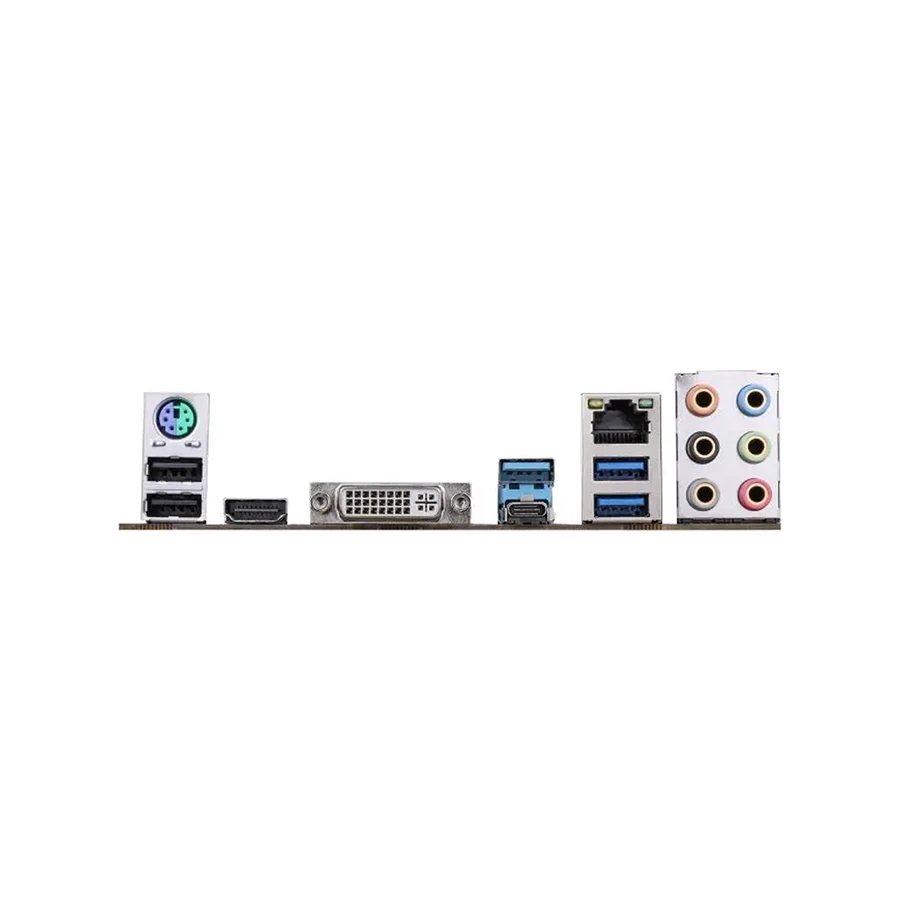

Product Series: CVN series. Support Extreme Memory Profile (XMP) memory technology. Rear I/O : 2xUSB 2.0 interfaces, 3xUSB 3.2 Gen 1 Type-A interfaces, 1xUSB 3.2 Gen 1 Type-C interface, 1xHDMI 1.4 interface, Supports up to 4K 30Hz resolution, 1xDVI interface, 1xPS/2 interface, 1x2.5G network interface, 6xAudio interfaces (audio input/audio output/microphone). On board: 1xCPU fan pin, 3xSystem fan pins, 1xWater cooling pump pin, 2xUSB 2.0 pins expandable 4 USB 2.0 Type-A interfaces, 1xUSB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces, 2x5V 3-pin ARGB pins, 2x12V 4-pin RGB pins, 1xFront audio pin, 1xFront panel pin, 1xSpeaker pin, 1xClear CMOS jumper, 1xCOM port pin, 1xBIOS burner pin, 1xUSB live control jumper. Power Management: Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot. Hardware Monitor: CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring. Configuration: M-ATX - 245 x 245mm.

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Colorful CVN B550M GAMING FROZEN V15 Motherboard In Bangladesh

The Colorful CVN B550M GAMING FROZEN V15 is a high-performance micro-ATX motherboard designed for AMD AM4 socket processors. It’s built for gamers and performance enthusiasts who demand reliability and speed. With support for DDR4 memory, PCIe 4.0, and other advanced features, it ensures a smooth gaming and computing experience.

Features and Benefits

AMD AM4 Socket: Supports Ryzen processors for powerful performance.
DDR4 Memory Support: Provides up to 128GB of RAM for multitasking.
PCIe 4.0 Support: Ensures faster data transfer for gaming and applications.

M.2 Slot: Enables NVMe SSD installation for ultra-fast storage.
HD Audio: Delivers high-quality sound for immersive gaming experiences.
Frozen Aesthetic Design: Stylish white theme complements high-end gaming setups.
Enhanced Cooling: Keeps components cool during intensive gaming sessions.

Buying Guide

Processor Compatibility: Ensure you have an AMD AM4 socket processor.
Memory: DDR4 support for fast and responsive system performance.
PCIe 4.0: Look for this feature if you need faster data transfers.
Expansion Slots: Check if it has enough slots for your gaming components.
Aesthetic Preference: Ideal for users who want a visually appealing frozen design.

Call to Action

Upgrade your gaming rig with the Colorful CVN B550M GAMING FROZEN V15 motherboard! Visit Ryans Computers today for the best deals!

What is the price of Colorful CVN B550M GAMING FROZEN V15 Motherboard In Bangladesh?

The price of Colorful CVN B550M GAMING FROZEN V15 Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Colorful CVN B550M GAMING FROZEN V15 Motherboard from our website or visit our showrooms nearby.
