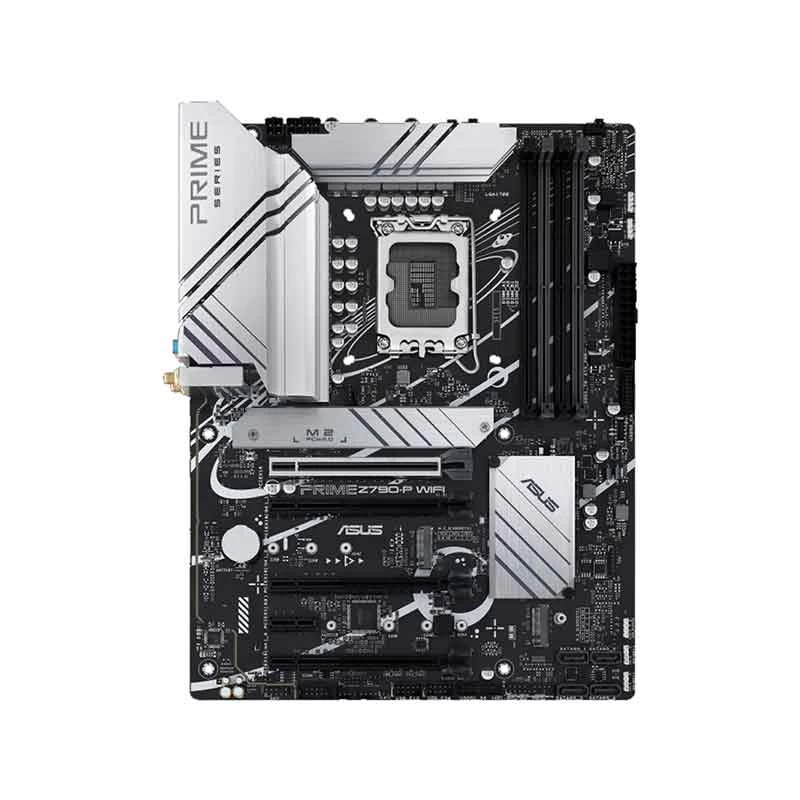

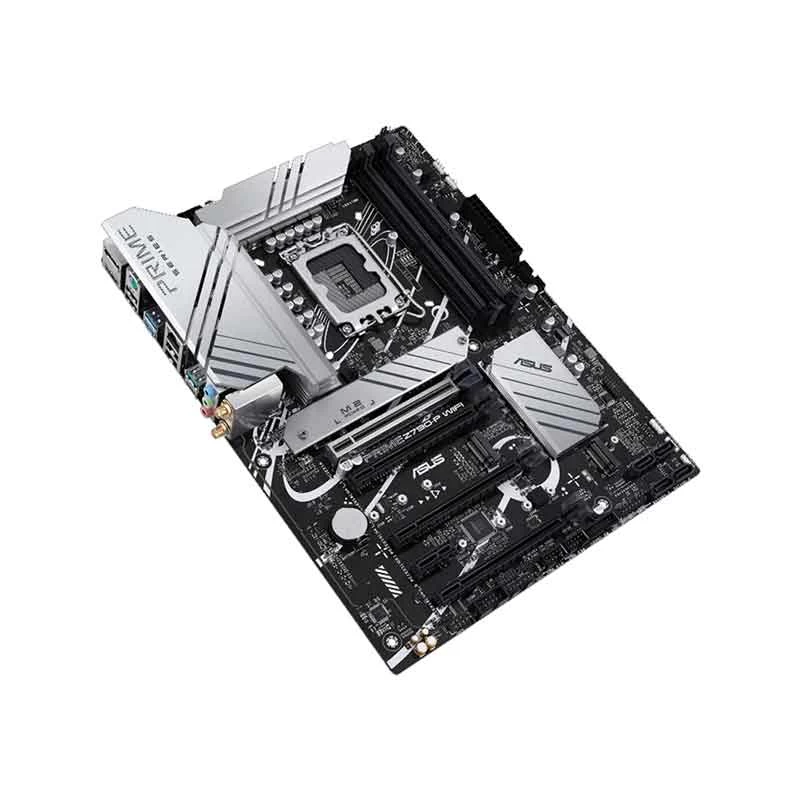

Asus PRIME Z790-P-CSM (Wi-Fi 6) DDR5 Intel Motherboard

Product Id: 02.01.006.439

Brand Asus

Regular Price Tk 39,280 Monthly EMI Tk 3,273
Special Price Tk 36,200 Ecom Discount Tk 200

Quick Overview

  • Chipset - Intel Z790
  • Sockets Supported - LGA1700
  • Supported CPU - 13th/12th Gen Intel Core, Pentium Gold and Celeron Processors
  • Generation - 12th/13th
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
Asus

Model
Asus PRIME Z790-P-CSM (Wi-Fi 6)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel Z790

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
13th/12th Gen Intel Core, Pentium Gold and Celeron Processors

Generation
12th/13th


Memory Support
Memory Type
DDR5

Memory MHz
7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory

Memory Channel
Dual

Memory Slot
4

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
3

M.2/SSD Expansion Slot Details

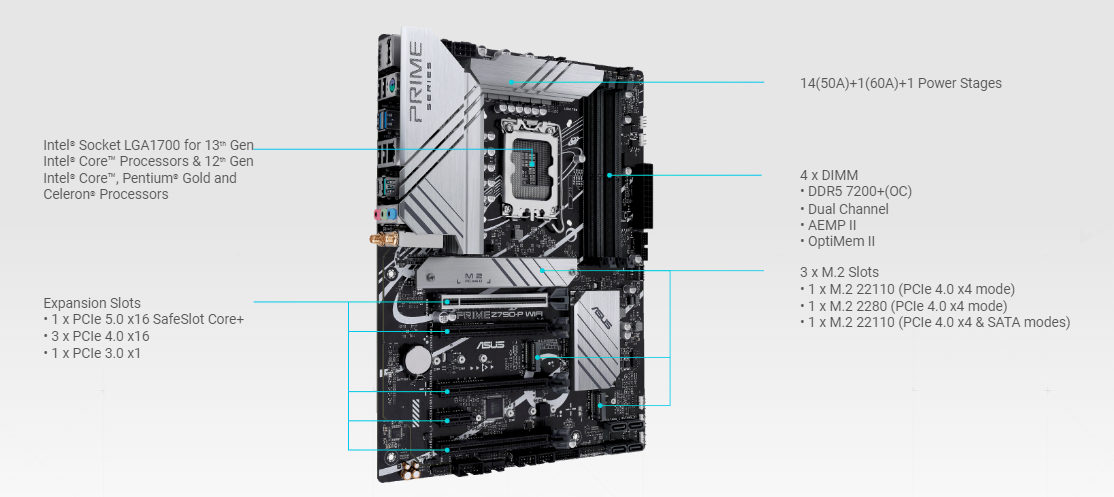

3 x M.2 (1 x M.2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), 1 x M.2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 1 x M.2 (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes))


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCIe 5.0 x16 (13th & 12th Gen Processors), 3 x PCIe 4.0 x16 (support x4 mode), 1 x PCIe 3.0 x1


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 2.5Gb Ethernet

LAN Speed (Mbps)
10/100/1000/2500 Mbps

WiFi
Yes

WiFi Technology
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Bluetooth
Bluetooth 5.2


Ports
USB Port

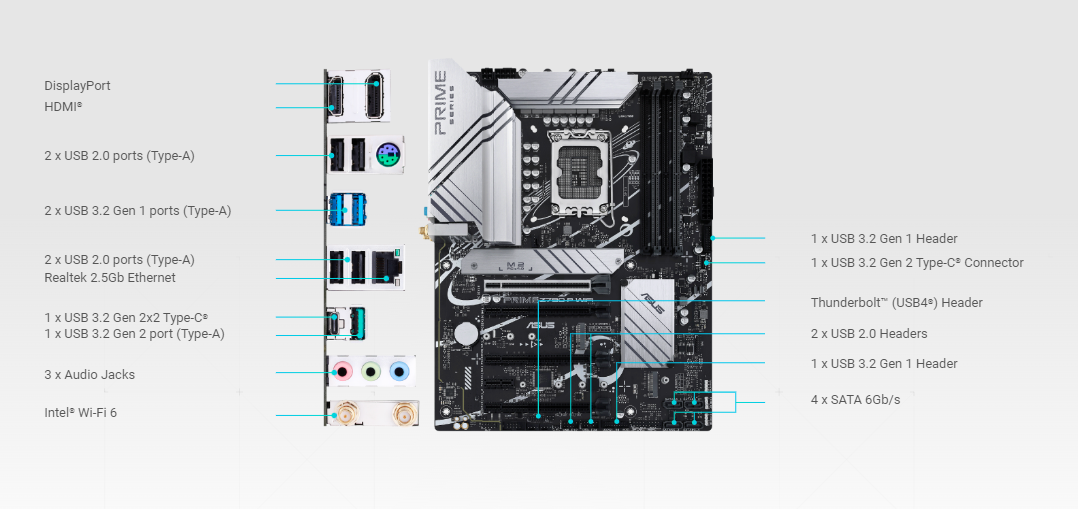

4 x USB 2.0 Type-A, 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
1

TPM Port
1

COM Port
1


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0,1,5,10

RGB Support
RGB

RGB Sync
Aura RGB

RGB Connector

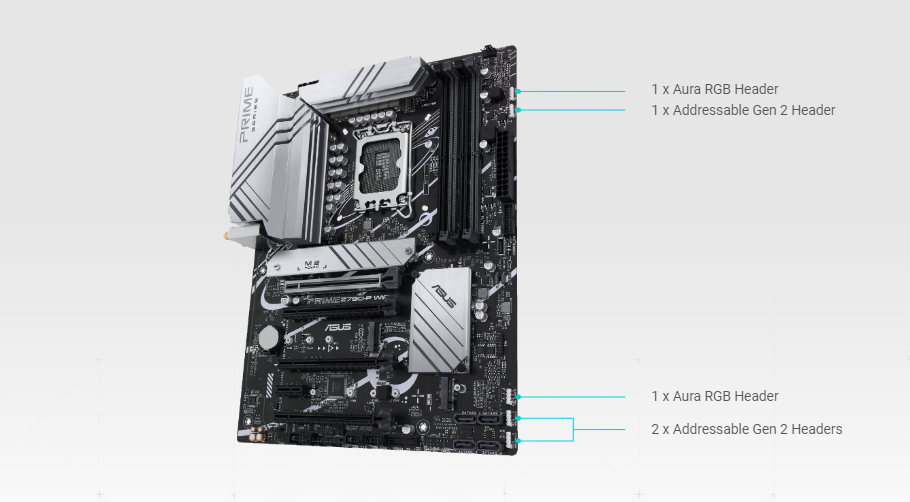

2 x Aura RGB headers

Approx. Power Consumption
90W

Form Factor
ATX


Bios Information
BIOS Type
192 (128+64) Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 11, 10

Compatible Products
Core i3, Core i5 ,Core i7,Core i9, Pentium Gold (12th Gen & 13th Gen)


Warranty
Warranty Details
3 Years Replacement Warranty


Additional Info
Feature

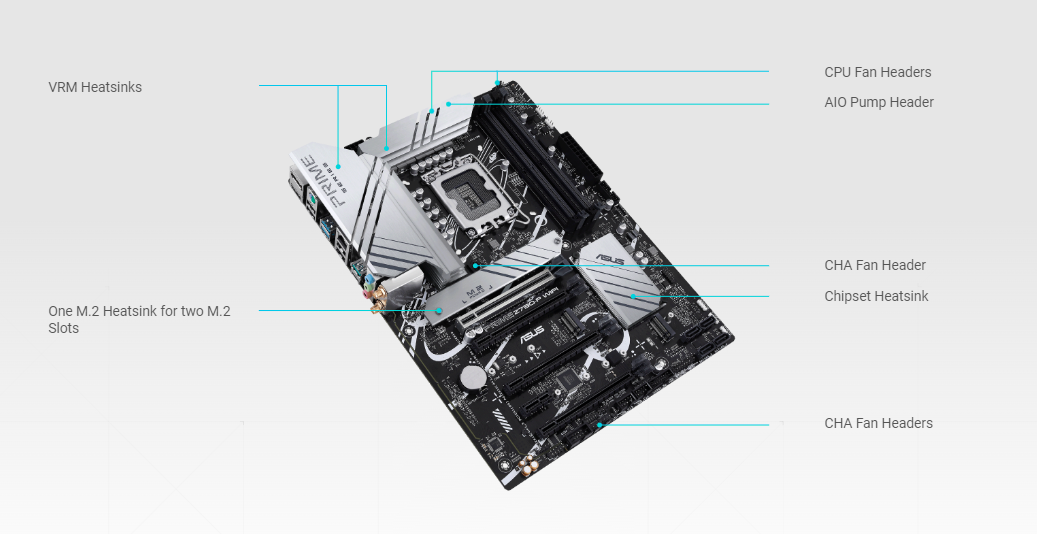

Special Features: ASUS 5X PROTECTION III, DIGI+ VRM (- Digital power design with DrMOS), LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, Q-LED Core, ASUS Thermal Solution Flexible M.2 heatsink, VRM heatsink design ASUS EZ DIY ProCool. Software Features: ASUS Exclusive Software, UEFI BIOS. Manageability: WOL by PME, PXE.

Others

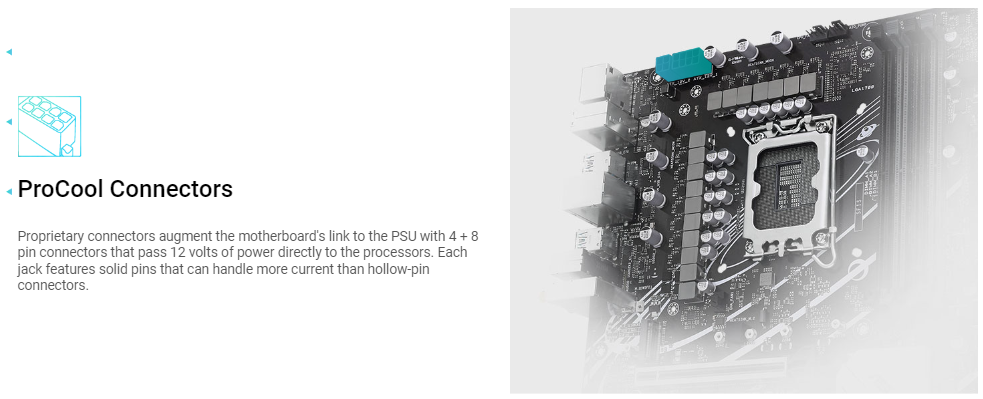

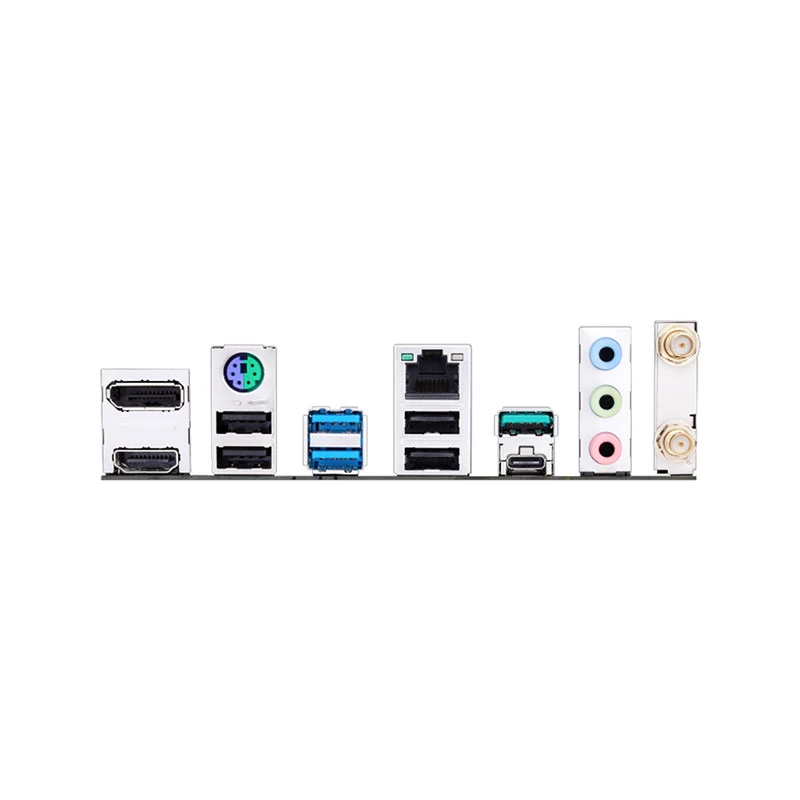

Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers, Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector, Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header. Back Panel I/O Ports: 1 x Wi-Fi Module, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
