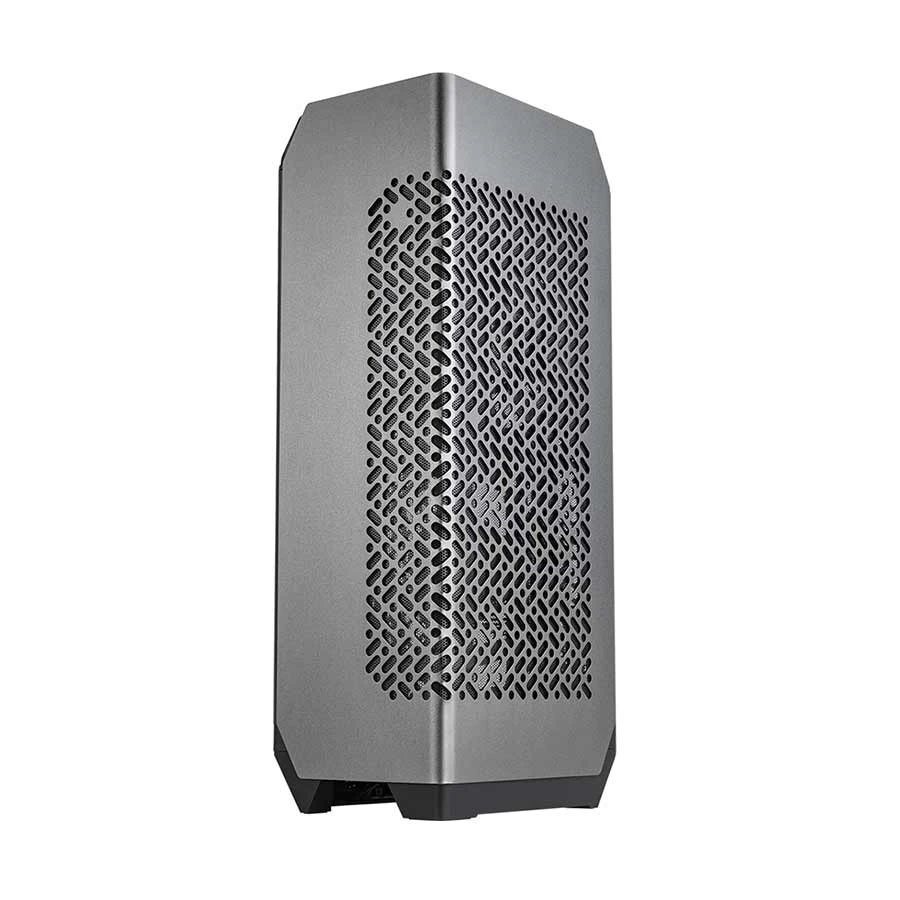

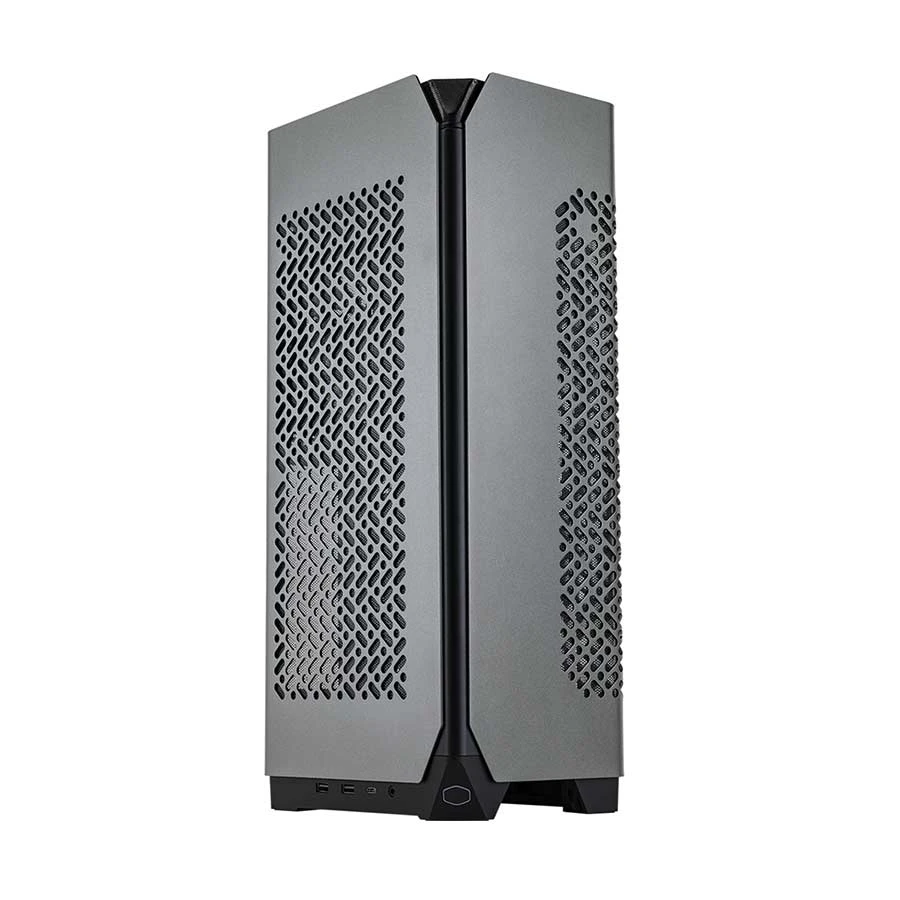

Cooler Master Ncore 100 MAX Mini Tower Dark Gray ITX Gaming Desktop Case With SFX 850W PSU #NR100-MNNN85-SL0
USB 3.2 Gen1 Type A x 2, USB 3.2 Gen2 x 2 Type C x 1
Front/Top Audio Port
Audio combo x 1
Expansion Slots
3
Optical Drive Bay
No
Cooling Fan (Built-In)
1
Additional Fan Slot
Unmentioned
Power Supply (Built-In)
Yes
Power Supply Type
SFX
Back-Connect Supported
No
Transparent Side Window
No
Dust Cover
Side panels
Color
Dark Gray
Dimensions
155 x 212 x 481mm (Normal mode), 172 x 212 x 481mm (Expansion mode)
Warranty Details
No warranty
General
Brand
Cooler Master
Model
Cooler Master Ncore 100 MAX
Series
Gaming
Case Type
Mini Tower
Part No
NR100-MNNN85-SL0
Technical Info
Supported Motherboard Type
ITX
Supported LED Strip
Unmentioned
Fan / Light Controller
Unmentioned
Back-Connect Supported
No
Graphics-Card Length
337 x 62 x 180mm (Normal, 3.0 Slot thick), 357 x 79 x 180mm (Expansion, 3.9 Slot thick)
Supported CPU Cooler
Air Cooler or Liquid Cooler
CPU Cooler Height
48mm
PSU Length
100mm
Ports & Slots
Front/Top USB port
USB 3.2 Gen1 Type A x 2, USB 3.2 Gen2 x 2 Type C x 1
Front/Top Audio Port
Audio combo x 1
5.25 Inch Drive Bay
No
3.5 Inch Drive Bay
No
2.5 Inch Drive Bay
1
1.8 Inch Drive Bay
No
Expansion Slots
3
Optical Drive Bay
No
Fan & Radiator Details
Cooling Fan (Built-In)
1
Additional Fan Slot
Unmentioned
Pre-Installed Fan Size
120mm SickleFlow PWM fan x1(max. 1800RPM)
Lighting Fan
No
Radiator Support Max.
Unmentioned
Power
Power Supply (Built-In)
Yes
Power Supply Type
SFX
Power Supply
850W
Approx. Power Consumption
5W
Physical Description
Transparent Side Window
No
Material
Steel, Plastic, Aluminum
Dust Cover
Side panels
Color
Dark Gray
Dimensions
155 x 212 x 481mm (Normal mode), 172 x 212 x 481mm (Expansion mode)
Warranty
Warranty Details
No warranty
Additional Info
Others
Volume (Liters Incl. Protrusions) 15.80L / 17.54L, Included Riser Cable 240mm PCIe 4.0 x16 x 1, RAM 48mm, Behind MB Tray 11mm, Included Power Supply Unit V SFX Gold 850W ATX3.0. All-In-One Watercooling Solution: CPU Socket: Intel LGA 1700 / 1200 / 1151 / 1150 / 1155 / 1156 / socket, AMD AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 socket, Radiator: Material Aluminum, Dimensions (L x W x H): 158.8 x 119.2 x 38mm, Pump: Dimensions (L x W x H): 81 x 76 x 47mm, MTTF (Hours) 70,000 hours, Noise Level (dBA) <12dBA, Connector 3-Pin, Rated Voltage (VDC) 12, Power Consumption (W) 3.96 W. Included Fans: Dimensions (L x W x H): 120 x 120 x 25mm, LED Type Non-LED, Speed (RPM) 800~2400RPM -/+10%, Airflow (CFM) 16.5 - 76 CFM -/+10%, Noise Level (dBA) 6.5 ~27 dBA, Pressure (mm H2O) 0.48 - 4.8 mm H2O -/+ 10%Life Expectancy (Hours) 160,000 hours, Power Connector 4-Pin(PWM), Rated Voltage (VDC) 12, Rated Current (A) 0.16A. Included Power Supply Specifications: ATX Version ATX3.0 & SFX 12V Ver. 3.42PFC Active PFC, Input Voltage 100-240V, Input Current 12-6A, Input Frequency 50-60Hz, Dimensions (L x W x H) 100 x 125 x 63.5mmFan Size 92mmFan Bearing FDB, Efficiency 90% @ Typical Load, 80 PLUS Rating 80 PLUS Gold, ErP 2014 Lot 3 Yes, Operating Temperature 0~50 Degree C, Power Good Signal 100-500ms, Hold Up Time 16ms, MTBF >100,000 hours, Protections OVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection, Regulatory TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA, Connectors: ATX 24 Pin x1, EPS 8 Pin x1, SATA x2, PCI-e 6+2 Pin x3, 12VHPWR x1.
Country Of Origin
Taiwan
